Highlights

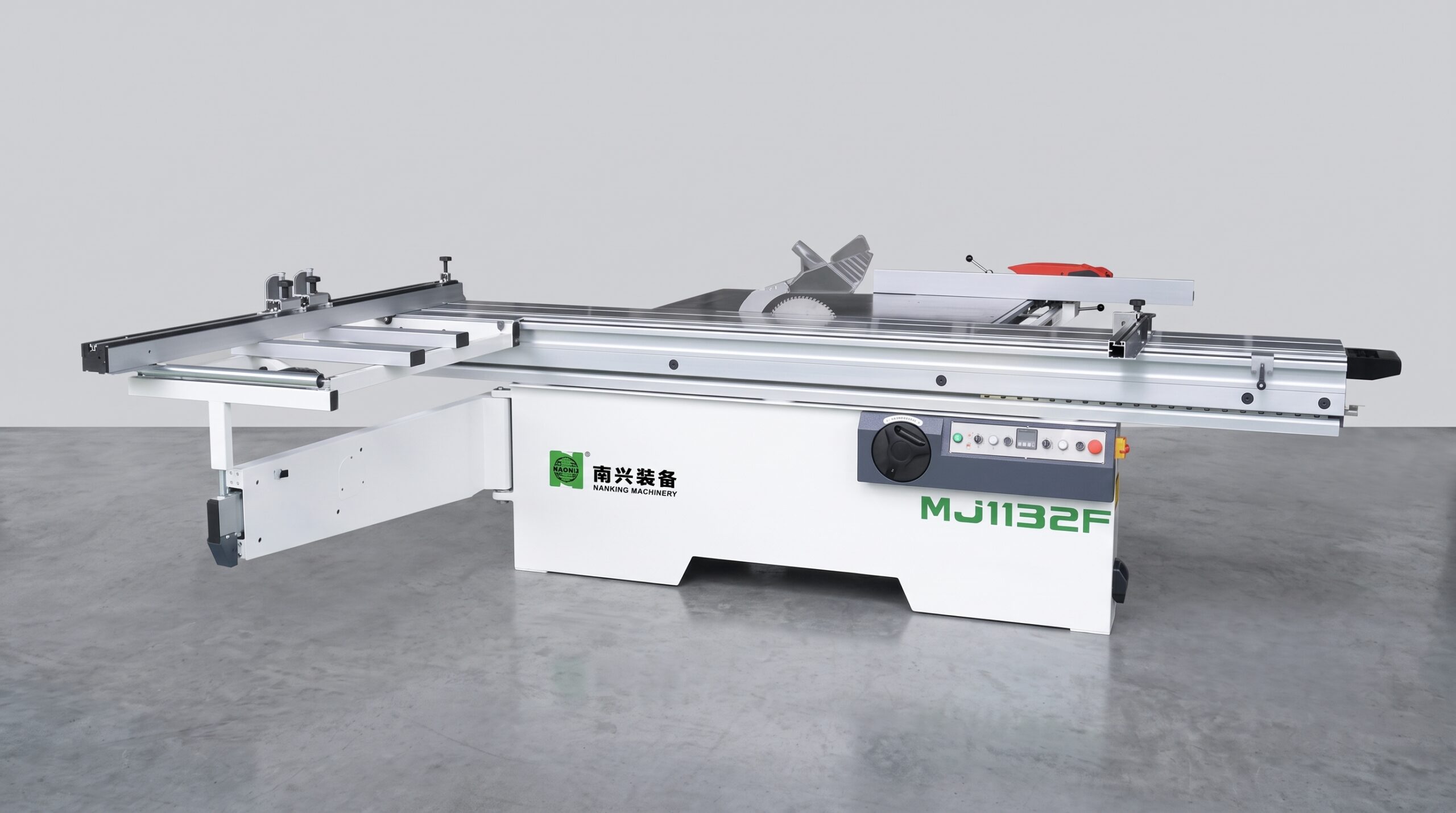

The MJ1132F Sliding Table Saw is designed for flexible and accurate sizing of furniture panels and other wood-based boards. It combines a 3100 mm maximum cutting length, 100 mm cutting thickness at 0°, a 5.5 kW main saw motor and a smooth-running sliding table for daily panel-processing applications. The main and scoring saws can tilt from 0–45°, while the main saw blade height is electrically adjustable for easier operation.
- Maximum cutting length: 3100 mm
- Cutting thickness at 0°: 100 mm
- Cutting thickness at 45°: 70 mm
- Main saw motor: 5.5 kW
- Main saw speed: 3800 / 5200 rpm
- Scoring saw motor: 1.1 kW
- Saw blade tilt: 0–45°
Images
Features

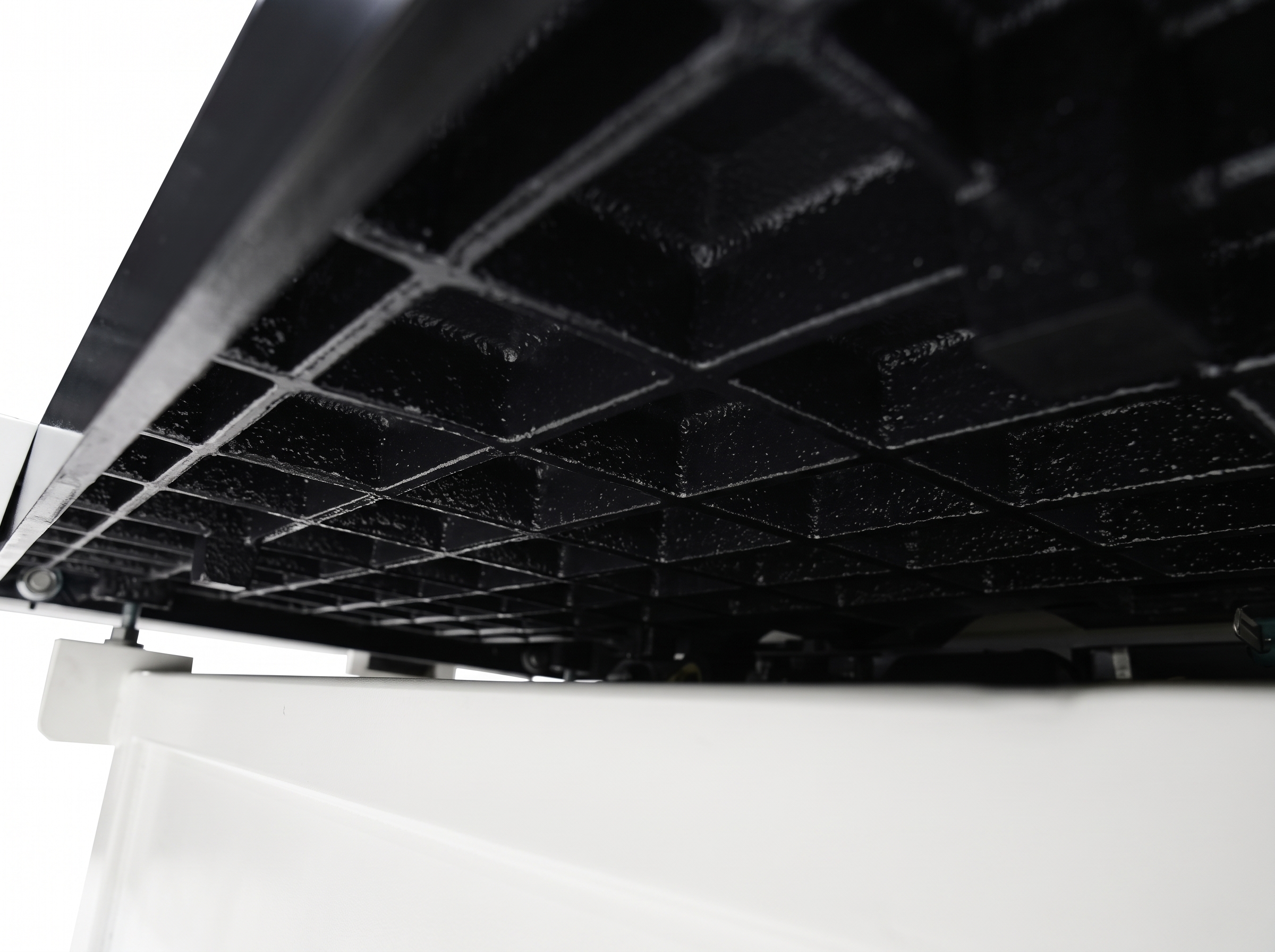

- Heavy machine body and CNC-machined mechanical components improve structural stability.

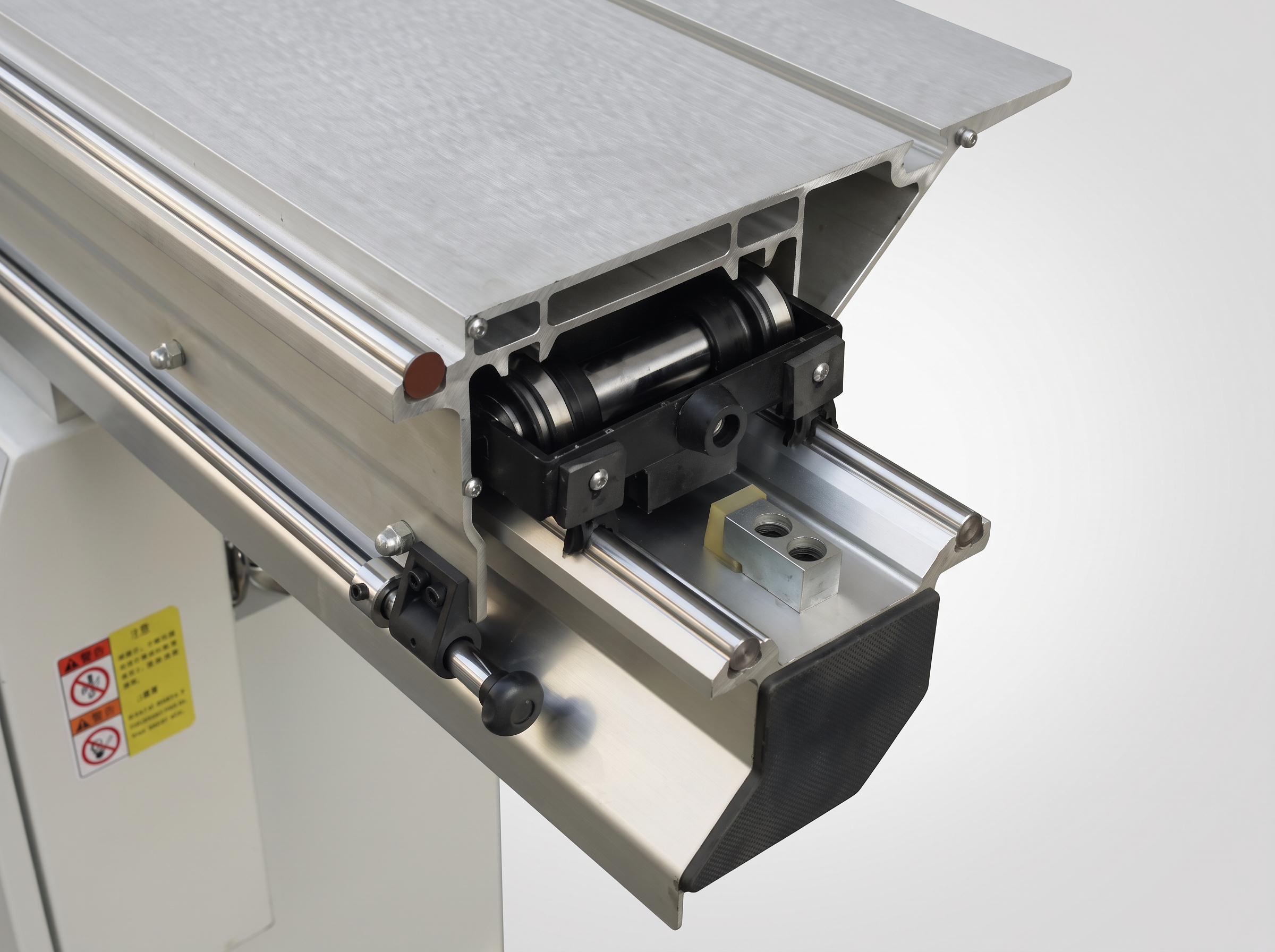

- Smooth-running sliding table and precision guide system support accurate panel cutting.

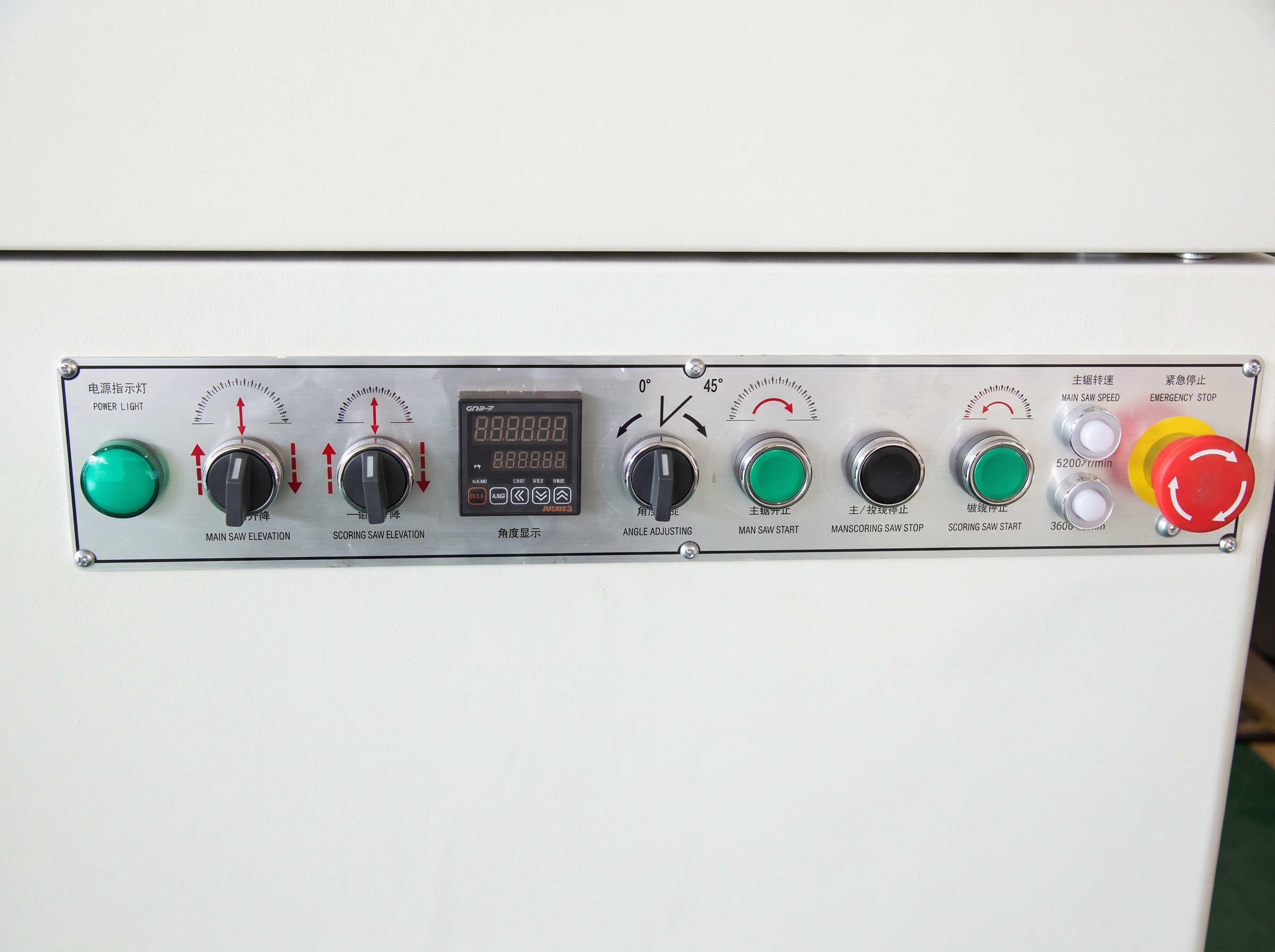

- Main saw blade height can be adjusted electrically with one-button control.
- Main and scoring saw blades can be tilted from 0–45° using the handwheel.
- Optional MJ1138F version extends maximum cutting length to 3700 mm.
Technical data
| Specifications | Unit | MJ1132F |
|---|---|---|
| Cutting length | mm | 3100 |
| Cutting thickness at 0° | mm | 100 |
| Cutting thickness at 45° | mm | 70 |
| Main saw speed | rpm | 3800 / 5200 |
| Main saw motor | kW | 5.5 |
| Scoring saw speed | rpm | 9000 |
| Scoring saw motor | kW | 1.1 |
| Saw blade tilt | ° | 0–45 |
| Dust extraction | mm | Ø120 |
| Total power | kW | 6.6 |
| Overall dimensions | mm | 3400 × 3380 × 1400 |
| Net weight | kg | 1000 |
