Highlights

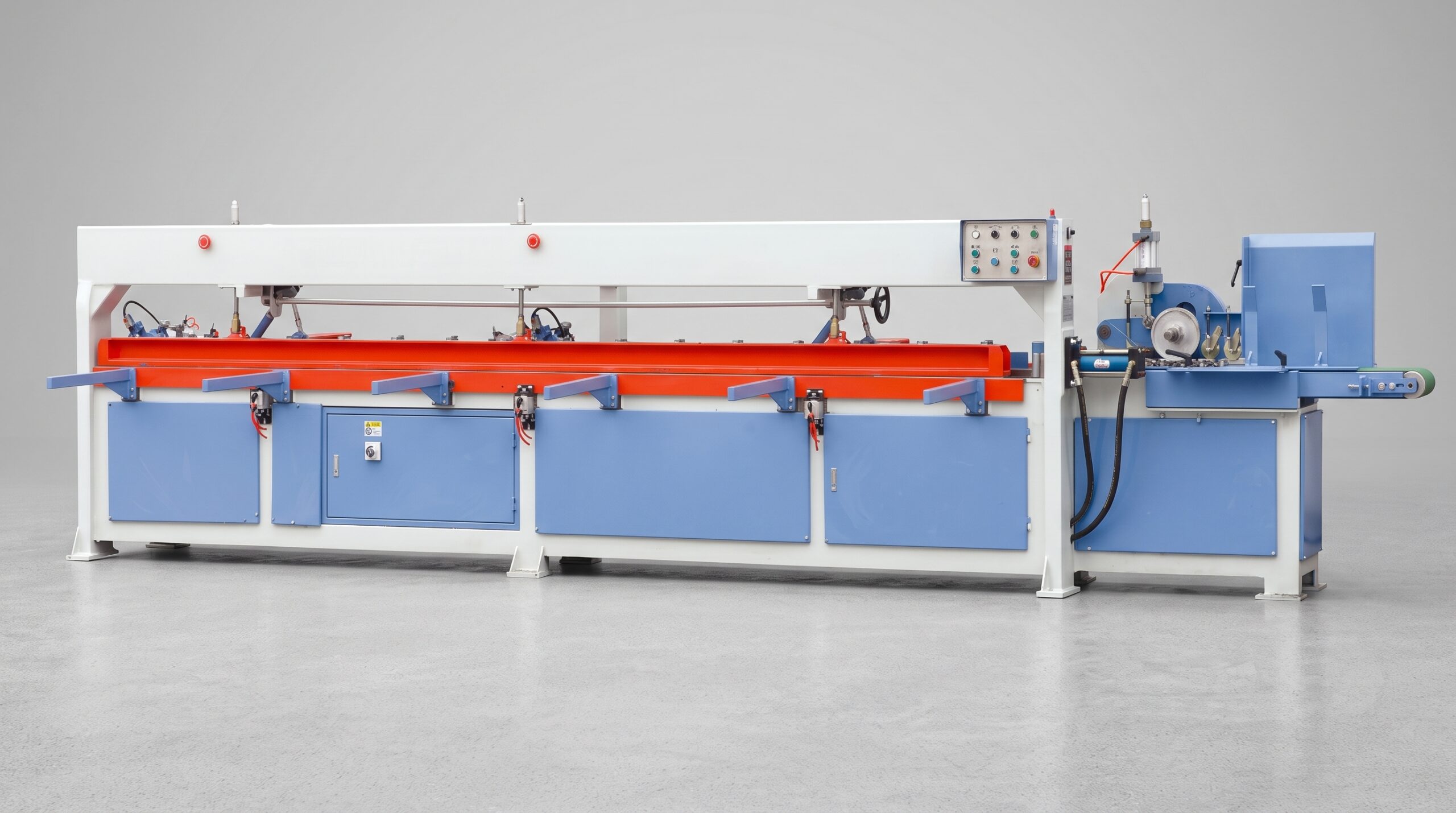

The MHZ1560A Automatic Finger Joint Assembling Machine is designed for continuous length joining of short solid wood pieces into longer components. It combines hydraulic pressing, precision sawing and high-speed feeding to complete the assembling and length-sizing process efficiently. With a maximum assembled length of 6000 mm, working sections up to 150 × 80 mm, and maximum feeding speed of 30 m/min, the machine is suitable for industrial finger-joint wood production, furniture components, mouldings and other long solid wood products.
- Maximum assembled length: 6000 mm
- Working width: 30–150 mm
- Working thickness: 18–80 mm
- Minimum working length: 100 mm
- Maximum hydraulic thrust: 7800 kg
- Maximum feeding speed: 30 m/min
- Saw blade speed: 3700 r/min
Images
Features
- Designed for automatic length joining of short solid wood pieces into long, continuous workpieces up to 6000 mm.
- Powerful hydraulic pressing system provides up to 7800 kg thrust for stable joint assembly.
- Integrated Ø355 mm saw blade trims the assembled material for accurate length control during production.
- Supports workpieces from 30–150 mm wide and 18–80 mm thick, covering a broad range of solid wood component sizes.
- Maximum output speed of 30 m/min supports efficient continuous production in finger-joint processing lines.
Technical data
| Specifications | Unit | MHZ1560A |
|---|---|---|
| Maximum assembled length | mm | 6000 |
| Maximum working width | mm | 150 |
| Maximum working thickness | mm | 80 |
| Minimum working length | mm | 100 |
| Minimum working width | mm | 30 |
| Minimum working thickness | mm | 18 |
| Saw blade speed | r/min | 3700 |
| Saw blade diameter | mm | Ø355 |
| Saw motor power | kW | 3 |
| Oil pump motor power | kW | 4 |
| Working air pressure | MPa | 0.5–0.8 |
| Maximum hydraulic thrust | kg | 7800 |
| Maximum output speed | m/min | 30 |
| Overall dimensions | mm | 7650 × 1000 × 1420 |
