Highlights

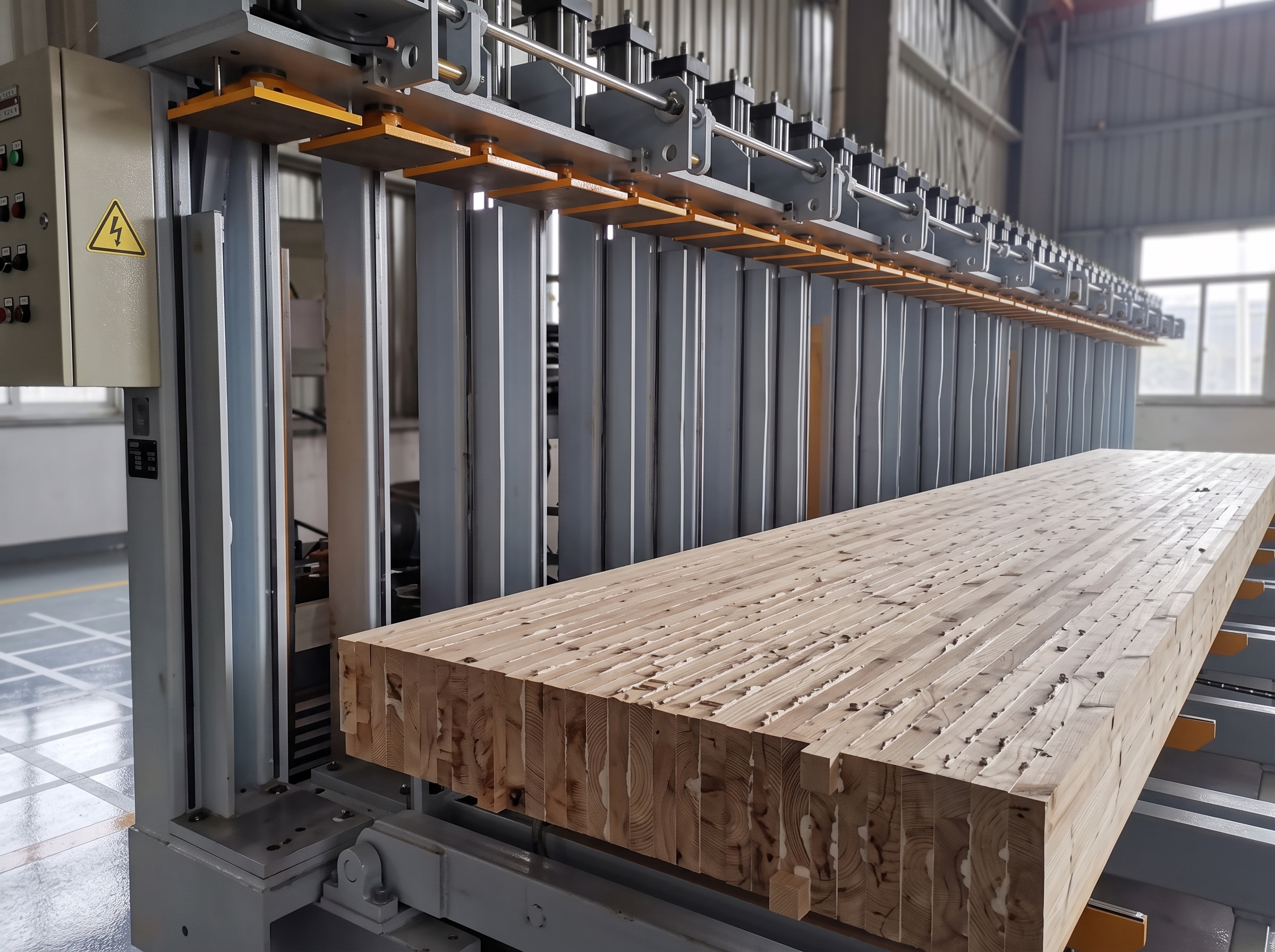

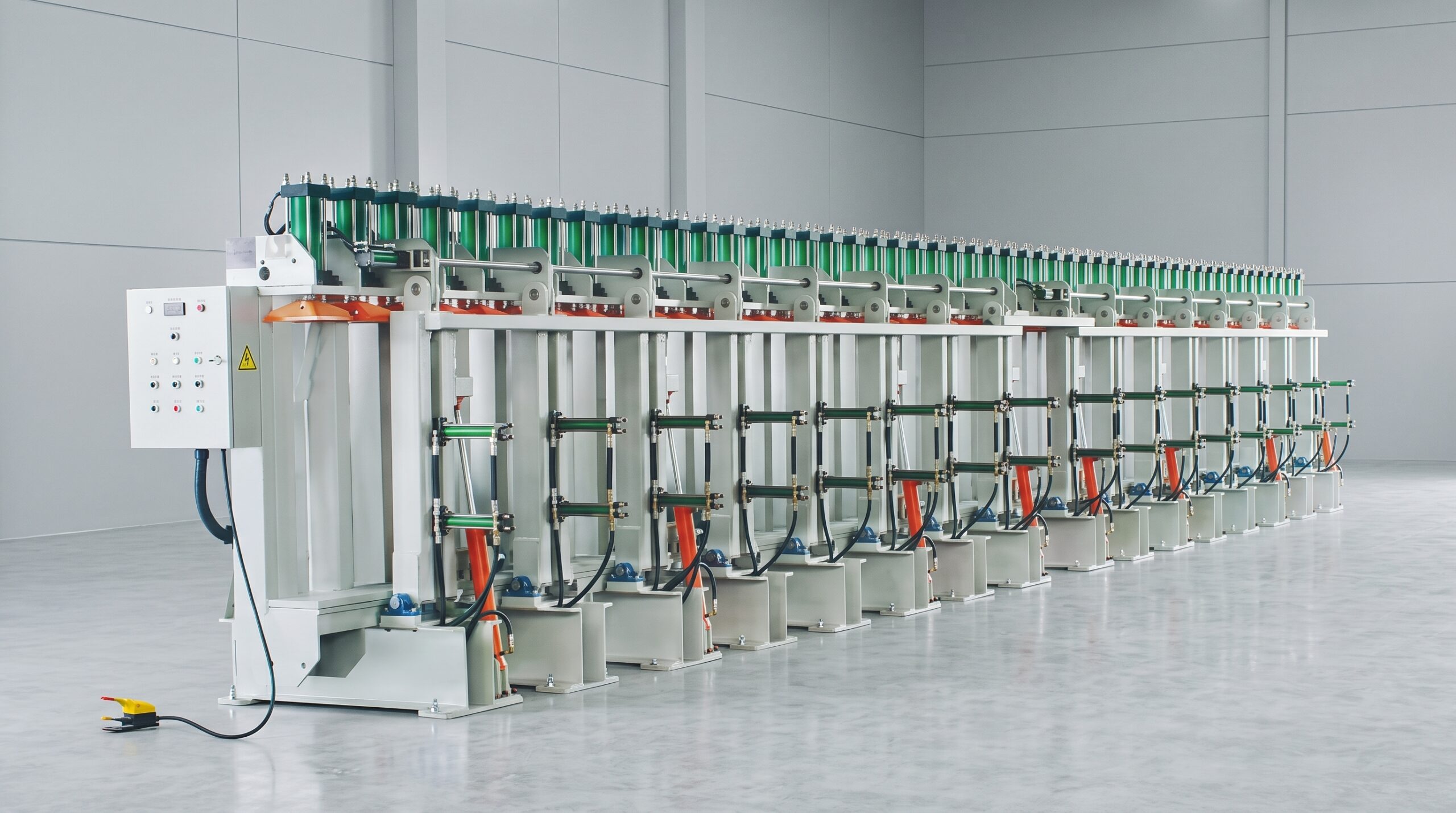

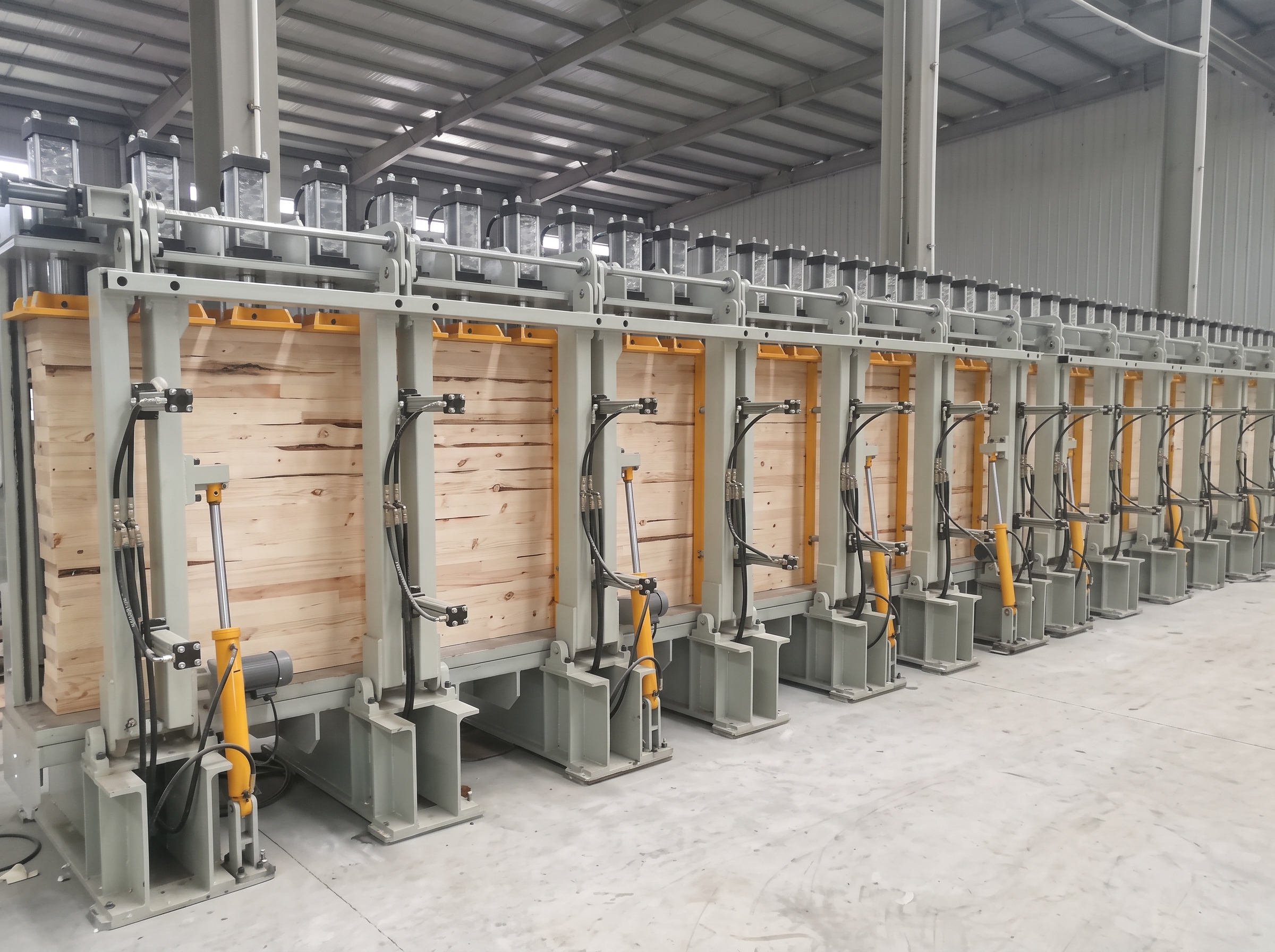

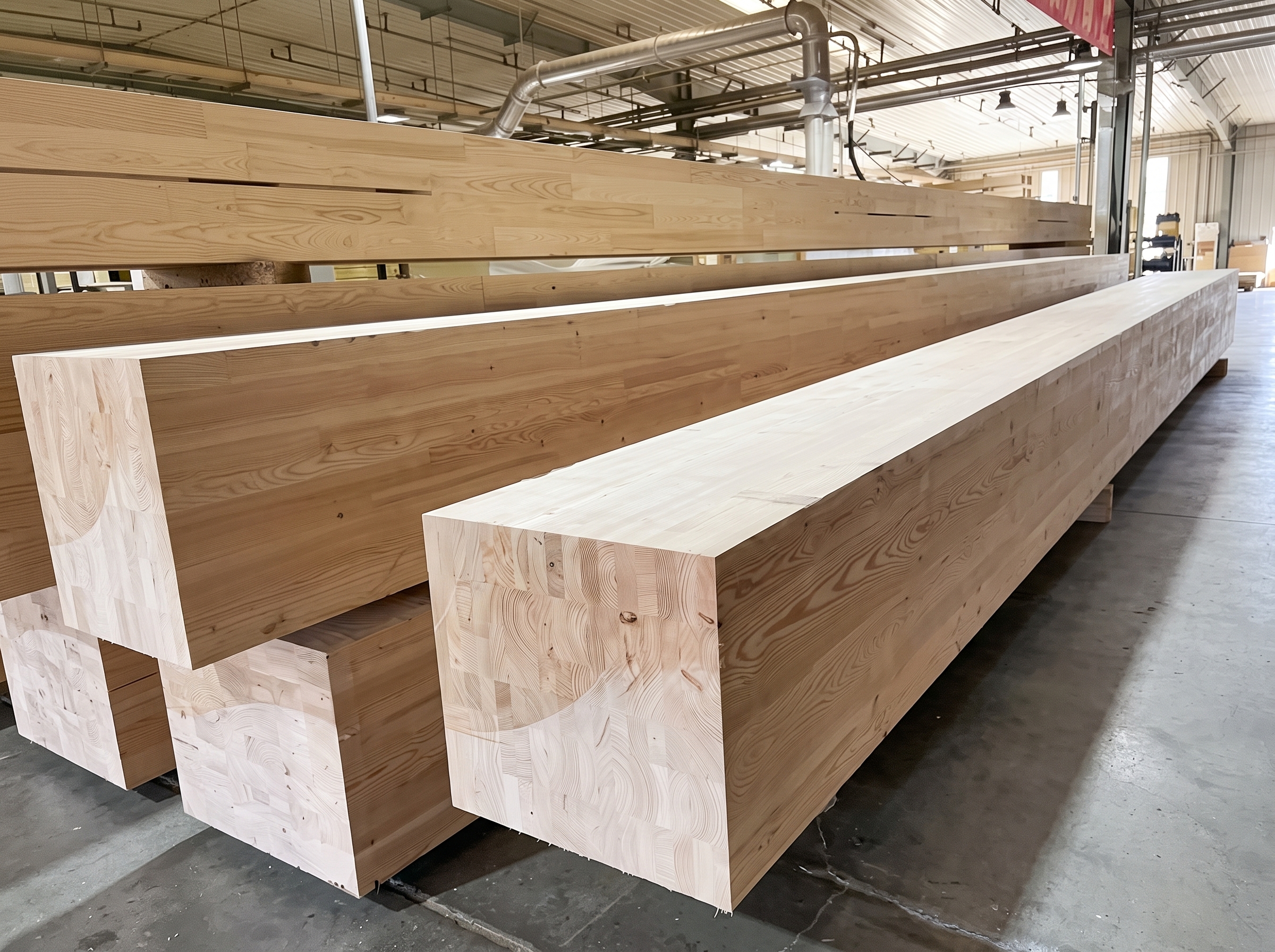

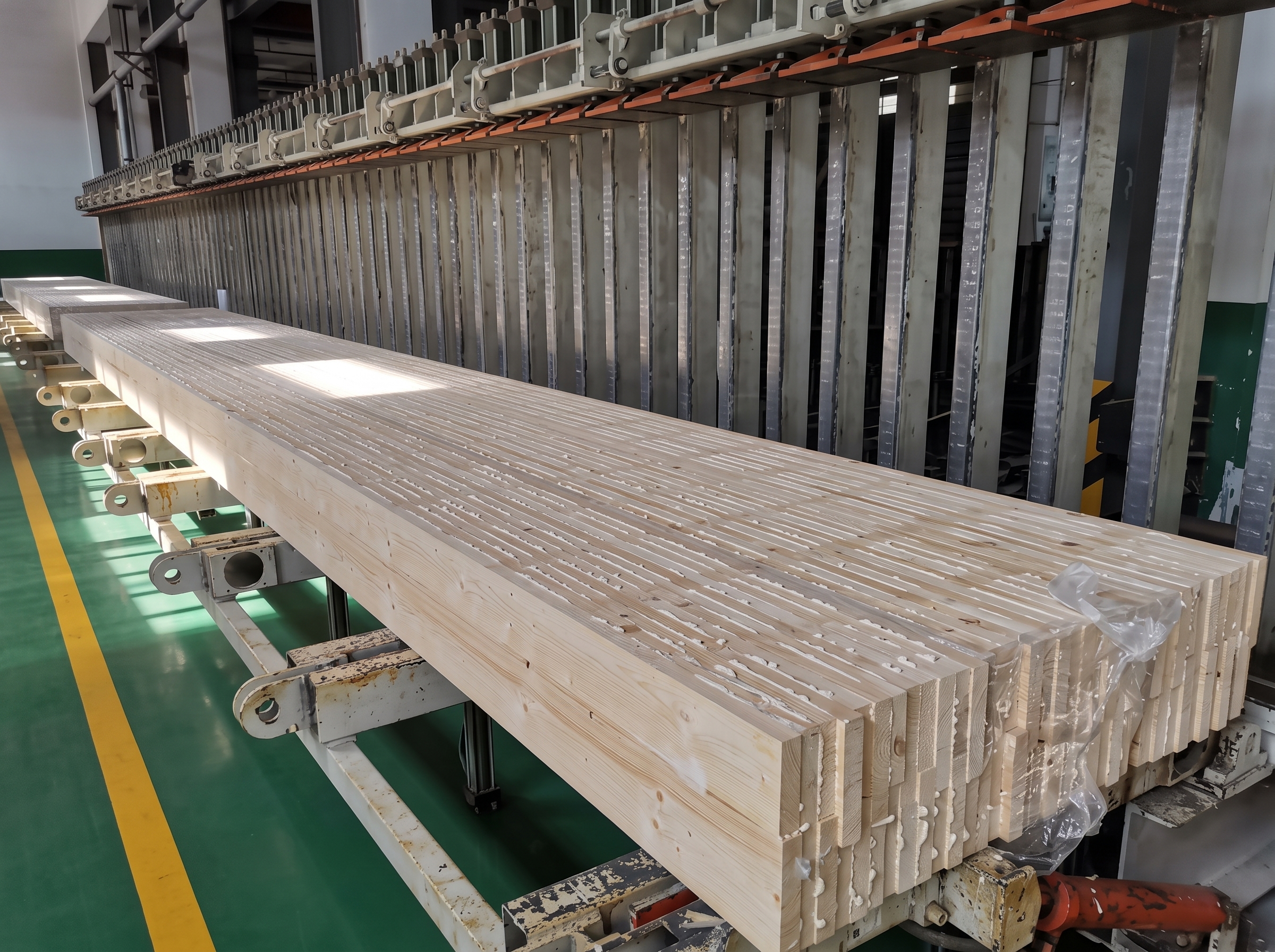

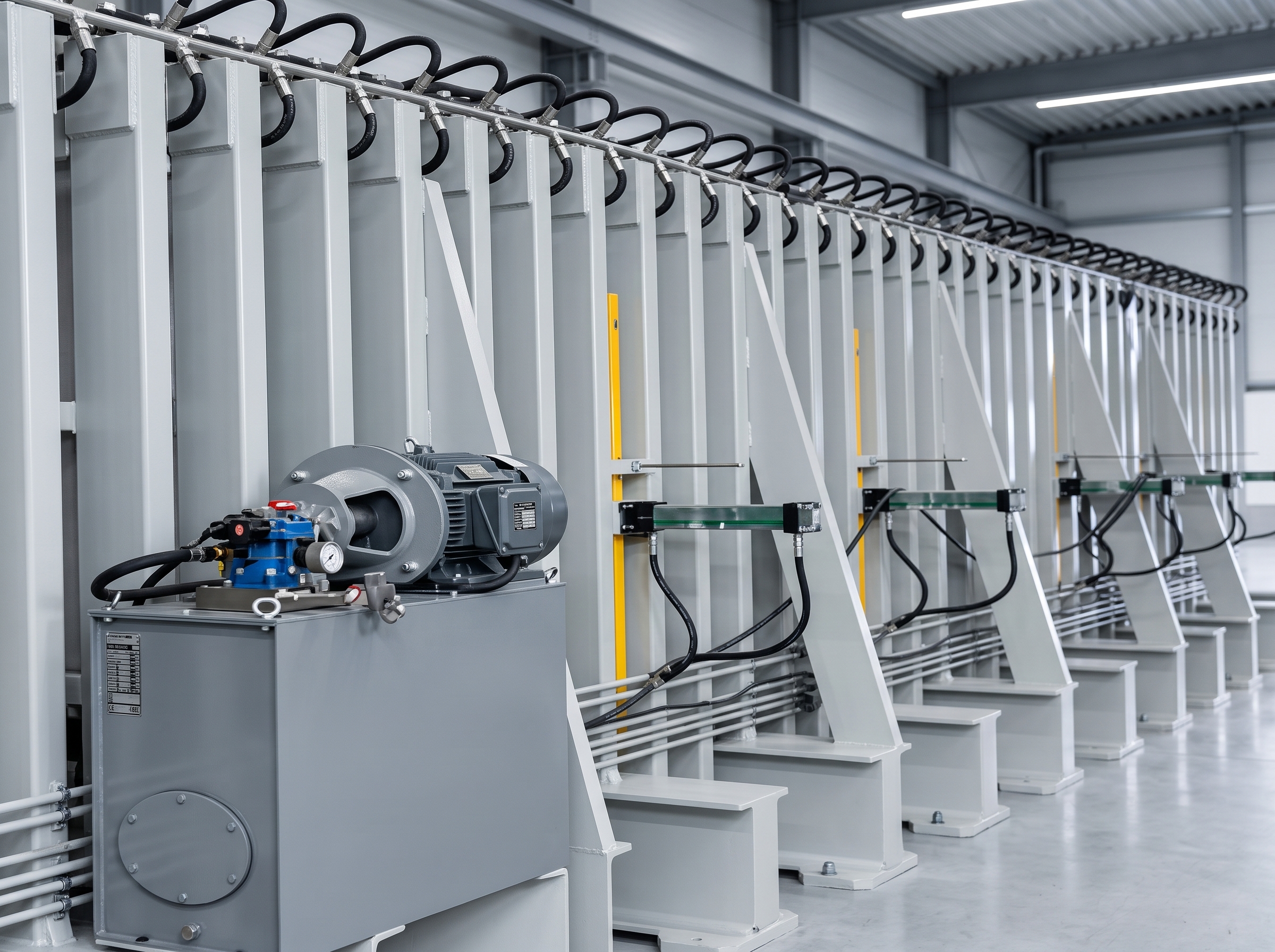

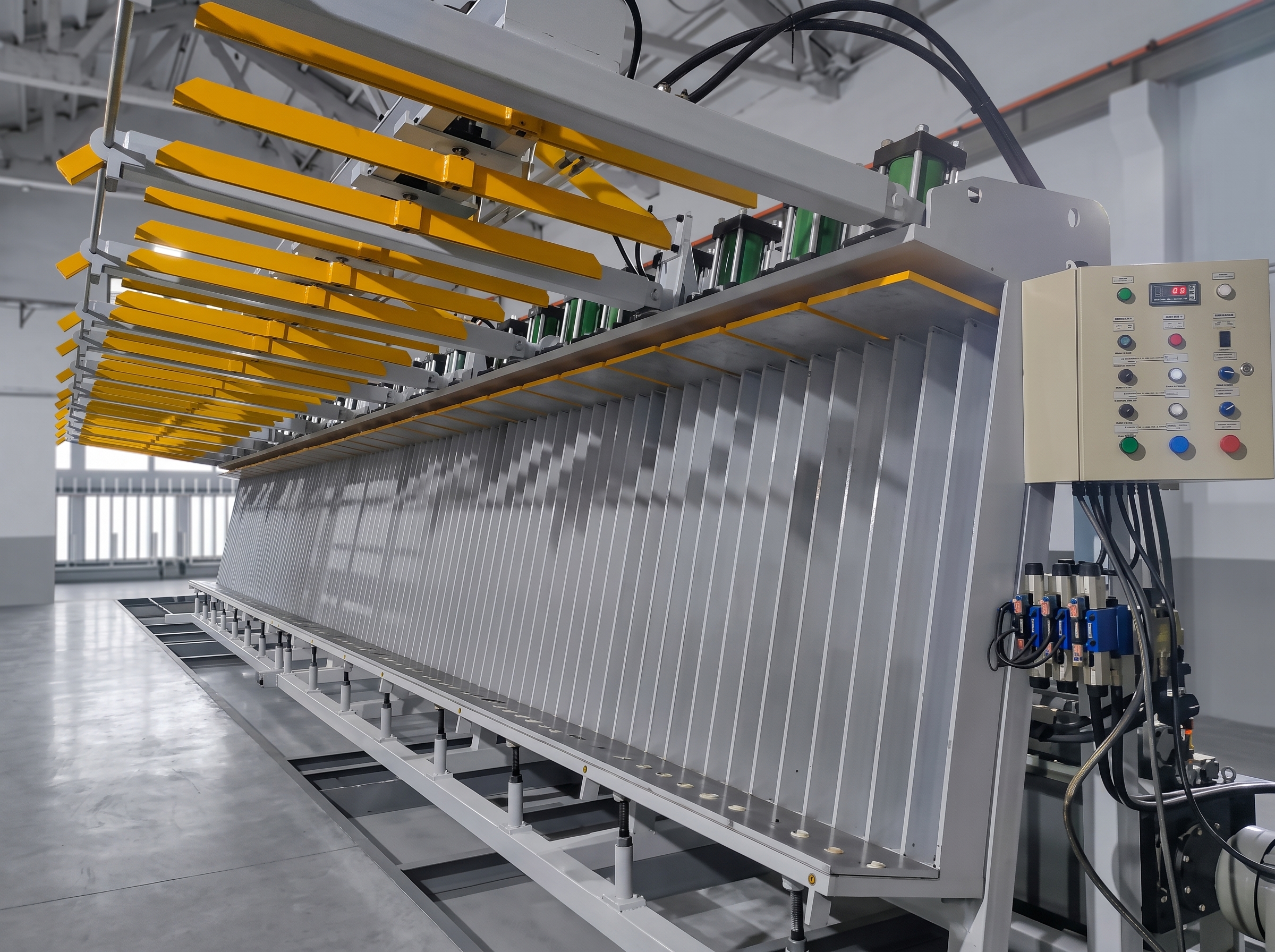

The MH19120/1-2F Hydraulic Timber Block Press is designed for assembling and gluing square timber, laminated timber blocks and other long solid wood components. Its 12,200 mm working length, combined with 40 top-pressure cylinders and 2 × 14 side-pressure cylinders, supports distributed clamping pressure across large workpieces. The machine features two pressing sections that can operate independently or together, allowing the pressing configuration to suit different assembly requirements. Pressure monitoring and digital automatic pressure compensation help maintain pressure throughout the pressing cycle. A bottom-flip opening structure, hydraulic door-opening cylinders, rear pushing cylinders and automatic locking support workpiece loading, positioning and clamping. Adjustable bottom worktable plates help control deformation along the pressing length, while a non-stick rear worktable coating simplifies glue cleanup.
- Maximum processing length: 12,200 mm
- Maximum processing height: 1,300 mm
- Maximum processing width: 300 mm
- Top-pressure cylinders: 40
- Side-pressure cylinders: 2 × 14
- Rated system pressure: 16 MPa
- Maximum unit pressure at full load: 13.5 kg/cm²
Images
Features

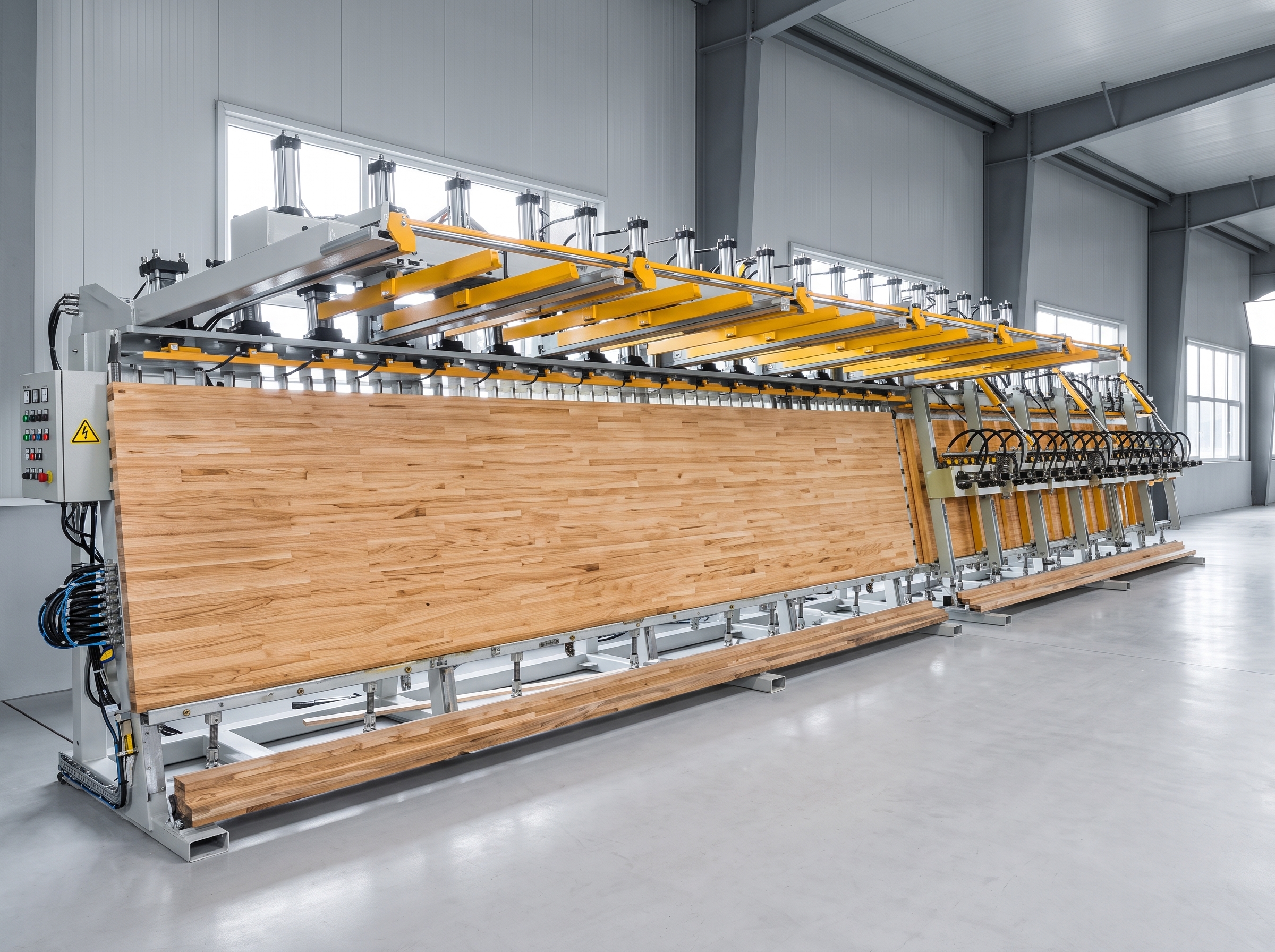

- Two-section pressing configuration allows each section to operate independently or both sections to work together for long timber assemblies.

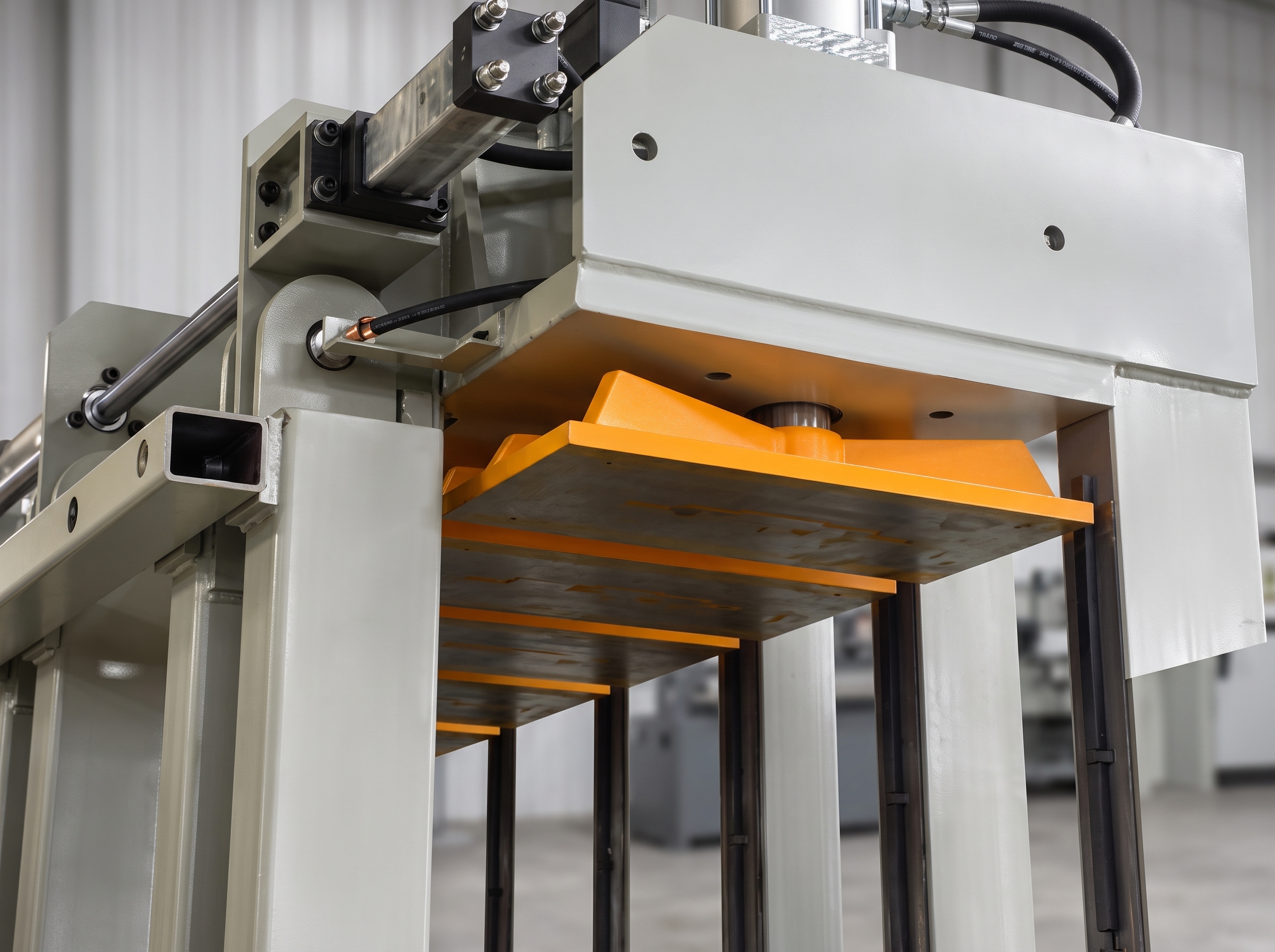

- Distributed hydraulic clamping with 40 top-pressure cylinders and 2 × 14 side-pressure cylinders provides balanced force across the workpiece.
- Digital automatic pressure compensation works with pressure monitoring to maintain pressing pressure during glue-up.

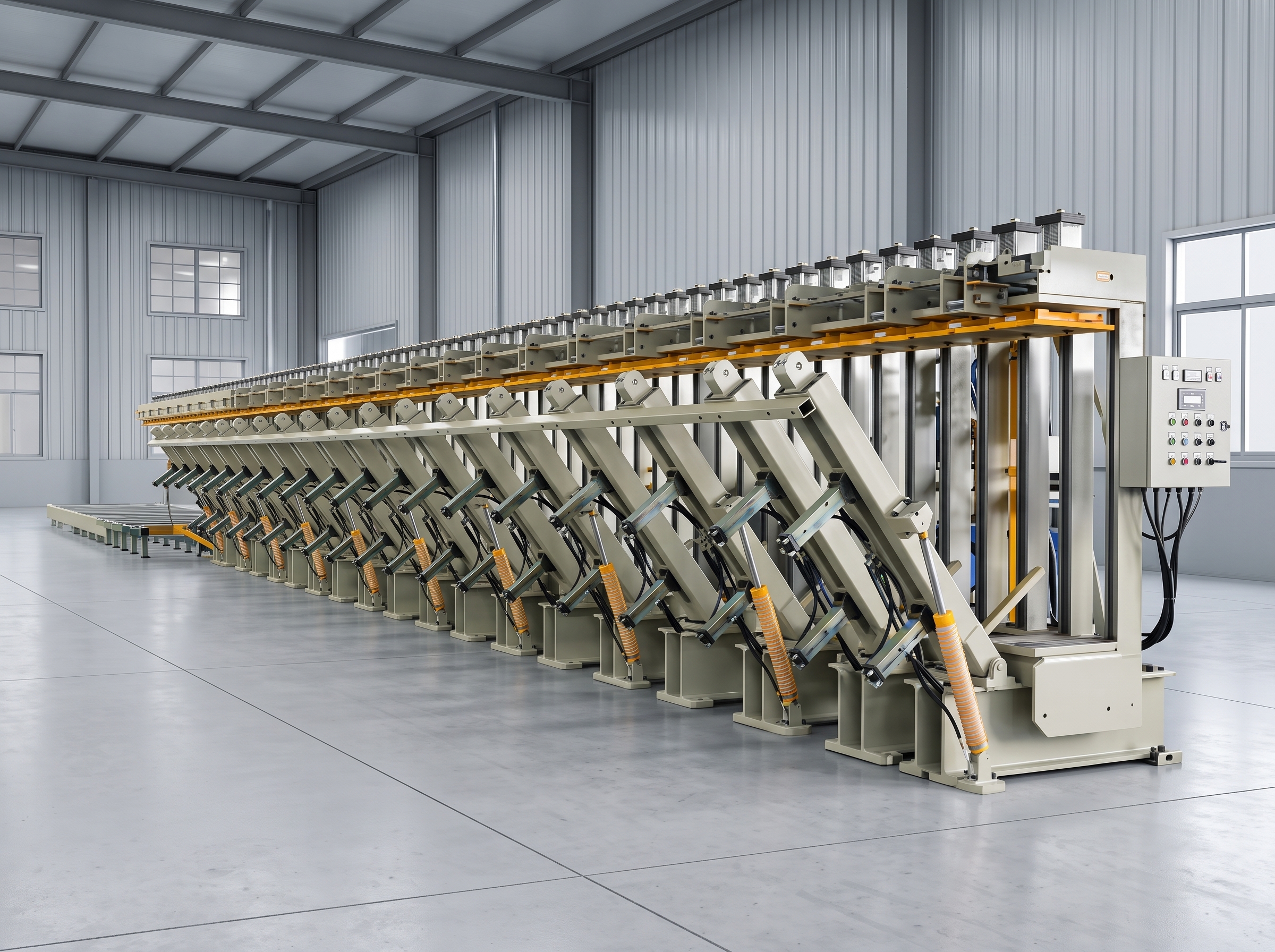

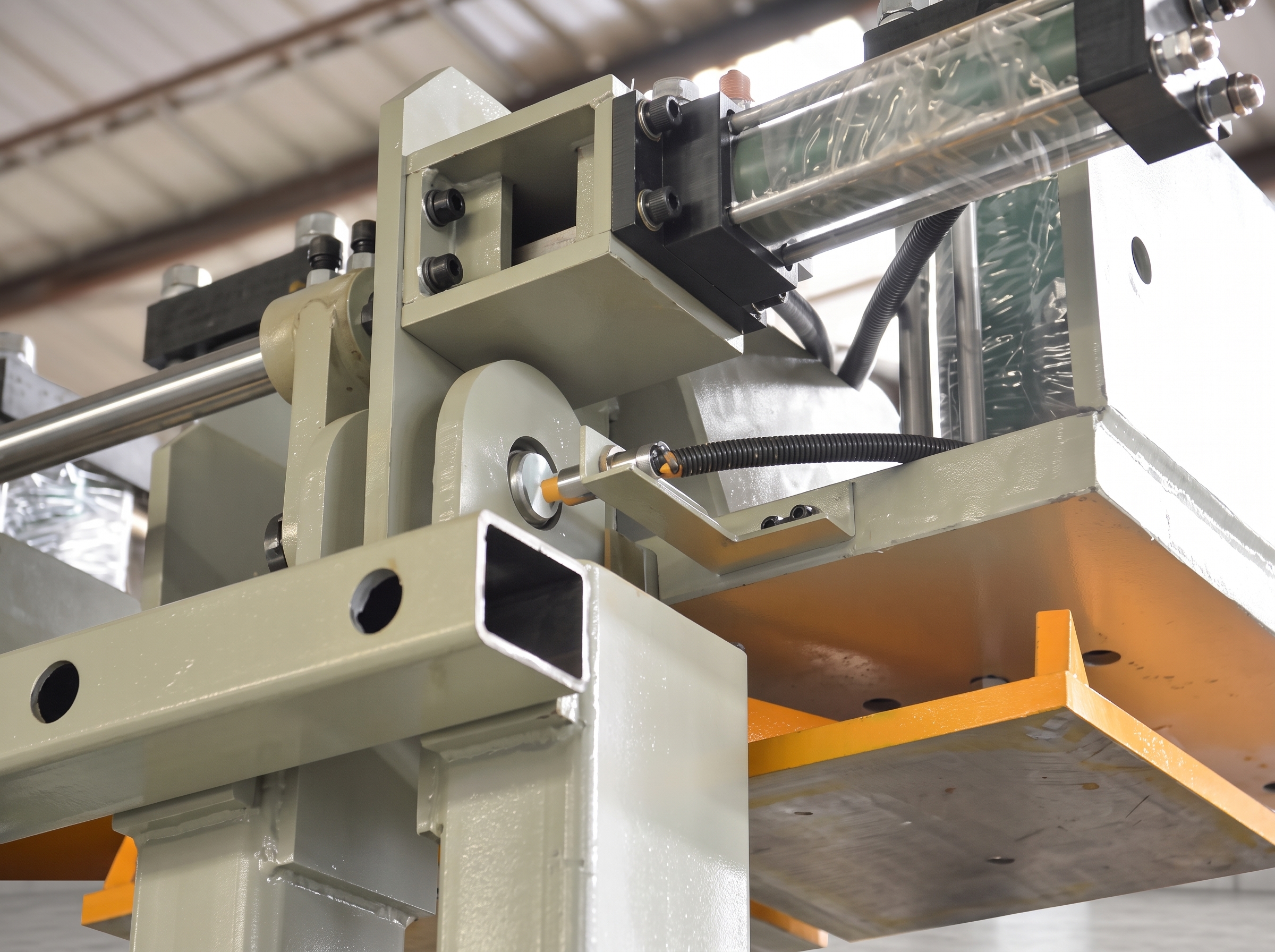

- Bottom-flip opening and hydraulic handling mechanisms, including door-opening, rear pushing and automatic locking cylinders, support loading, positioning and secure clamping.

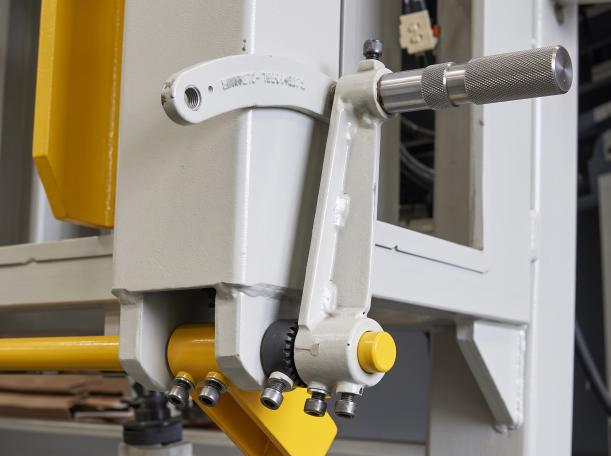

- Adjustable bottom worktable plates and a non-stick rear worktable coating help control workpiece deformation and simplify removal of glue residue.
Technical data
| Specifications | Unit | MH19120/1-2F |
|---|---|---|
| Model | — | MH19120/1-2F |
| Power supply | — | 380 V, 50 Hz |
| Number of working faces | — | 1 |
| Maximum processing width | mm | 300 |
| Maximum processing height | mm | 1,300 |
| Maximum processing length | mm | 12,200 |
| Top-pressure cylinder specification | mm | φ100 × 200 |
| Top-pressure cylinder quantity | pcs | 40 |
| Side-pressure cylinder specification | mm | φ40 × 160 |
| Side-pressure cylinder quantity | pcs | 2 × 14 |
| Door-opening cylinder specification | mm | φ63 × 350 |
| Door-opening cylinder quantity | pcs | 8 |
| Rear pushing cylinder specification | mm | φ40 |
| Rear pushing cylinder quantity | pcs | 2 × 6 |
| Automatic door-locking cylinder specification | mm | φ40 × 80 |
| Automatic door-locking cylinder quantity | pcs | 2 |
| Rated system pressure | MPa | 16 |
| Maximum unit pressure at full load | kg/cm² | 13.5 |
| Sectional configuration | — | Two sections; each section can operate independently, or both sections can operate together. |
| Automatic pressure compensation | — | Digital automatic pressure compensation device |
