Highlights

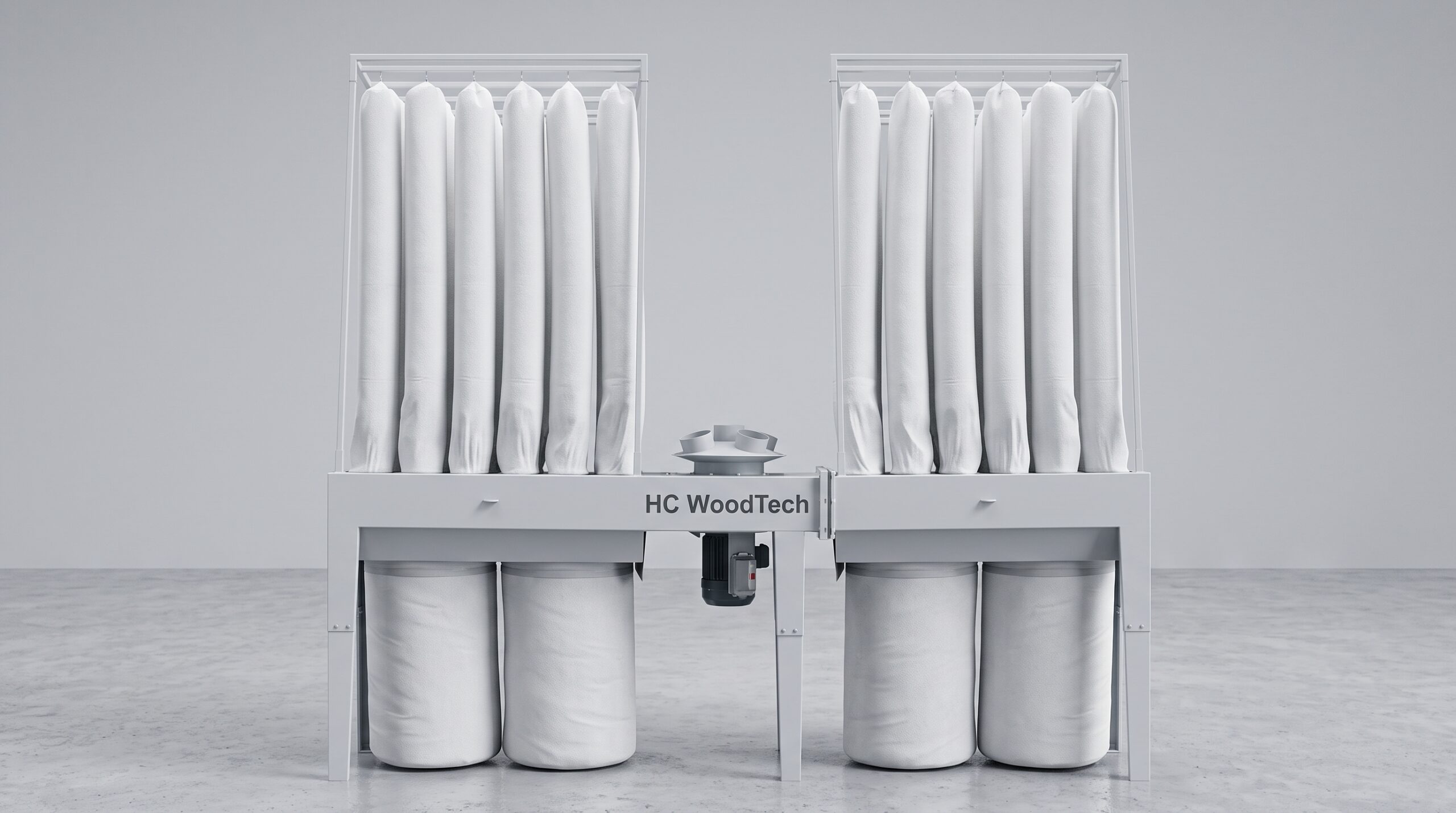

The MF9011L High-Capacity Woodworking Dust Collector is designed for centralized dust and wood-chip extraction in larger woodworking workshops and production lines. Powered by an 11 kW motor, it delivers approximately 20,500 m³/h airflow with a 2900 r/min blower speed. Its large dual-side filtration structure provides increased dust collection capacity for continuous industrial operation.
- Motor power: 11 kW
- Voltage / Frequency: 380 V / 50 Hz
- Airflow: 20,500 m³/h
- Motor speed: 2900 r/min
- Filter bags: Ø630 mm × 4
- Overall dimensions: 3900 × 1070 × 3300 mm
- Weight: 306 kg
Images
Features
- 20,500 m³/h airflow for high-volume woodworking dust extraction.
- Large filtration structure suitable for centralized or multi-machine collection.
- 11 kW / 2900 r/min blower provides strong extraction performance.
- Main and side panels use 2 mm steel construction.
- Heavy-duty 3 mm support legs improve structural stability.
Technical data
| Specifications | Unit | MF9011L |
|---|---|---|
| Motor power | kW | 11 |
| Voltage / Frequency | — | 380 V / 50 Hz |
| Airflow | m³/h | 20,500 |
| Motor speed | r/min | 2900 |
| Filter bag size | mm | Ø630 × 4 |
| Overall dimensions | mm | 3900 × 1070 × 3300 |
| Packing dimensions | mm | 2300 × 1050 × 1700 |
| Weight | kg | 306 |
| Main panel thickness | mm | 2 |
| Side plate thickness | mm | 2 |
| Support leg thickness | mm | 3 |
