Highlights

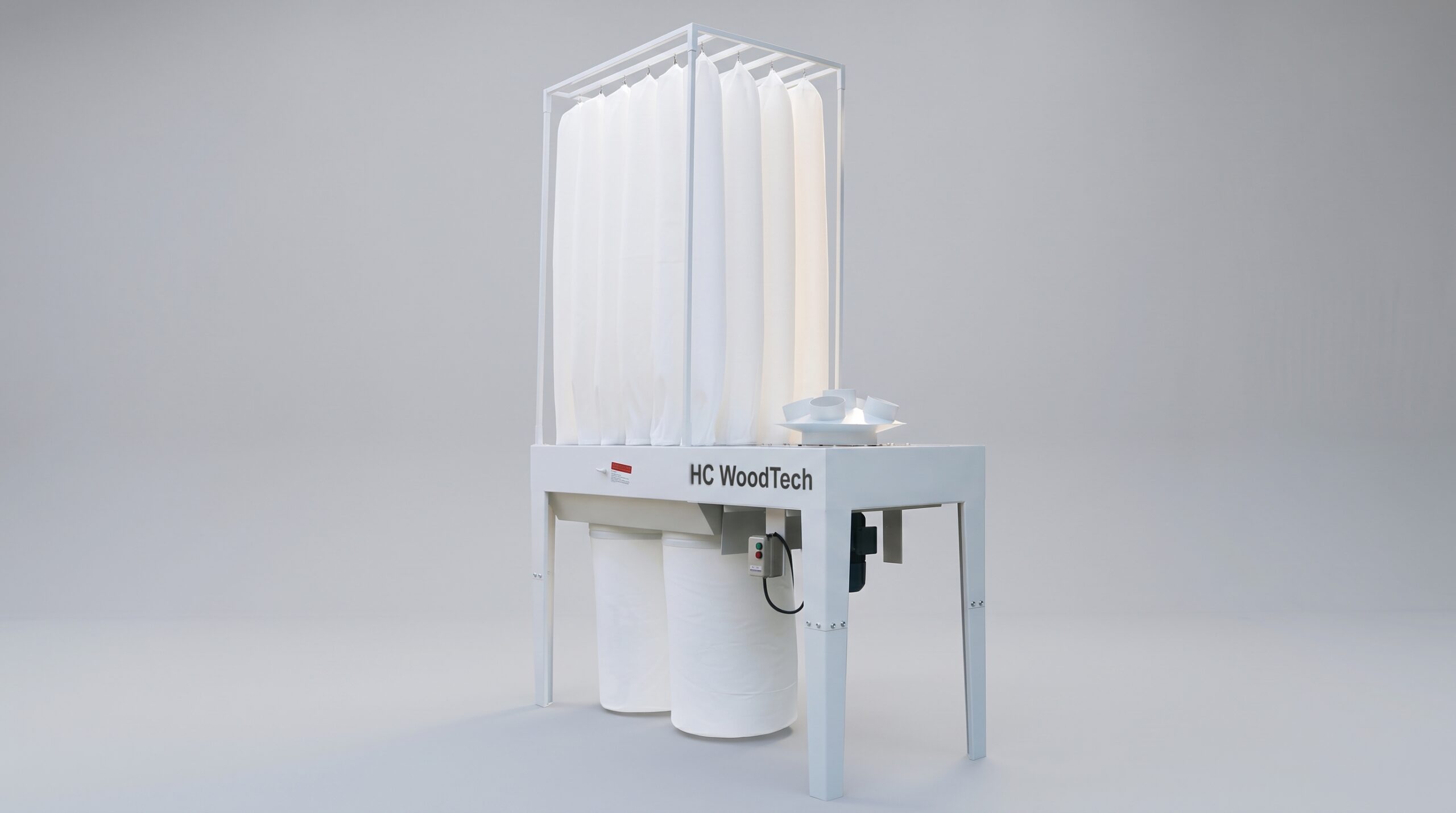

The MF9011-2 High-Capacity Woodworking Dust Collector is designed for high-volume dust and wood-chip extraction in woodworking factories and production lines. With an 11 kW motor and 16,000 m³/h airflow, the system uses a large multi-bag filtration structure and customizable dust inlet configuration for centralized or multi-machine extraction.
- Motor power: 11 kW
- Voltage / Frequency: 380 V / 50 Hz
- Airflow: 16,000 m³/h
- Dust inlet: Customizable
- Filter bag specification: Ø630 × 2175 mm × 24
- Overall dimensions: 2300 × 1000 × 3300 mm
- Weight: 260 kg
Images
Features
- 16,000 m³/h airflow for high-capacity woodworking dust extraction.
- 24 filter bags provide a large filtration area for continuous production.
- Dust inlet size and layout can be customized according to the workshop system.
- Main panels and side plates use 2 mm steel construction.
- 3 mm support legs improve structural rigidity and stability.
Technical data
| Specifications | Unit | MF9011-2 |
|---|---|---|
| Motor power | kW | 11 |
| Voltage / Frequency | — | 380 V / 50 Hz |
| Airflow | m³/h | 16,000 |
| Dust inlet | — | Customizable |
| Filter bag size | mm | Ø630 × 2175 × 24 |
| Overall dimensions | mm | 2300 × 1000 × 3300 |
| Packing dimensions | mm | 2300 × 1000 × 850 |
| Weight | kg | 260 |
| Main panel thickness | mm | 2 |
| Side plate thickness | mm | 2 |
| Support leg thickness | mm | 3 |
