Highlights

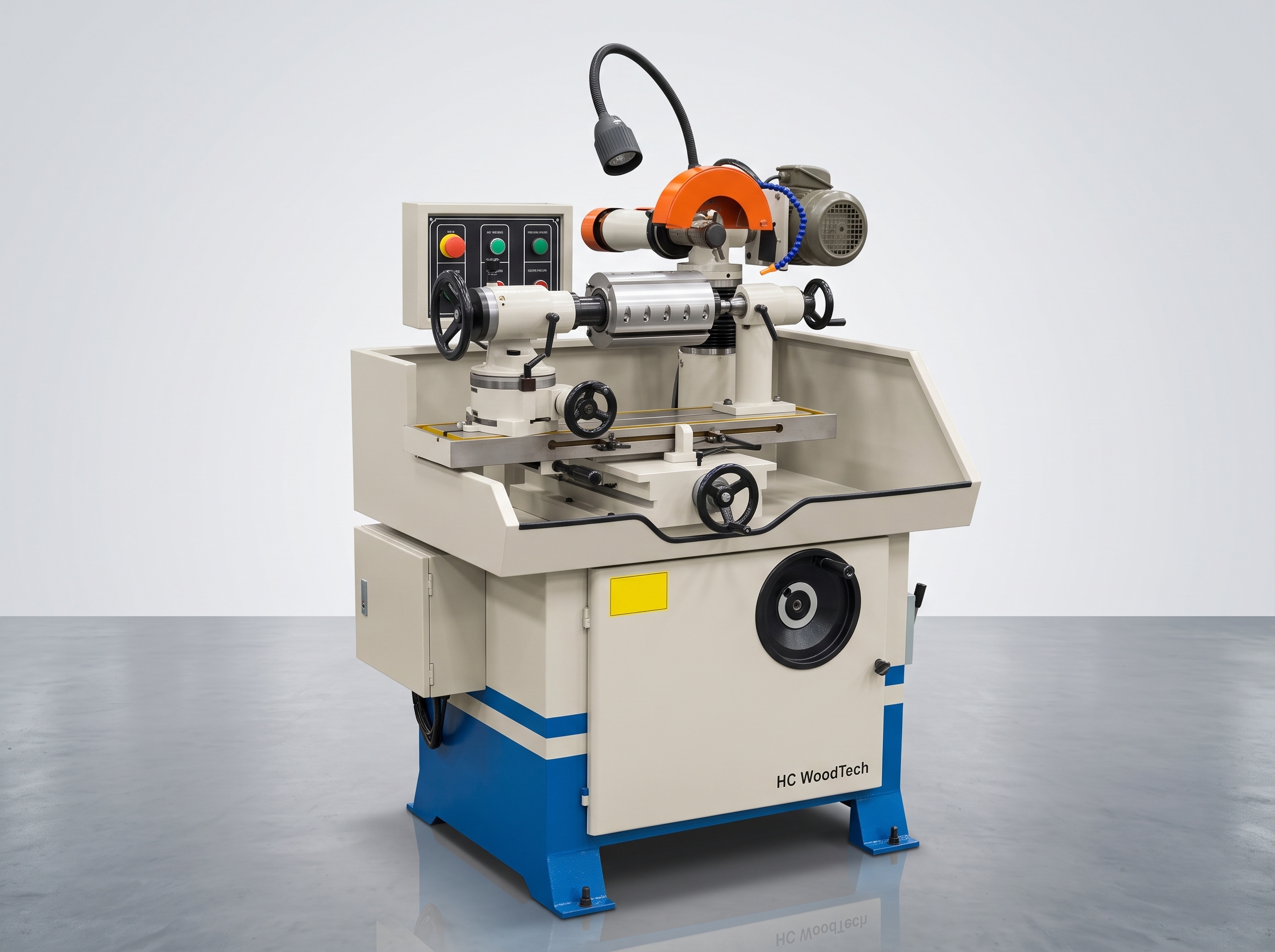

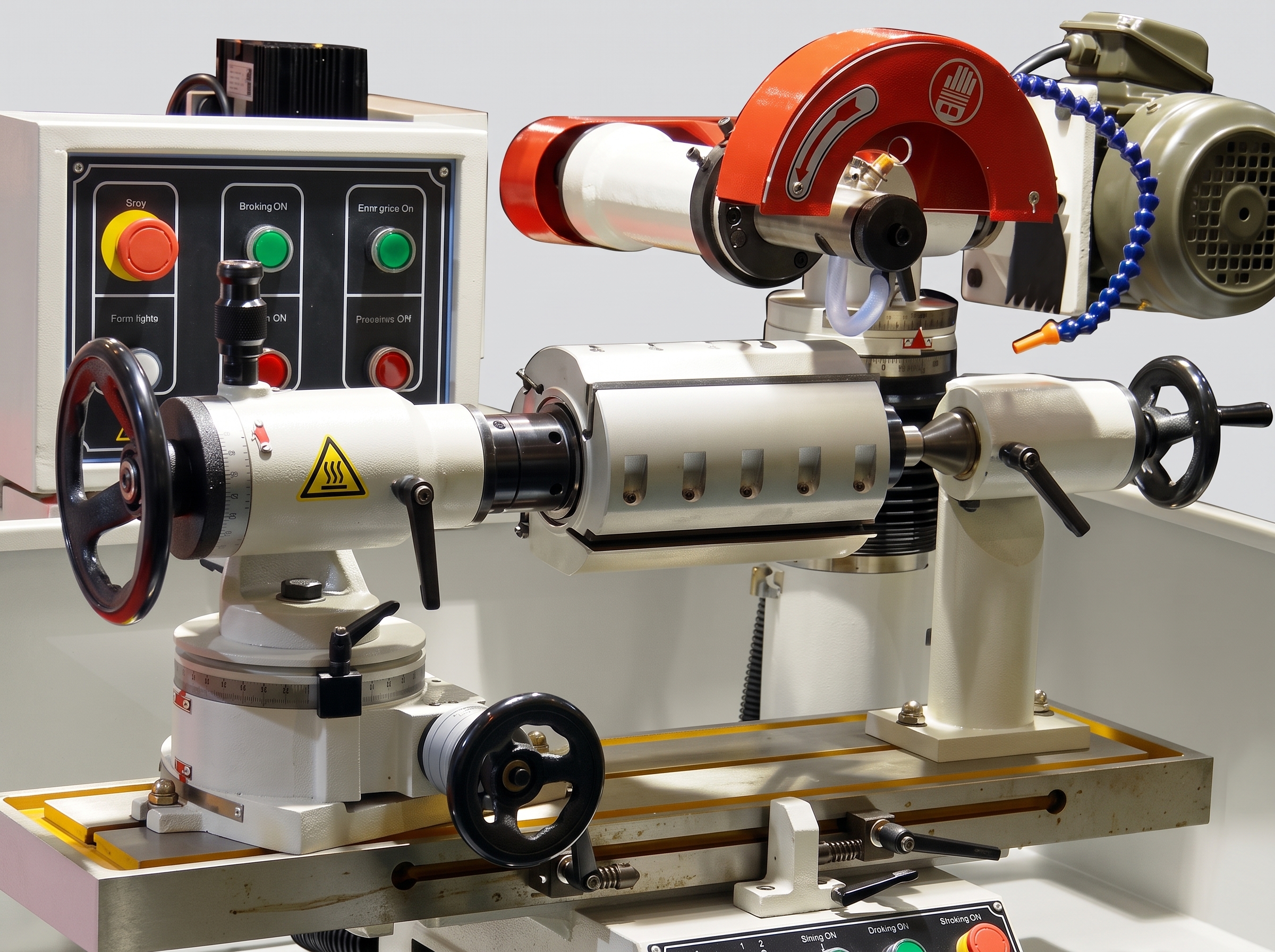

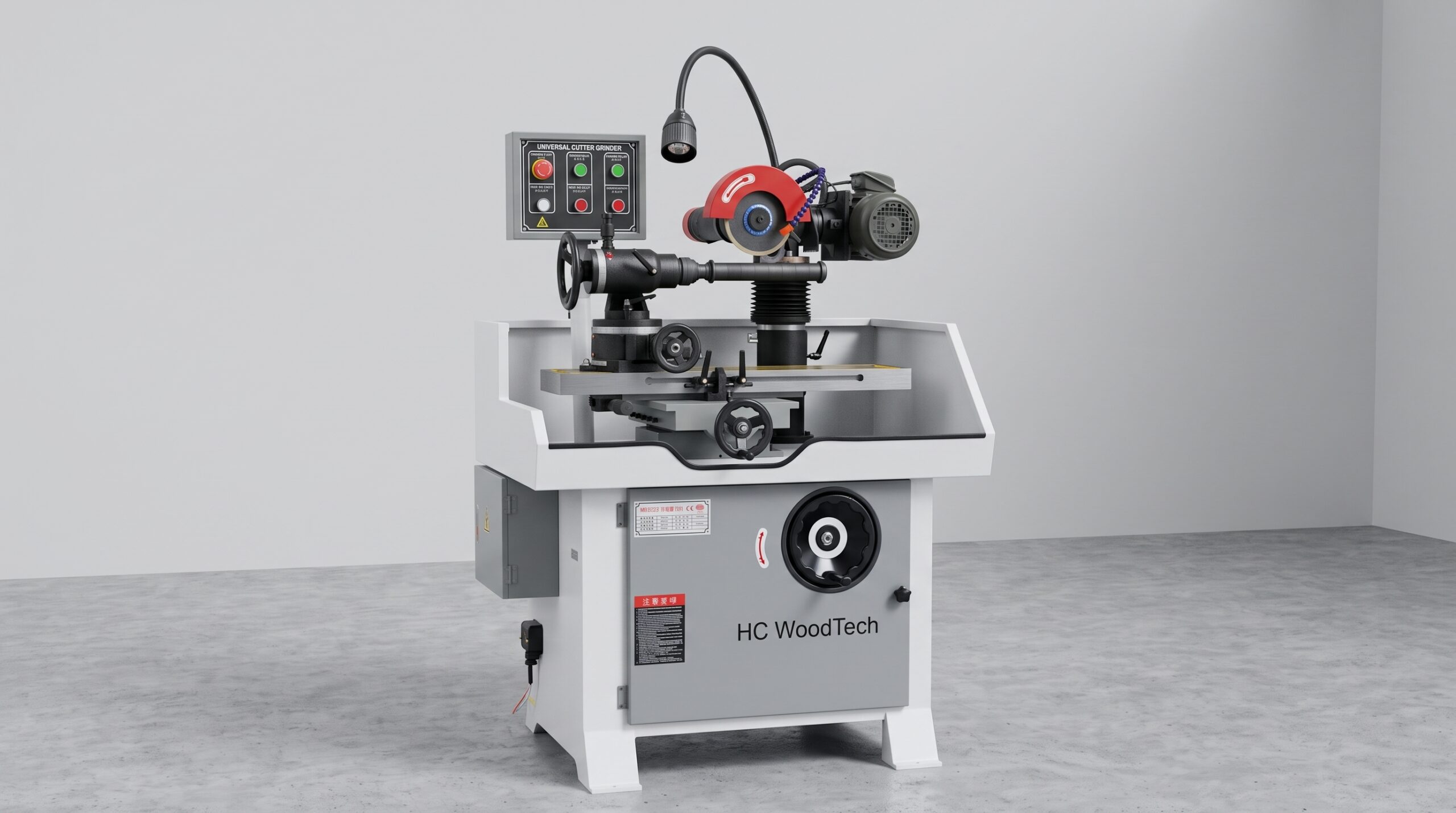

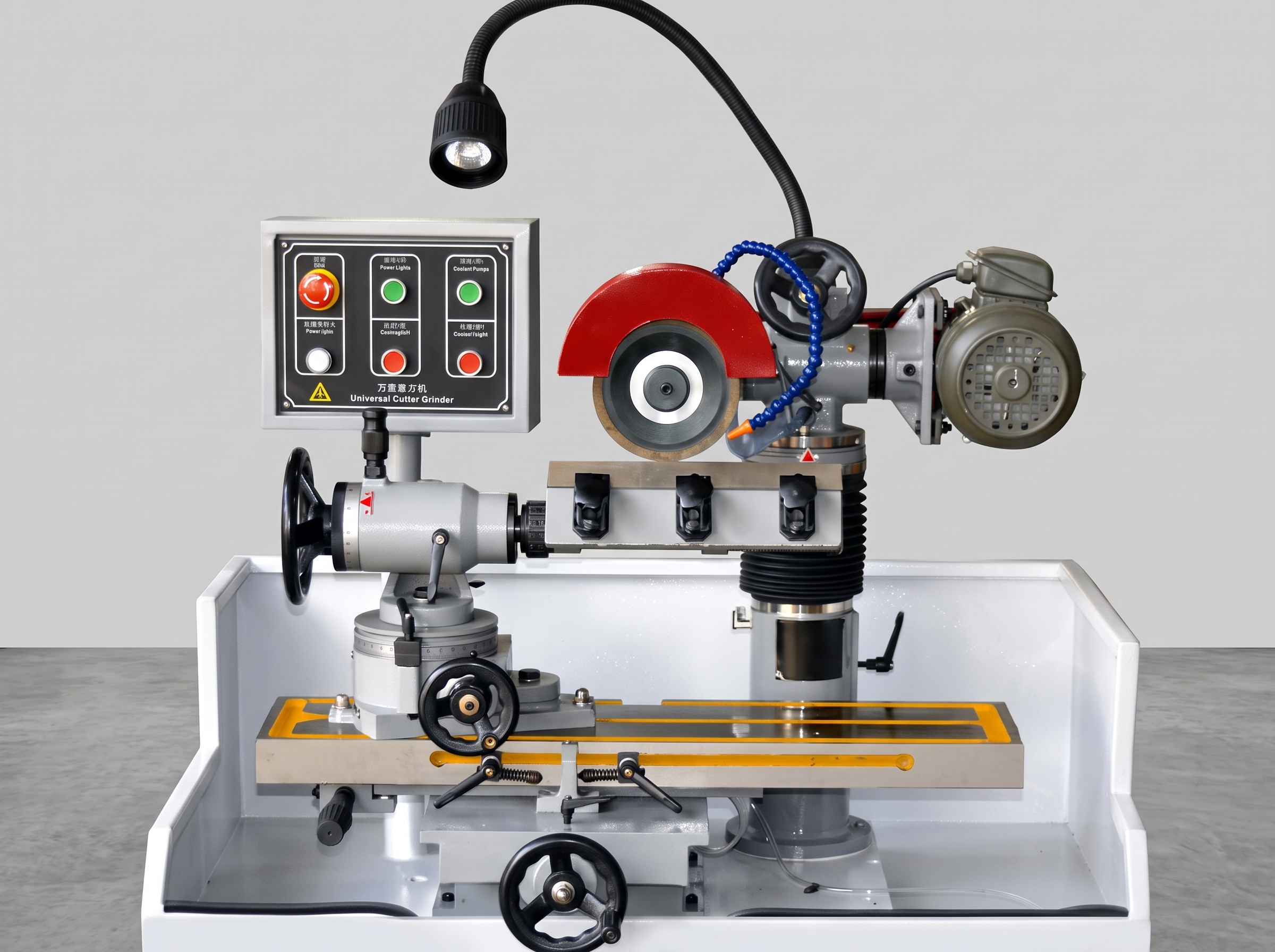

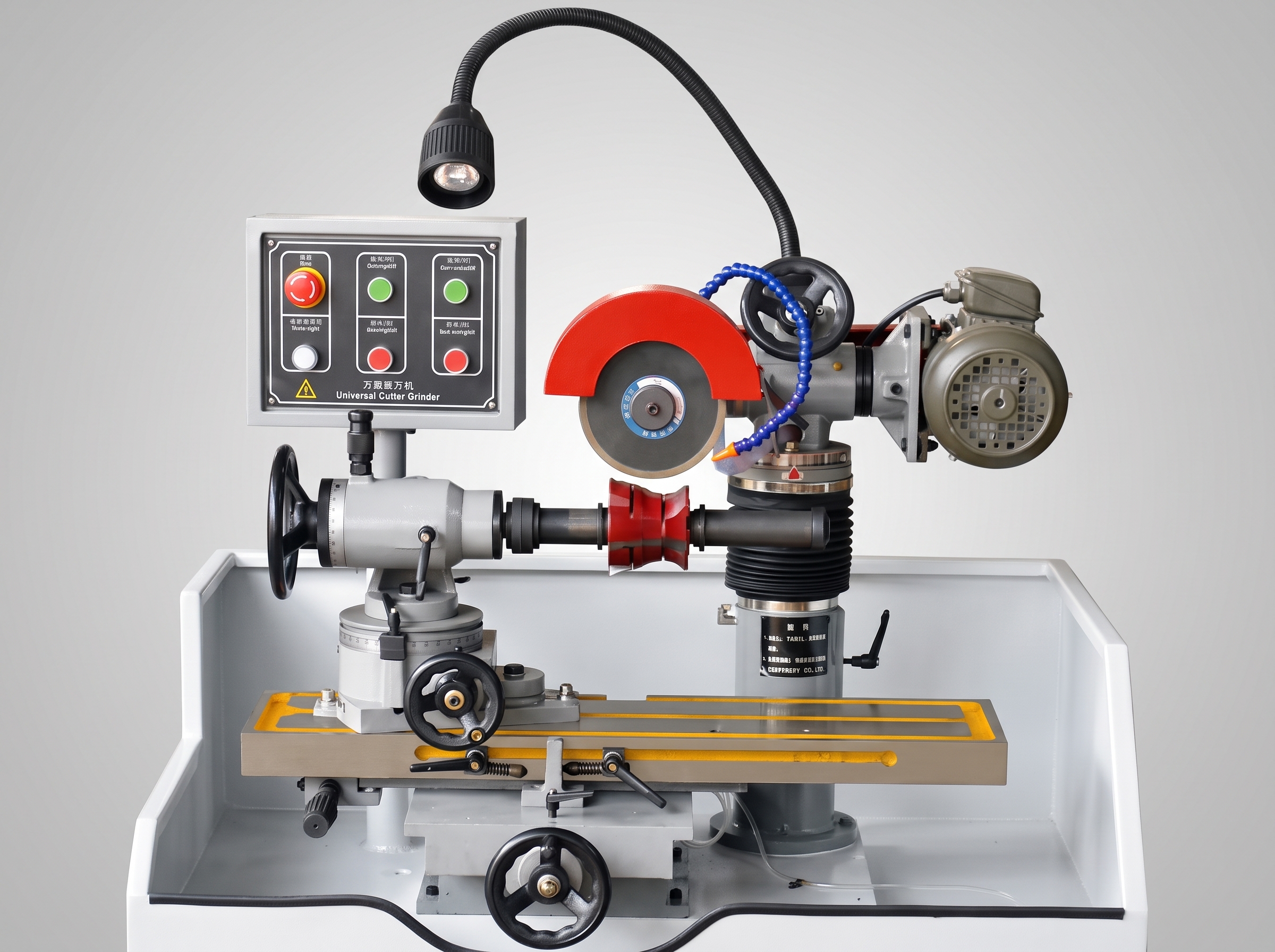

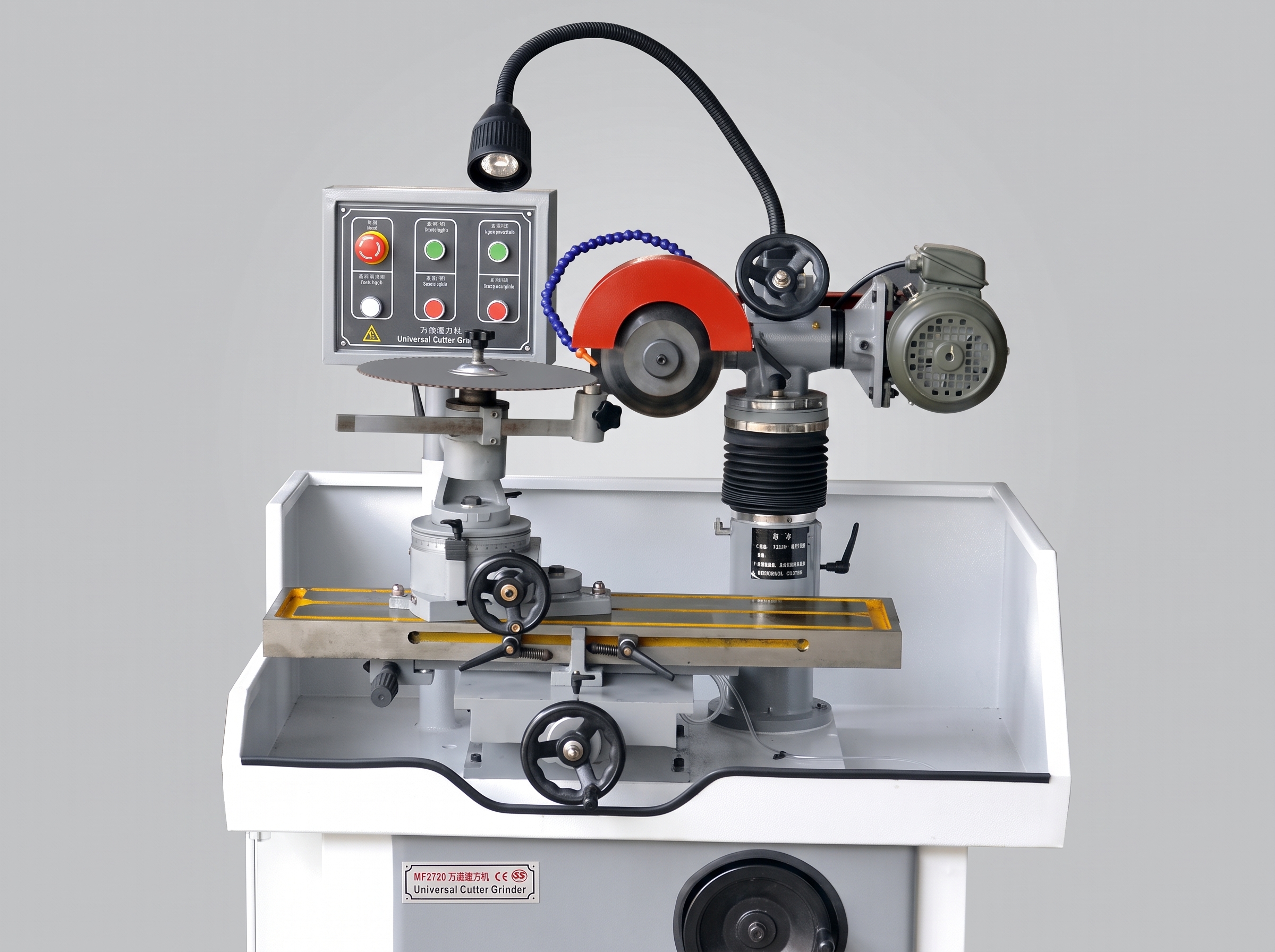

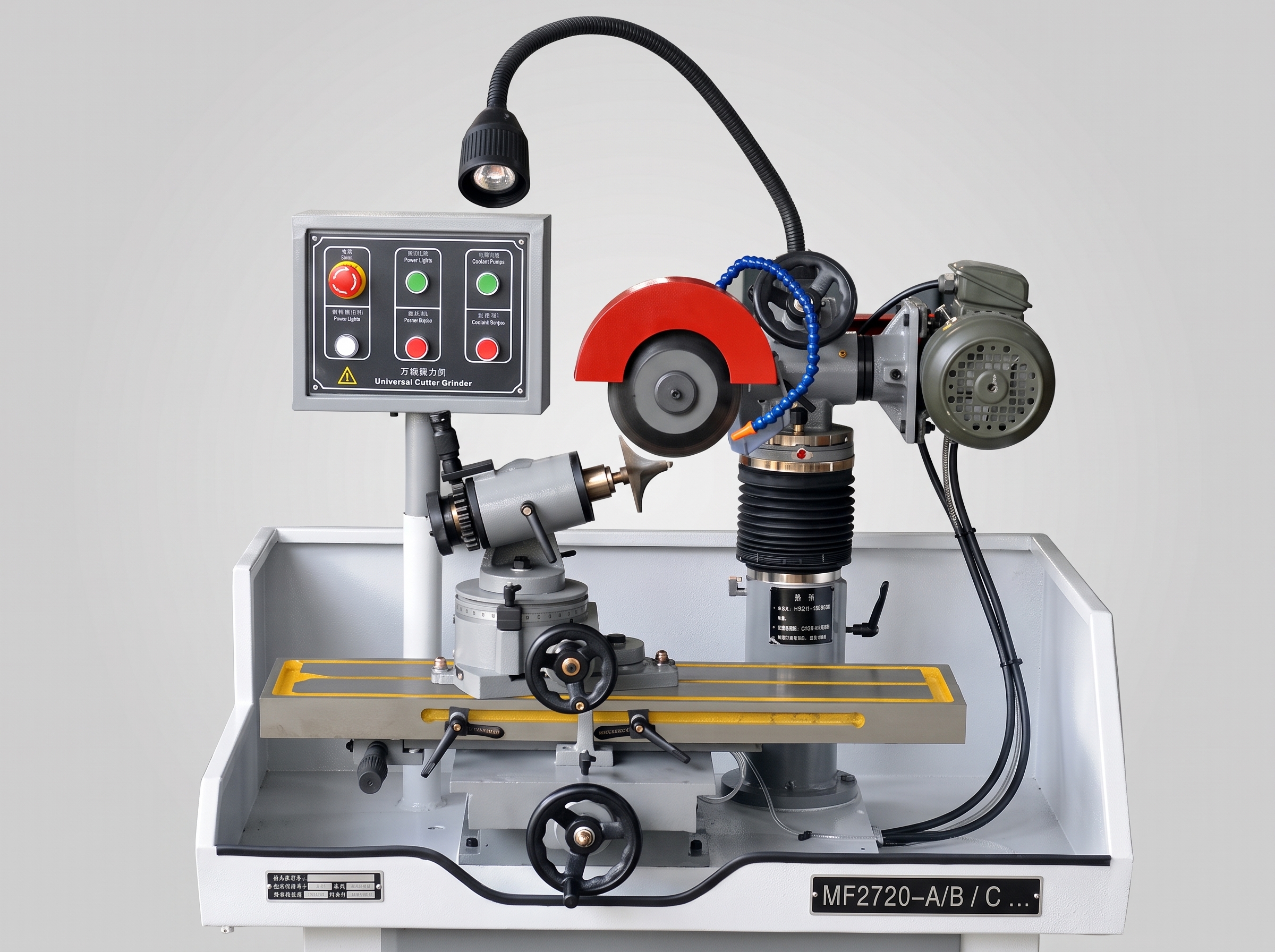

The MF2720 Universal Tool & Cutter Grinder is a multi-purpose sharpening machine designed for woodworking tool maintenance and precision grinding. It uses high-precision V6 crossed guide rails for transverse and longitudinal movement, helping maintain stable positioning and grinding accuracy. A built-in fine-adjustment mechanism simplifies setup for different cutting tools, while the grinding head provides ±45° angular adjustment for flexible sharpening applications.
- Motor power: 0.55 kW
- Cutter rotation diameter: 400 mm
- Cutter carriage travel: 300 mm
- Grinding wheel speed: 3500 r/min
- Grinding angle: ±45°
- Circular saw blade range: Ø105–500 mm
- Machine dimensions: 1040 × 720 × 1300 mm
Images
Features
- Multi-purpose design for sharpening a range of woodworking cutting tools.
- High-precision V6 crossed guide rails support stable transverse and longitudinal movement.
- Fine-adjustment mechanism allows easier and more accurate grinding setup.
- ±45° grinding head adjustment accommodates different cutting-edge angles.
- Supports circular saw blades from Ø105 to Ø500 mm.
Technical data
| Specifications | Unit | MF2720 |
|---|---|---|
| Machine type | — | Universal Tool & Cutter Grinder |
| Motor power | kW | 0.55 |
| Cutter rotation diameter | mm | 400 |
| Cutter carriage travel | mm | 300 |
| Grinding wheel size | mm | 10 × Ø32 (Ø16) × Ø150 |
| Grinding wheel speed | r/min | 3500 |
| Grinding wheel angle | ° | ±45 |
| Circular saw blade diameter | mm | Ø105–500 |
| Overall dimensions | mm | 1040 × 720 × 1300 |
| Weight | kg | 270 |
