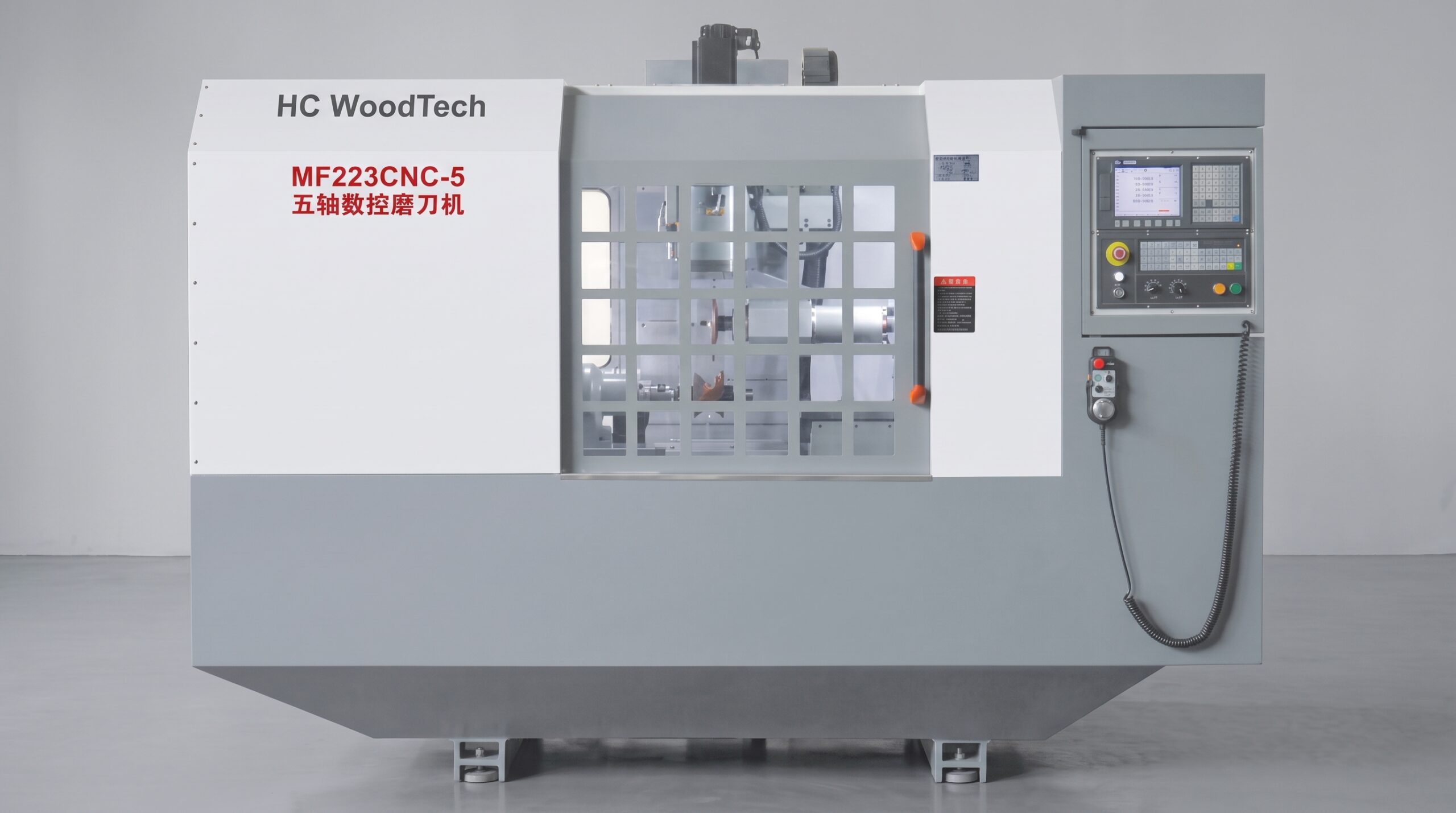

The MF223CNC-5 5-Axis CNC Profile Cutter Grinder is designed for fully automatic sharpening of profiled woodworking cutters and moulding tools. The CNC system provides program memory, storage and dynamic machining tracking, while five servo motors and two automatic tool-setting devices support precise positioning. The machine can automatically grind the front, rear and side cutting angles, detect cutter and grinding-wheel wear, and automatically change between four grinding-wheel positions for different sharpening operations.
- CNC system: 5-Axis Servo Control
- Main motor power: 2.2 kW
- Cutter holder travel: 300 mm
- Cutter rotation diameter: 300 mm
- Grinding wheel speed: 2000–20,000 r/min
- Grinding wheel angle: 0–90°
- Machine dimensions: 2840 × 2020 × 2230 mm
Images

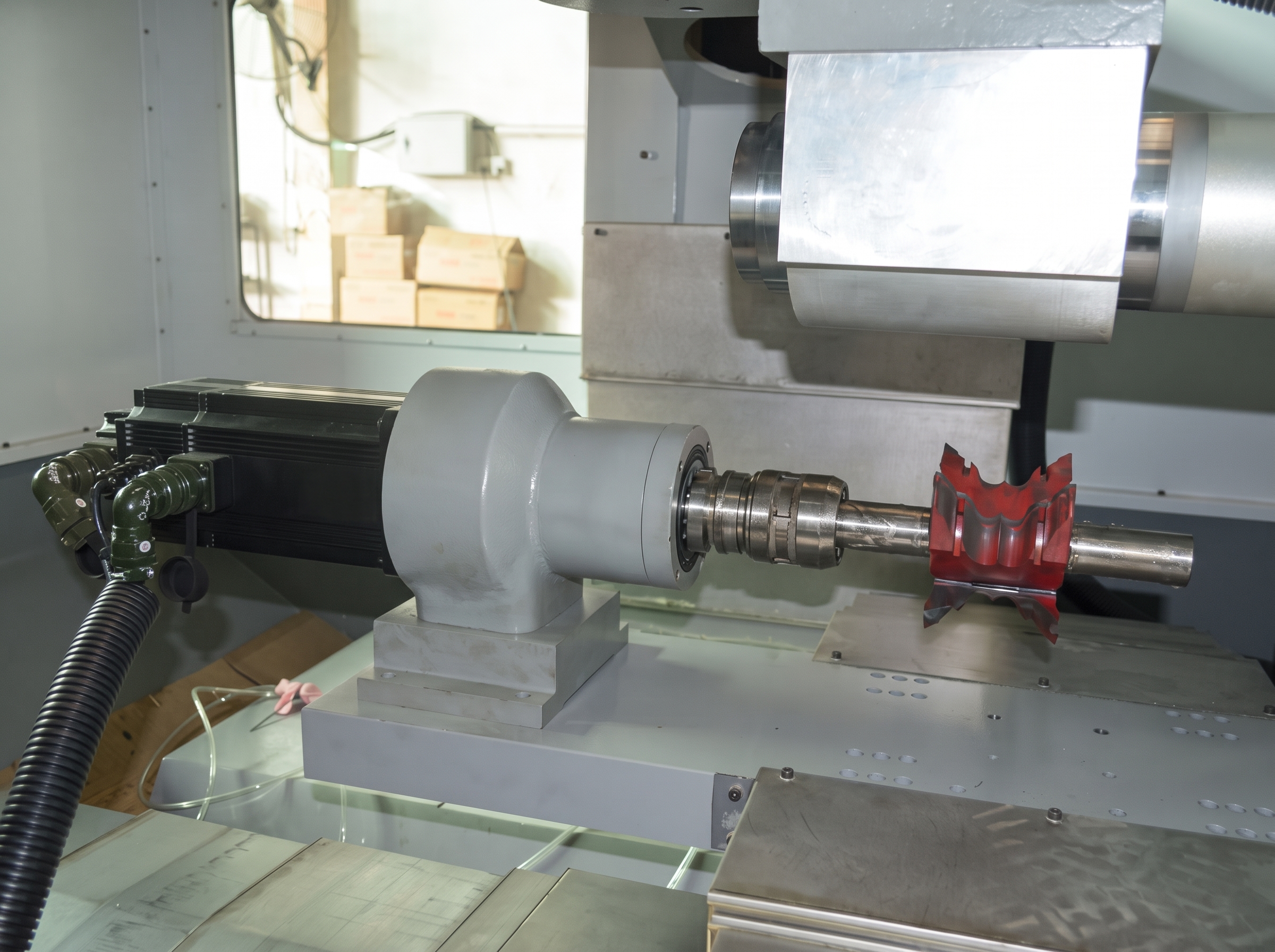

Features
- Five-axis CNC control with program memory, storage and dynamic machining tracking.
- Five servo motors and two tool-setting devices provide automatic positioning and cutter measurement.
- Automatically completes front angle, rear angle and side-angle grinding for profiled cutters.
- Four-position grinding-wheel magazine supports rough, fine, right-angle and surface grinding wheels with automatic wheel changing.
- Automatic detection of cutter and grinding-wheel wear helps maintain consistent sharpening accuracy.
Technical data
| Specifications | Unit | MF223CNC-5 |
|---|---|---|
| Machine type | — | 5-Axis CNC Profile Cutter Grinder |
| Main motor power | kW | 2.2 |
| Water pump power | W | 120 |
| Cutter holder travel | mm | 300 |
| Cutter rotation diameter | mm | 300 |
| Grinding wheel speed | r/min | 2000–20,000 |
| Grinding wheel size | mm | Ø205 × Ø40 |
| Grinding wheel rotation angle | ° | 0–90 |
| Compatible cutter shaft diameter | mm | Ø25.4 / Ø30 / Ø35 / Ø40 |
| Servo motors | pcs | 5 |
| Tool-setting devices | pcs | 2 |
| Grinding wheel positions | pcs | 4 |
| Overall dimensions | mm | 2840 × 2020 × 2230 |
| Weight | kg | Not specified |
