Highlights

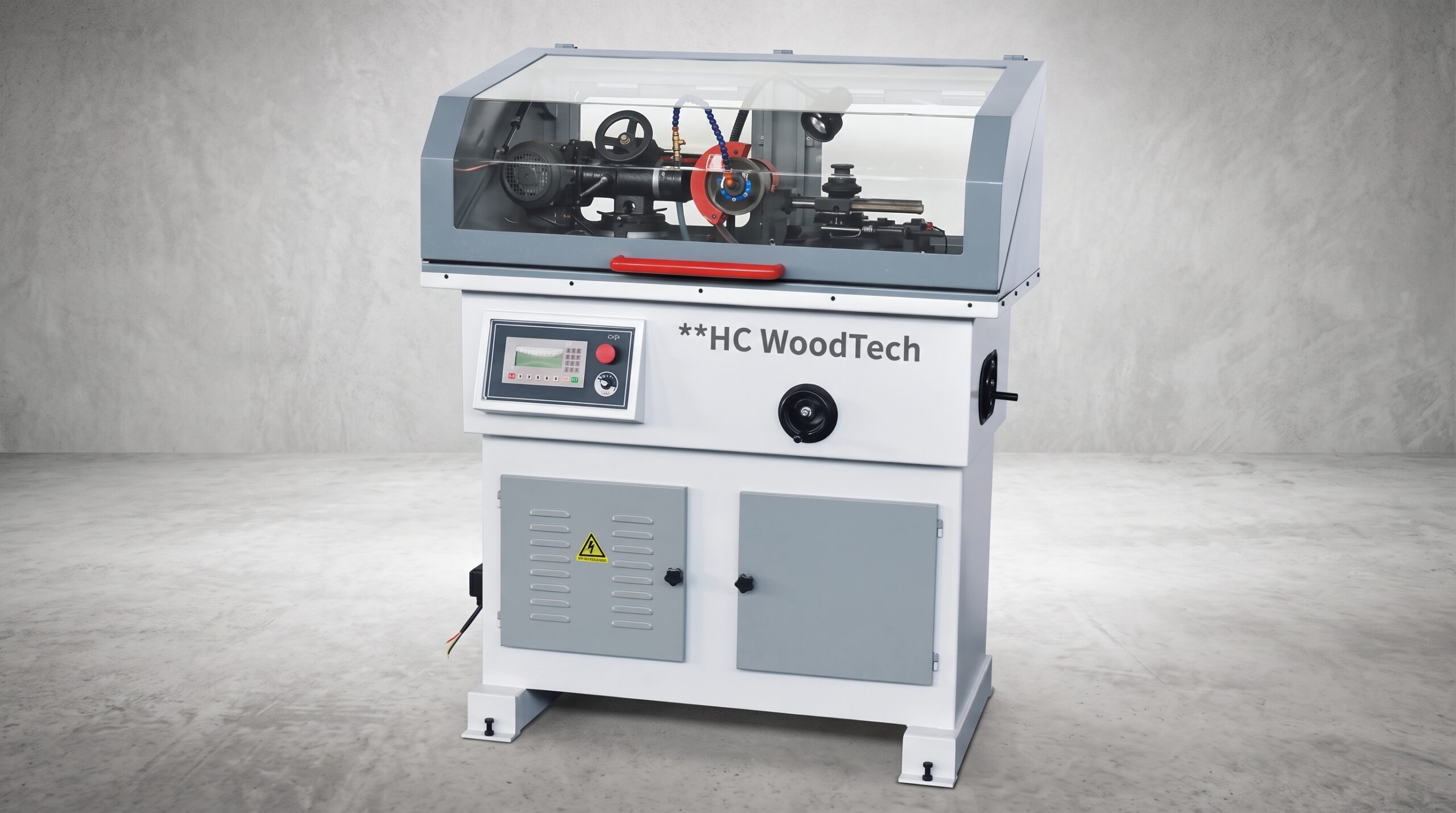

The MF127C Automatic Circular Saw Blade Tooth Grinder is designed for precision sharpening of carbide-tipped circular saw blades used in woodworking, panel processing and furniture production. With a diamond grinding wheel, it can process the tooth face, tooth top and corresponding bevel surfaces at different cutting angles. After the required blade and tooth parameters are entered, the machine can complete the sharpening sequence automatically. It supports multiple tooth profiles including flat, bevel, alternating, trapezoidal and combination teeth.
- Saw blade diameter: Ø105–500 mm
- Sharpening speed: 1–36 teeth/min
- Maximum tooth depth: 8 mm
- Grinding wheel speed: 4800 r/min
- Main motor power: 0.55 kW
- Grinding wheel: Ø125 × Ø32 (Ø16) mm
- Machine size: 1190 × 850 × 1850 mm
Images
Features
- Designed for sharpening carbide-tipped circular saw blades with different cutting angles.
- Supports tooth face, tooth top and bevel grinding using a diamond grinding wheel.
- Handles flat, bevel, alternating, trapezoidal and combination tooth profiles.
- Adjustable feeding speed from 1–36 teeth per minute for different blade requirements.
- Parameter-based automatic sharpening reduces repeated manual adjustment.
Technical data
| Specifications | Unit | MF127C |
|---|---|---|
| Machine type | — | Circular Saw Blade Tooth Grinder |
| Main motor power | kW | 0.55 |
| Water pump power | W | 40 |
| Feed motor power | W | 60 |
| Sharpening speed | teeth/min | 1–36 |
| Saw blade diameter | mm | Ø105–500 |
| Saw blade bore | mm | Ø20 / Ø22 / Ø25.4 / Ø30 / Ø40 / Ø50 |
| Maximum tooth depth | mm | 8 |
| Grinding wheel speed | r/min | 4800 |
| Grinding wheel size | mm | Ø125 × Ø32 (Ø16) |
| Overall dimensions | mm | 1190 × 850 × 1850 |
| Weight | kg | 300 |
