Highlights

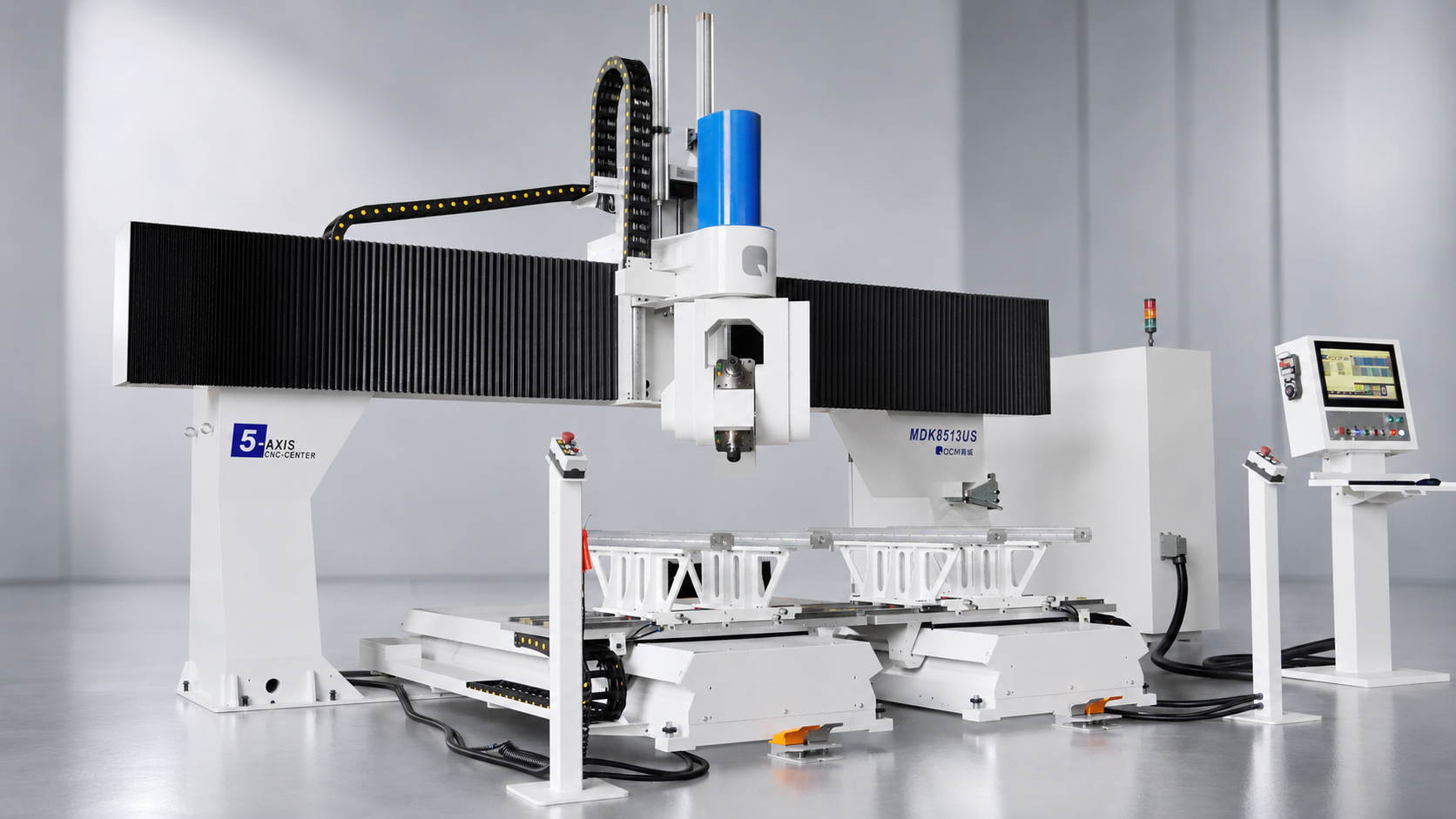

The MDK8513US Advanced 4-Spindle 5-Axis Woodworking CNC is the high-spec configuration of the MDK8513 series, designed for fast and precise machining of complex solid wood components. It combines four 9.6 kW / 24,000 rpm manual tool-change spindles with OSAI control, YASKAWA servo drives and HIWIN linear guides. Its large machining range, high-speed axis movement and four movable vacuum worktables support efficient machining of curved, shaped and multi-surface parts with fewer clamping operations.
- X-axis travel: 3700 mm
- Y/V-axis travel: 2400 mm
- Z-axis travel: 800 mm
- Spindles: 4 × 9.6 kW / 24,000 rpm
- X-axis speed: 60 m/min
- CNC / Servo: OSAI / YASKAWA
- Guide rail: HIWIN
Images
Features
- Four 9.6 kW high-speed spindles provide flexible multi-process machining without an automatic tool magazine.
- Large 3700 × 2400 mm X/Y machining range for larger and complex solid wood components.
- YASKAWA servo drives and HIWIN linear guides provide the high-spec motion configuration of the MDK8513 series.
- Automatic tool setter, QCWOOD software and precision vacuum positioning improve machining accuracy and setup efficiency.
- Optional turning spindle, automatic feeding and hidden clamping expand the machine for more specialized production requirements.
Technical data
| Specifications | Unit | MDK8513US |
|---|---|---|
| X-axis travel | mm | 3700 |
| Y/V-axis travel | mm | 2400 |
| Z-axis travel | mm | 800 |
| A-axis rotation | ° | 360 continuous |
| C-axis rotation | ° | ±400 |
| X-axis max. speed | m/min | 60 |
| Y/V-axis max. speed | m/min | 45 |
| Z-axis max. speed | m/min | 30 |
| A/C max. rotary speed | r/min | 22.5 |
| Spindle type | — | Manual Tool Change |
| Spindle power | kW | 9.6 × 4 |
| Spindle speed | rpm | 24,000 |
| Worktable size | mm | 1300 × 1300 × 2 |
| Worktables | sets | 4 |
| CNC system | — | OSAI |
| Servo system | — | YASKAWA |
| Tool magazine | — | Without |
| Pneumatic clamp | — | Optional |
| Turning spindle | — | Optional |
| Automatic feeding | — | Optional |
| Hidden clamp | — | Optional |
| Guide rail | — | HIWIN |
| Gear rack | — | APEX |
| Ball screw | — | GTEN |
