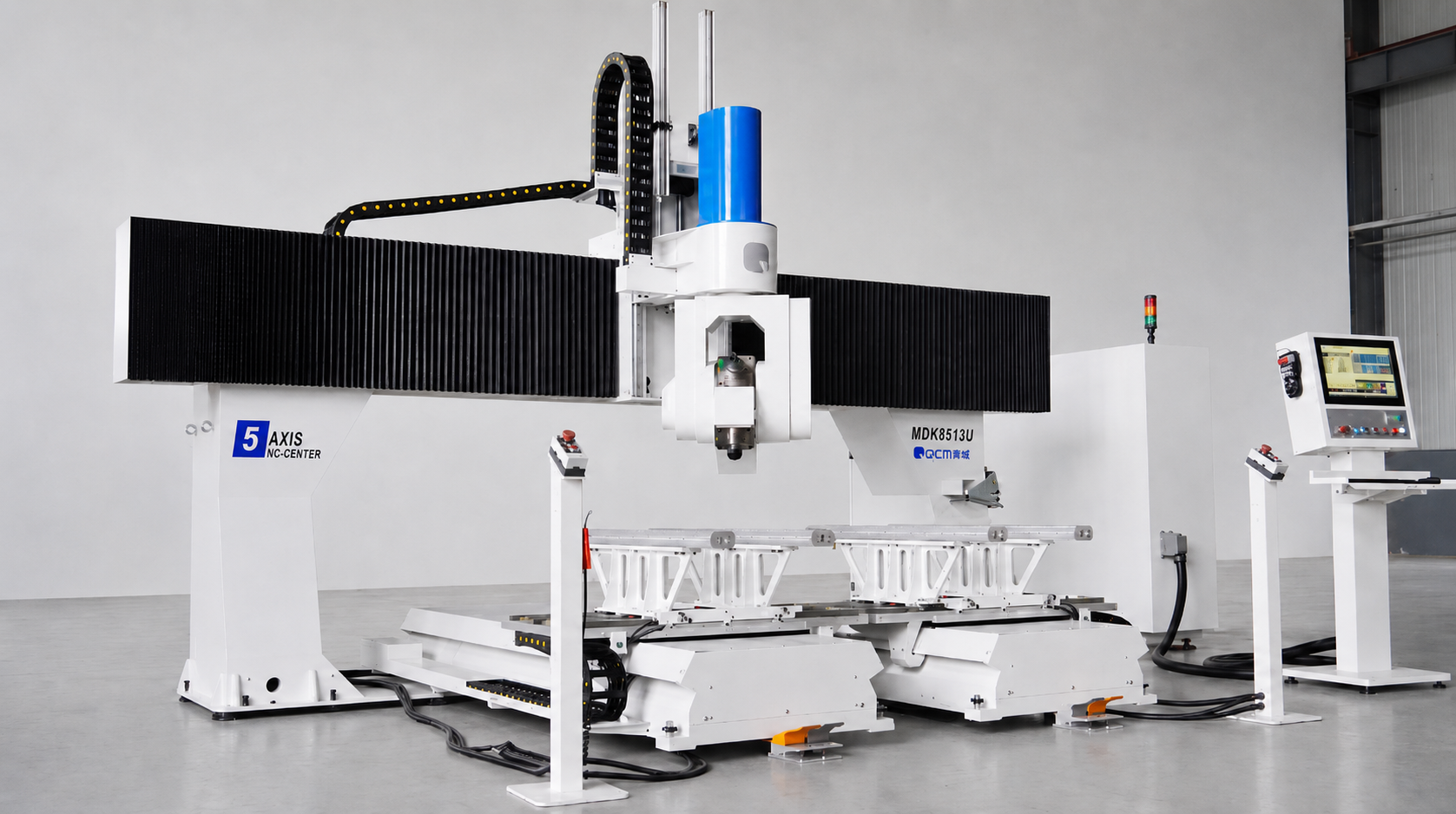

The MDK8513U Standard 4-Spindle 5-Axis CNC Woodworking Machine is designed for high-speed, large-format machining of complex solid wood components. It combines a rigid high-strength welded structure with four 9.6 kW / 24,000 rpm spindles, OSAI CNC control and INOVANCE servo drives. With a 3700 mm X-axis travel, 60 m/min maximum X-axis speed and dual movable vacuum worktables, the machine enables efficient multi-face machining of curved and irregular parts with fewer clamping operations.
- Configuration: Standard 4-Spindle
- X-axis travel: 3700 mm
- Y/V-axis travel: 2400 mm
- Z-axis travel: 800 mm
- Spindles: 4 × 9.6 kW / 24,000 rpm
- X-axis speed: 60 m/min
- CNC / Servo: OSAI / INOVANCE
Images
Features
- Four 9.6 kW high-speed spindles support efficient multi-process machining.
- Large 3700 × 2400 mm X/Y machining range for larger solid wood components.
- High-speed axis movement reaches up to 60 m/min on the X axis.
- Rigid welded steel structure with annealing and vibration aging improves long-term stability.
- Automatic tool setting, QCWOOD software and precision vacuum positioning support accurate and efficient production.
Technical data
| Specifications | Unit | MDK8513U |
|---|---|---|
| X-axis travel | mm | 3700 |
| Y/V-axis travel | mm | 2400 |
| Z-axis travel | mm | 800 |
| A-axis rotation | ° | 360 continuous |
| C-axis rotation | ° | ±400 |
| X-axis max. speed | m/min | 60 |
| Y/V-axis max. speed | m/min | 45 |
| Z-axis max. speed | m/min | 30 |
| A/C max. rotary speed | r/min | 22.5 |
| Spindle | — | Manual Tool Change |
| Spindle power | kW | 9.6 × 4 |
| Spindle speed | rpm | 24,000 |
| Worktable size | mm | 1300 × 1300 × 2 |
| Worktable | — | Movable Vacuum Pod, Bar-Type |
| Worktable quantity | sets | 4 |
| CNC system | — | OSAI |
| Servo system | — | INOVANCE |
| Tool magazine | — | Without |
| Pneumatic clamp | — | Optional |
| Turning spindle | — | Not available |
| Automatic feeding | — | Not available |
| Hidden clamp | — | Not available |
| Guide rail | — | AIRTAC |
| Gear rack | — | APEX |
| Ball screw | — | GTEN |
