Highlights

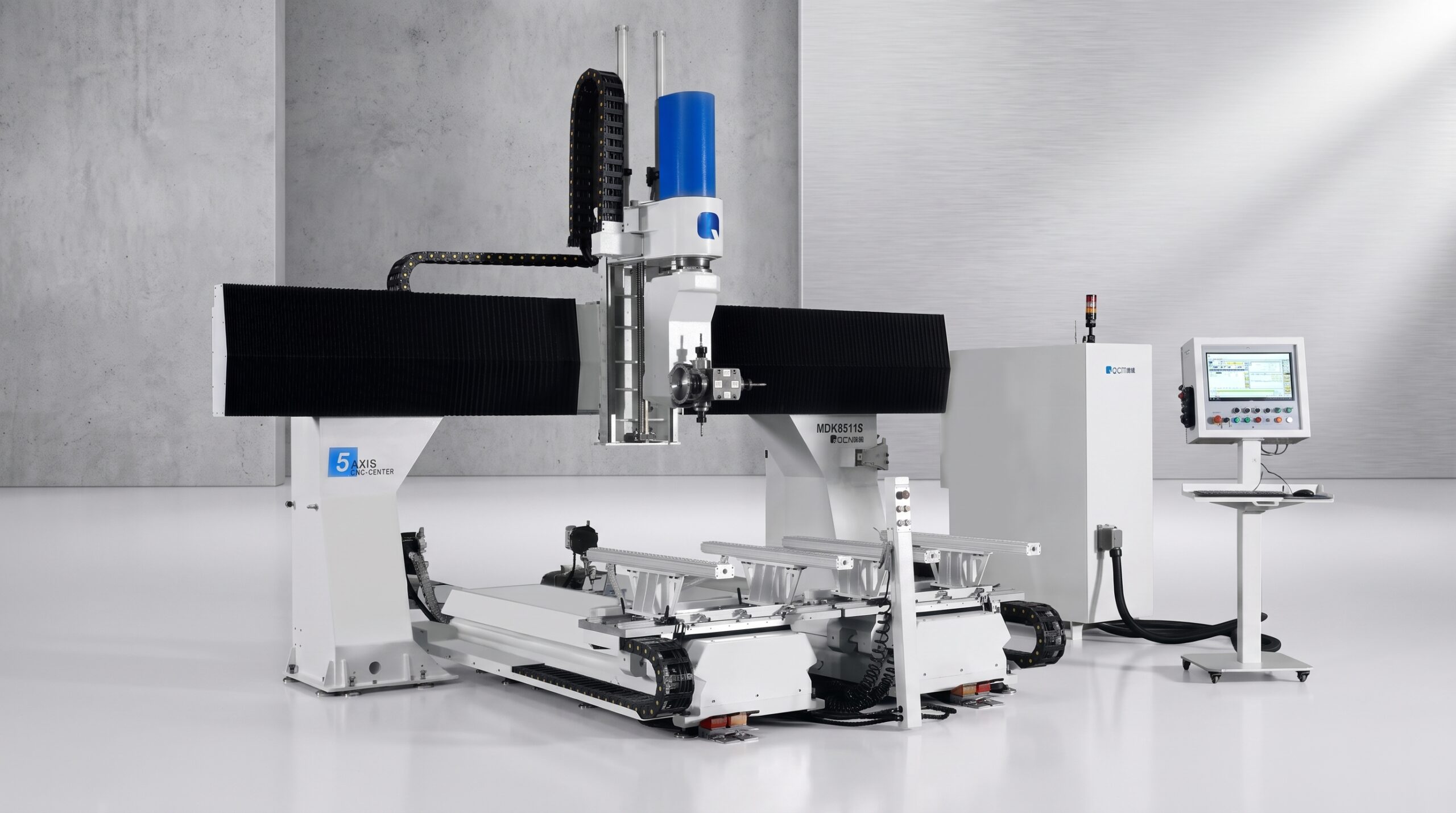

The MDK8511S Advanced 5-Axis CNC Woodworking Machine is the high-spec configuration of the MDK8511 series, combining OSAI control, YASKAWA servo drives and HIWIN linear guides for precise and stable machining. Its five-axis system, 24,000 rpm spindle and dual movable vacuum worktables are designed for complex curved and multi-surface solid wood parts, while optional turning, automatic feeding and hidden clamping expand its capabilities for more flexible production.
- Configuration: Advanced / High-Spec
- X-axis travel: 3050 mm
- Y/V-axis travel: 2200 mm
- Z-axis travel: 1000 mm
- A / C axis: 360° continuous / ±400°
- Spindle: 7.5 kW / 24,000 rpm
- CNC / Servo: OSAI / YASKAWA
Images
Features
- High-strength welded frame for long-term rigidity and stability.
- Five-axis machining for complex curved and multi-face components.
- OSAI CNC + YASKAWA servo + HIWIN linear guides.
- Precision-positioned vacuum pods with automatic tool setting.
- Optional turning spindle, automatic feeding and hidden clamping for expanded production capability.
Technical data
| Specifications | Unit | MDK8511S |
|---|---|---|
| X-axis travel | mm | 3050 |
| Y/V-axis travel | mm | 2200 |
| Z-axis travel | mm | 1000 |
| A-axis rotation | ° | 360 continuous |
| C-axis rotation | ° | ±400 |
| X/Y/V speed | m/min | 40 |
| Z-axis speed | m/min | 30 |
| A/C rotary speed | r/min | 22.5 |
| Spindle power | kW | 7.5 |
| Spindle speed | rpm | 24,000 |
| Worktable | mm | 1130 × 1130 × 2 |
| CNC system | — | OSAI |
| Servo system | — | YASKAWA |
| Guide rail | — | HIWIN |
| Screw | — | GTEN |
| Tool magazine | — | Without |
| Pneumatic clamp | — | Optional |
| Turning spindle | — | Optional |
| Automatic feeding | — | Optional |
| Hidden clamp | — | Optional |
