Highlights

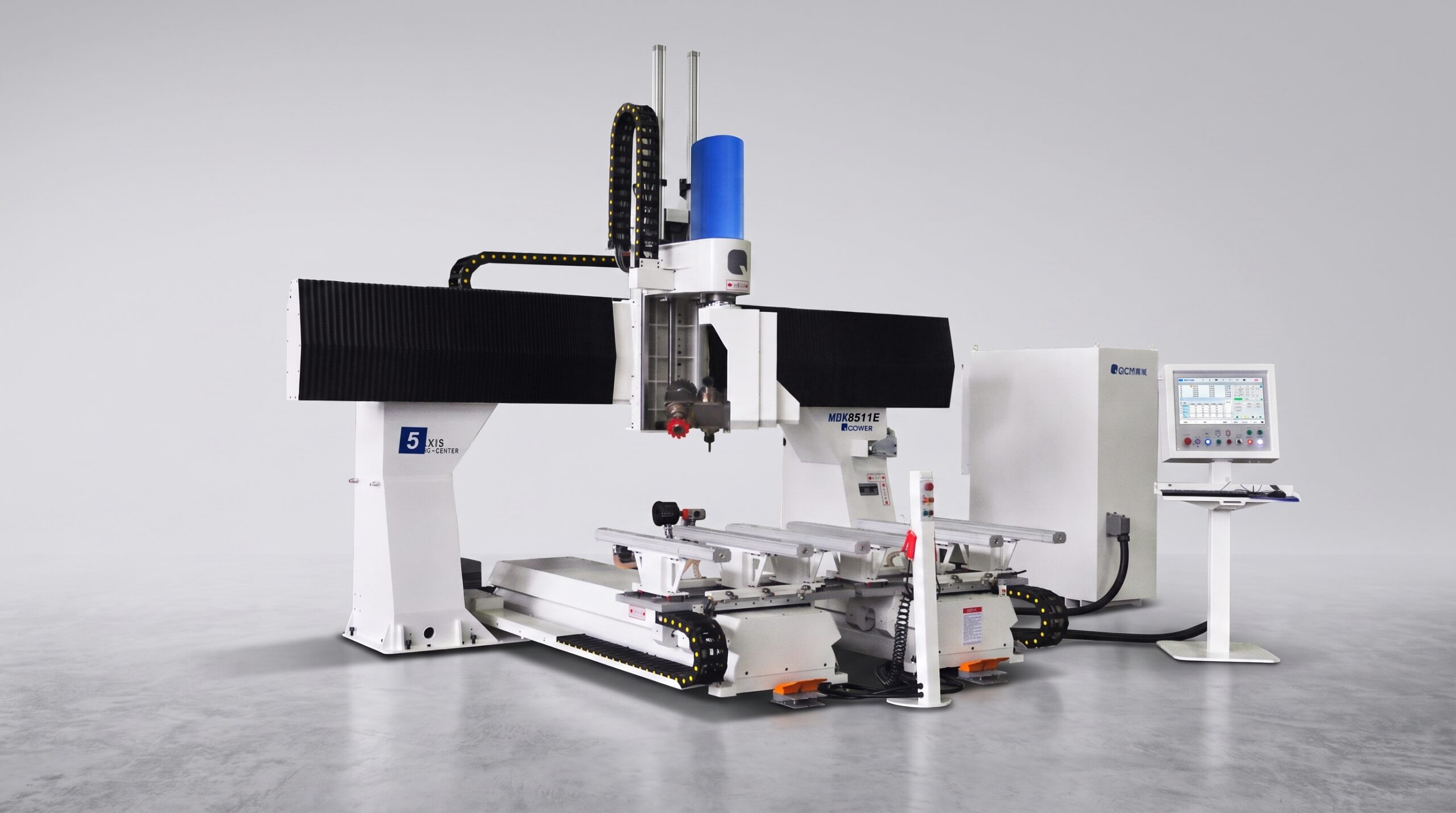

The MDK8511E Economical Five-Axis CNC Woodworking Machine is the cost-effective configuration of the MDK8511 series, designed for manufacturers requiring professional five-axis machining capability with a more economical control and drive package. It combines a rigid high-strength welded gantry, WEIHONG CNC control and servo system, a 7.5 kW high-speed spindle and dual movable vacuum pod worktables. With continuous A-axis rotation and ±400° C-axis movement, the machine can process complex curved, shaped and multi-face solid wood components in a single clamping, helping reduce repositioning while maintaining efficient and precise production.
- Configuration: Economical / Cost-Effective
- CNC system: WEIHONG
- Servo system: WEIHONG
- Spindle: 7.5 kW / 24,000 rpm
- X-axis travel: 3050 mm
- Y/V-axis travel: 2200 mm
- Z-axis travel: 1000 mm
Images
Features
- High-strength welded steel gantry undergoes high-temperature annealing and vibration aging to improve rigidity and long-term structural stability.
- Five-axis simultaneous machining enables complex multi-face processing with a single clamping, reducing repeated positioning and alignment.
- WEIHONG CNC control and WEIHONG servo drives provide a practical, cost-effective control solution for professional solid wood machining.
- Standard automatic tool setter, wireless handwheel and precision vacuum positioning system simplify machine setup and workpiece positioning.
- QCM-developed QCWOOD software supports machining simulation and process optimization for complex woodworking applications.
Technical data
| Specifications | Unit | MDK8511E |
|---|---|---|
| Configuration | — | Economical / Cost-Effective |
| X-axis travel | mm | 3050 |
| Y/V-axis travel | mm | 2200 |
| Z-axis travel | mm | 1000 |
| A-axis rotation | ° | 360 continuous |
| C-axis rotation | ° | ±400 |
| X/Y/V max. moving speed | m/min | 40 |
| Z-axis max. moving speed | m/min | 30 |
| A/C max. rotary speed | r/min | 22.5 |
| Spindle power | kW | 7.5 |
| Spindle speed | rpm | 24,000 |
| Tool change | — | Manual |
| Worktable size | mm | 1130 × 1130 × 2 |
| Worktable | — | Movable vacuum pod, bar-type |
| CNC system | — | WEIHONG |
| Servo driving | — | WEIHONG |
| Guide rail | — | AIRTAC |
| Screw | — | GTEN |
| Tool magazine | — | Without |
| Pneumatic clamp | — | Optional |
| Turning spindle | — | Not available |
| Automatic feeding machine | — | Not available |
| Hidden clamp | — | Not available |
