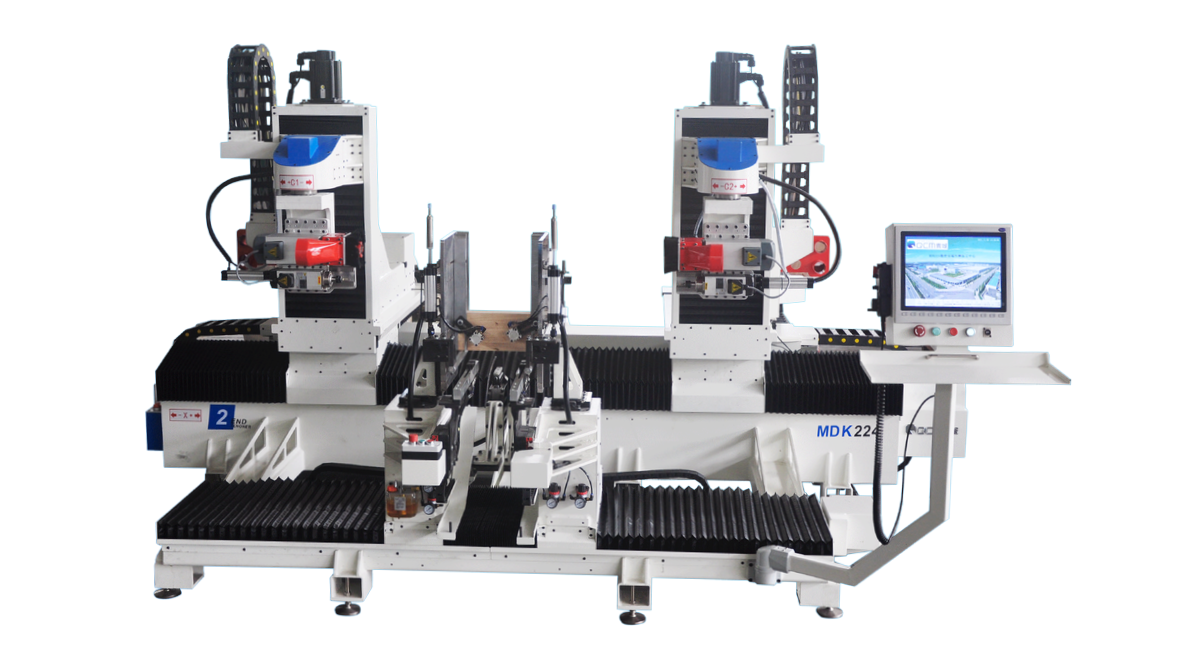

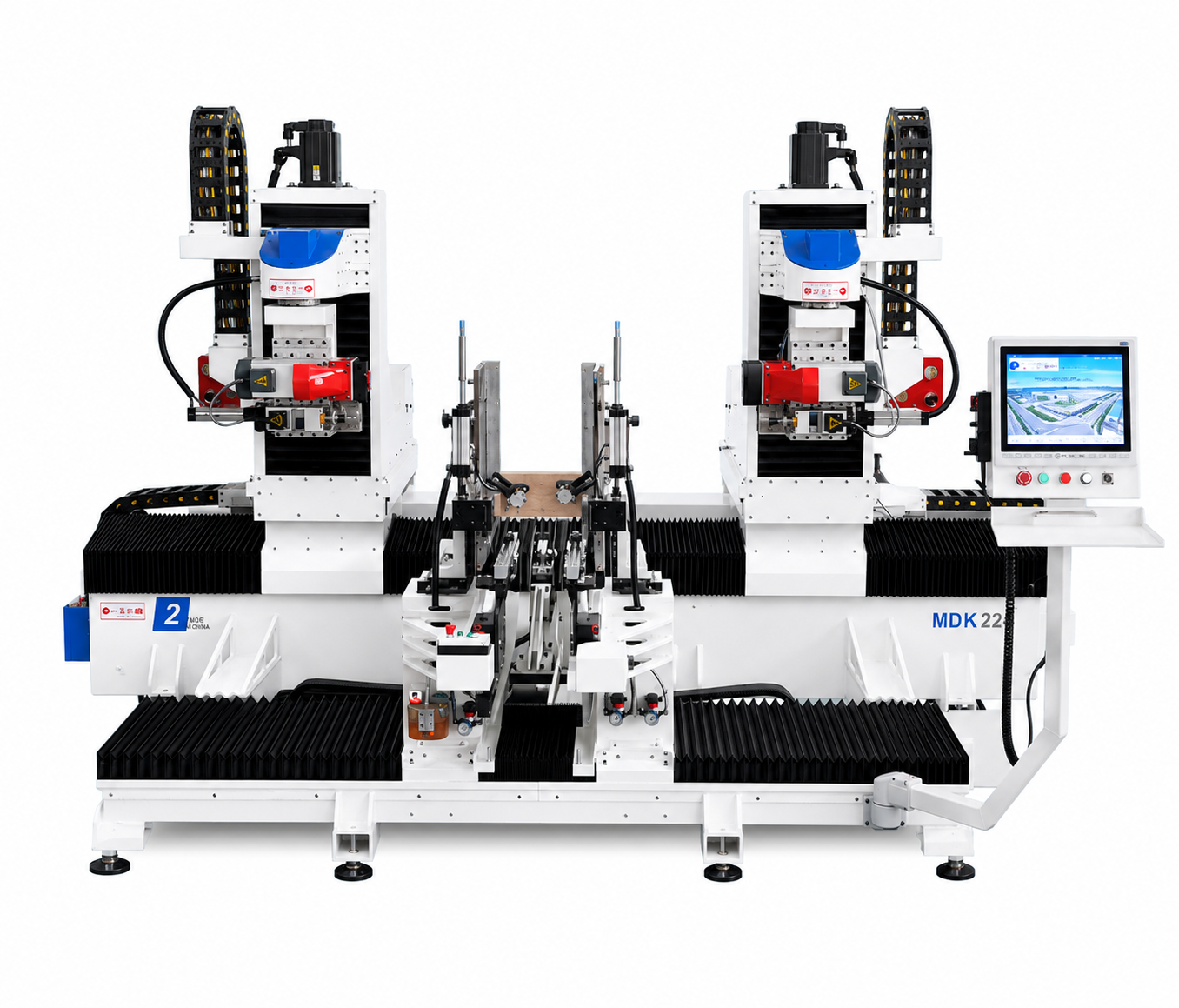

MDK224 CNC Double-End Tenoning Machine

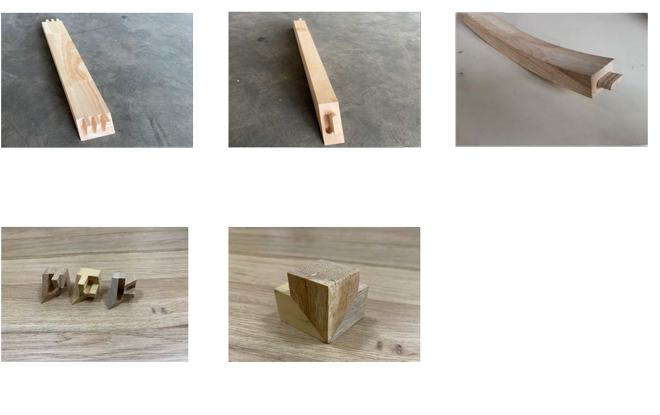

MDK224 is a CNC double-end tenoning machine for high-accuracy end profiling and joint machining on wood components. It supports straight tenons and 45° angle tenons, with servo-driven feed and automatic loading/unloading for continuous production.
Could handle：
Servo-driven system with automatic loading and unloading：
Profiling / shaping spindle: 5.5 kW × 2, 12,000 rpm

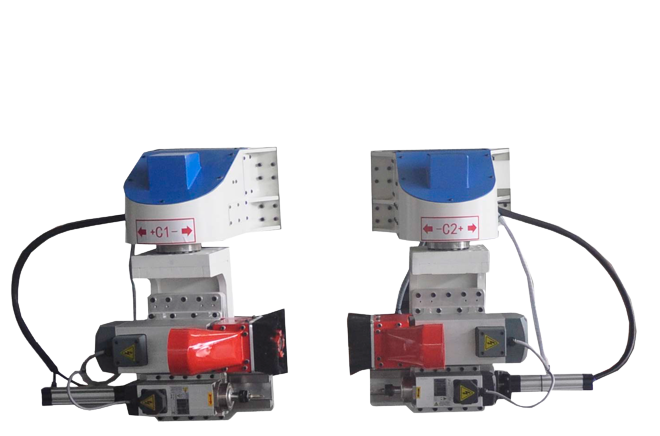

Process auxiliary spindle: 3.7 kW × 2, 18,000 rpm

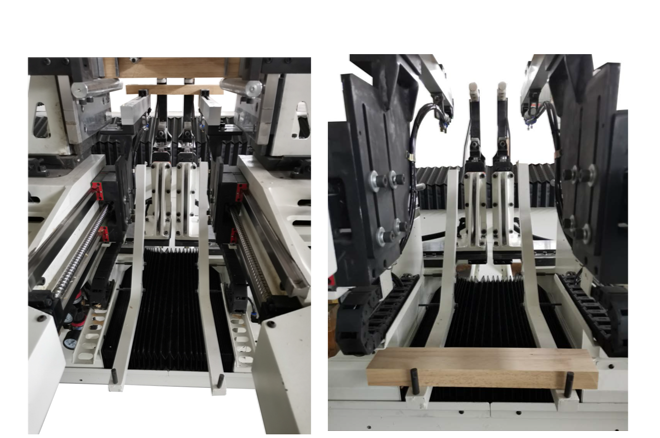

Main spindle integrated with the center auxiliary spindle, increasing feed speed and reducing the set-up/alignment time：

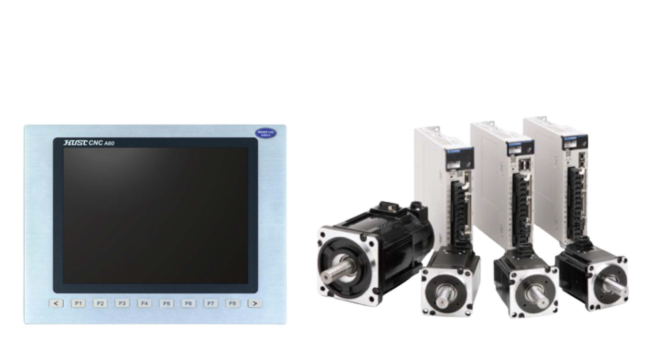

The servo drive, servo motors, and control system adopt Yikong (Taiwan) components. The motors use absolute encoders, offering stronger anti-interference performance, and no homing (return-to-zero) is required after each power-on：
| Specification | Unit | MDK224 |
|---|---|---|
| Straight tenon workpiece length | mm | 180–2000 |
| 45° angled tenon workpiece length | mm | 450–2000 |
| Workpiece width | mm | 10–60 |
| Workpiece thickness | mm | 10–80 |
| B axis angle range | ° | -55 ~ 0 |
| C axis angle range | ° | -55 ~ 0 |
| X axis speed | m/min | 10 |
| Y axis speed | m/min | 20 |
| Z axis speed | m/min | 20 |
| Feed speed | m/min | 15 |
| Servo system | Yikong (Taiwan) | |
| Linear guide | HIWIN (Taiwan) | |
| Inverter | Schneider (France) | |
| Rotary encoder | Omron (Japan) | |
| Tenoning spindle | 5.5 kW × 2, 12,000 rpm | |
| Drilling spindle | 3.7 kW × 2, 18,000 rpm | |
| Overall dimensions (L×W×H) | mm | 3910 × 2850 × 2150 |
| Machine weight | kg | approx. 3500 |
