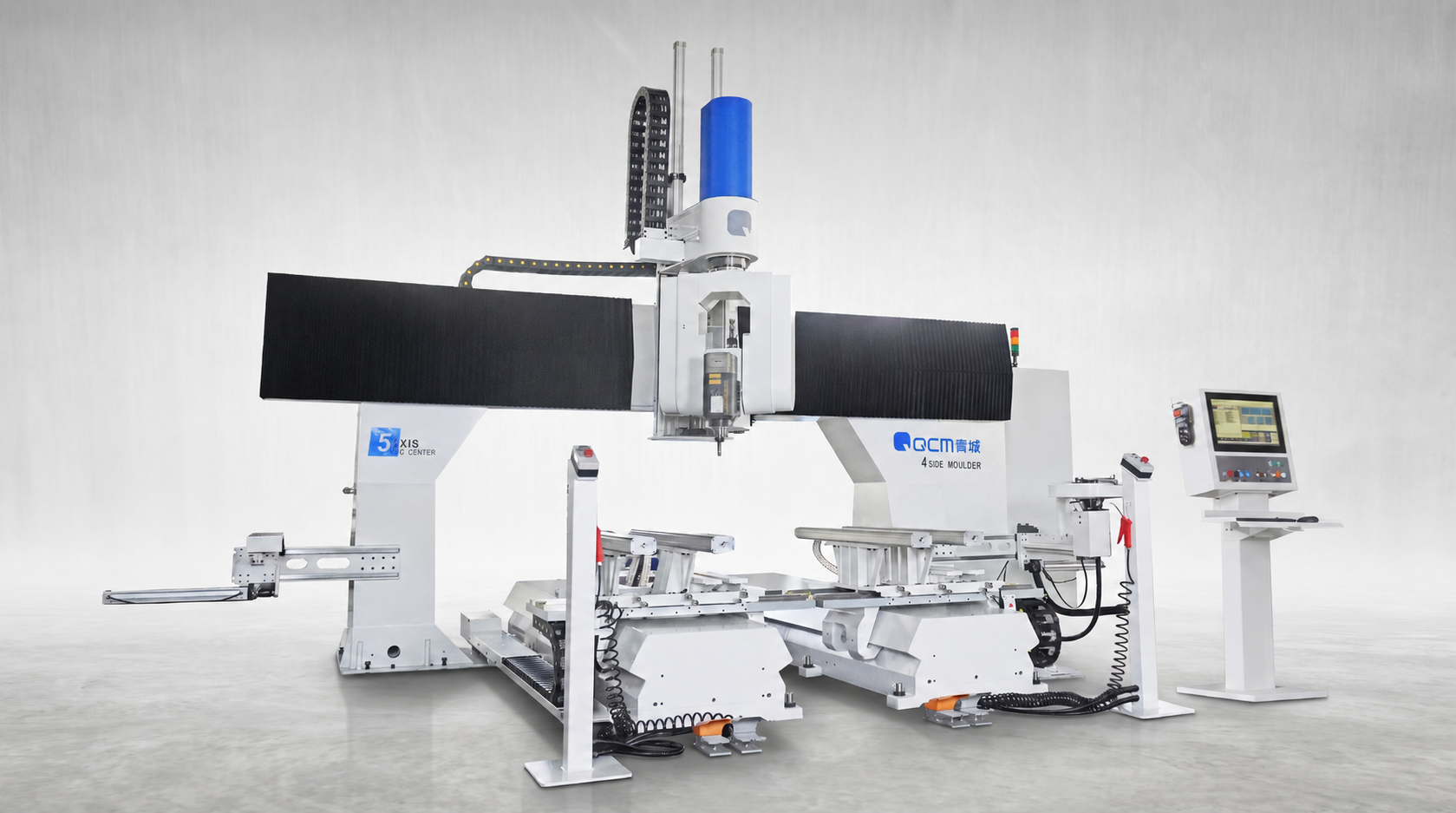

The MDH8513U Standard ATC 5-Axis CNC Woodworking Machine is designed for large-format, high-speed machining of complex solid wood components. It combines two 9.6 kW manual tool-change spindles with an 11/12 kW automatic tool-change spindle and 8-station tool magazine, allowing multiple machining processes to be completed efficiently with fewer manual tool changes. OSAI control, INOVANCE servo drives, four movable vacuum worktables and five-axis machining capability provide flexible and precise processing for curved, shaped and multi-surface components.
- X-axis travel: 3700 mm
- Y/V-axis travel: 2400 mm
- Z-axis travel: 800 mm
- Manual spindles: 2 × 9.6 kW / 24,000 rpm
- ATC spindle: 11/12 kW / 24,000 rpm
- Tool magazine: 8 stations
- CNC / Servo: OSAI / INOVANCE
Images
Features
- Dual 9.6 kW manual spindles combined with a high-power ATC spindle for flexible multi-process machining.
- 8-station tool magazine supports automatic tool changes during complex machining cycles.
- Large-format 3700 × 2400 mm X/Y travel with X-axis speed up to 60 m/min.
- High-strength welded structure with annealing and vibration aging for long-term rigidity and stability.
- Automatic tool setter, QCWOOD software and precision vacuum positioning improve setup accuracy and machining efficiency.
Technical data
| Specifications | Unit | MDH8513U |
|---|---|---|
| X-axis travel | mm | 3700 |
| Y/V-axis travel | mm | 2400 |
| Z-axis travel | mm | 800 |
| A-axis rotation | ° | 360 continuous |
| C-axis rotation | ° | ±400 |
| X-axis max. speed | m/min | 60 |
| Y/V-axis max. speed | m/min | 45 |
| Z-axis max. speed | m/min | 30 |
| A/C max. rotary speed | r/min | 22.5 |
| Manual spindles | kW / rpm | 9.6 × 2 / 24,000 |
| ATC spindle | kW / rpm | 11/12 / 24,000 |
| Worktable size | mm | 1300 × 1300 × 2 |
| Worktables | sets | 4 |
| CNC system | — | OSAI |
| Servo system | — | INOVANCE |
| Tool magazine | stations | 8 |
| Pneumatic clamp | — | Optional |
| Turning spindle | — | Not available |
| Automatic feeding | — | Not available |
| Hidden clamp | — | Not available |
| Guide rail | — | AIRTAC |
| Gear rack | — | APEX |
| Ball screw | — | GTEN |
