Highlights

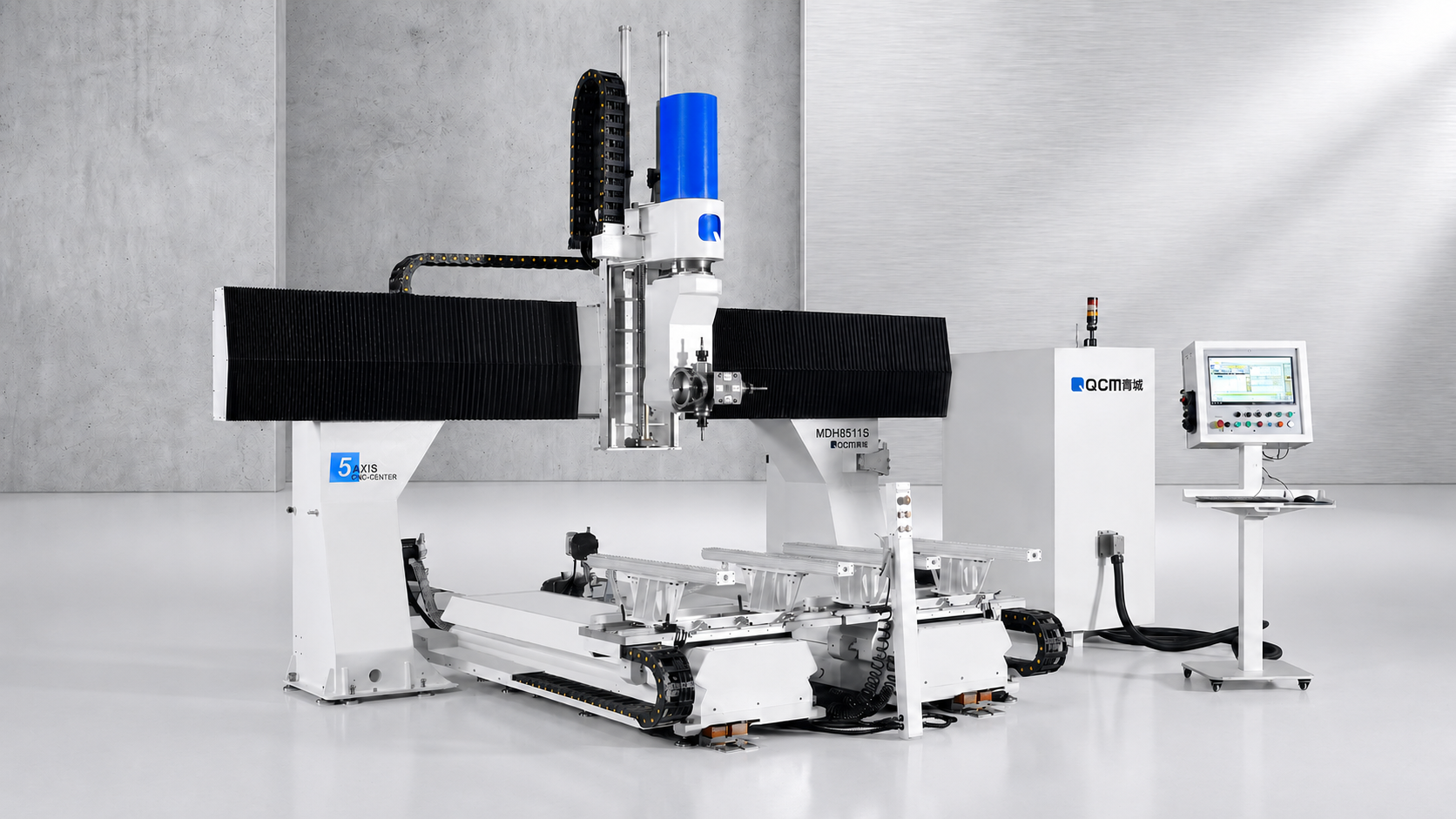

The MDH8511S Advanced ATC 5-Axis CNC Woodworking Machine is the high-spec configuration of the MDH8511 series, combining an OSAI CNC system, YASKAWA servo drives and HIWIN linear guides for precise and stable machining. It features a 7.5 kW manual spindle plus an imported 12 kW automatic tool-change spindle with an 8+1 station tool magazine, enabling flexible multi-process machining of complex curved and multi-surface solid wood parts. Optional turning, automatic feeding and hidden clamping further expand its production capabilities.
- Configuration: Advanced ATC
- X-axis travel: 3050 mm
- Y/V-axis travel: 2200 mm
- Z-axis travel: 1000 mm
- ATC spindle: 12 kW / 24,000 rpm
- Tool magazine: 8+1 stations
- CNC / Servo: OSAI / YASKAWA
Images
Features
- Dual-spindle design combines manual and automatic tool-changing capability.
- Imported 12 kW ATC spindle with 8+1 station tool magazine for flexible multi-process machining.
- OSAI CNC system with YASKAWA servo drives and HIWIN linear guides.
- Five-axis machining supports complex curved and multi-surface solid wood components in fewer clamping operations.
- Automatic tool setting, QCWOOD software and precision vacuum positioning improve machining efficiency and accuracy.
Technical data
| Specifications | Unit | MDH8511S |
|---|---|---|
| X-axis travel | mm | 3050 |
| Y/V-axis travel | mm | 2200 |
| Z-axis travel | mm | 1000 |
| A-axis rotation | ° | ±180 |
| C-axis rotation | ° | ±400 |
| X/Y/V max. speed | m/min | 40 |
| Z-axis max. speed | m/min | 30 |
| A/C max. rotary speed | r/min | 22.5 |
| Manual spindle power | kW | 7.5 |
| Manual spindle speed | rpm | 24,000 |
| ATC spindle power | kW | 12 |
| ATC spindle speed | rpm | 24,000 |
| Worktable size | mm | 1130 × 1130 × 2 |
| Worktable quantity | sets | 4 |
| CNC system | — | OSAI |
| Servo system | — | YASKAWA |
| Tool magazine | stations | 8+1 |
| Pneumatic clamp | — | Optional |
| Turning spindle | — | Optional |
| Automatic feeding | — | Optional |
| Hidden clamp | — | Optional |
| Guide rail | — | HIWIN |
| Ball screw | — | GTEN |
