Highlights

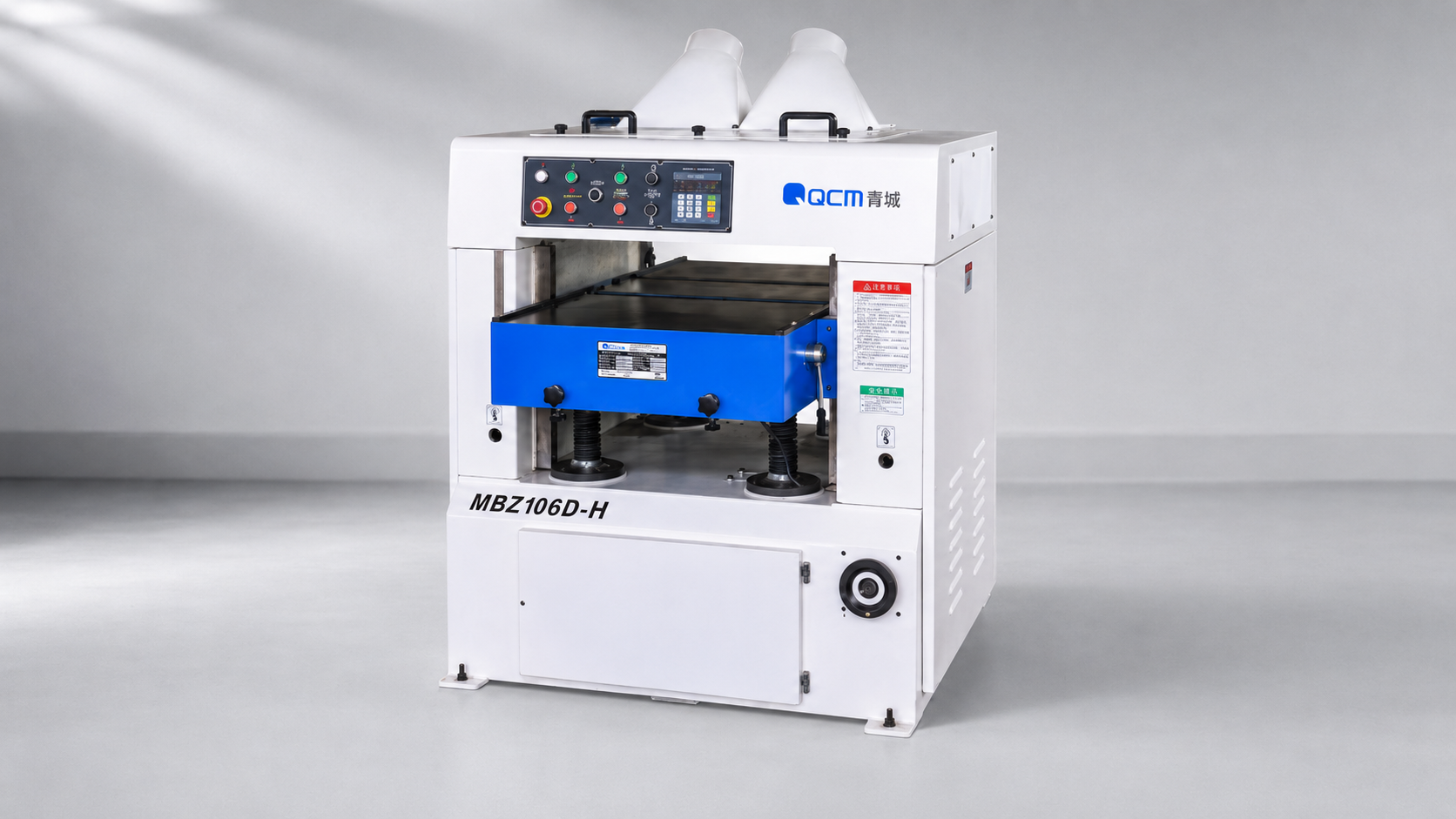

The MBZ106D Single-Sided Thickness Planer is a heavy-duty woodworking planer designed for accurate thickness sizing of large solid wood boards. It combines a rigid machine structure, four-column worktable lifting, CNC thickness positioning and variable-frequency feeding to provide smooth material movement, stable machining and consistent finished thickness.
- Planing width: 630 mm
- Planing thickness: 3–300 mm
- Minimum workpiece length: 300 mm
- Maximum planing depth: 8 mm
- Feeding speed: 5–18 m/min
- Cutter shaft speed: 5,000 r/min
- Total motor power: 9.4 kW
Images
Features

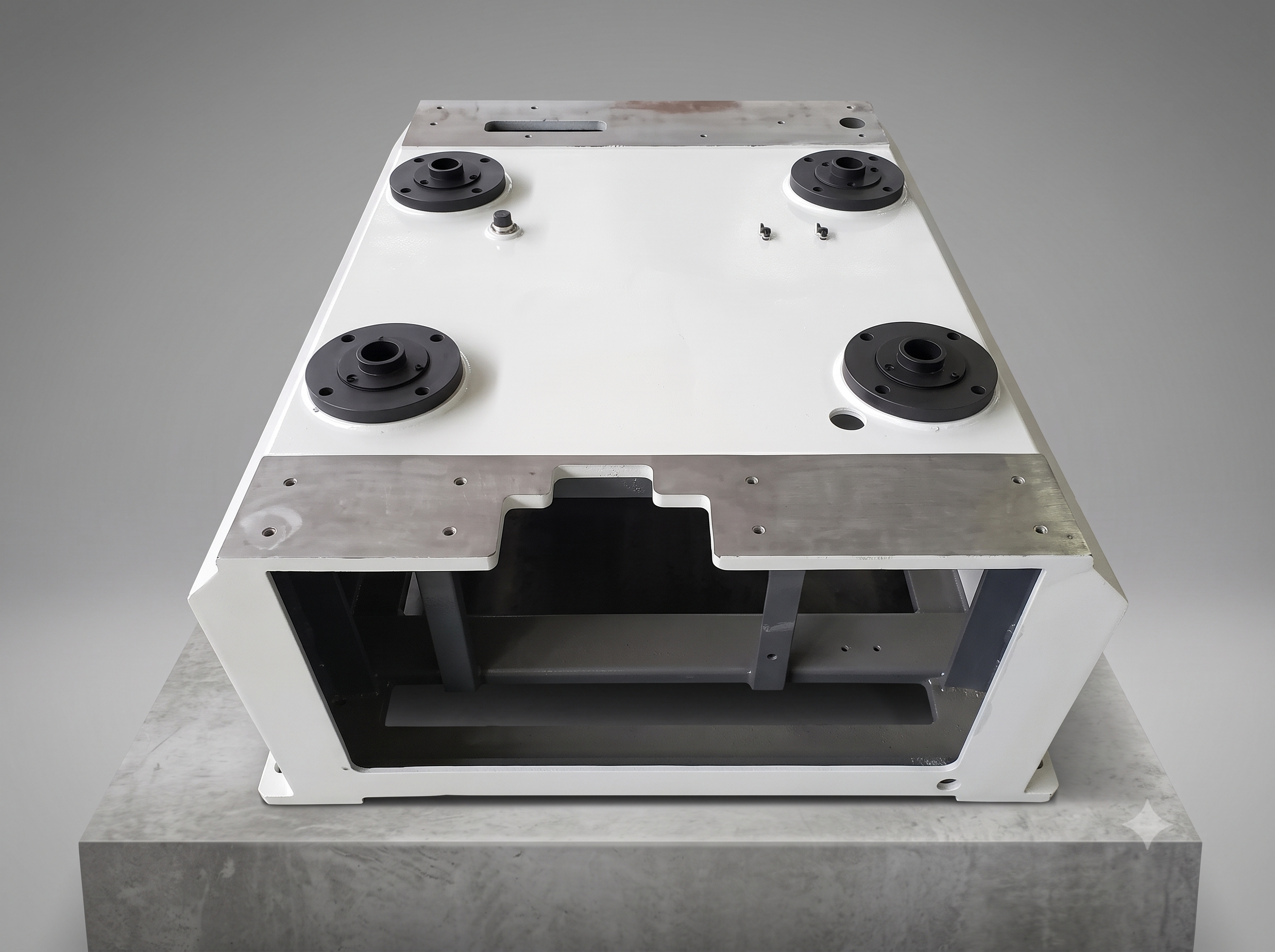

- The heavy-duty machine base and bed provide high rigidity and help maintain stable machining accuracy during single-sided thickness planing.

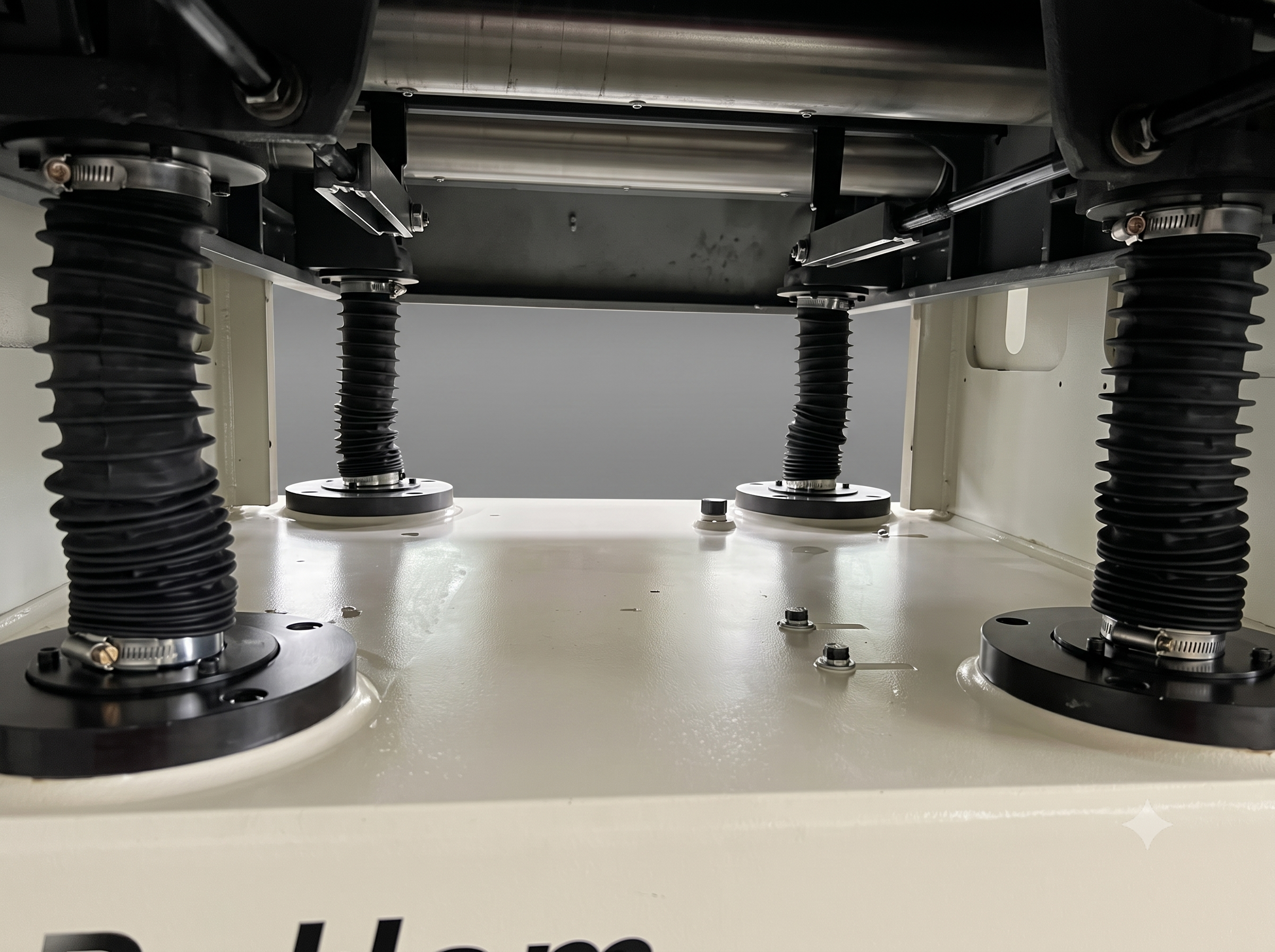

- The worktable is lifted by four vertical columns, providing stable and reliable height adjustment for accurate thickness control.

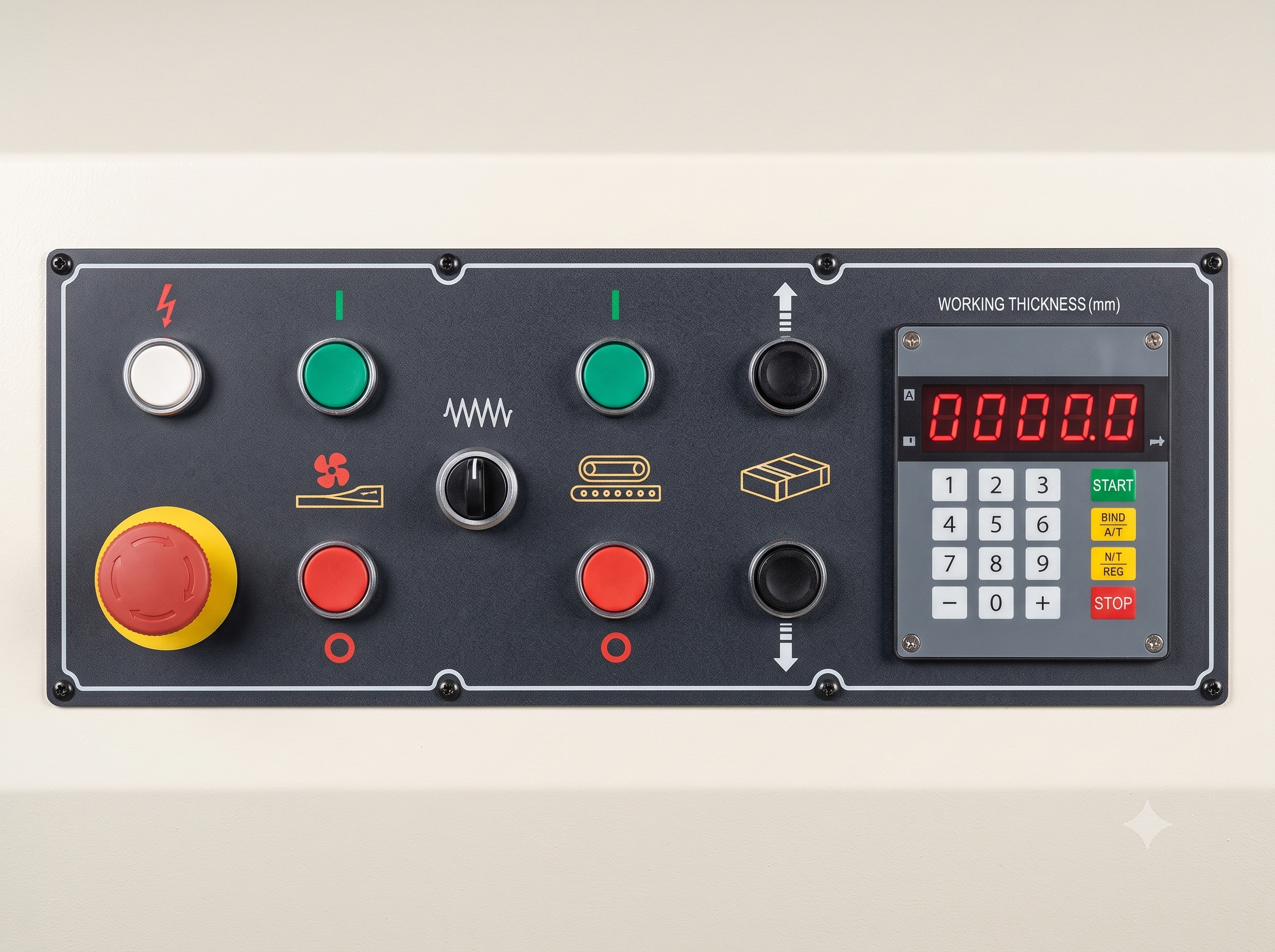

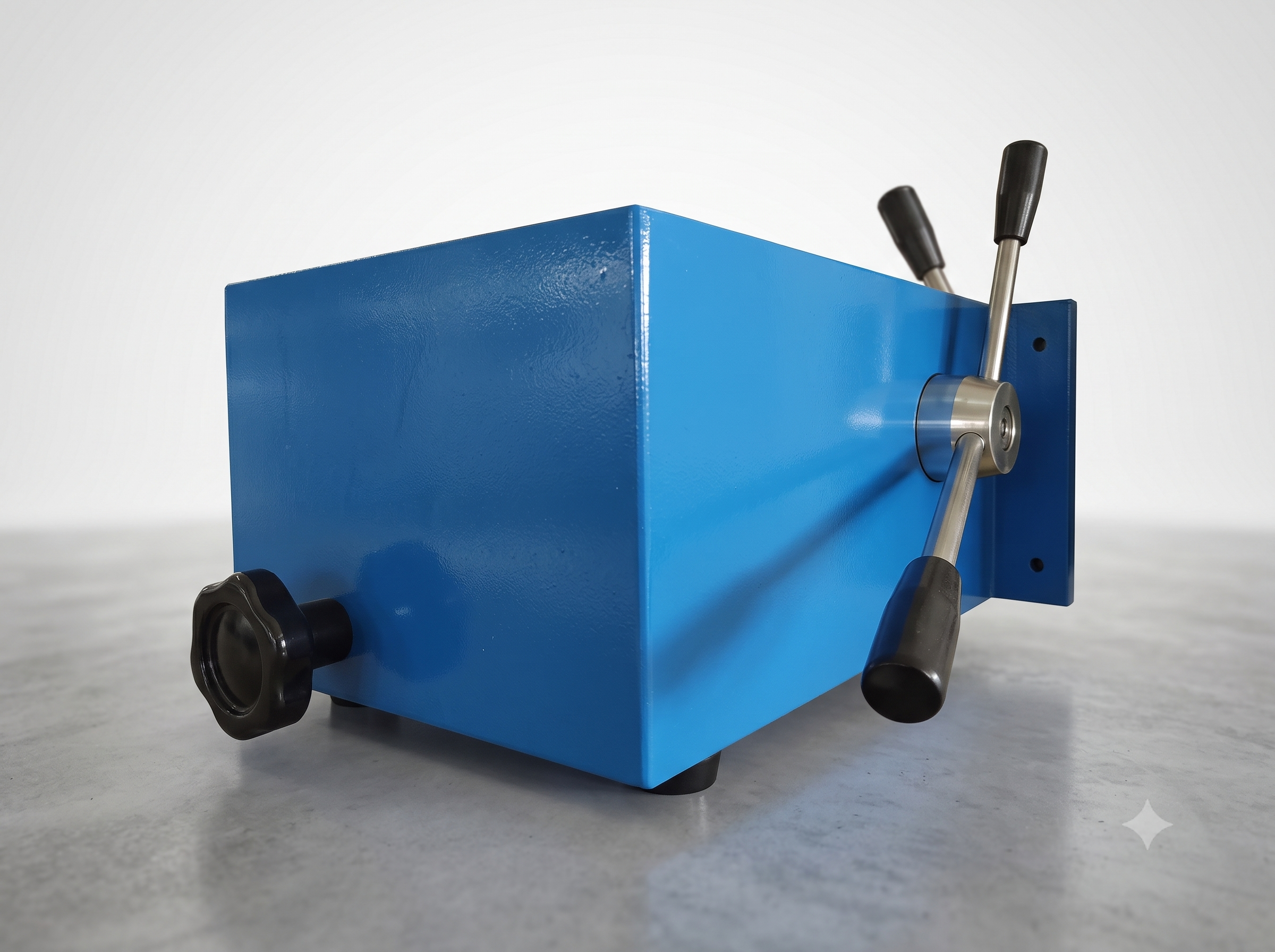

- CNC thickness positioning and an eccentric worktable locking mechanism provide convenient adjustment while preventing unwanted table movement during machining.

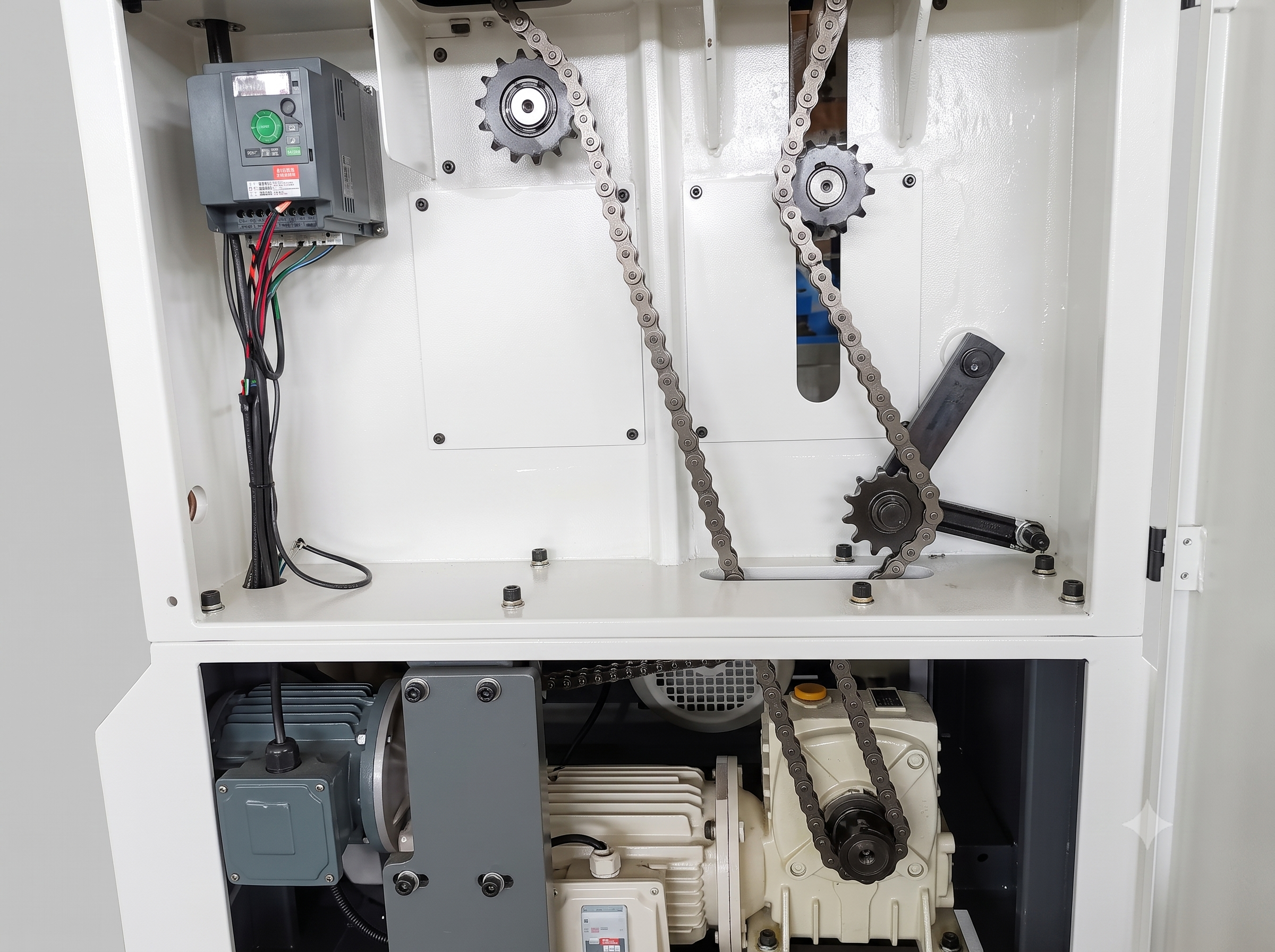

- Variable-frequency feeding allows speeds from 5–18 m/min, with reducer and chain transmission for smooth operation and convenient maintenance.

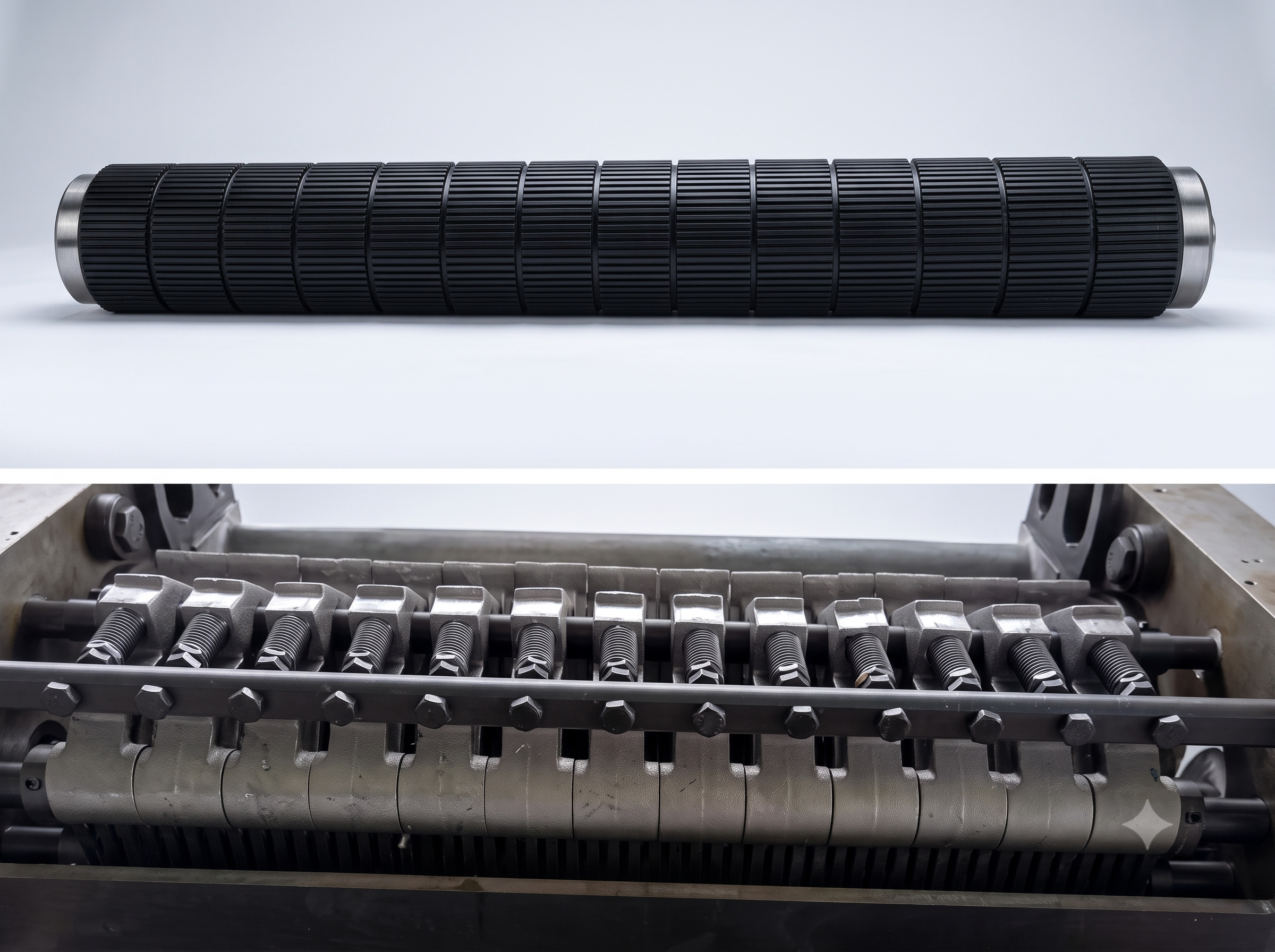

- The segmented chip breaker and front feed roller allow simultaneous processing of workpieces with thickness differences of up to 2 mm across the working width.
Technical data
| Specifications | Unit | MBZ106D / D-H |
|---|---|---|
| Planing width | mm | 630 |
| Planing thickness | mm | 3–300 |
| Minimum workpiece length | mm | 300 |
| Maximum planing depth | mm | 8 |
| Feeding speed | m/min | 5–18 |
| Cutter shaft speed | r/min | 5,000 |
| Cutter shaft cutting diameter | mm | Ø125 |
| Total motor power | kW | 9.4 |
| Main motor | kW | 7.5 |
| Feed motor | kW | 1.5 |
| Table lifting motor | kW | 0.37 |
| Working voltage | — | AC 380 V / 50 Hz |
| Dust outlet diameter | mm | 2 × Ø150 |
| Overall dimensions | cm | 115 × 130 × 152 |
| Machine weight | kg | 1,250 |
