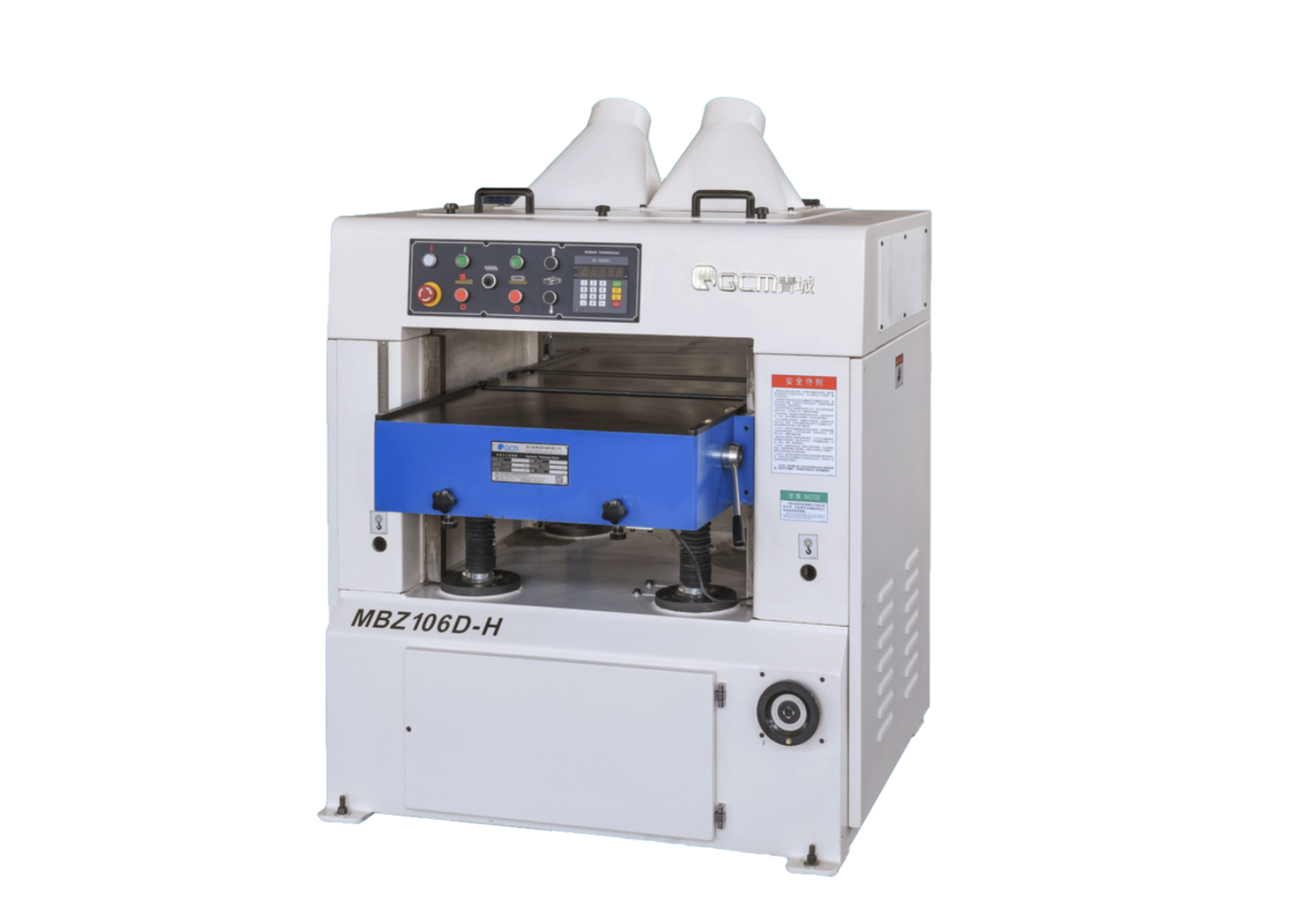

MBZ106D-H Heavy-Duty Single-Side Planer (Spiral Cutterhead Type)
Product Overview
The MBZ106D-H Heavy-Duty Single-Side Planer is designed for precise surface planing and calibration of solid wood and panel materials.
Equipped with a spiral cutterhead, this model provides smoother cutting, reduced noise, and extended blade life compared to traditional straight knives.
The machine features a robust cast-iron structure, automatic feeding, and adjustable cutting depth, ensuring both accuracy and durability for continuous production environments.
Key Features
-
Spiral Cutterhead Design – Reduces cutting resistance and produces an exceptionally fine surface finish.
-
Heavy-Duty Construction – Rigid frame ensures vibration-free operation for stable and accurate results.
-
Automatic Feed System – Adjustable feed rate from 5 – 18 m/min to suit different materials.
-
Precision Adjustment – Convenient handwheel and lifting mechanism for accurate thickness control.
-
Efficient Dust Extraction – Dual φ150 mm outlets for clean and safe operation.
| Specification | MBZ106D / MBZ106D-H |
|---|---|
| Max. Working Width | 630 mm |
| Max. Working Thickness | 300 mm |
| Min. Working Thickness | 3 mm |
| Min. Working Length | 300 mm |
| Max. Cutting Depth | 8 mm |
| Spindle Speed | 5000 r/min |
| Feed Speed | 5 – 18 m/min |
| Cutter Shaft Diameter | φ125 mm |
| Total Motor Power | 9.37 kW |
| Main Motor | 7.5 kW |
| Feed Motor | 1.5 kW |
| Lifting Motor | 0.37 kW |
| Dust Outlet Diameter | 2 × φ150 mm |
| Machine Dimensions (L × W × H) | 115 × 130 × 152 cm |
| Machine Weight | 1250 kg |
