Highlights

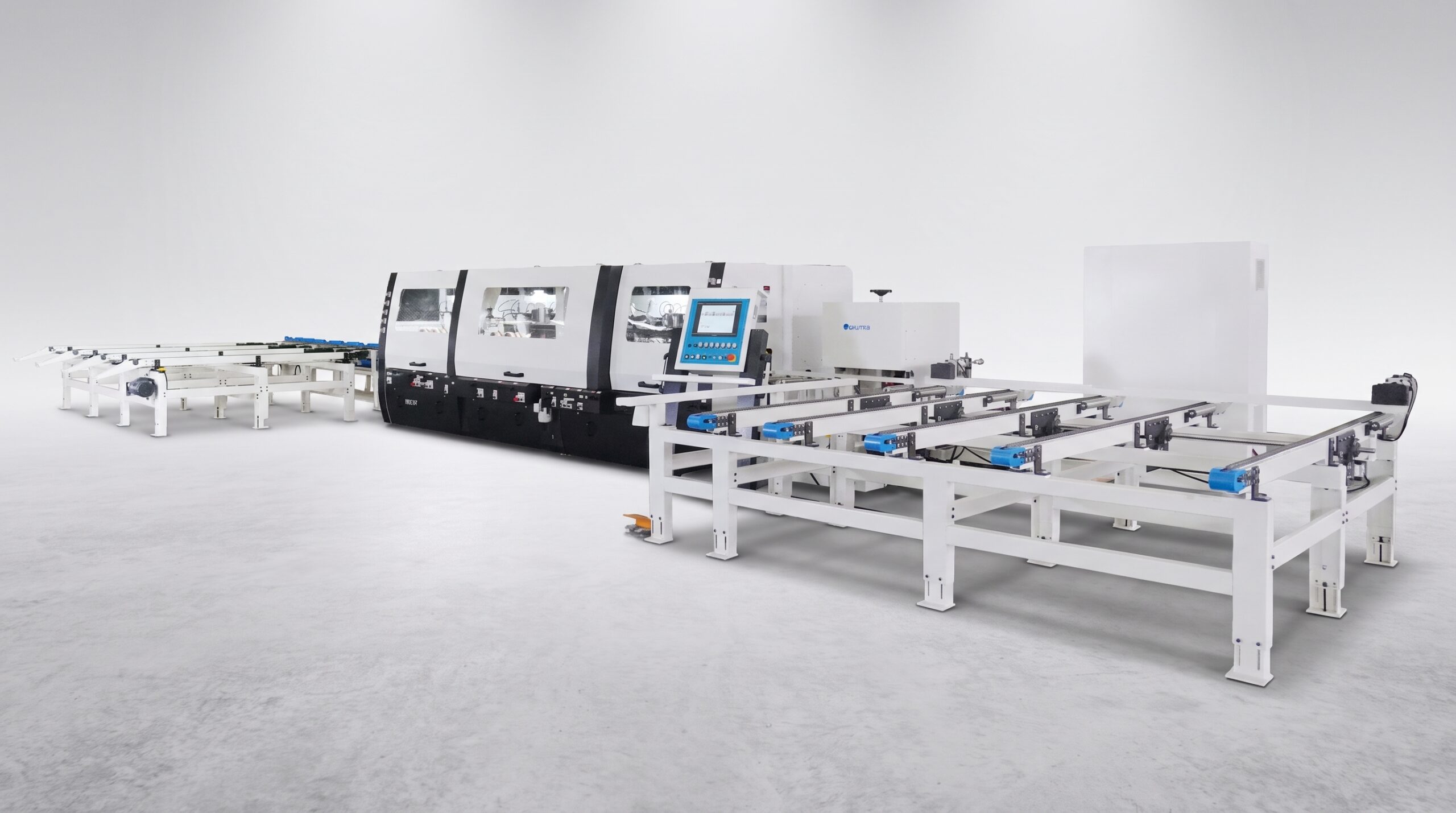

The MB726F High-Speed Four-Side Moulder is a heavy-duty solid wood machining system developed for high-speed four-sided planing and profiling of long timber, large square stock and wide boards. With a maximum feeding speed of 100 m/min, it is designed for factories requiring continuous, high-volume production with stable machining accuracy.
The MB726F combines a rigid one-piece cast machine bed, seven-spindle configuration, NC spindle adjustment and integrated tool jointing technology. Straight jointers are provided on the spindles, while the final horizontal spindle can use a profile jointer to maintain cutting performance during high-speed production.
- Maximum processing width: 260 mm
- Processing height: 10–150 mm
- Maximum feeding speed: 100 m/min
- Spindle configuration: 7 spindles
- Spindle speed: 6,000 r/min
- Tool cutting circle diameter: Ø160–Ø260 mm
- Spindle diameter: Ø50 mm
- Machine weight: 13,000 kg
Images
Features

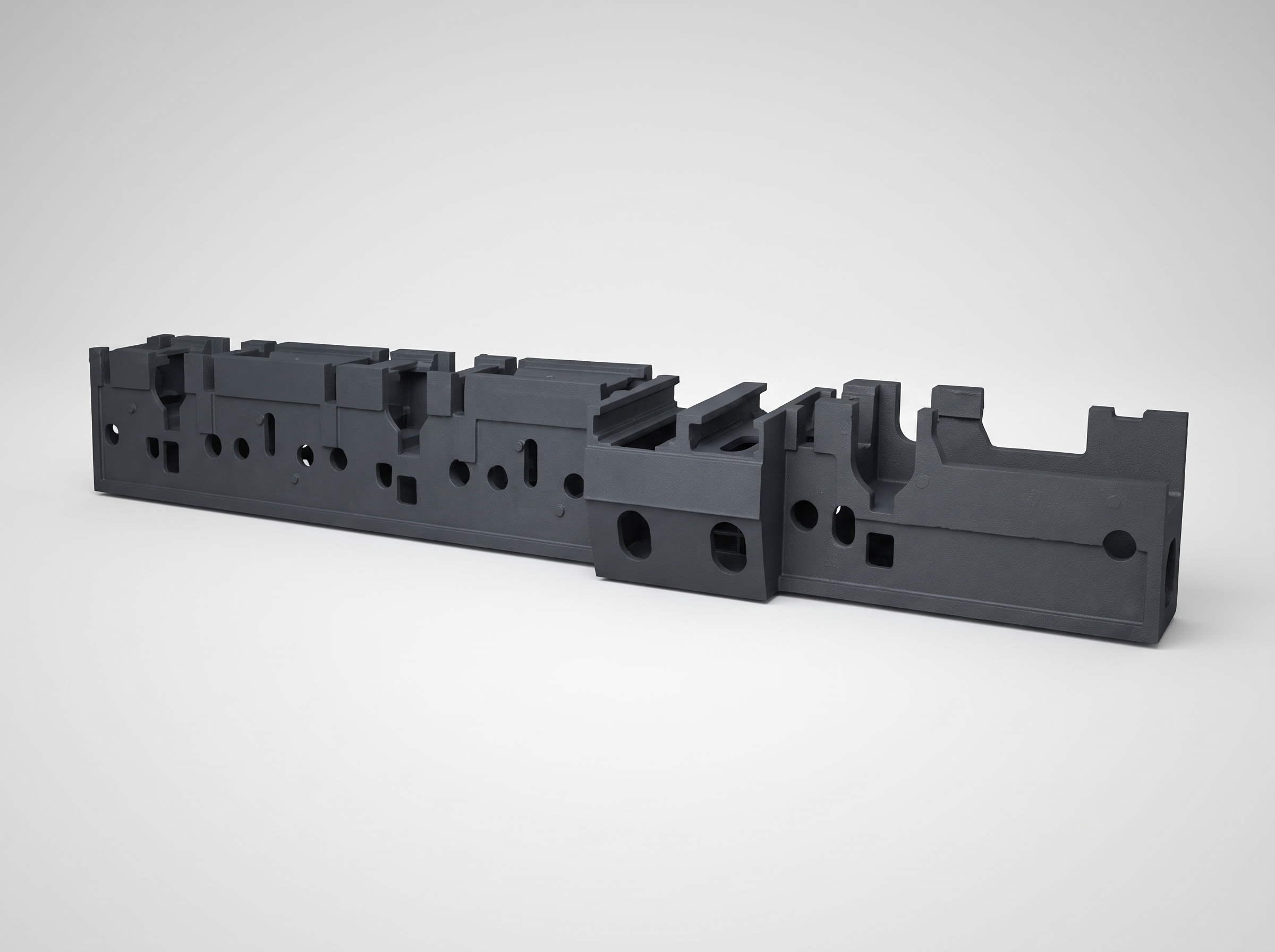

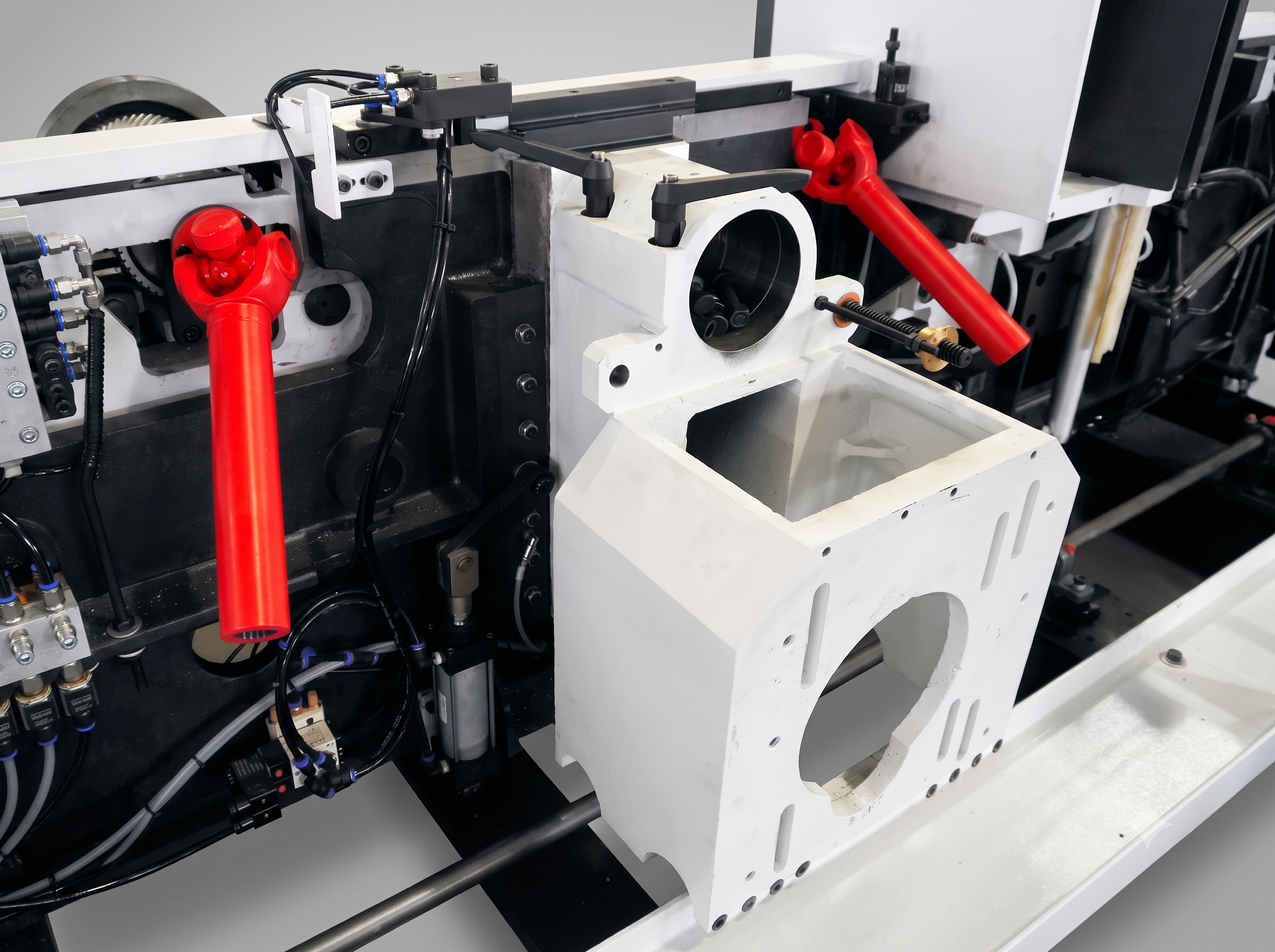

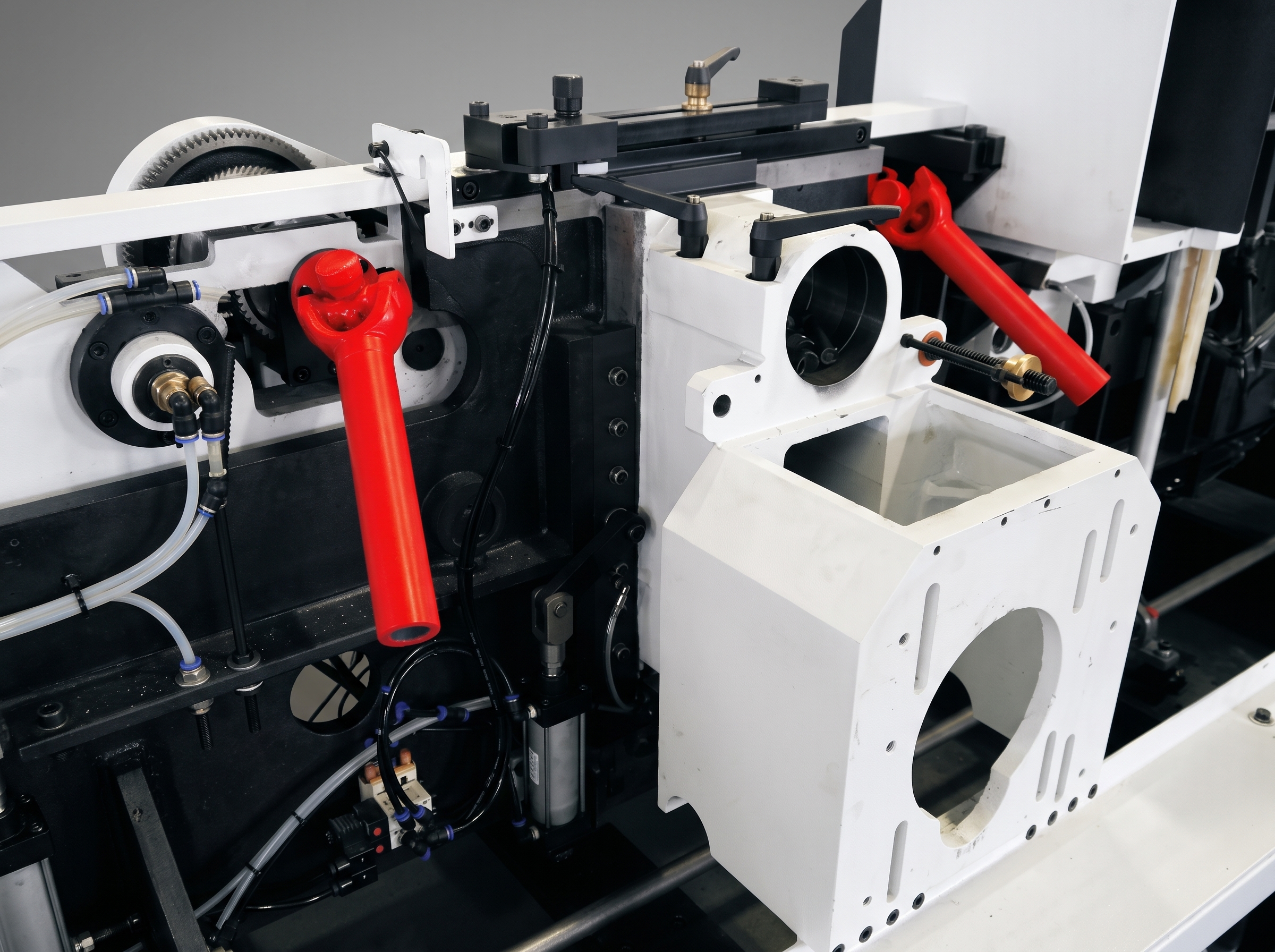

- The one-piece cast machine bed and integrated spindle supports provide high rigidity, vibration resistance and stable machining accuracy during continuous high-speed operation.
- Seven working spindles enable efficient four-sided planing and profiling in one pass, making the MB726F suitable for long timber, structural wood components and high-volume solid wood production.

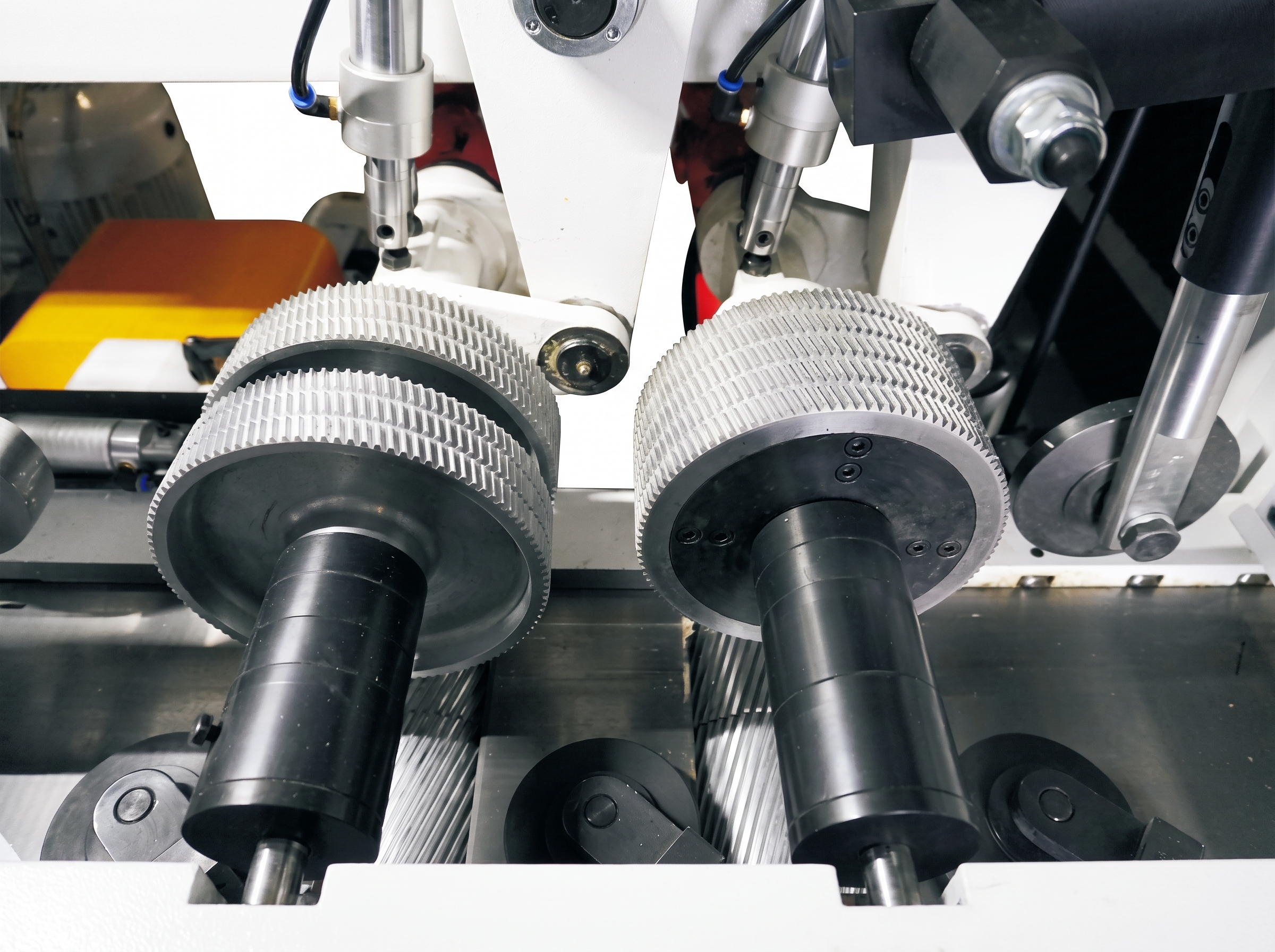

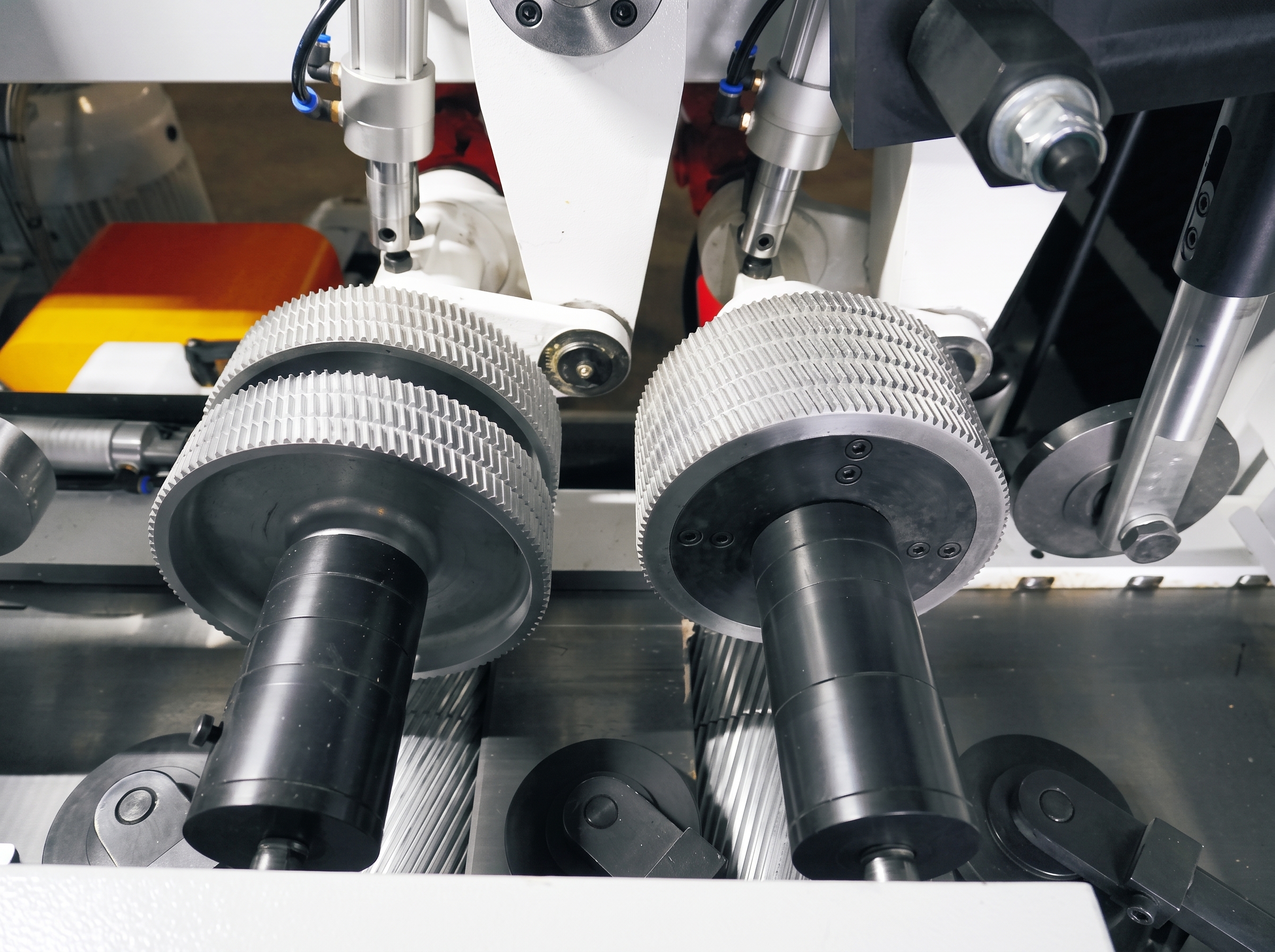

- The feeding system reaches 10–100 m/min, using clutch rollers and pneumatic floating drive rollers to maintain powerful and stable material feeding.
- Each spindle is equipped with NC adjustment, fine adjustment and electronically controlled pneumatic locking, allowing faster and more accurate machine setup.

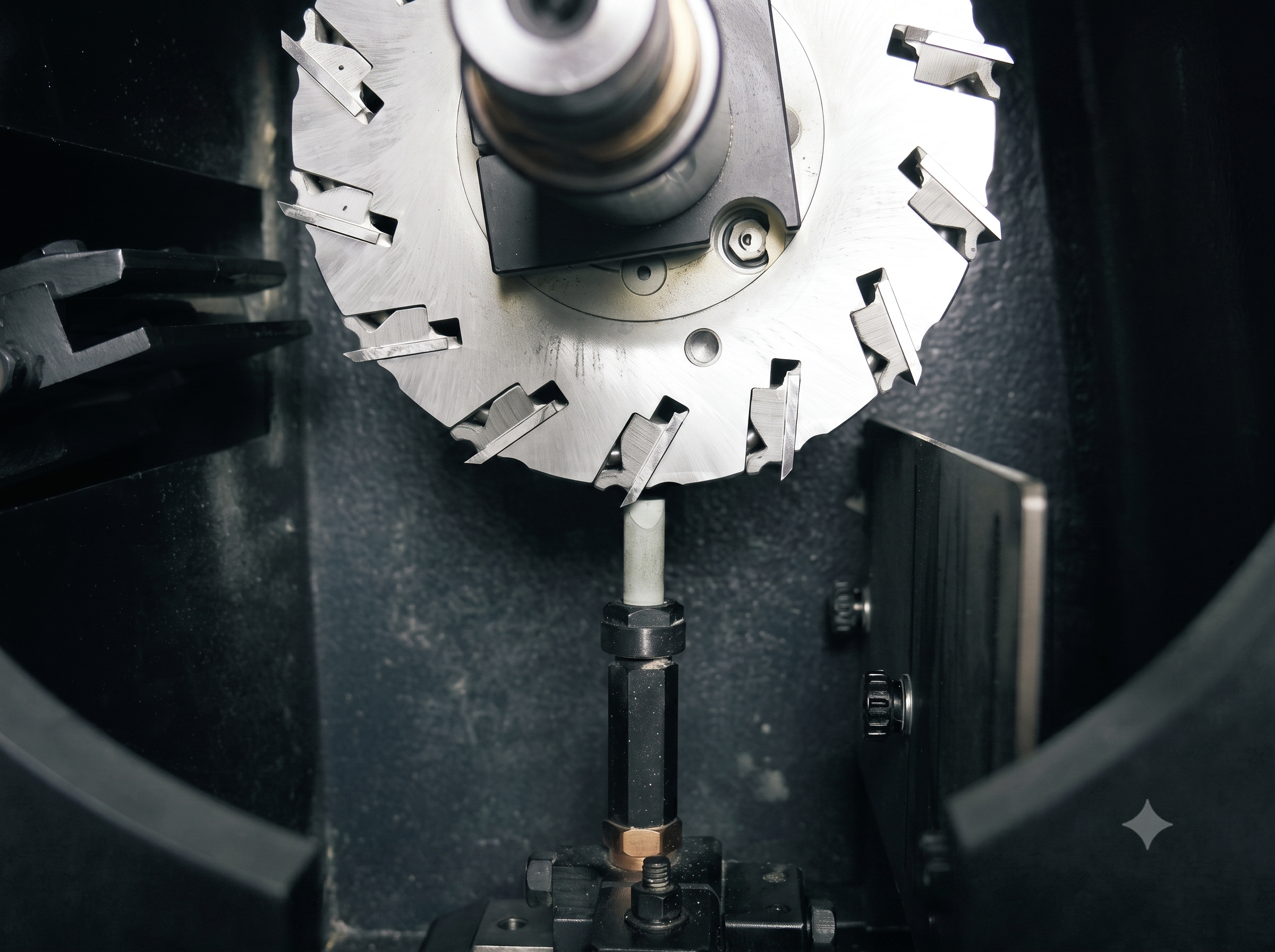

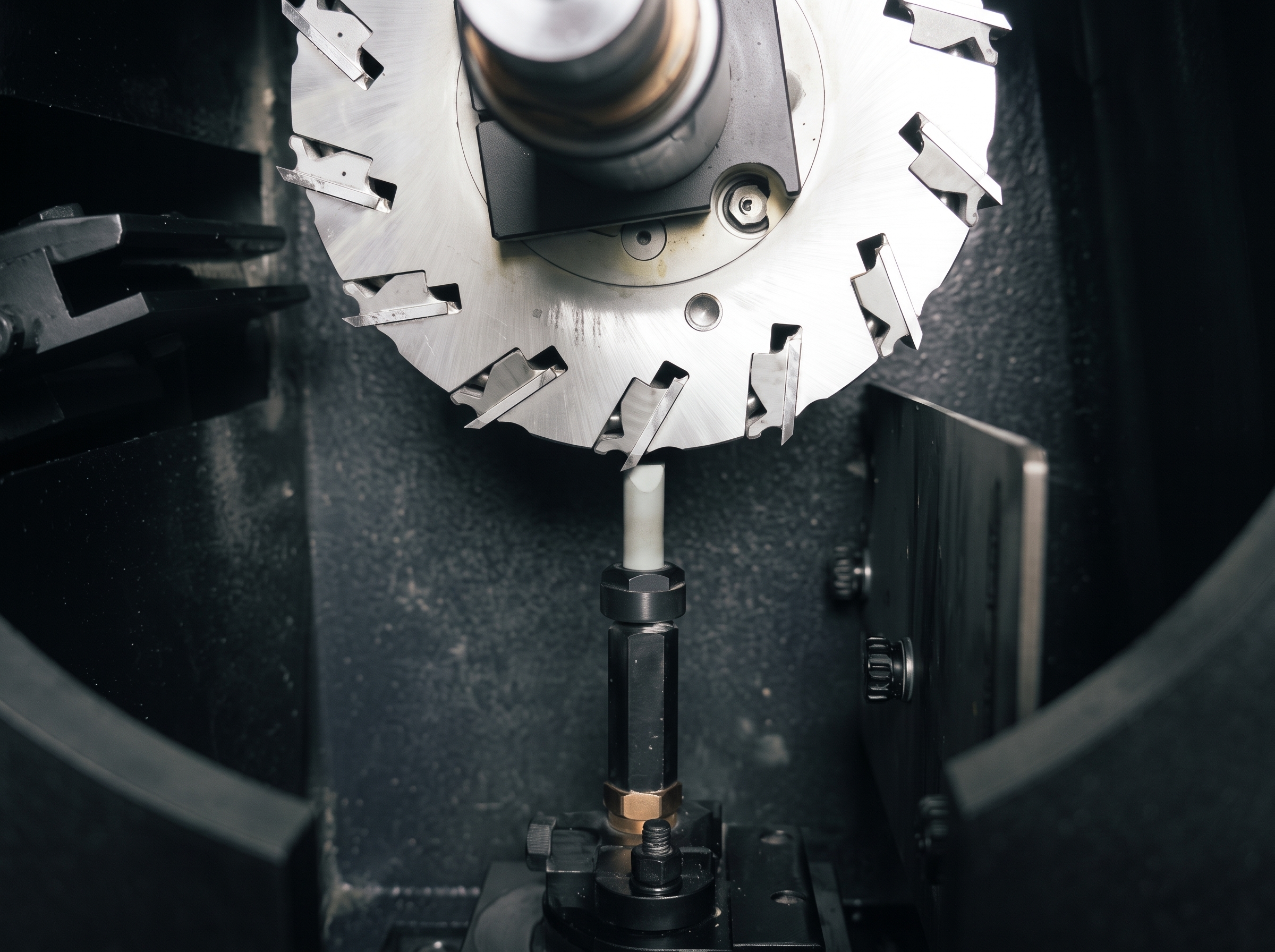

- Integrated straight and profile jointing systems allow tools to be sharpened while installed on the machine, helping maintain consistent surface quality during high-speed production.
Technical data
| Specifications | Unit | MB626F | MB726F | MB826F | MB926F |
|---|---|---|---|---|---|
| Processing width (tool diameter 160 mm) | mm | 20–260 | 20–260 | 20–260 | 20–260 |
| Processing height (tool diameter 160 mm) | mm | 10–150 | 10–150 | 10–150 | 10–150 |
| Feed speed | m/min | 10–100 | 10–100 | 10–100 | 10–100 |
| Tool cutting circle diameter | mm | 160–260 | 160–260 | 160–260 | 160–260 |
| Spindle diameter | mm | 50 | 50 | 50 | 50 |
| Spindle speed | r/min | 6,000 | 6,000 | 6,000 | 6,000 |
| Feed motor | kW | 18.5 | 18.5 | 18.5 | 18.5 |
| First bottom spindle | kW | 18.5 | 18.5 | 18.5 | 18.5 |
| First right spindle | kW | 15 | 15 | 15 | 15 |
| First left spindle | kW | 15 | 15 | 15 | 15 |
| Second right spindle | kW | / | / | 15 | 15 |
| Second left spindle | kW | / | / | 15 | 15 |
| First upper spindle | kW | 22 | 22 | 22 | 22 |
| Second bottom spindle | kW | 15 | 15 | 15 | 15 |
| Second upper spindle | kW | 15 | 15 | 15 | 15 |
| Third bottom spindle | kW | / | 15 | / | 15 |
| Beam lifting motor | kW | 1.1 | 1.1 | 1.1 | 1.1 |
| Overall dimensions (L × W × H) | cm | 570 × 265 × 210 | 610 × 265 × 210 | 670 × 265 × 210 | 725 × 265 × 210 |
| Weight | kg | Undetermined | 13,000 | Undetermined | Undetermined |
