Highlights

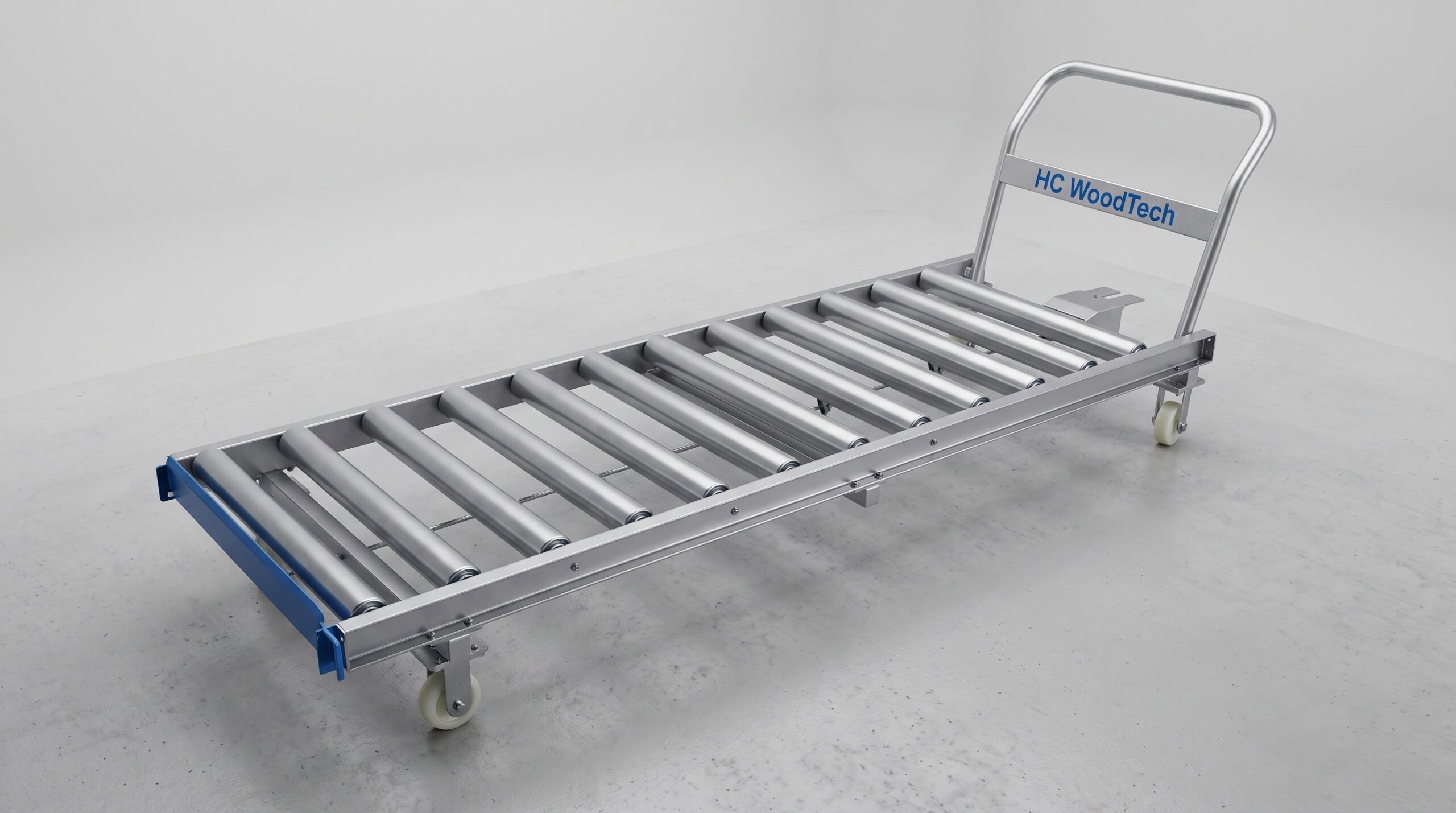

The Manual Push Roller Trolley is a mobile material-handling solution designed for short-distance transfer of panels, boards and other flat workpieces between machines and production stations. The trolley combines a heavy-duty steel frame, galvanized rollers and manually operated mobility, making it suitable for production areas where fixed conveyors or forklifts are less practical. With a rated loading capacity of 600 kg per meter, it can be used for temporary buffering, machine infeed and outfeed, and flexible workpiece transfer in woodworking and panel-processing workshops.
- Overall dimensions: 2500 × 600 × 300 mm
- Roller length: 500 mm
- Roller spacing: 200 mm
- Roller size: Ø76 × 1.5 mm
- Loading capacity: 600 kg/m
- Handrail: Ø42 × 700 mm
- Drive type: Manual / Unpowered
Images
Features
- Manual push-pull design provides flexible material transfer without requiring motors, power cables or fixed conveyor installation.

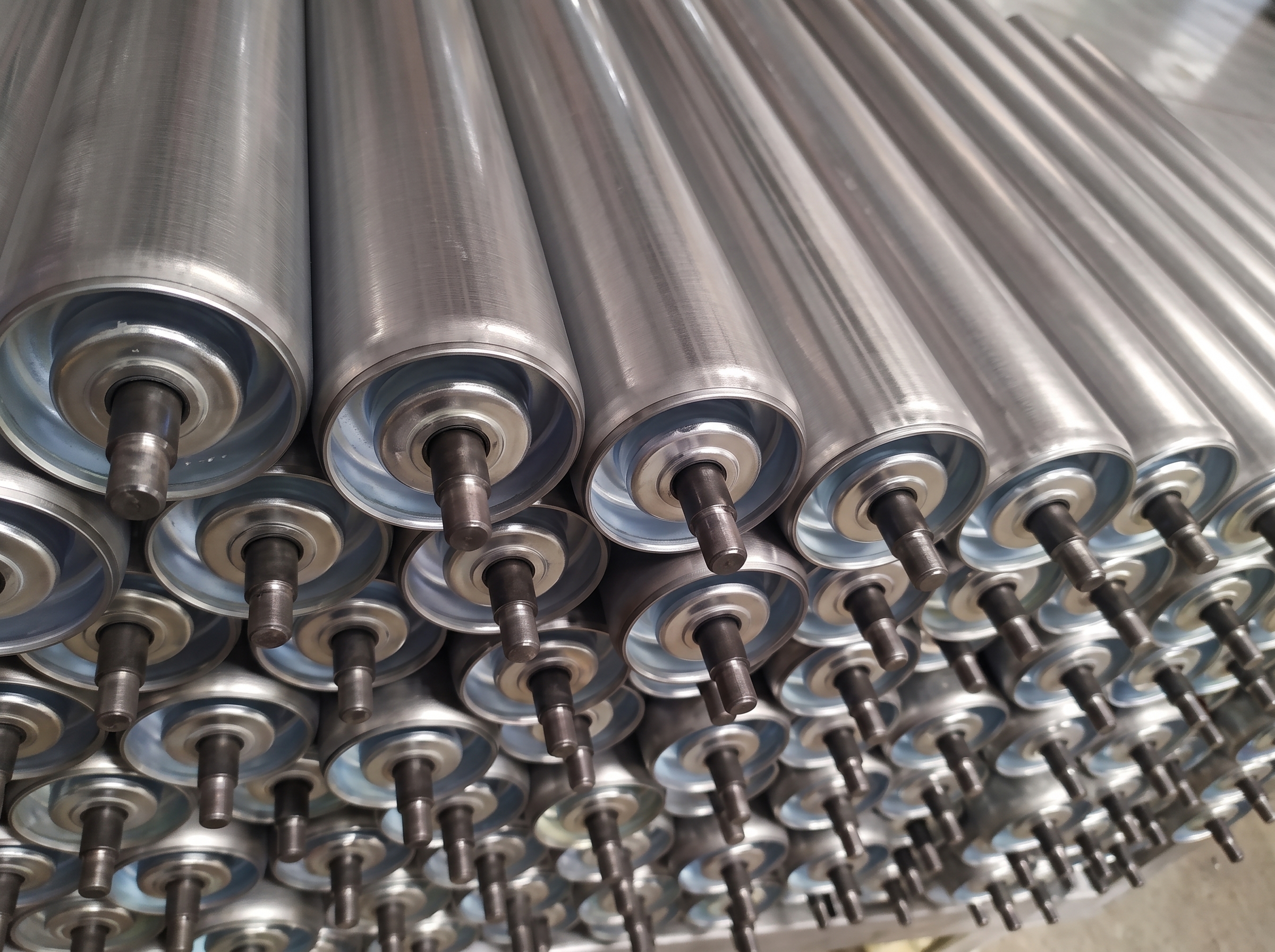

- Heavy-duty frame and galvanized rollers provide stable support for panels, boards and other flat workpieces.
- Rated loading capacity of 600 kg/m supports demanding workshop material-handling applications.

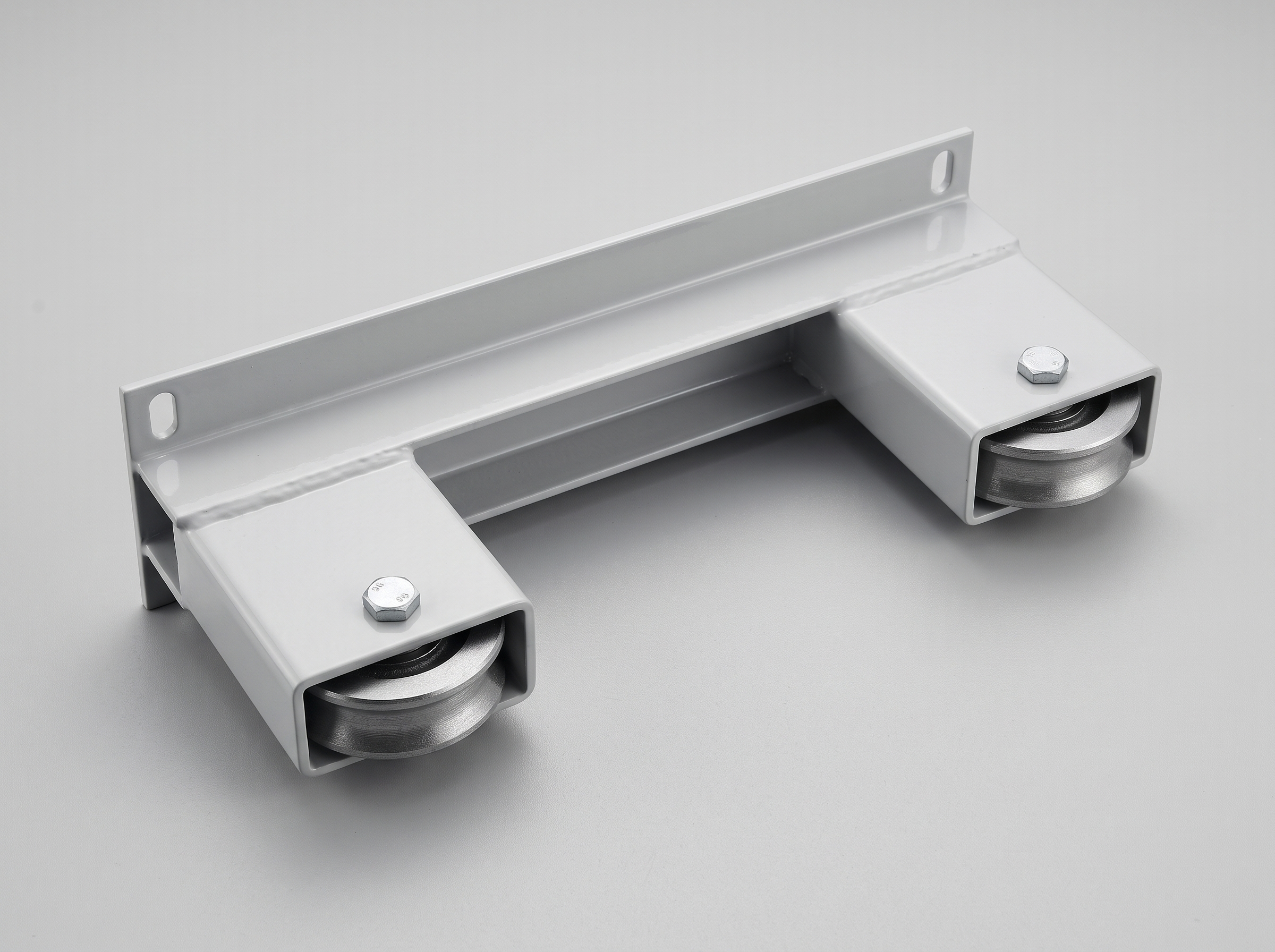

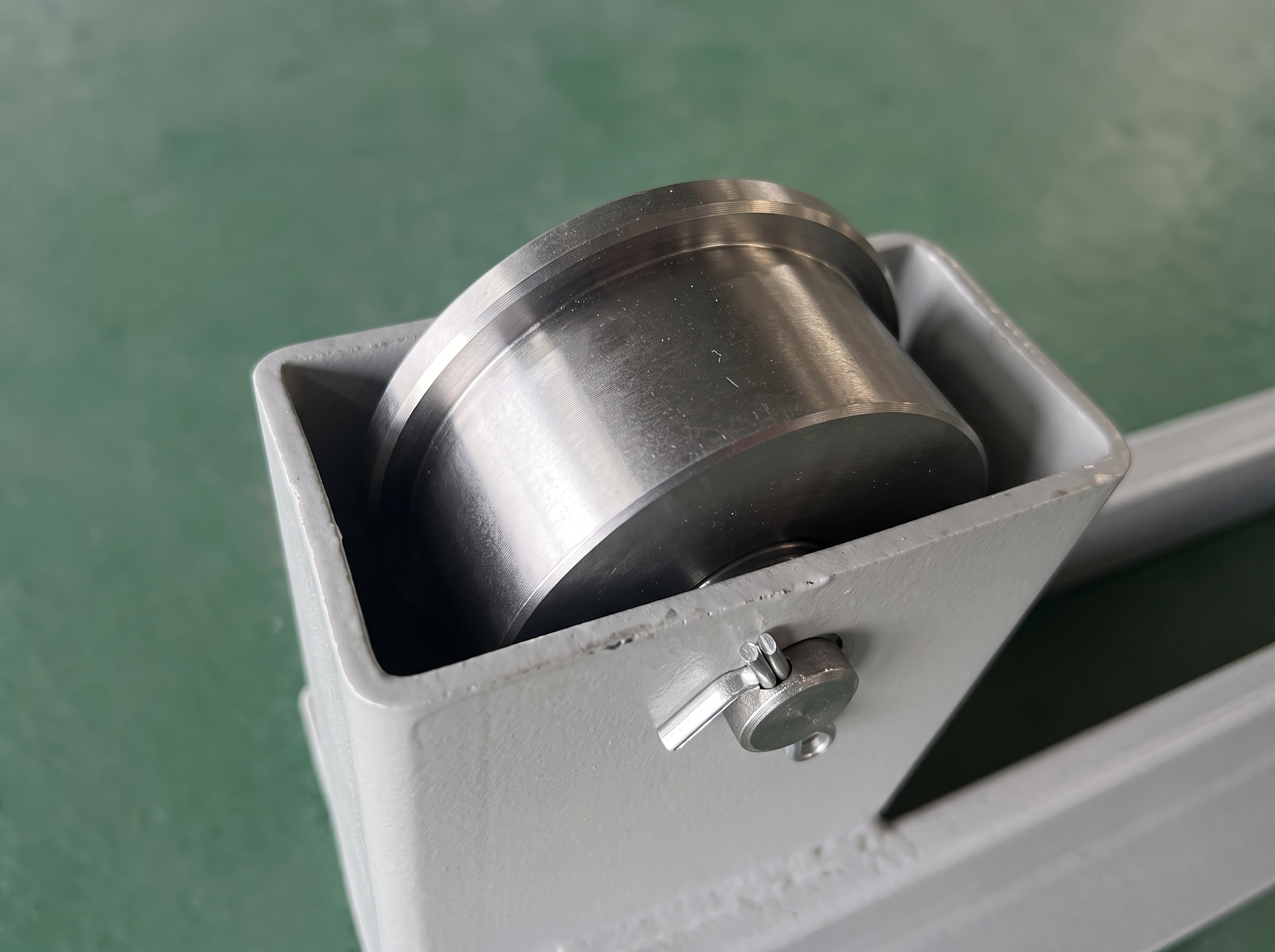

- Durable mobile wheels and braking mechanism help secure the trolley during loading, unloading and temporary buffering.
- Horizontal-moving and length-wise-moving configurations can be selected according to factory layout and material flow direction.
Technical data
| Specifications | Unit | FQ-GTSTC |
|---|---|---|
| Machine type | — | Manual Push Roller Trolley |
| Overall length | mm | 2500 |
| Overall width | mm | 600 |
| Overall height | mm | 300 |
| Roller length | mm | 500 |
| Roller center distance | mm | 200 |
| Roller size | mm | Ø76 × 1.5 |
| Main beam | mm | 80 × 40 × 2.0 |
| Leg section | mm | 50 × 30 × 1.2 |
| Loading capacity | kg/m | 600 |
| Handrail | mm | Ø42 × 700 |
| Roller material | — | Galvanized Steel |
| Drive system | — | Manual / Unpowered |
| Movement direction | — | Horizontal or Length-Wise |
