Heavy-Duty Chain Conveyor

Highlights

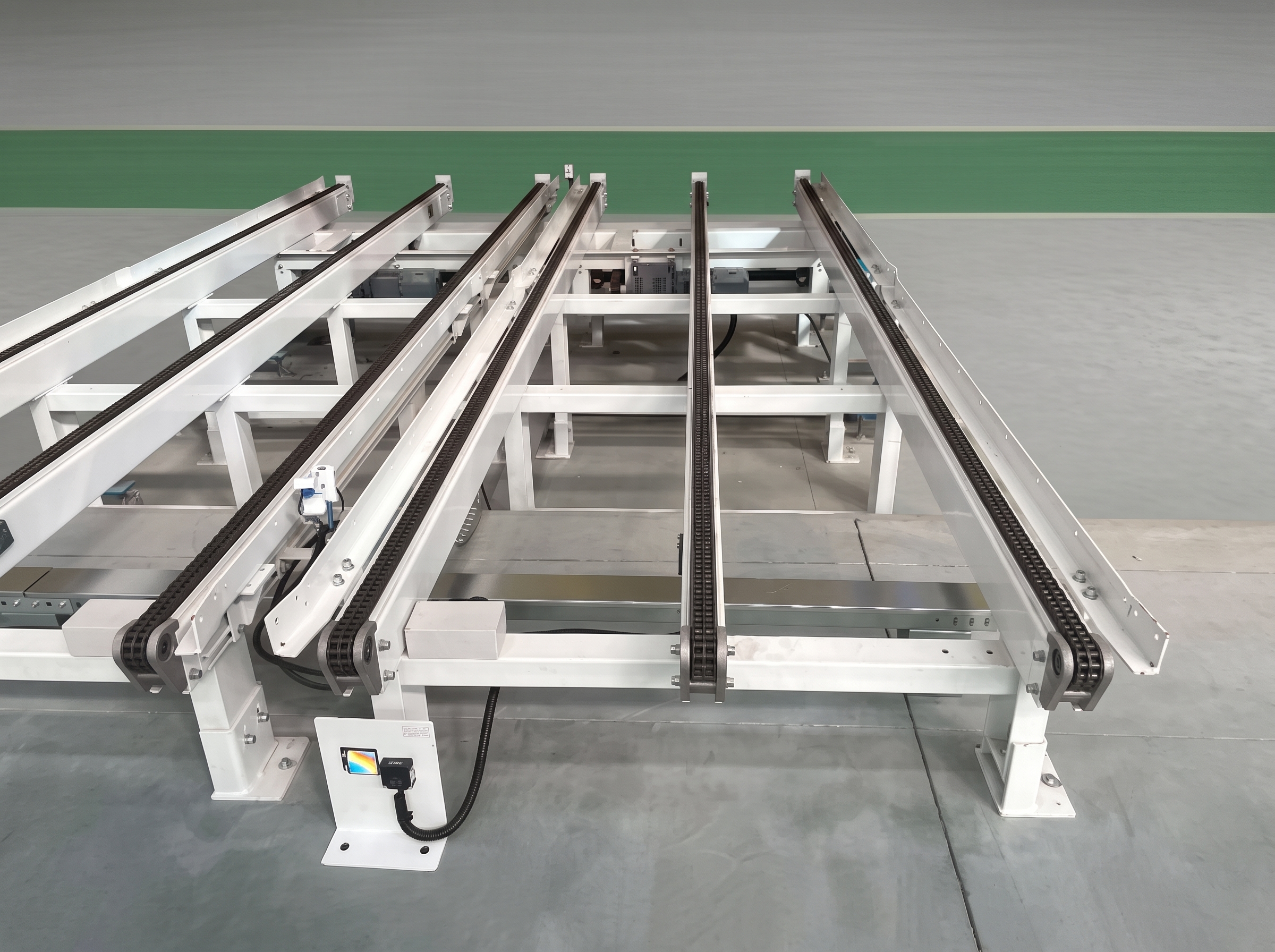

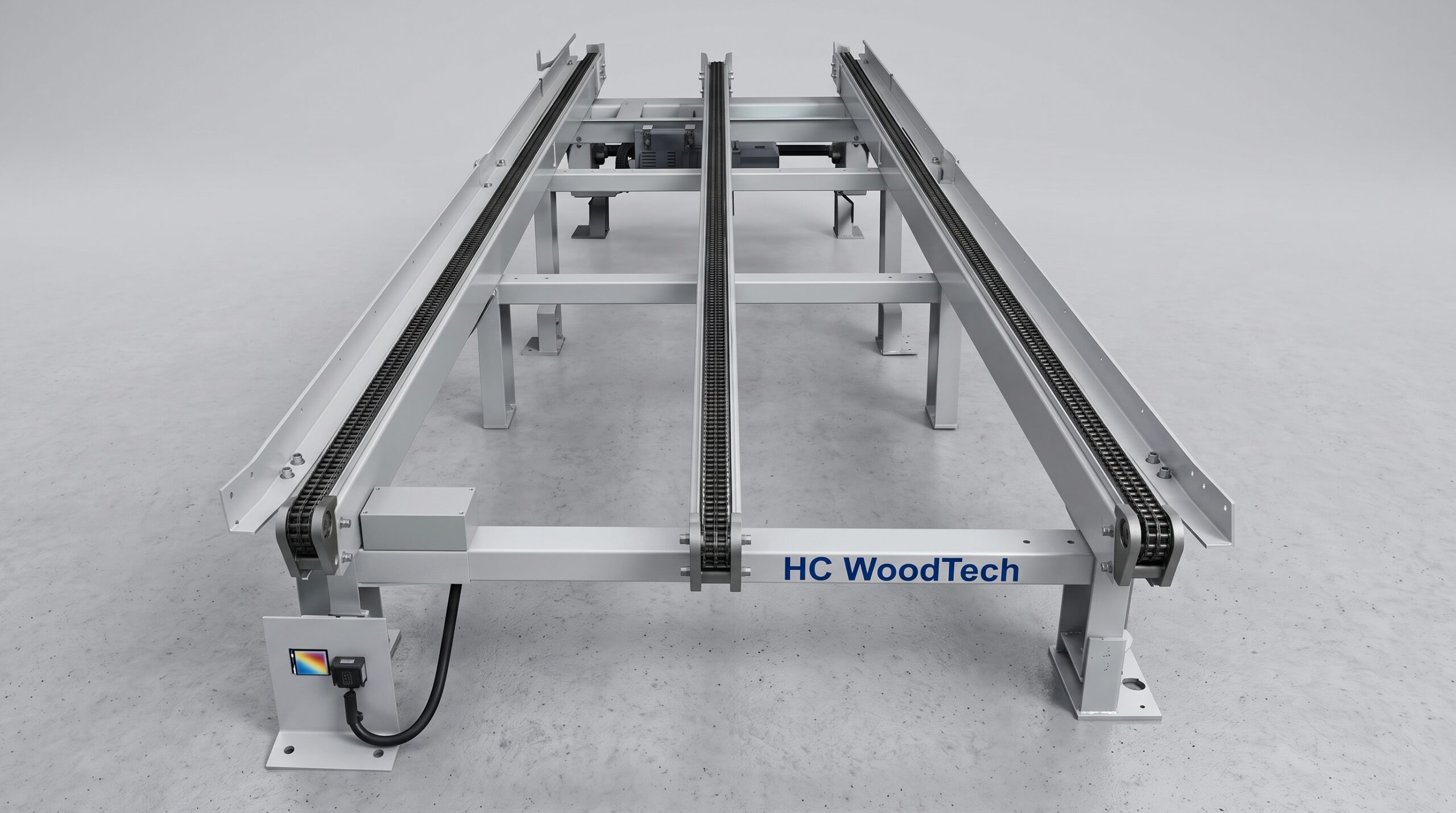

The Heavy-Duty Chain Conveyor is designed for continuous transfer of stacked panels, furniture components and other heavy workpieces in woodworking and automated production lines. Its robust chain-driven structure supports typical loads of 3000–5000 kg per unit, while variable-frequency speed control allows conveying speeds from 0–12 m/min. The conveyor can be integrated with powered roller conveyors, lift tables, gantry systems and other material-handling equipment to connect different production stages. Conveyor length, width, height, chain quantity and load capacity can be customized according to project requirements.

• Typical load capacity: 3000 / 5000 kg
• Conveyor speed: 0–12 m/min
• Standard dimensions: 3000 × 1300 × 300 mm
• Chain configuration: 3 sets
• Motor power: 0.75 kW
• Speed control: VFD adjustable
• Structure: Customizable

Images

Features

• Heavy-duty chain structure supports stacked panels and other high-load material-handling applications.
• Variable-frequency speed control allows the conveyor speed to be matched with upstream and downstream equipment.
• Can be integrated with roller conveyors, lifting systems, gantry loading systems and automated production lines.
• Length, width, conveyor height, number of chains and load capacity can be customized according to factory layout and workpiece requirements.
• Suitable for production-line transfer, buffering and connection between heavy material-handling stations.
