Highlights

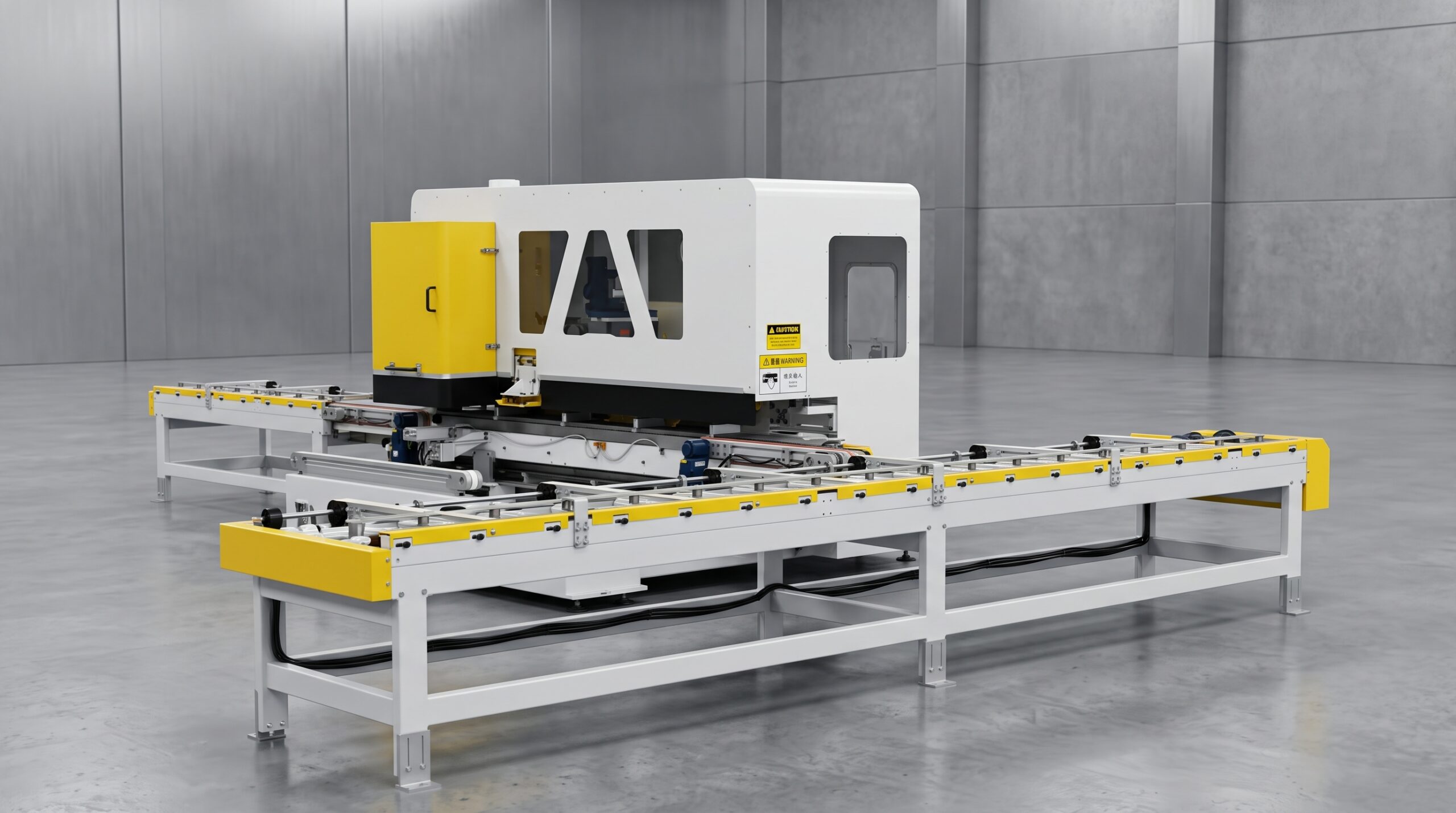

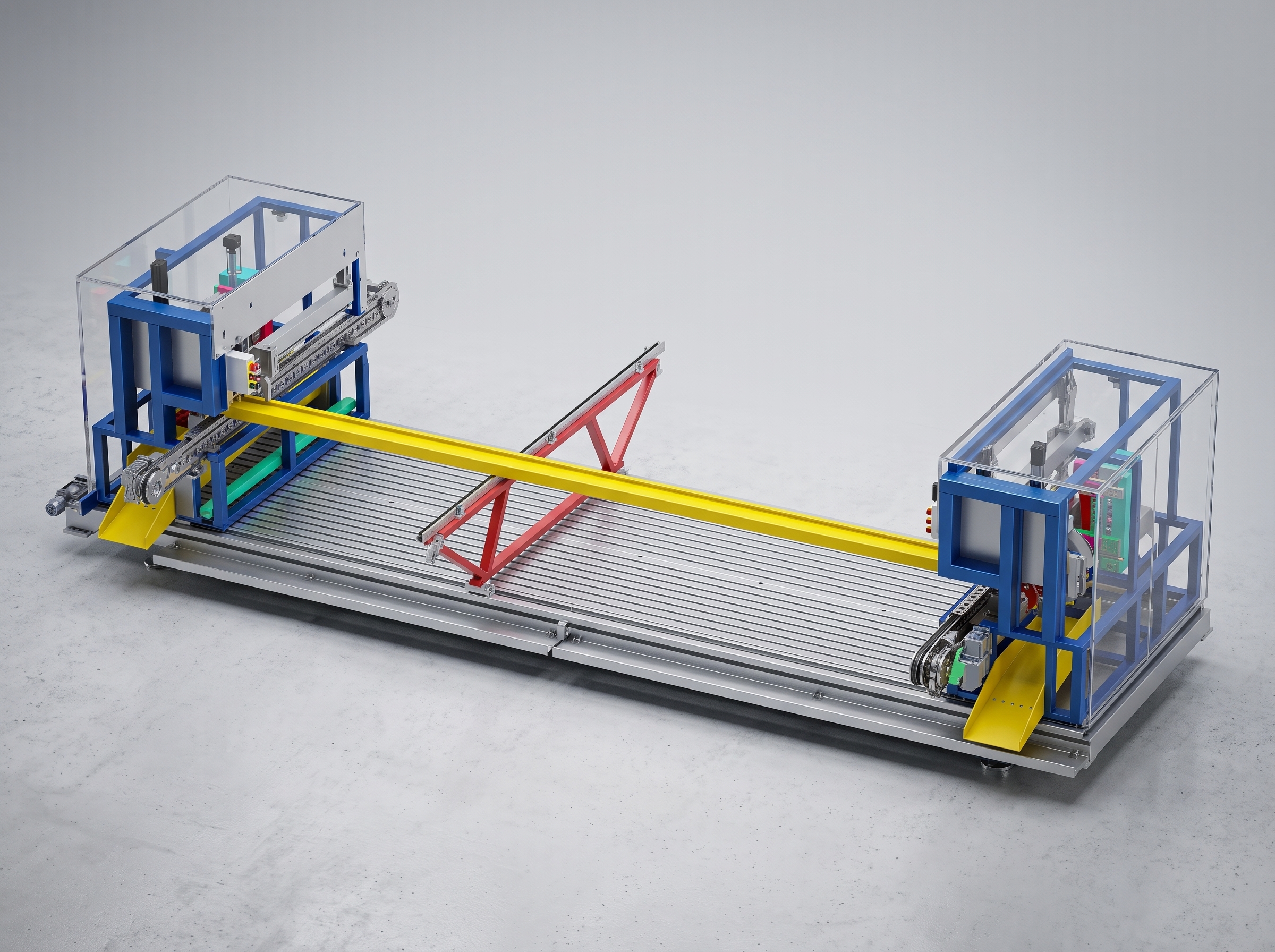

The H20 / H16 Beam End Processing Machine is designed for automatic end finishing of engineered timber beams after assembly. With the left machining head fixed and the right head servo-adjustable, the machine completes double-end length sizing, cross cutting, bevel cutting, drilling and grooving in one continuous process. Servo-driven feeding, secondary drilling positioning and automatic infeed/outfeed provide stable and repeatable processing for H20 and H16 beam production, while adjustable drilling positions allow different end-hole configurations to be produced according to beam specifications.
- Processing length: 1500–6000 mm
- Working width: 160–200 mm
- Working thickness: 80–120 mm
- Rated capacity: Up to 2 beams/min
- Cross-cut spindle speed: 2800 r/min
- Milling spindle speed: 8000 r/min
- Drilling spindle speed: Up to 18,000 r/min
Images

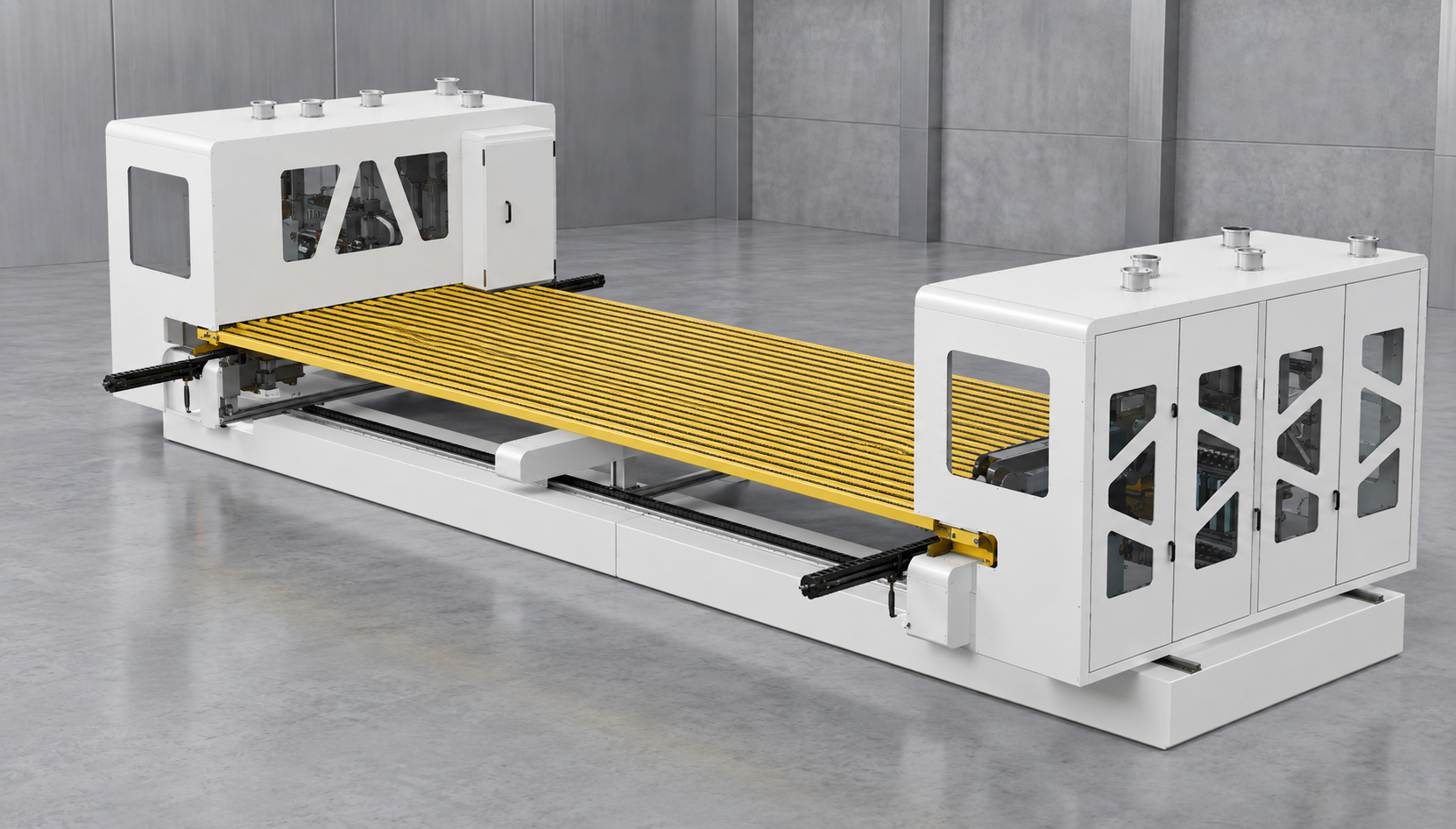

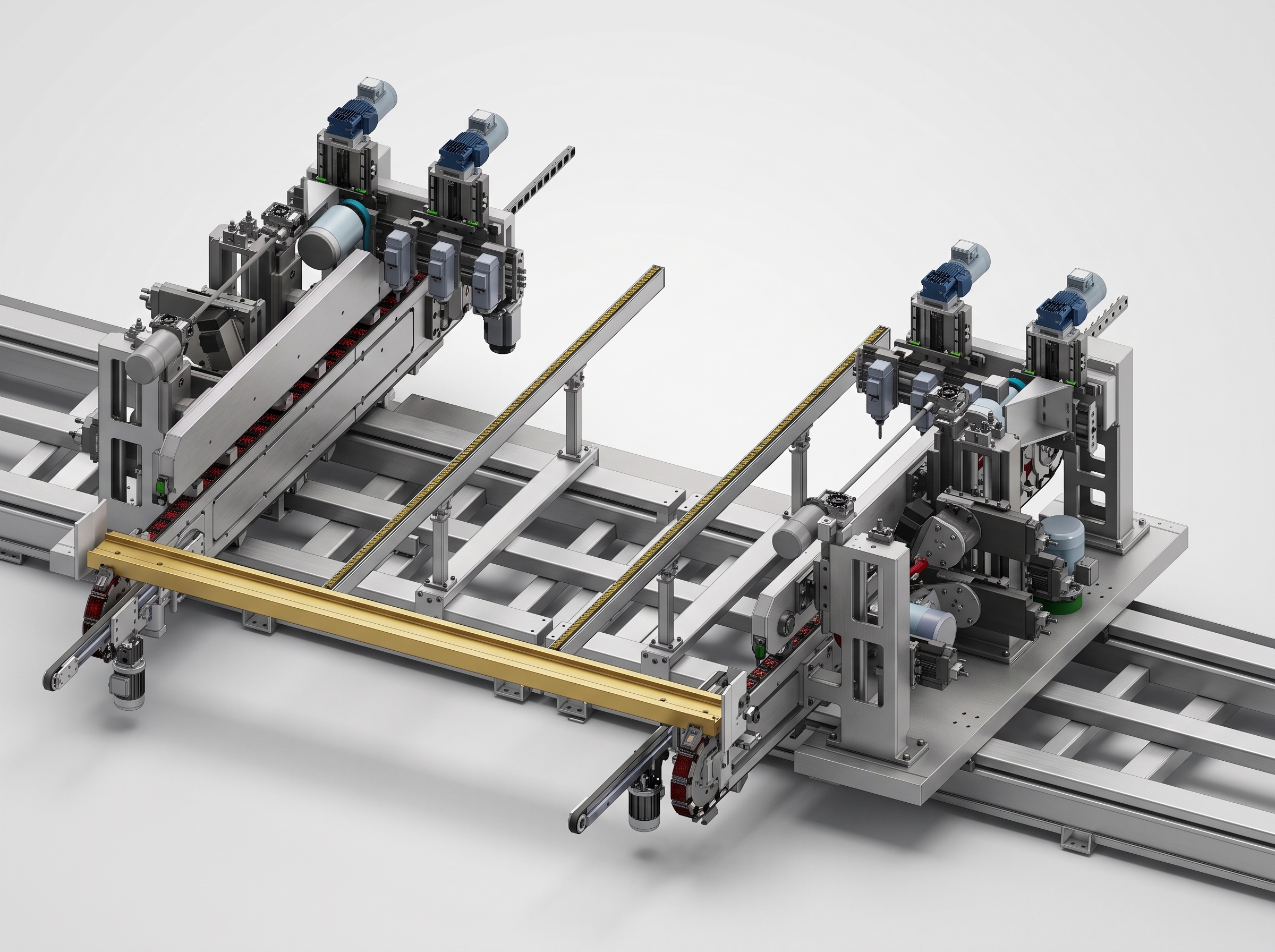

Working mode
- Automatic beam infeed
Servo-driven chain conveyors automatically feed the assembled H20 or H16 beam into the processing station. - Servo length positioning
The left machining head remains fixed while the right head automatically moves to the programmed beam length. - Double-end sizing and cutting
Both ends are processed simultaneously to establish the final beam length and accurate end reference surfaces. - Beveling, grooving and drilling
Dedicated saws, milling cutters and drilling units complete bevel cuts, end grooves and mounting holes according to the selected beam specification. - Automatic discharge
After machining, the finished beam is automatically transferred out of the station for the next production process.
Features
- Fixed-left / servo-adjustable-right configuration allows fast automatic adjustment for different beam lengths.
- Servo-driven chain feeding provides stable reciprocating material transport and accurate secondary positioning for drilling.
- Multiple machining units integrate cross cutting, bevel sawing, bevel milling, end milling, drilling and grooving in one machine.
- Drilling units use ball-screw transmission, servo motors and reducers for fast response and consistent positioning accuracy.
- Automatic pneumatic and conveyor-based infeed/outfeed allows the machine to be integrated directly into an H20/H16 automated beam production line.
Technical data
| Specifications | Unit | Model |
|---|---|---|
| Processing length | mm | 1500–6000 |
| Working width | mm | 160–200 |
| Working thickness | mm | 80–120 |
| Rated processing speed | beams/min | 2 |
| Bevel cutter spacing | mm | 120–260 |
| First hole center to beam end | mm | 100 |
| Adjustable drilling spacing | mm | 140–200 |
| Cross-cut spindle speed | r/min | 2800 |
| Bevel / end milling spindle speed | r/min | 8000 |
| Drilling spindle speed | r/min | Up to 18,000 |
| Cross-cut saw blade | mm | Ø350 × Ø25.4 |
| Bevel saw blade | mm | Ø200 × Ø25.4 |
| Bevel milling cutter | mm | Ø155 × Ø25.4 |
| End milling cutter | mm | Ø108–180 × Ø40 |
| Drill bit | mm | Ø22 × Ø12.7 shank |
| Cross-cut motor | kW | 3.0 × 2 |
| Bevel saw motors | kW | 2.2 × 4 |
| Bevel milling motors | kW | 2.2 × 2 |
| End milling motors | kW | 4 × 2 |
| Drilling motors | kW | 2.2 × 6 |
| Drilling / milling lift servo | kW | 0.75 × 4 |
| Feeding servo motors | kW | 1.0 × 2 |
| Pressure beam adjustment motors | kW | 0.75 × 2 |
| Width adjustment servo | kW | 0.75 |
| Total power | kW | Approx. 50 |
| Overall dimensions | mm | 8000 × 4200 × 2150 |
