H-3012CSP Automatic Finger Jointing Line

Highlights

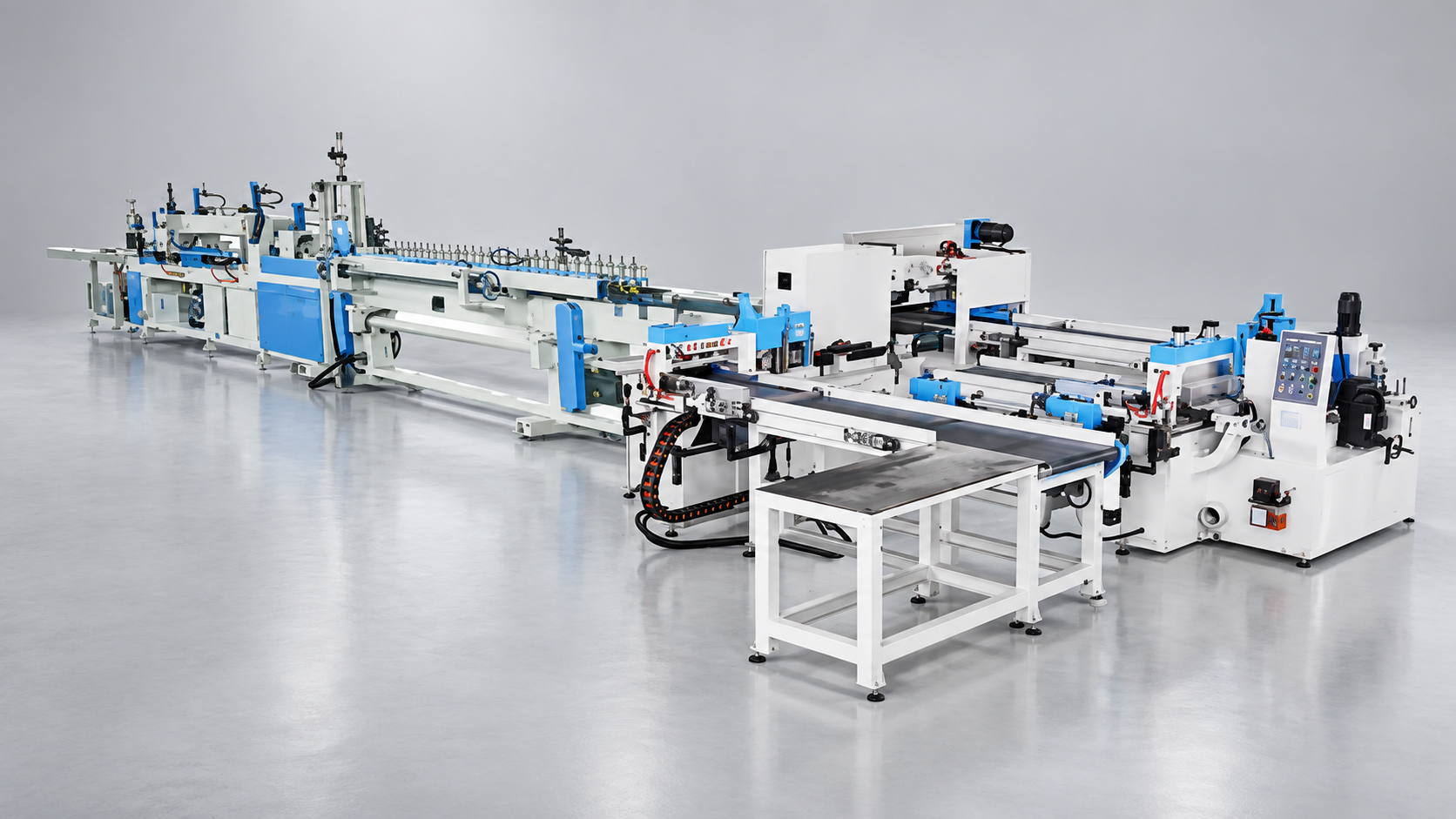

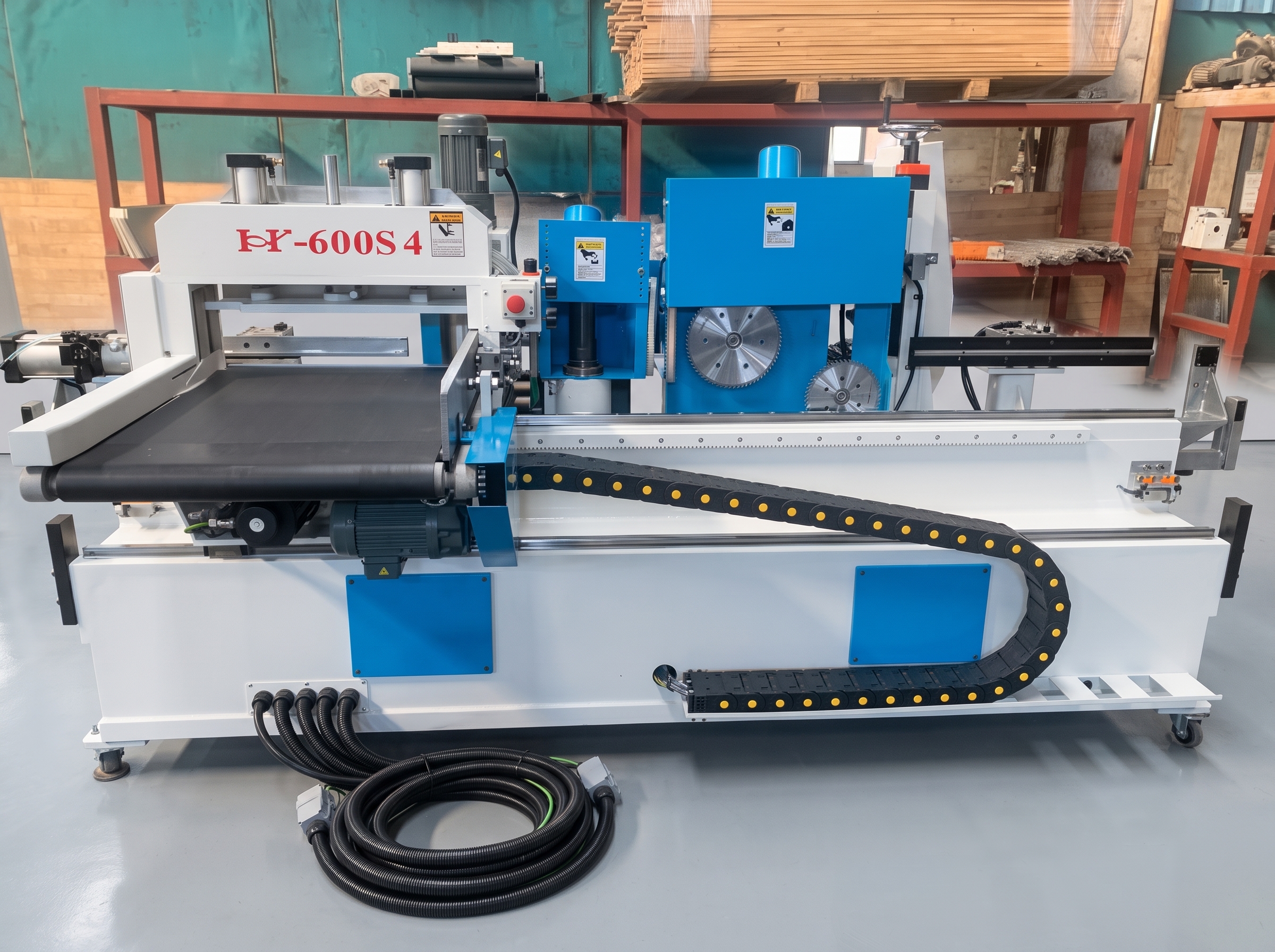

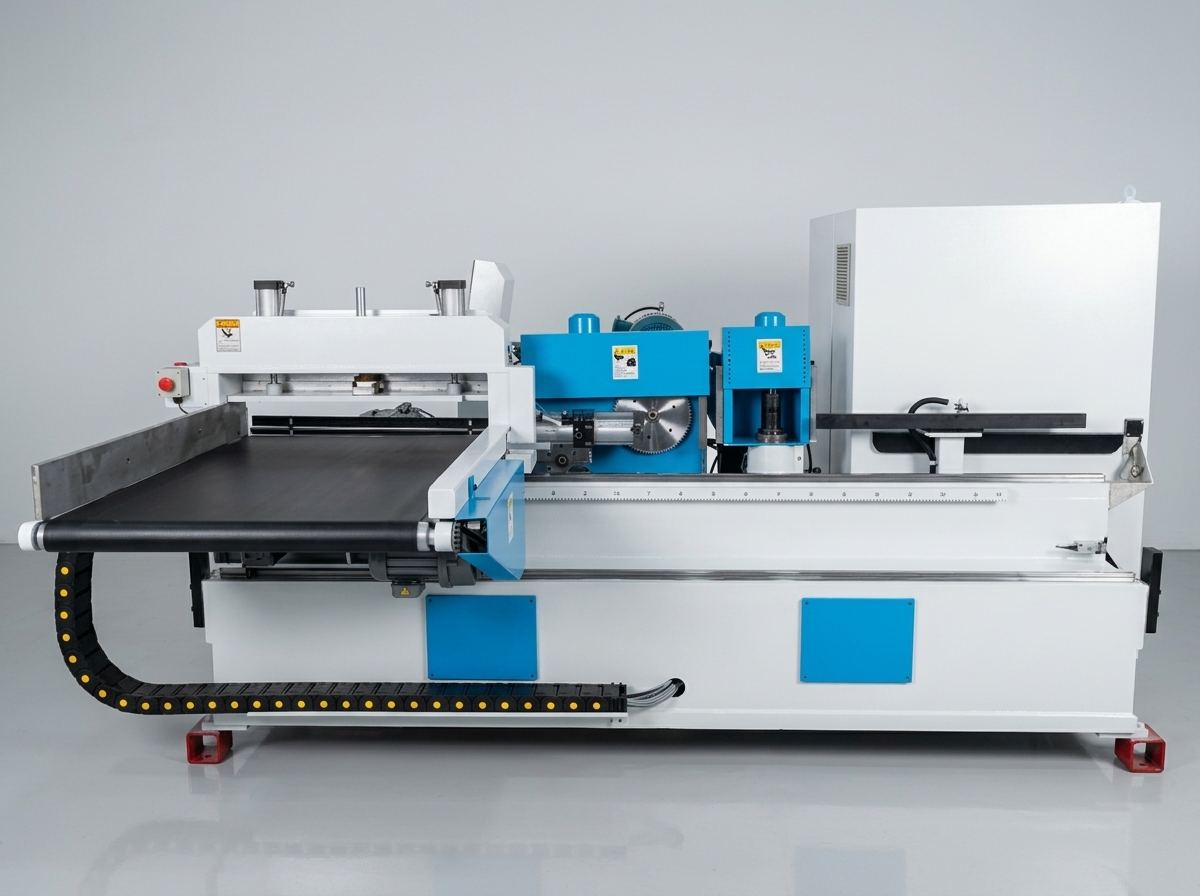

The H-3012CSP Automatic Finger Jointing Line is a complete production system for continuous finger-joint processing of solid wood components. The line integrates automatic feeding, servo finger profiling, end trimming, glue application, workpiece turning, pre-jointing and final pressing into a continuous workflow. Two H-800 servo finger-jointing units prepare both ends of the workpiece, while the H-3012CSP continuous press completes joining and sizing. The system is suitable for furniture components, mouldings, laminated wood products and other applications requiring efficient production of long finger-jointed timber.

• Finger shaper working length: 150–850 mm
• Finger shaper working width: Up to 810 mm
• Finger shaper thickness: 18–150 mm
• Final jointing width: 30–120 mm / 30-150mm / Customize
• Final jointing thickness: 18–50 mm / 18-80mm / Customize
• Processing speed: 8–80 m/min
• Single pressing length: 3 m / Limitless / Customize

Images

Features

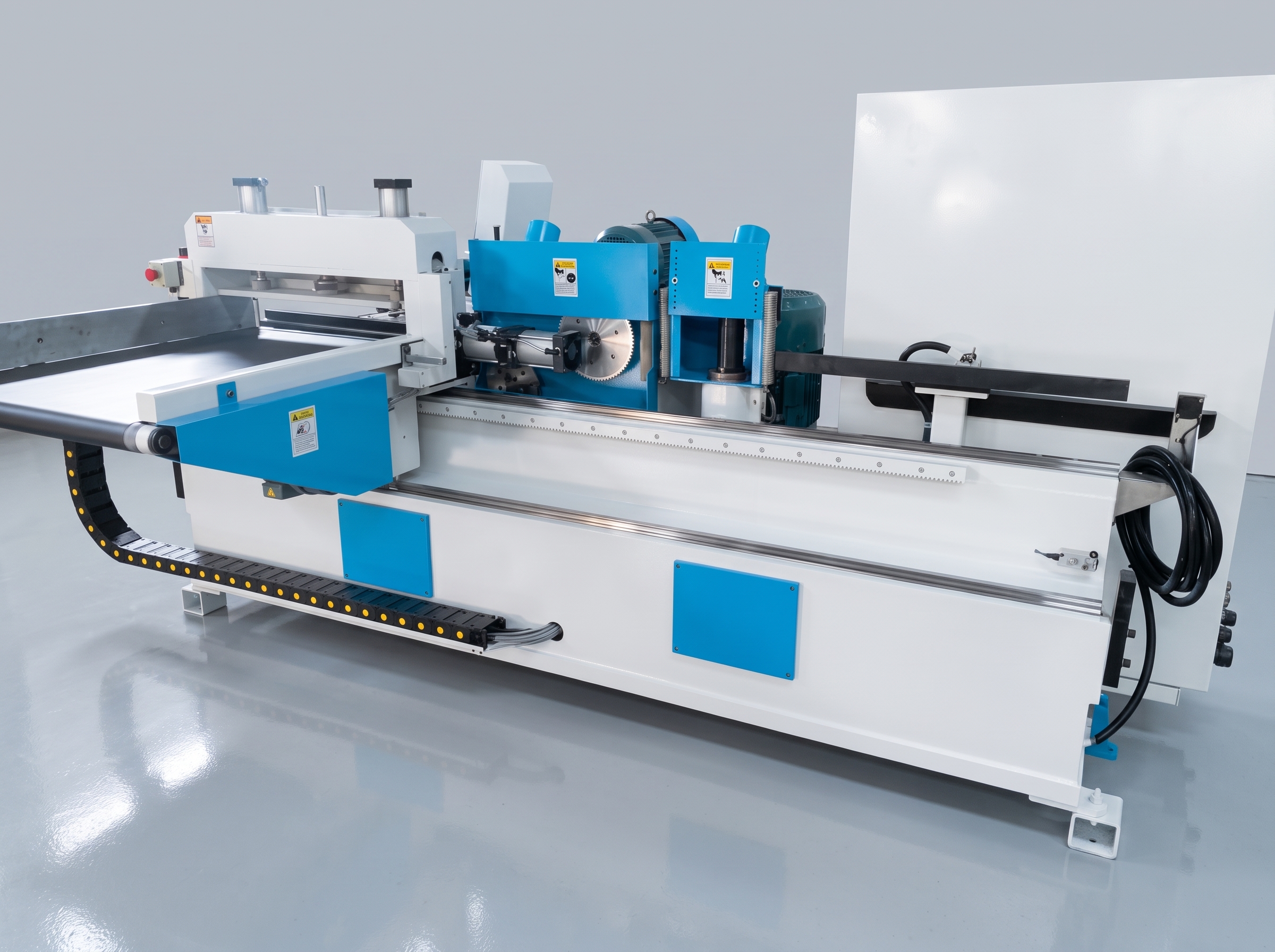

• Dual servo finger-jointing units complete end preparation, trimming and finger profiling for continuous production.

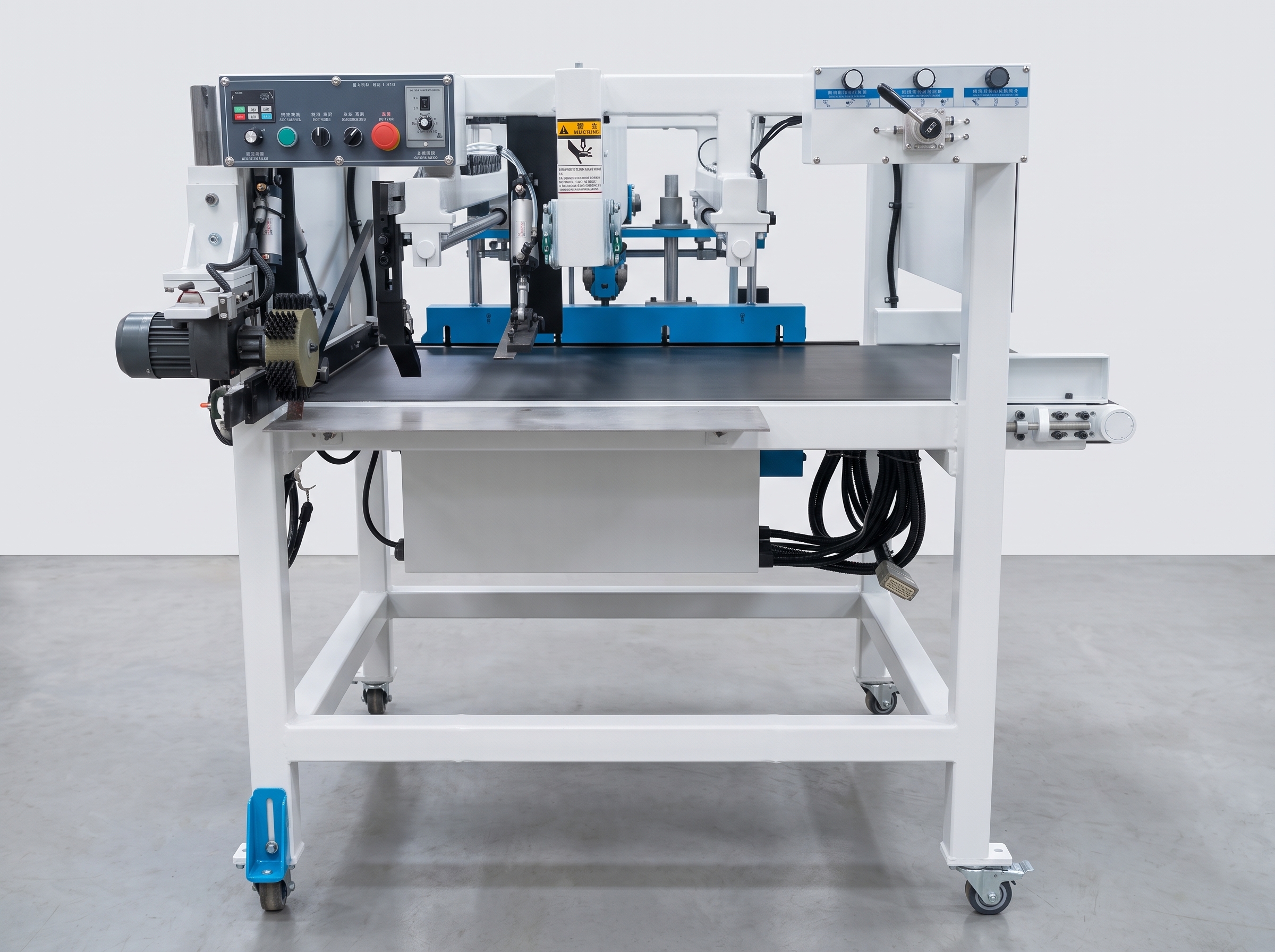

• Integrated automatic glue application provides adhesive directly during the finger-joint preparation process.

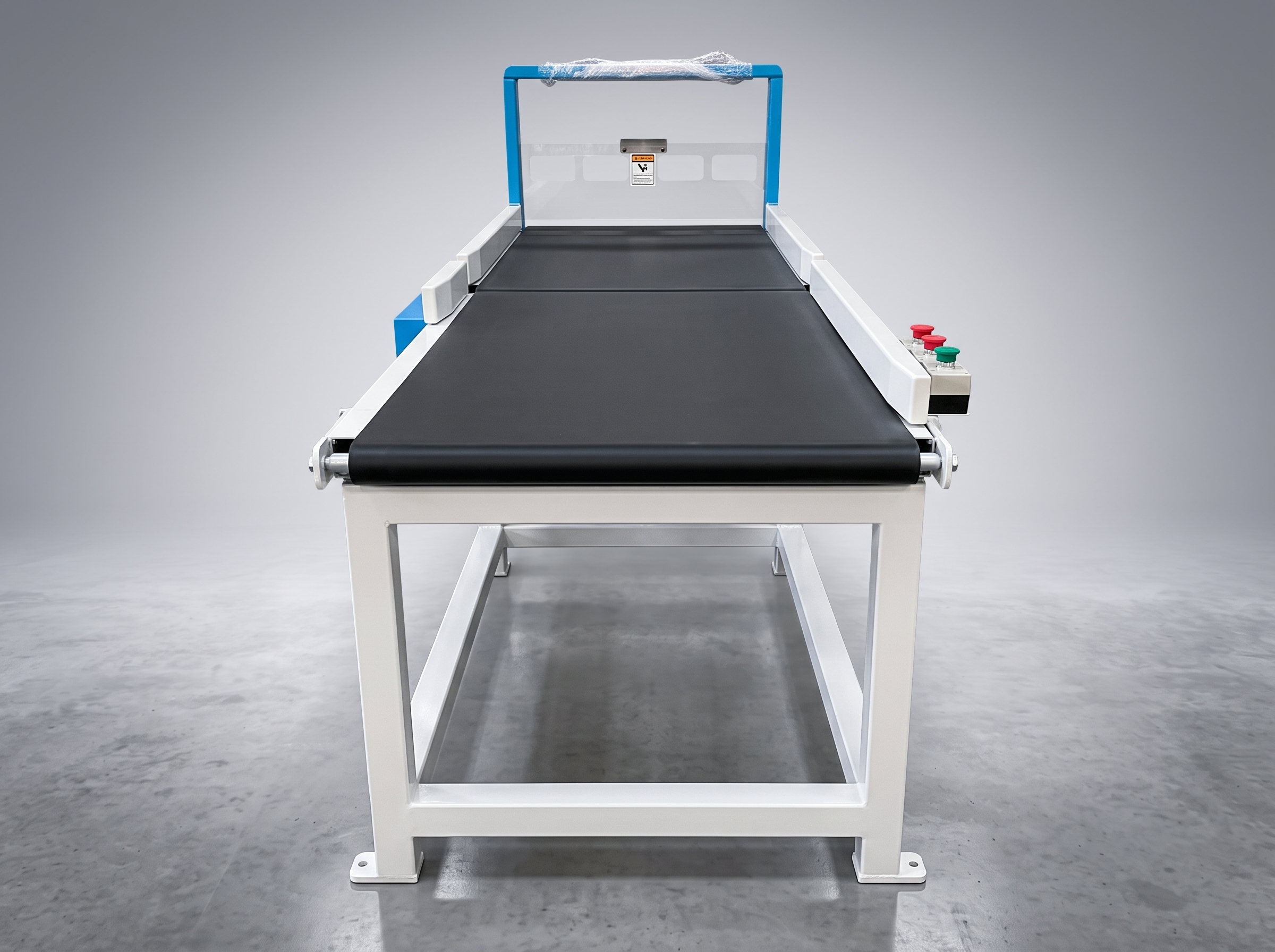

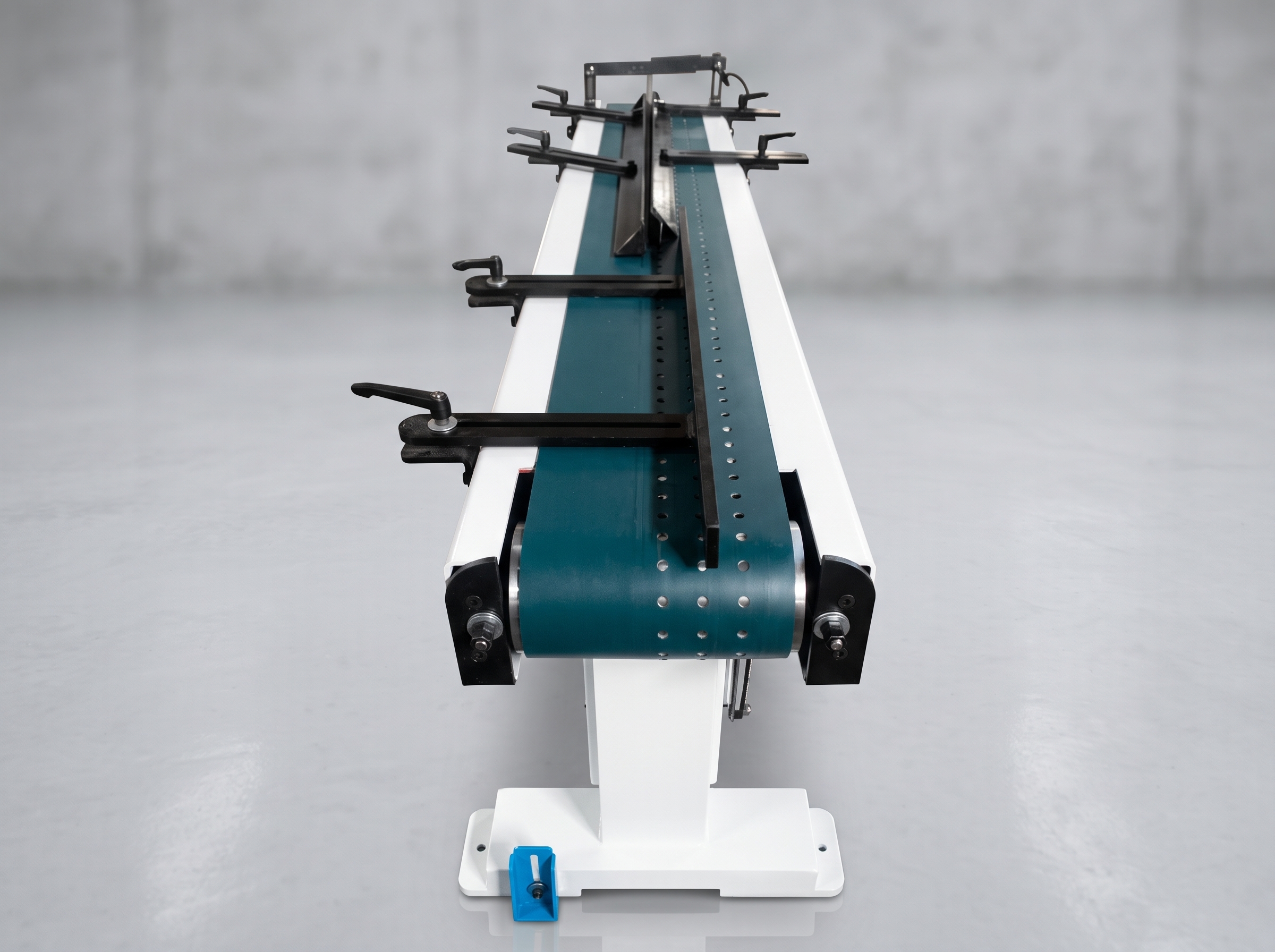

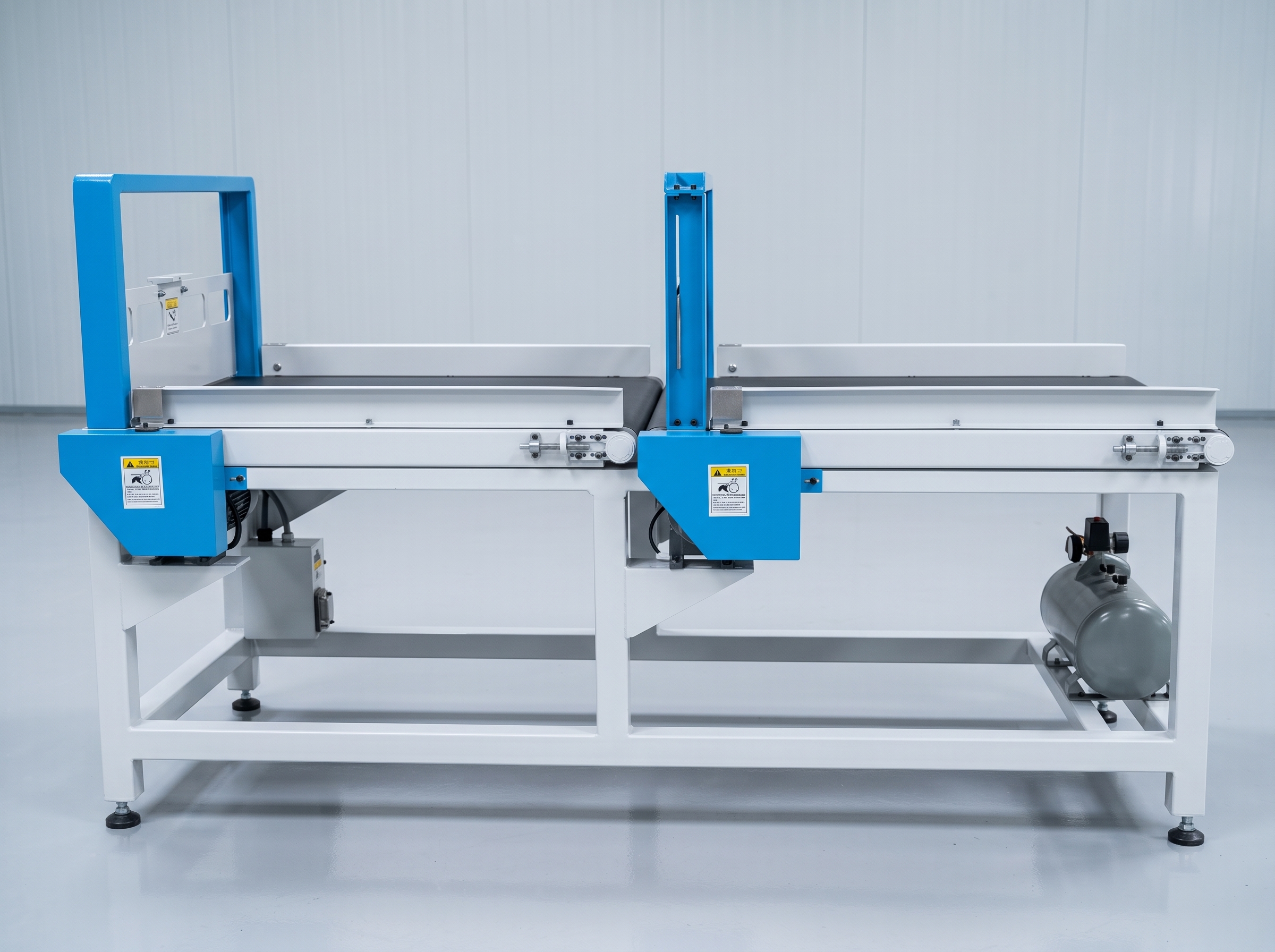

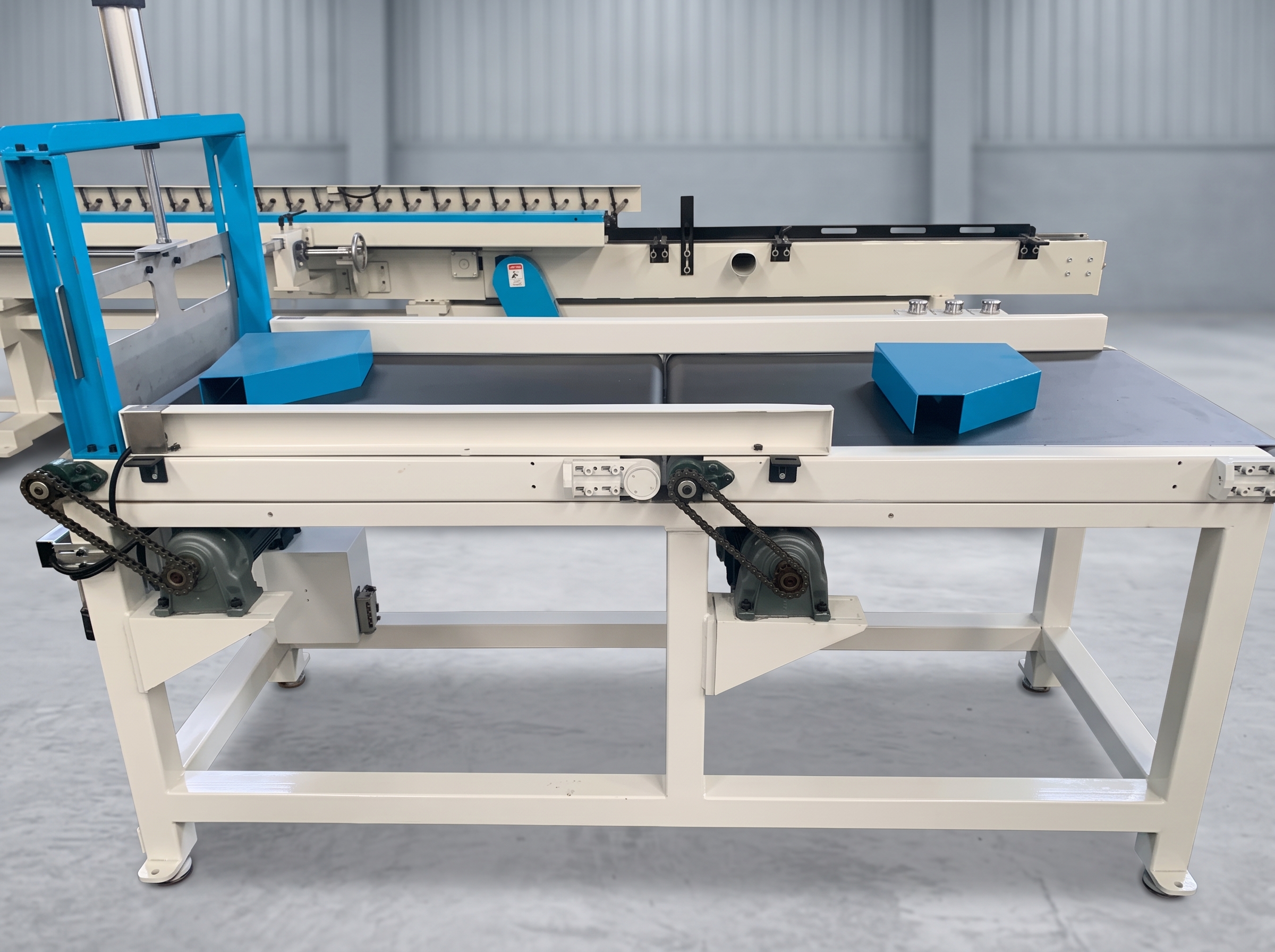

• Automatic conveying, turning and pre-jointing reduce manual handling between processing stages.

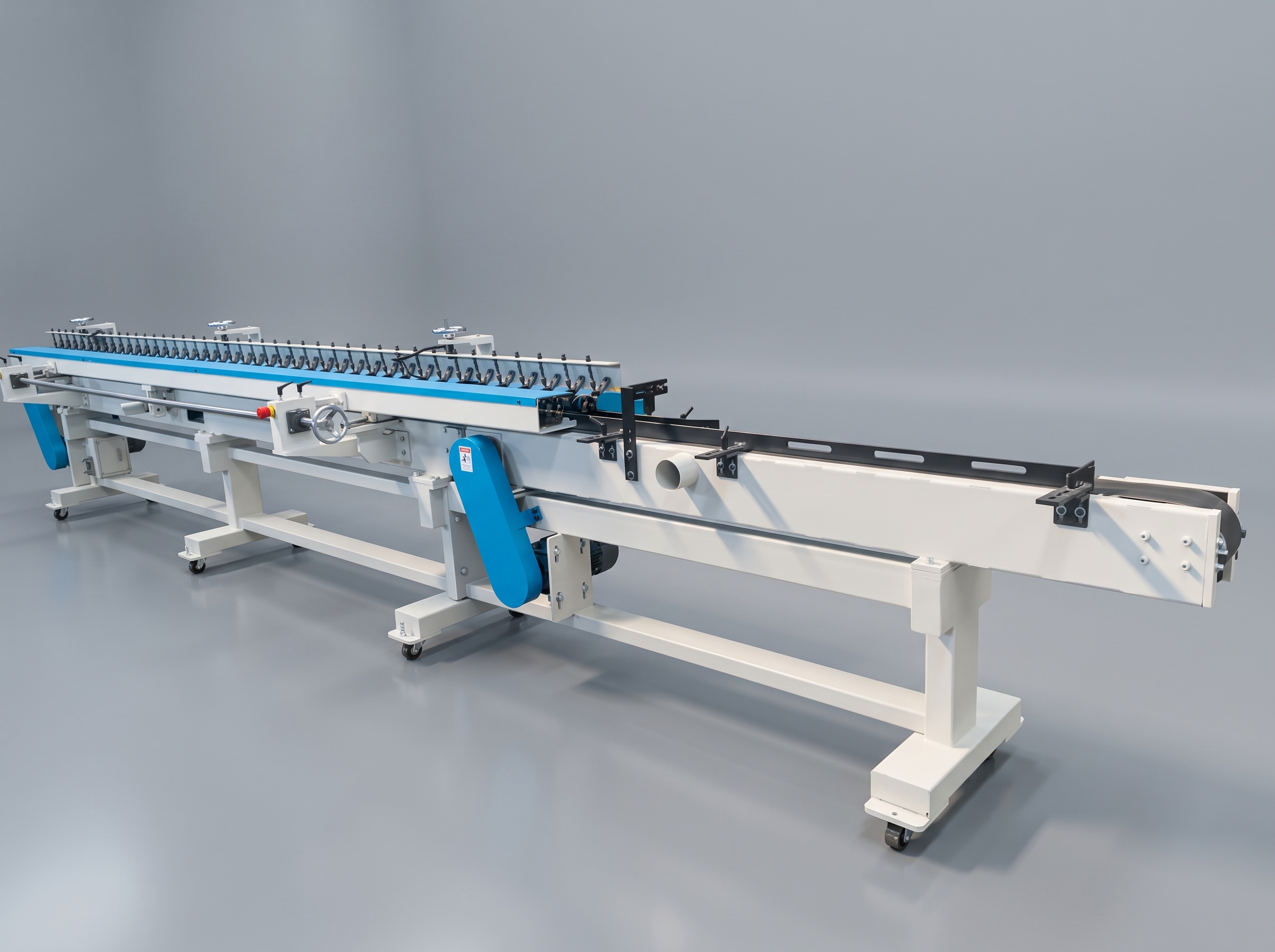

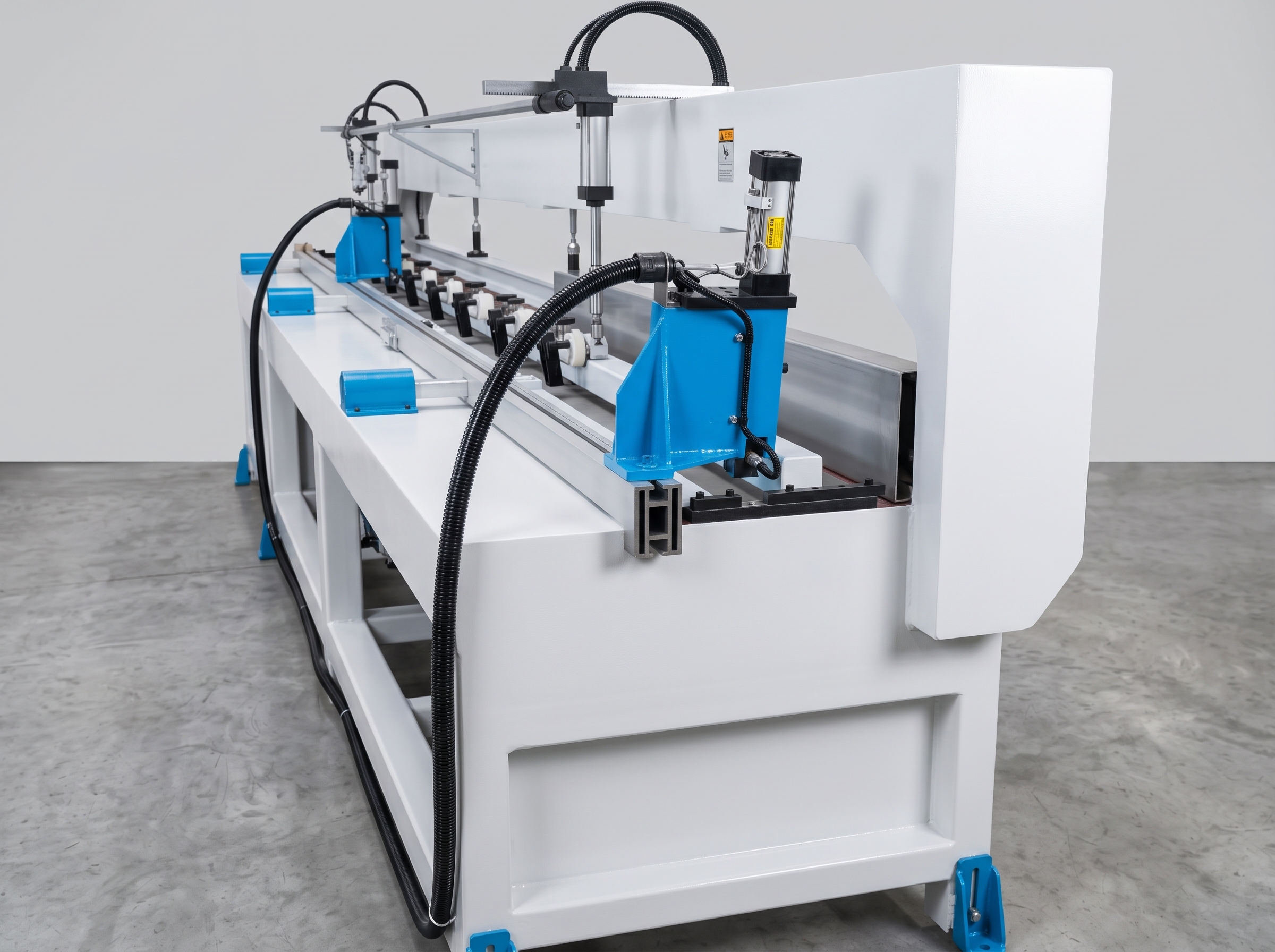

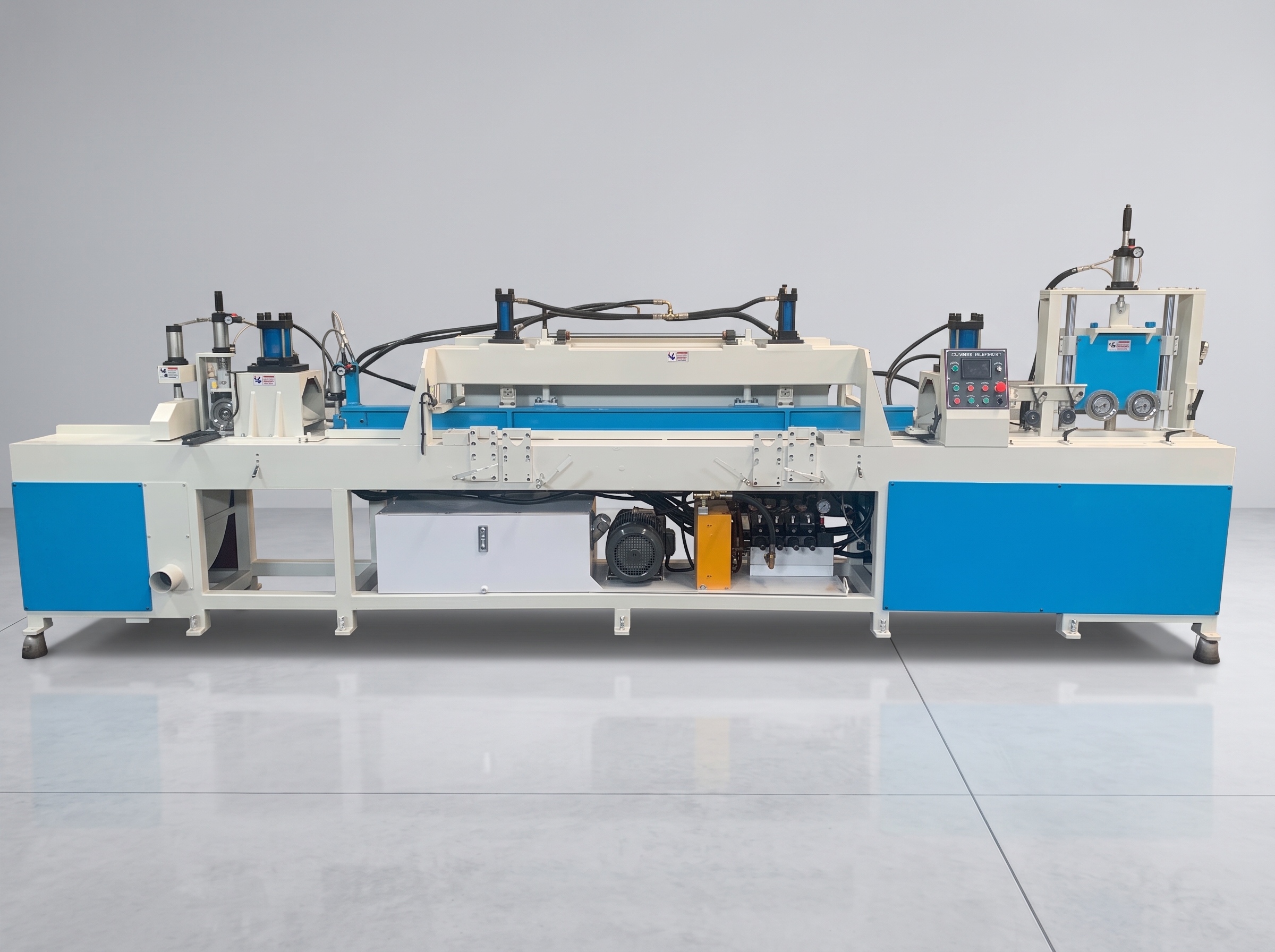

• The H-3012CSP continuous joining unit supports 8–80 m/min processing speed with hydraulic and pneumatic pressing.

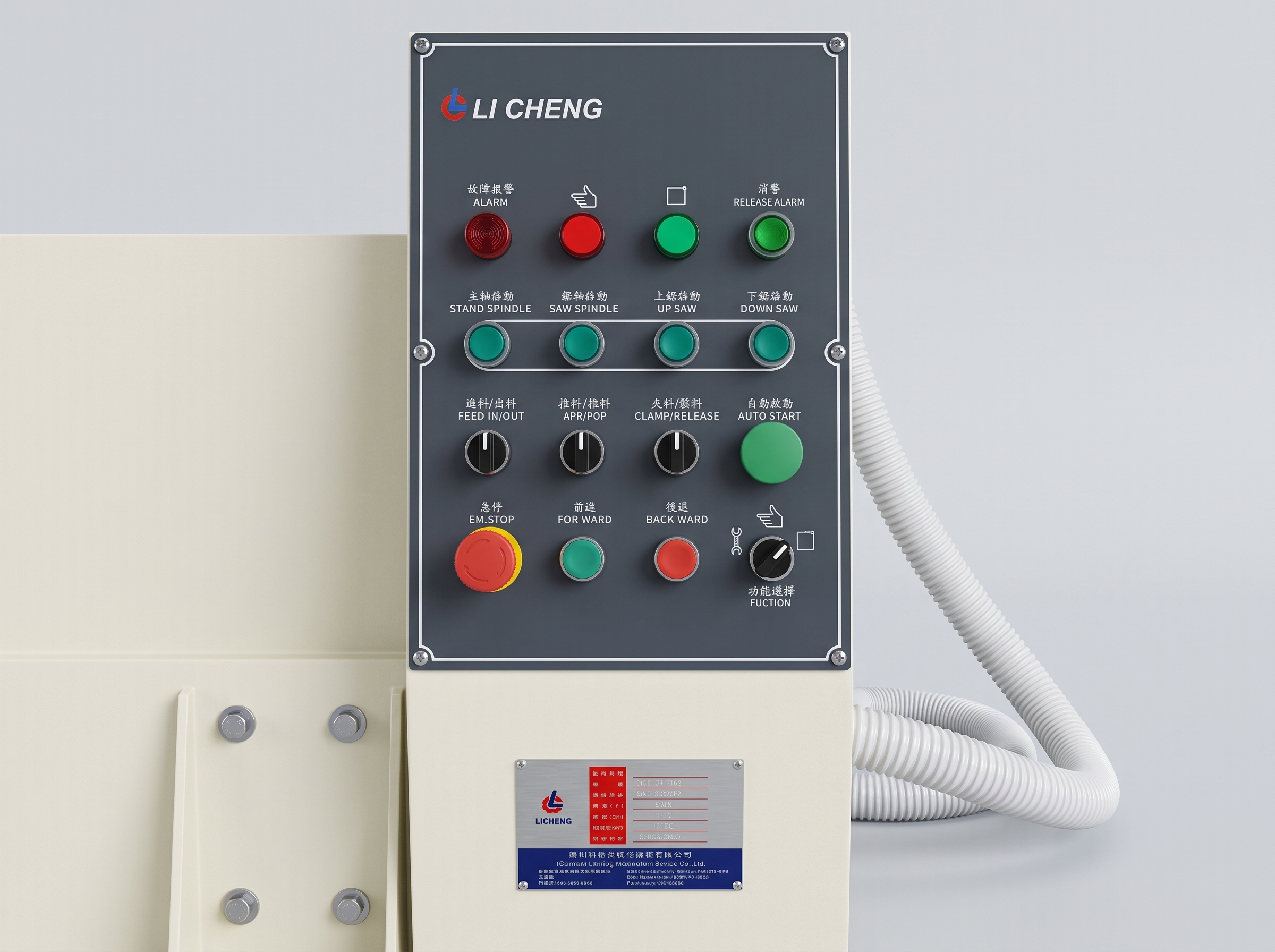

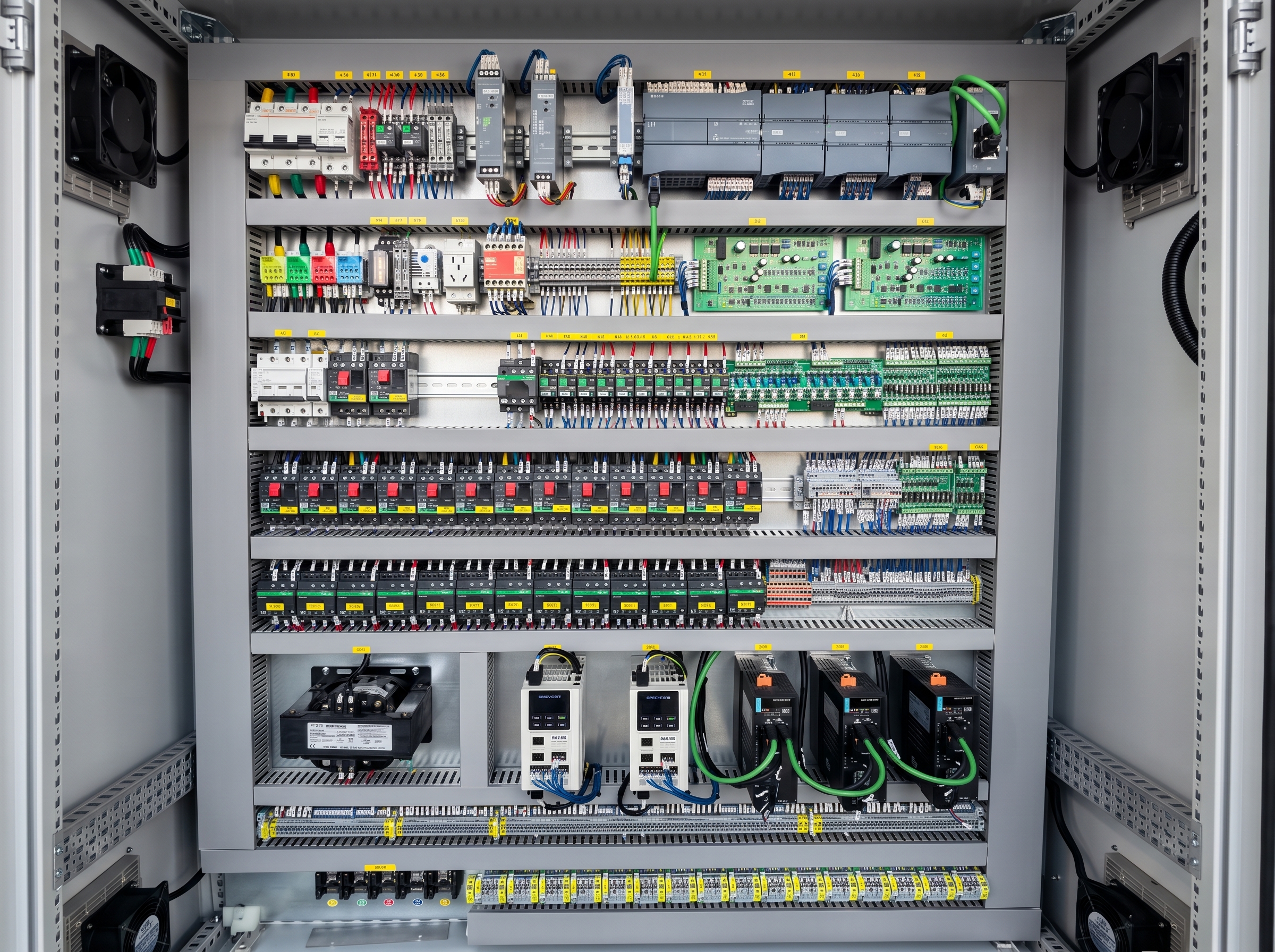

• PLC and HMI control provide centralized line operation and fault-status monitoring.

Technical data

Note: Finger-joint cutters are not included in the standard equipment specification.
