Highlights

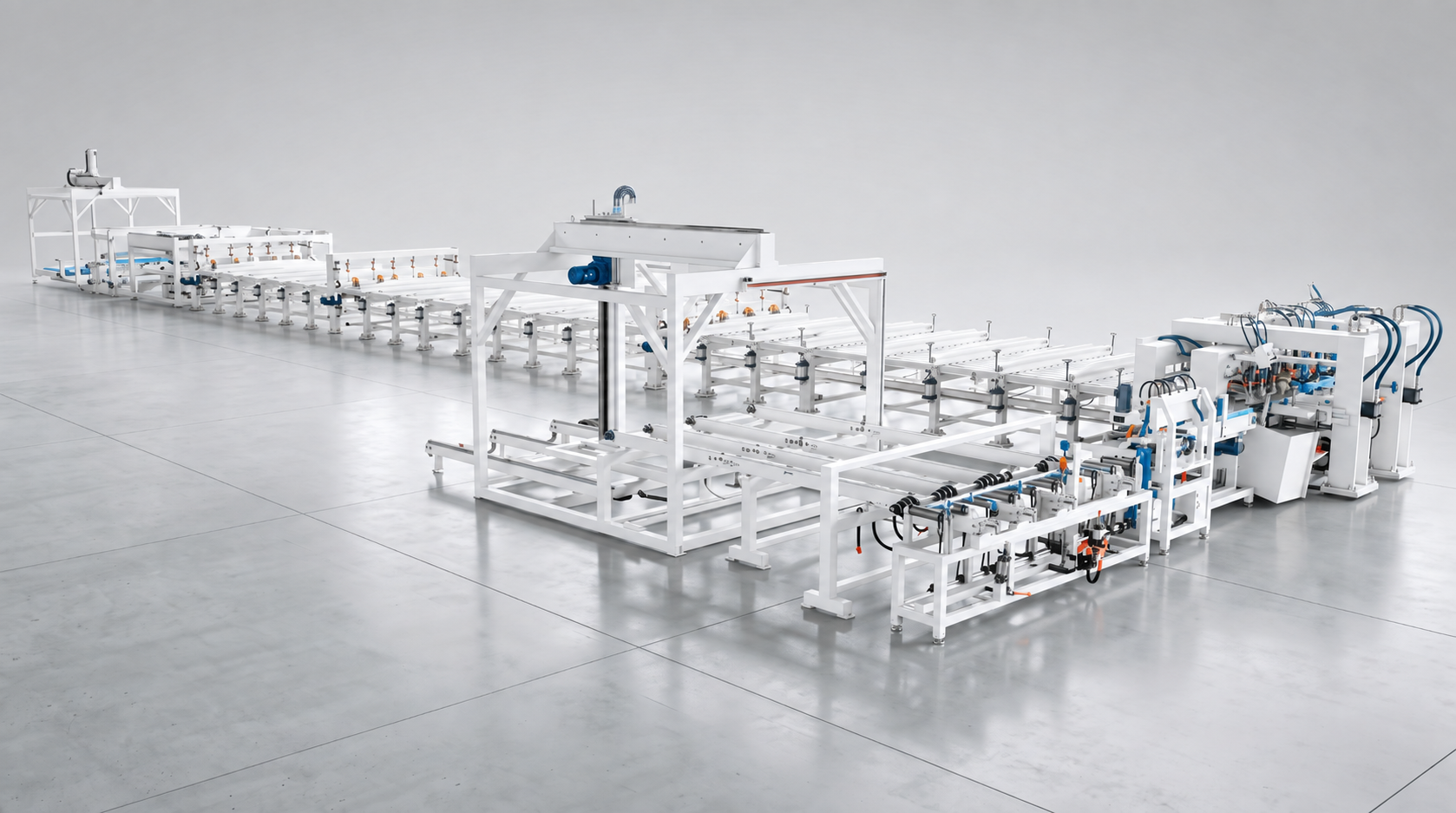

The H-2500 Automatic Panel Gluing Machine is designed for continuous production of solid wood glued panels. The line integrates vacuum loading, automatic feeding, glue application, hydraulic pressing, infrared drying, width trimming, length trimming and automatic unloading into one production process. Its automated material handling and pressing system helps maintain consistent glue application, panel alignment and surface quality while reducing manual handling between production stages. The system is suitable for furniture panels, solid wood boards and other edge-glued panel production applications.
- Processing length: 2000–2500 mm
- Strip width: 30–80 mm
- Processing thickness: 10–50 mm
- Loading method: Automatic vacuum loading
- Glue application: Automatic
- Pressing system: Hydraulic pressing
- Drying system: Infrared heating
Images
Features
- Automatic vacuum loading and unloading reduce manual material handling and improve production continuity.
- Integrated glue application provides controlled and consistent adhesive distribution before pressing.
- Large-area hydraulic pressing supports stable panel alignment and flat glued-panel production.
- Infrared heating assists glue curing in colder or humid production environments and shortens the drying process.
- Integrated width and length trimming completes panel sizing after pressing and curing, reducing the need for separate downstream handling.
Technical data
| Specifications | Unit | H-2500 |
|---|---|---|
| Machine type | — | Automatic Panel Gluing Machine |
| Processing length | mm | 2000–2500 |
| Strip width | mm | 30–80 |
| Processing thickness | mm | 10–50 |
| Vacuum loading | — | Automatic |
| Glue application | — | Automatic |
| Pressing system | — | Hydraulic |
| Infrared drying | — | Included |
| Width trimming | — | Included |
| Length trimming | — | Included |
| Automatic unloading | — | Included |
| Approx. machine weight | ton | 25 |
