Highlights
The Flexible Gravity Skate Wheel Conveyor is an unpowered material-handling system designed for manual loading, unloading, packing and short-distance transfer applications. Its flexible structure allows the conveyor to be arranged in straight or curved layouts, while the adjustable working height makes it suitable for connecting different workstations. Conveyor width, length and frame configuration can be customized according to production requirements.
- Drive type: Unpowered
- Load capacity: Approx. 30 kg
- Standard widths: 500 / 600 / 800 mm
- Working height: 450–2000 mm adjustable
- Turning angle: 45° / 90° / 180°
- Wheel diameter: Ø38 / Ø48 mm
- Length: Customizable
Images
Features
- Gravity-based conveying requires no motor or electrical drive.

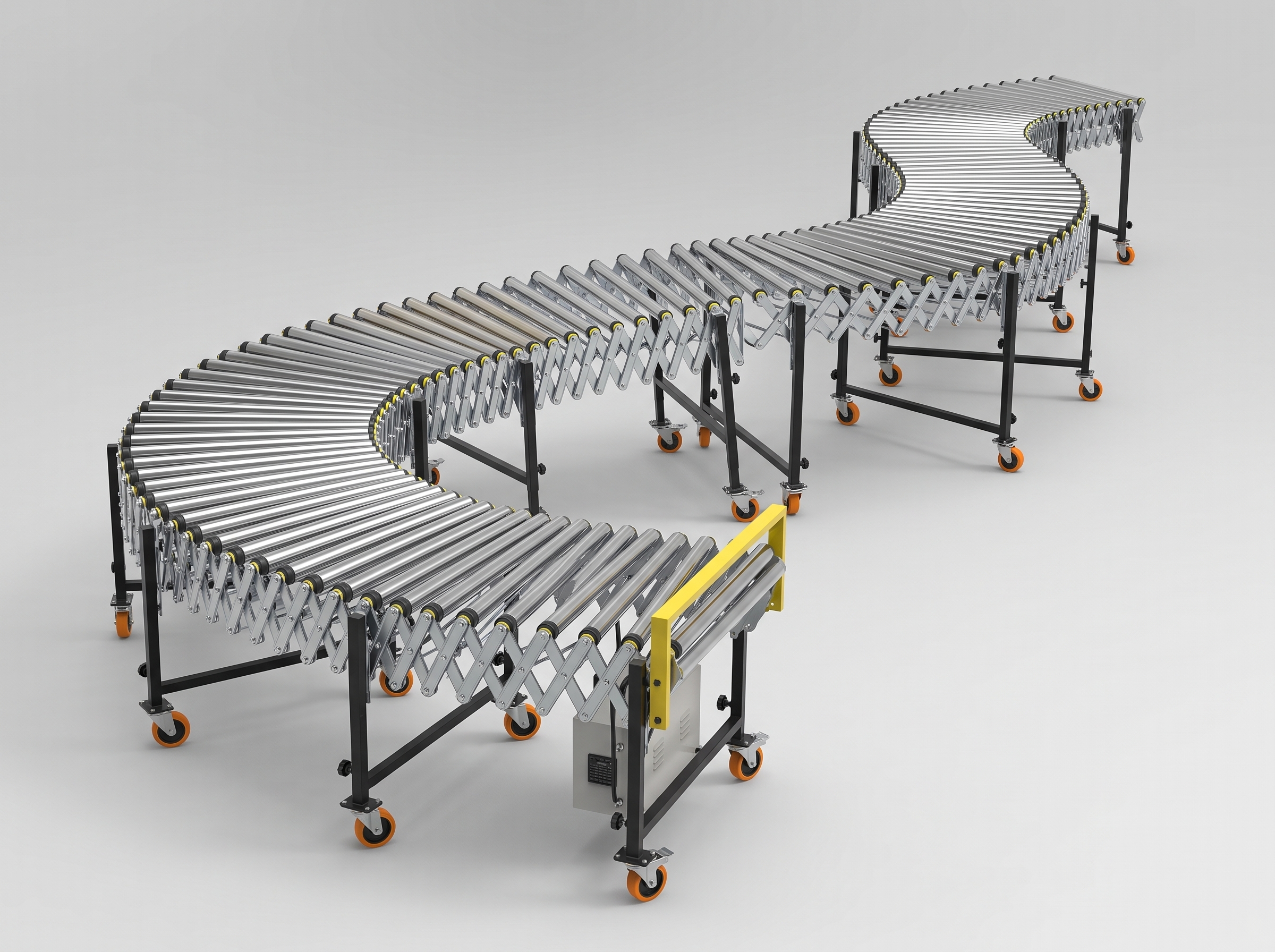

- Flexible layout supports straight and curved material-flow routes.
- Adjustable working height allows connection with different machines and packing stations.
- Skate wheels are available in carbon steel, stainless steel or ABS plastic.
- Conveyor length, width, height and frame material can be customized.
Technical data
| Specifications | Unit | Standard Configuration |
|---|---|---|
| Machine type | — | Flexible Gravity Skate Wheel Conveyor |
| Drive system | — | Unpowered |
| Load capacity | kg | Approx. 30 |
| Conveyor length | mm | Customizable |
| Conveyor width | mm | 500 / 600 / 800 / Custom |
| Working height | mm | 450–2000 Adjustable |
| Turning angle | ° | 45 / 90 / 180 |
| Skate wheel diameter | mm | Ø38 / Ø48 |
| Wheel material | — | Carbon Steel / Stainless Steel / ABS |
| Frame material | — | Galvanized Carbon Steel / SUS304 |
| Assembly | — | Bolt / Screw Assembly |
