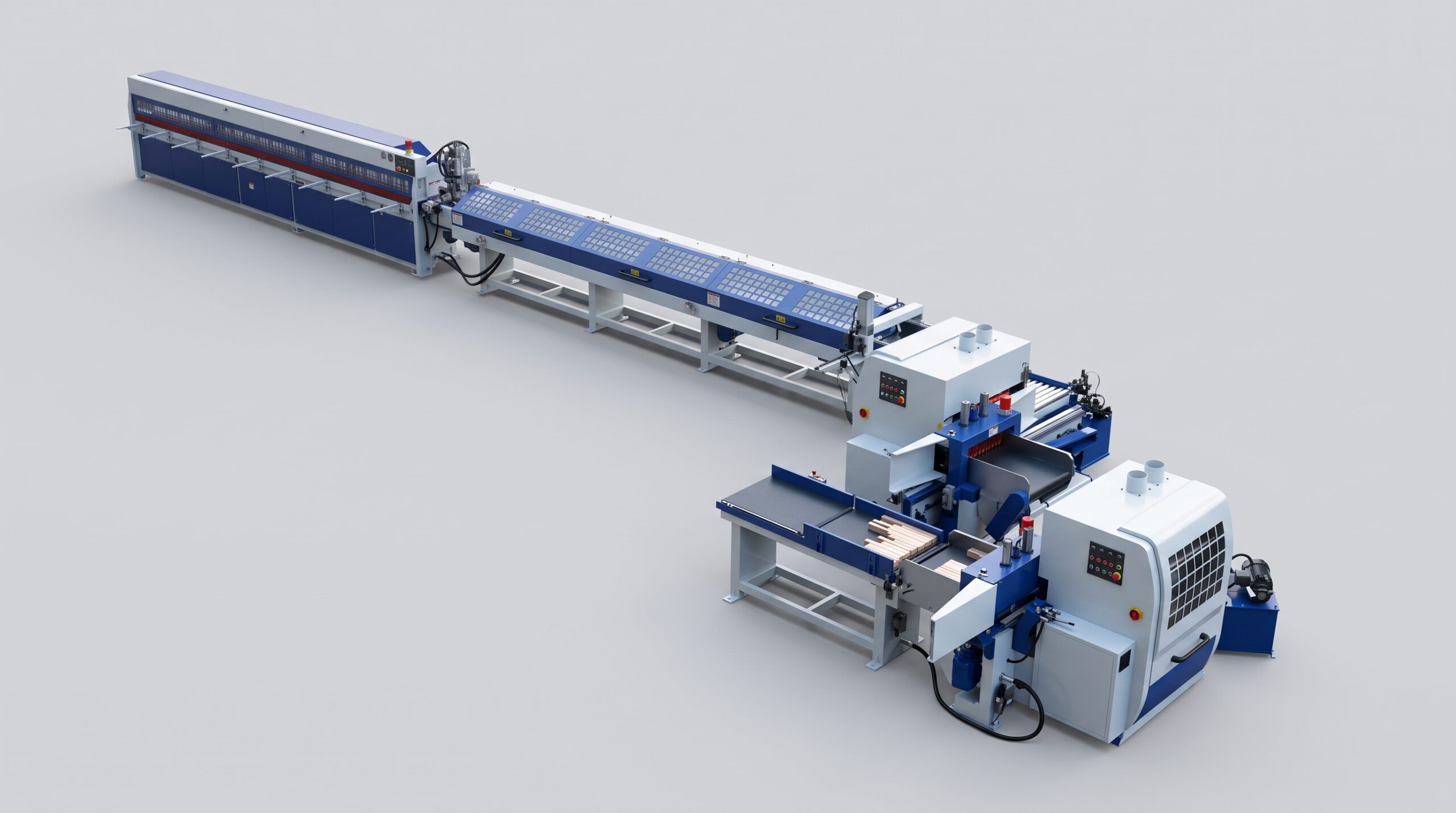

The FJL150-9E Fully Automatic Finger Jointing Line is designed for continuous length-jointing of short solid wood components. The complete line integrates finger shaping, glue application, workpiece transfer, hydraulic pressing and final cutting into an automated production process, reducing manual handling between operations. It processes incoming timber from 150–850 mm long and supports finished finger-jointed material up to 6040 mm pressing length. The line uses twin 15 kW shaping spindles, hydraulic pressing and multiple conveyor sections for continuous solid wood production.
- Infeed wood length: 150–850 mm
- Shaping thickness: 20–150 mm
- Maximum shaper working width: 590 mm
- Pressing thickness: 20–80 mm
- Pressing width: 30–150 mm
- Maximum pressing length: 6040 mm
- Maximum thrust force: 7500 kg
Features
- Fully automatic production flow integrates finger shaping, gluing, conveying, pressing and cutting.
- Twin 15 kW finger-joint shaping spindles provide machining capacity for continuous timber preparation.
- Hydraulic finger-joint press produces finished lengths up to 6040 mm.
- Multiple belt, roller and chain conveyor sections provide automatic transfer between processing stations.
- Enclosed European-style line configuration is available for improved machine guarding and production-line integration.
Technical data
| Specifications | Unit | FJL150-9E |
|---|---|---|
| Infeed length | mm | 150–850 |
| Shaping thickness | mm | 20–150 |
| Max. shaper table working width | mm | 590 |
| Pressing thickness | mm | 20–80 |
| Pressing width | mm | 30–150 |
| Shaper spindle diameter | mm | Ø50 |
| Shaper spindle speed | rpm | 5600 |
| Hogger spindle diameter | mm | Ø30 |
| Hogger spindle speed | rpm | 2840 |
| Maximum pressing length | mm | 6040 |
| Maximum thrust force | kg | 7500 |
| Shaper spindle power | kW | 15 × 2 |
| Hogger power | kW | 5.5 × 2 |
| Scoring saw power | kW | 0.75 × 2 |
| Shaper hydraulic system | kW | 2.2 × 2 |
| Press hydraulic system | kW | 4 |
| Press saw blade motor | kW | 4 |
| Press conveyor power | kW | 1.5 |
| Belt conveyor power | kW | 1.5 |
| Roller conveyor power | kW | 4.5 |
| Chain conveyor power | kW | 2.95 |
| Total motor power | kW | 65.35 |
| Working air pressure | bar | 6–8 |
| Required dust extraction airflow | m³/h | 9000 |
| Installation dimensions | mm | 18000 × 6000 |
