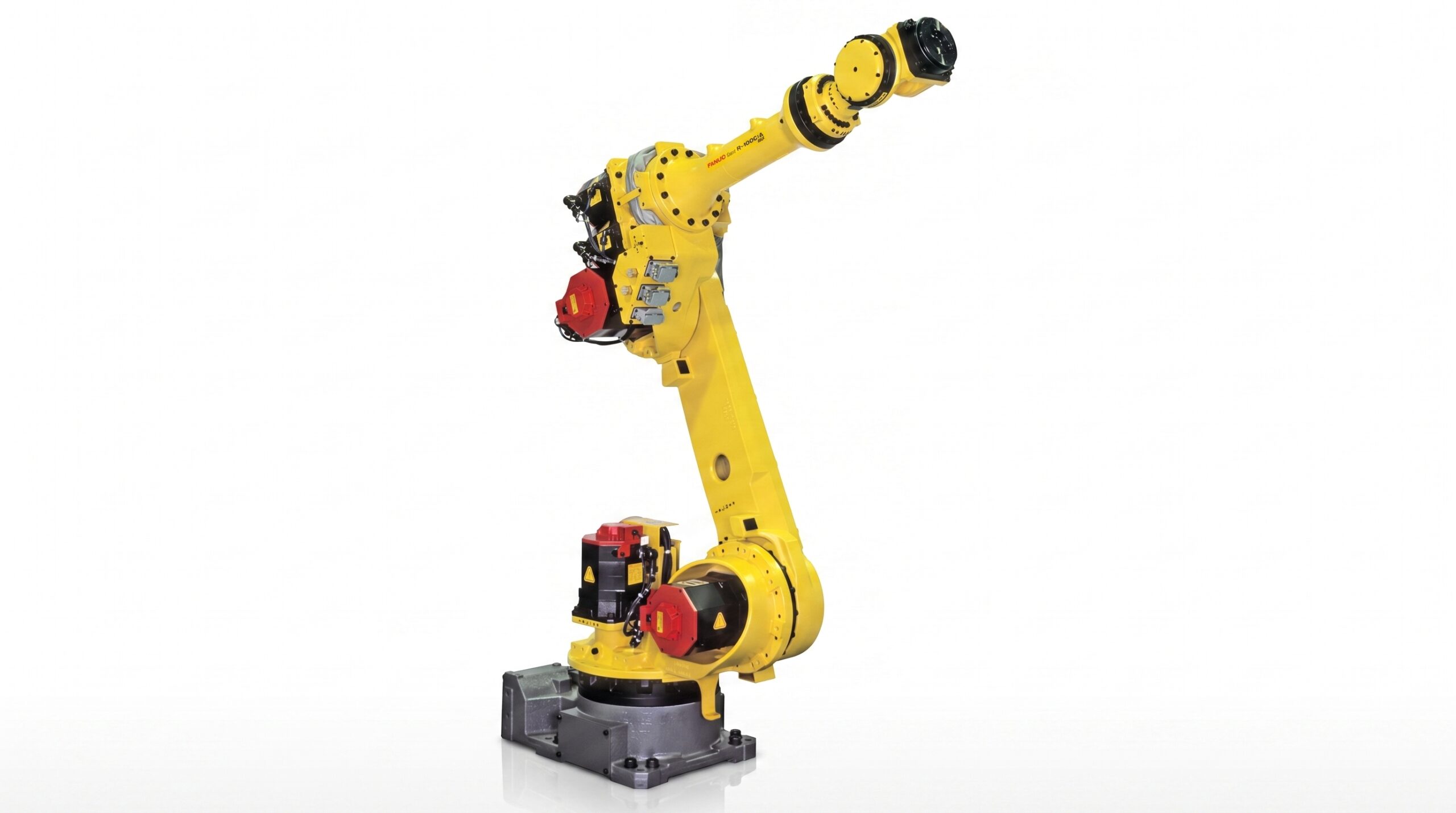

FANUC R-1000iA/80F

Highlights

The FANUC R-1000iA/80F is a compact, high-speed 6-axis industrial robot designed for material handling, automated loading and palletizing applications. With an 80 kg payload and 2230 mm reach, it provides significantly higher handling capacity than smaller machine-tending robots while maintaining a compact working envelope and ±0.03 mm repeatability. FANUC highlights its fast acceleration and high-performance handling for reduced cycle times, while standard IP67 protection on the wrist and J3 arm supports reliable operation in dusty industrial environments. In HC WoodTech automation cells, the R-1000iA/80F can be integrated for handling solid wood components, doors, panels and heavier workpieces between CNC machines, saws, sanders and conveyor systems.

• Maximum payload: 80 kg
• Maximum reach: 2230 mm
• Number of axes: 6
• Repeatability: ±0.03 mm
• Mechanical weight: 620 kg
• Wrist & J3 protection: IP67
• Controller: FANUC R-30iB Plus

Images

Features

• 80 kg payload with 2230 mm reach provides strong handling capacity for medium-to-heavy workpieces while retaining a relatively compact robot footprint.
• FANUC specifically emphasizes fast acceleration and high-performance handling, helping reduce cycle times in automated transfer, loading and palletizing applications.
• ±0.03 mm repeatability supports consistent positioning when transferring workpieces between woodworking machines, conveyors and fixtures.
• Standard IP67 protection on the wrist and J3 arm improves resistance to dust and moisture in demanding industrial environments.
• Floor or inverted mounting provides flexibility when designing robotic cells around CNC machines, production lines, conveyors and material-handling stations.
