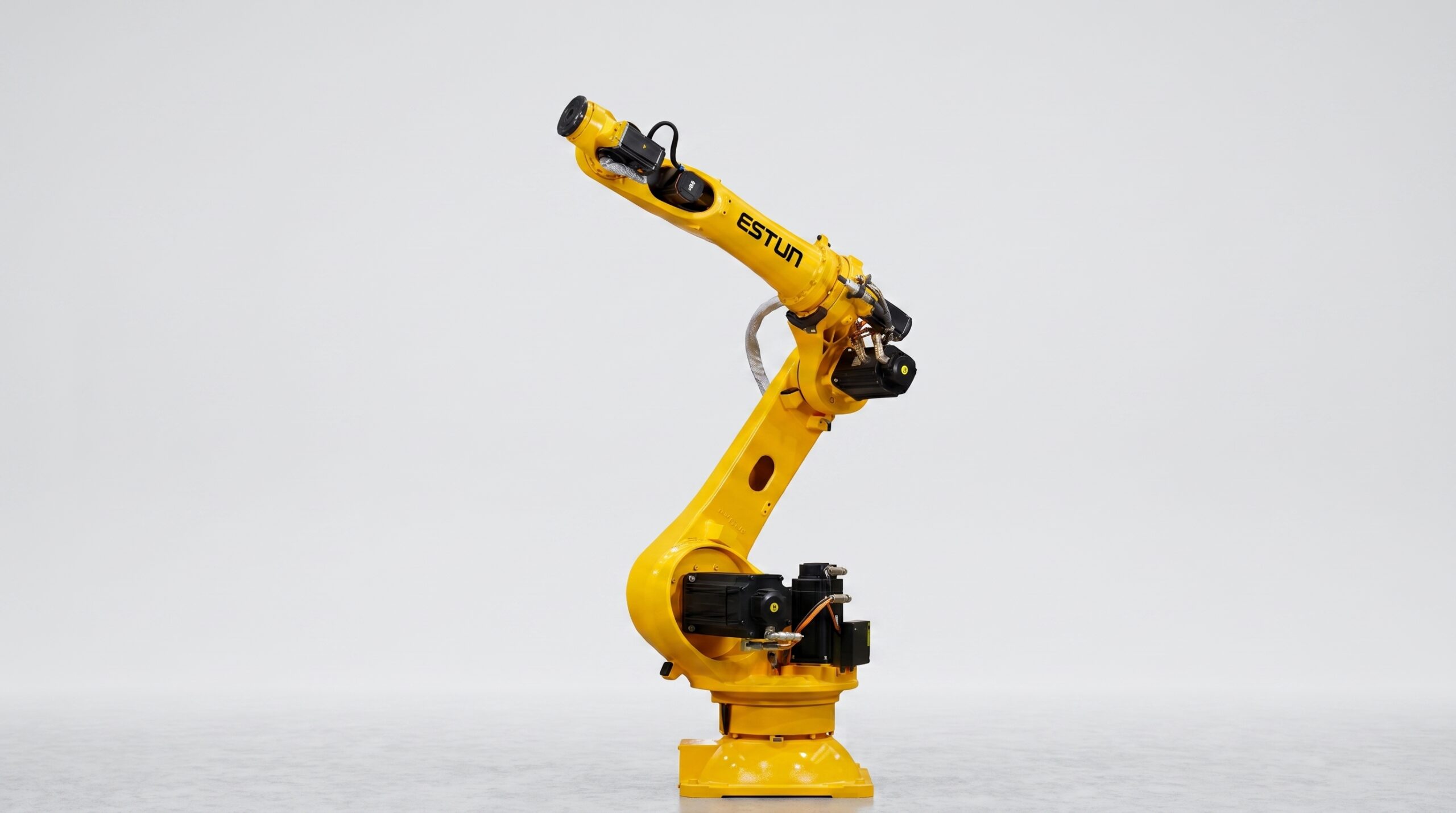

ESTUN ER50B-2100

Highlights

The ESTUN ER50B-2100 is a 6-axis industrial robot designed for general-purpose automation, material handling and machine-tending applications. With a 50 kg maximum payload and 2100 mm arm reach, it provides a useful combination of load capacity, working range and positioning accuracy for automated production cells. Its ±0.05 mm repeatability supports consistent workpiece positioning, while the articulated 6-axis structure allows flexible access around machines, fixtures and conveyors. The robot features IP54 + IP65 protection, making it better suited to demanding industrial environments. In HC WoodTech automation systems, the ER50B-2100 can be integrated with CNC machining centers, saws, sanders, moulders and material-transfer systems for automatic loading, unloading and handling of solid wood components, doors and medium-size panels.

• Maximum payload: 50 kg
• Maximum reach: 2100 mm
• Number of axes: 6
• Repeatability: ±0.05 mm
• Robot body weight: 530 kg
• Protection level: IP54 + IP65
• Application class: General industrial automation

Images

Features

• 50 kg payload with 2100 mm reach provides a practical operating range for medium-size workpieces, doors, solid wood components and machine-loading applications.
• The 6-axis articulated structure provides flexible positioning and approach angles around CNC machines, saws, sanders, conveyors and fixtures.
• ±0.05 mm repeatability supports stable and repeatable workpiece placement during continuous loading, unloading and transfer operations.
• IP54 + IP65 protection provides additional resistance against industrial dust and contaminants, making the robot suitable for demanding production environments.
• In HC WoodTech robot cells, the ER50B-2100 can be integrated with vacuum grippers, mechanical grippers, conveyors, safety systems and woodworking machinery according to workpiece dimensions, payload and required cycle time.
