ESTUN ER20B-1760

Highlights

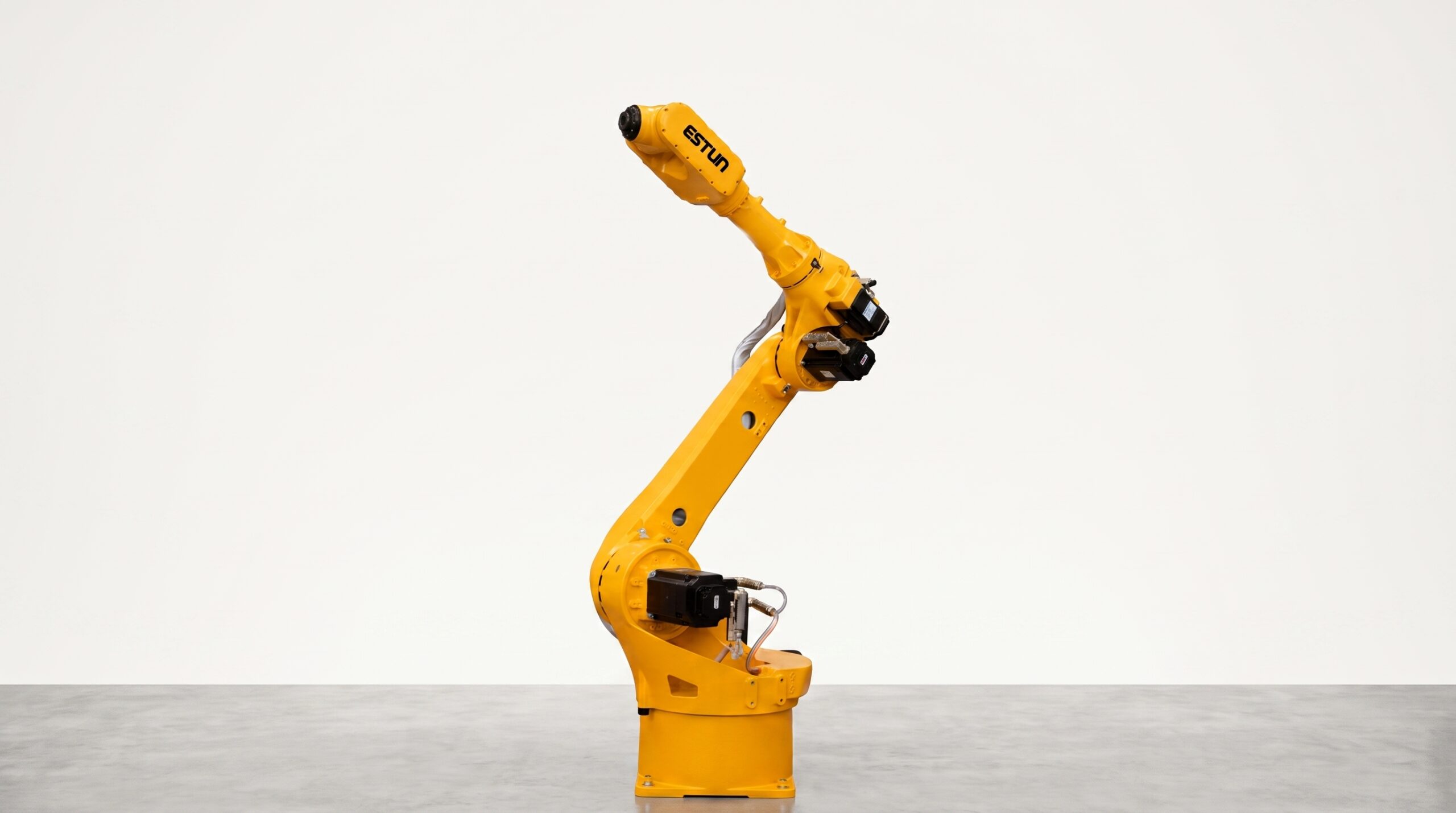

The ESTUN ER20B-1760 is a compact 6-axis industrial robot from ESTUN’s Small Load Series, designed for general automation and material-handling applications. With a 20 kg maximum payload and approximately 1760 mm reach, it provides a practical combination of working range, speed and positioning accuracy for machine tending, pick-and-place and automated workpiece transfer. Its ±0.03 mm repeatability, IP54 body protection and IP65 wrist protection support reliable operation in industrial production environments. In HC WoodTech automation cells, the ER20B-1760 can be integrated with CNC machining centers, saws, sanders and other woodworking equipment for automatic loading, unloading and handling of smaller solid wood components.

• Maximum payload: 20 kg
• Maximum reach: 1760 mm
• Number of axes: 6
• Repeatability: ±0.03 mm
• Robot body weight: Approx. 273 kg
• Protection: Body IP54 / Wrist IP65
• Application class: General industrial automation

Images

Features

• 20 kg payload with 1760 mm reach provides a useful working envelope for machine tending, pick-and-place and small-to-medium workpiece handling.
• Six-axis articulated construction provides flexible positioning around CNC machines, conveyors, fixtures and other automation equipment.
• ±0.03 mm repeatability supports consistent positioning during repetitive loading, unloading and transfer operations.
• IP54 body and IP65 wrist protection provide additional protection against dust and contaminants in industrial environments.
• In HC WoodTech systems, the robot can be combined with vacuum grippers, mechanical grippers, conveyors and woodworking machinery for CNC loading, saw loading, material transfer and automated handling.

Technical data
