Highlights

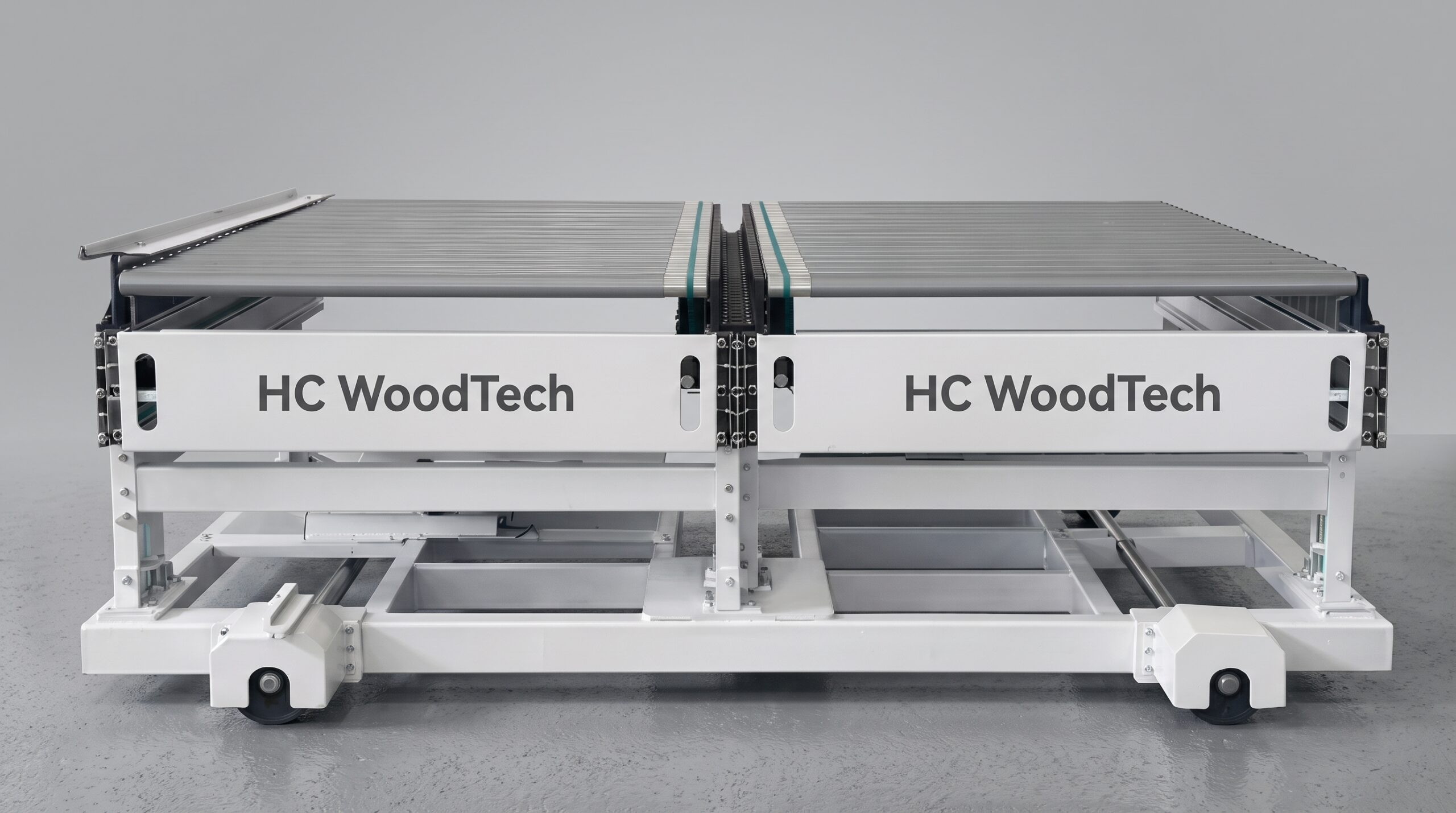

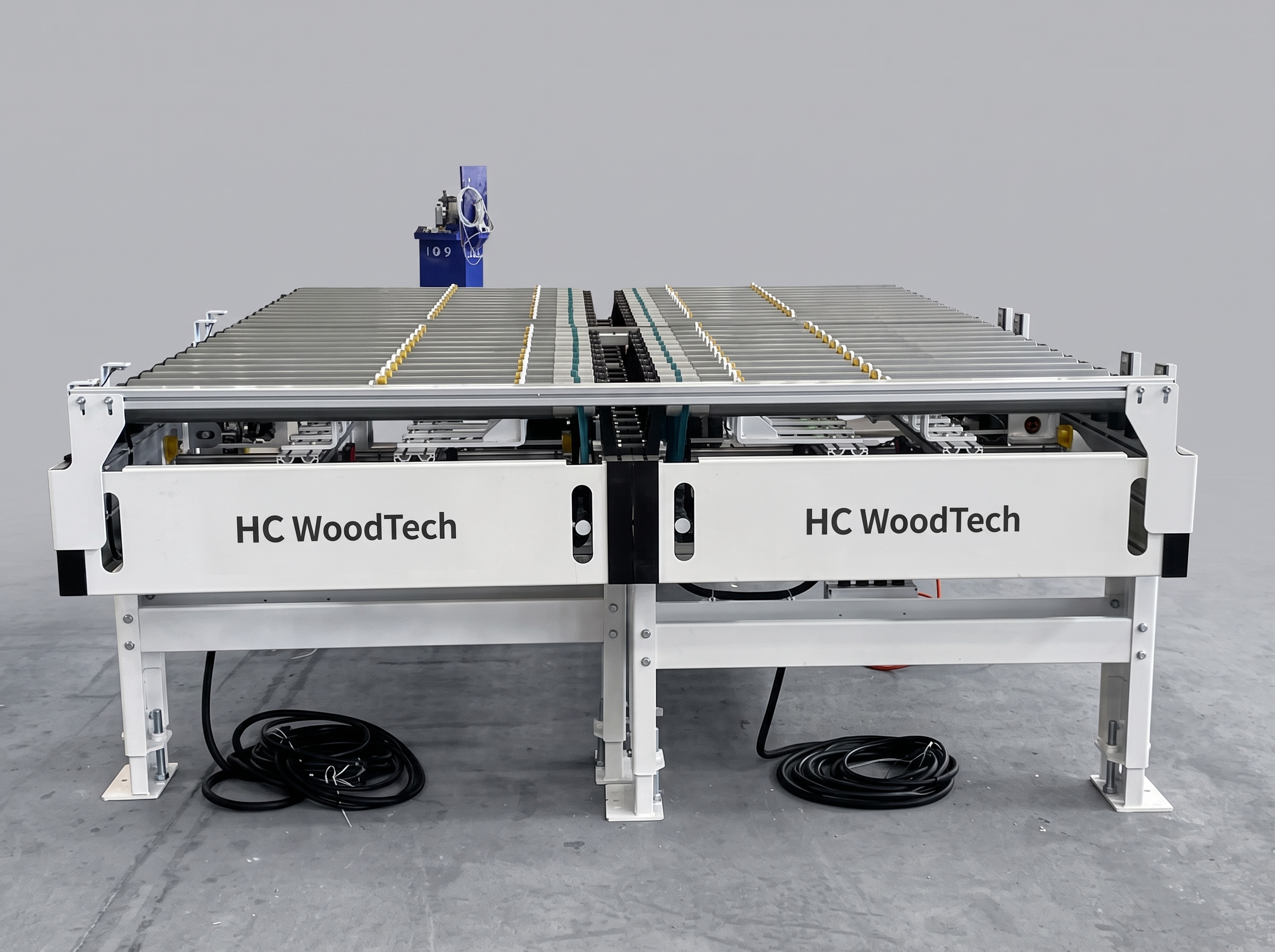

The Double Row Powered Roller Conveyor is designed for parallel conveying of two panels at the same time, improving throughput in high-output furniture and woodworking production lines. Its dual-lane structure supports synchronized material flow before and after cutting, edge banding, sorting and packaging stations. Rubber-coated galvanized rollers help protect panel surfaces, while optional variable-frequency control allows conveying speed to be adjusted according to production requirements. The conveyor can be used as a main transfer section or integrated into parallel automated lines.
- Standard dimensions: 3000 × (1300 + 1300) × 800 mm
- Load capacity: 60 kg/layer
- Surface load: 50 kg/m²
- Conveyor speed: 0–40 / 0–80 m/min
- Motor power: 0.75 + 0.75 kW
- Roller diameter: Ø50 mm
- Roller pitch: 80 / 115 mm
Images
Features
- Dual-lane conveying allows two panels to move simultaneously for higher production efficiency.
- Rubber-coated galvanized rollers help reduce surface scratching and protect finished panels.
- Adjustable conveying speeds of 0–40 or 0–80 m/min support different line capacities.
- Can be integrated with cutting, edge banding, sorting and packaging equipment.
- Conveyor dimensions and configuration can be customized according to factory layout and panel size.
Technical data
| Specifications | Unit | Standard Configuration |
|---|---|---|
| Machine type | — | Double Row Powered Roller Conveyor |
| Overall length | mm | 3000 |
| Overall width | mm | 1300 + 1300 |
| Overall height | mm | 800 |
| Load capacity | kg/layer | 60 |
| Surface load | kg/m² | 50 |
| Conveyor speed | m/min | 0–40 / 0–80 |
| Motor power | kW | 0.75 + 0.75 |
| Main beam | — | 250 × 50 Aluminum Profile |
| Roller diameter | mm | Ø50 × 1.5 |
| Roller coating | mm | 3 Rubber |
| Roller pitch | mm | 80 / 115 |
| Speed control | — | VFD Optional |
| Dimensions | — | Customizable |
