Highlights

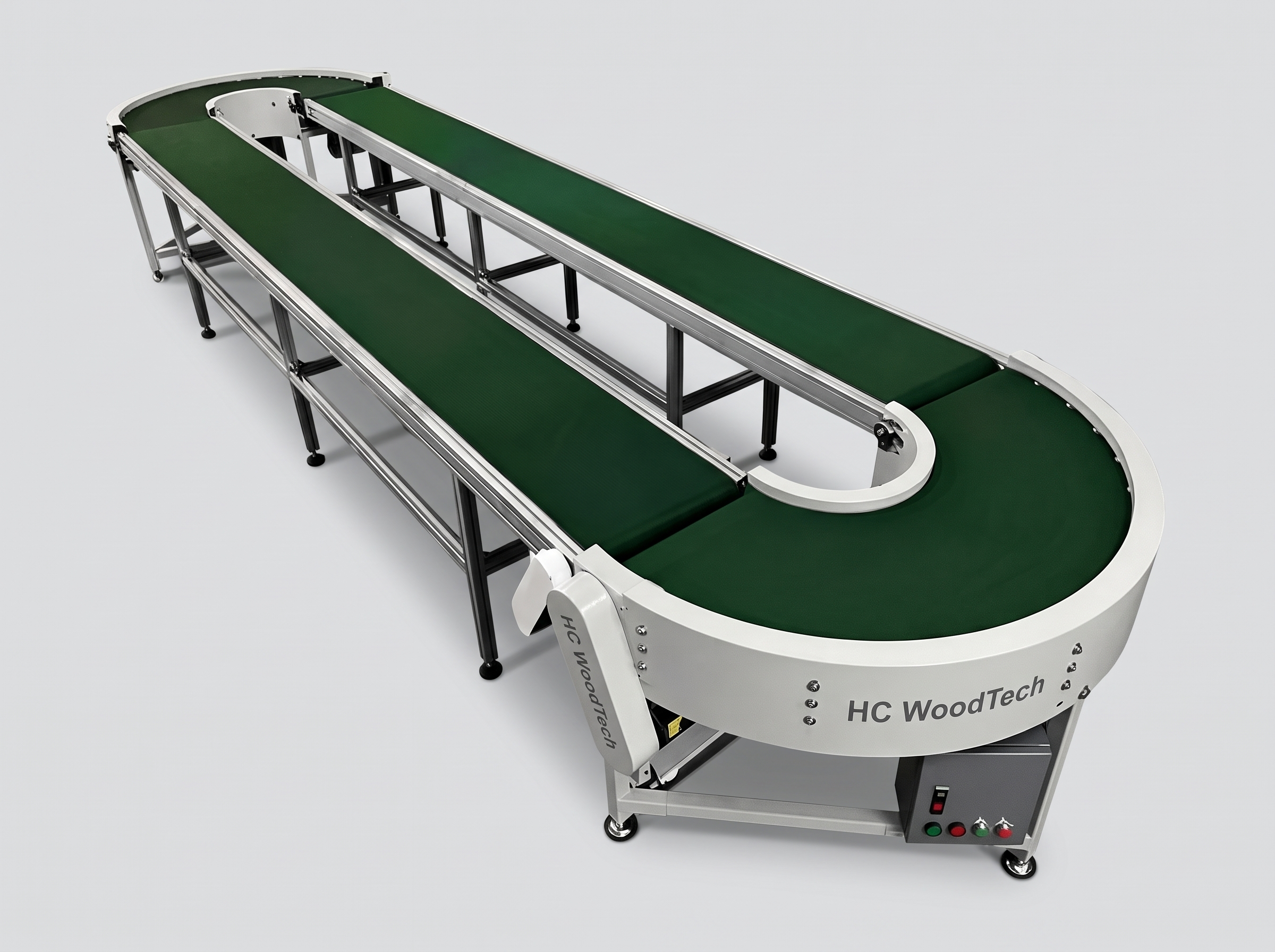

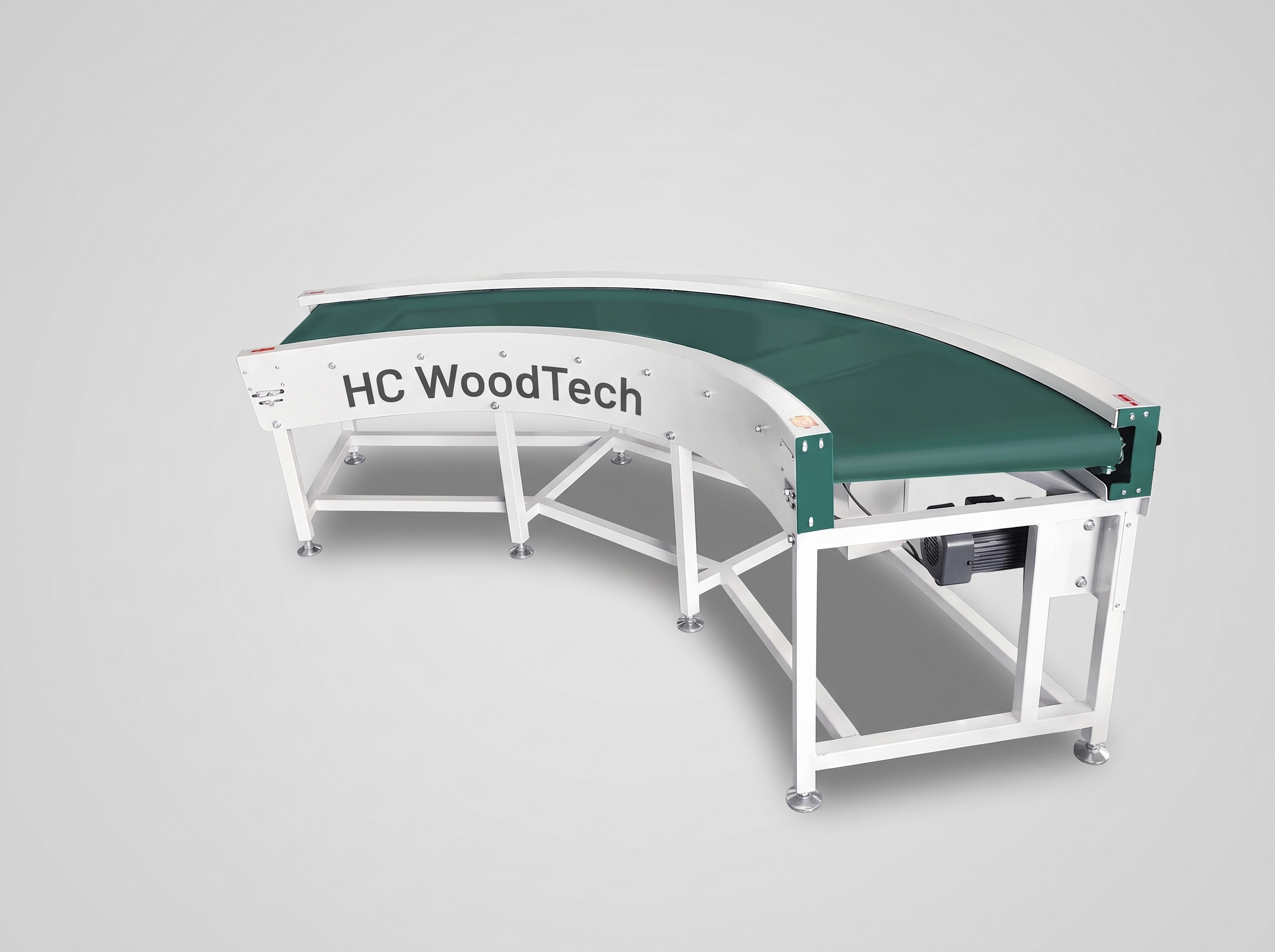

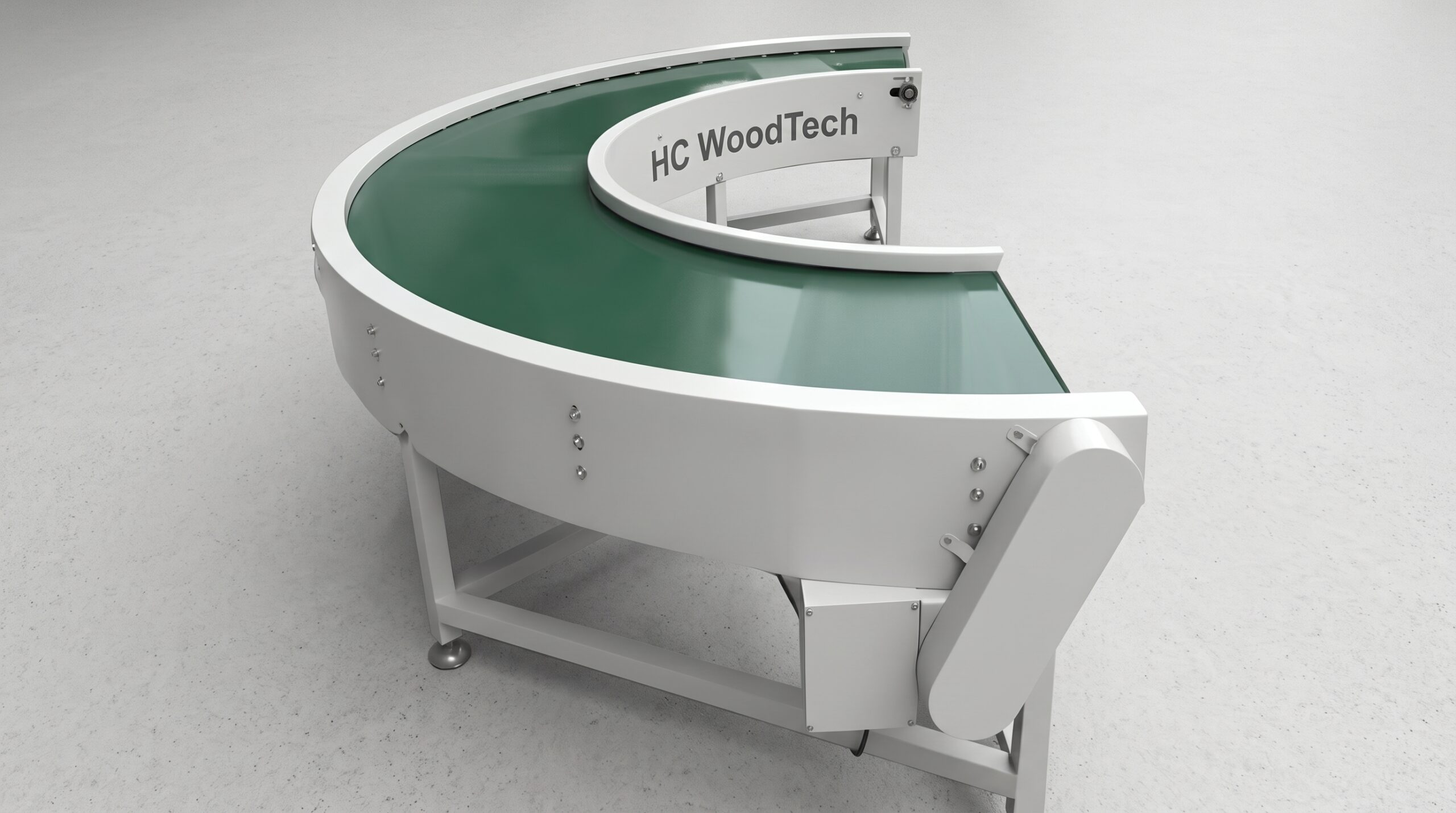

The Curved PVC Belt Conveyor is designed to change material flow direction smoothly in woodworking, furniture and panel-processing lines. It is commonly configured in 90° or 180° curves and can be connected with straight conveyors, lift stations and other handling equipment to create continuous production-line layouts. The conveyor uses motorized rollers and a PVC belt for stable transport through curved sections, while curve radius, angle, belt width, working height and conveyor speed can be customized to suit different factory layouts.
- Standard dimensions: Ø2400 × 1000 × 800 mm
- Load capacity: 25 kg/m²
- Conveyor speed: 0–25 m/min
- Motor power: 0.75 kW
- Belt thickness: 3 mm PVC
- Curve angle: 90° / 180° / Custom
- Curve radius: Customizable
Images
Features
- Smoothly changes conveying direction in 90°, 180° or customized curved layouts.
- VFD speed control allows the conveyor to match upstream and downstream equipment.
- Ø132 knurled steel rollers increase belt friction and help maintain stable belt tracking through curved sections.
- Carbon-steel or aluminum-frame configurations can be selected according to load and installation requirements.
- Radius, curve angle, belt width, conveyor height and speed can all be customized for different production-line layouts.
Technical data
| Specifications | Unit | Standard Configuration |
|---|---|---|
| Machine type | — | Curved PVC Belt Conveyor |
| Standard dimensions | mm | Ø2400 × 1000 × 800 |
| Load capacity | kg/m² | 25 |
| Conveyor speed | m/min | 0–25 |
| Motor power | kW | 0.75 |
| Drive roller | mm | Ø132 |
| Support roller | mm | Ø50 × 1.5 |
| Belt material | — | PVC |
| Belt thickness | mm | 3 |
| Belt color | — | Green / Gray |
| Curve angle | ° | 90 / 180 / Custom |
| Curve radius | — | Customizable |
| Speed control | — | VFD Adjustable |
| Frame | — | Carbon Steel / Aluminum Optional |
