Highlights

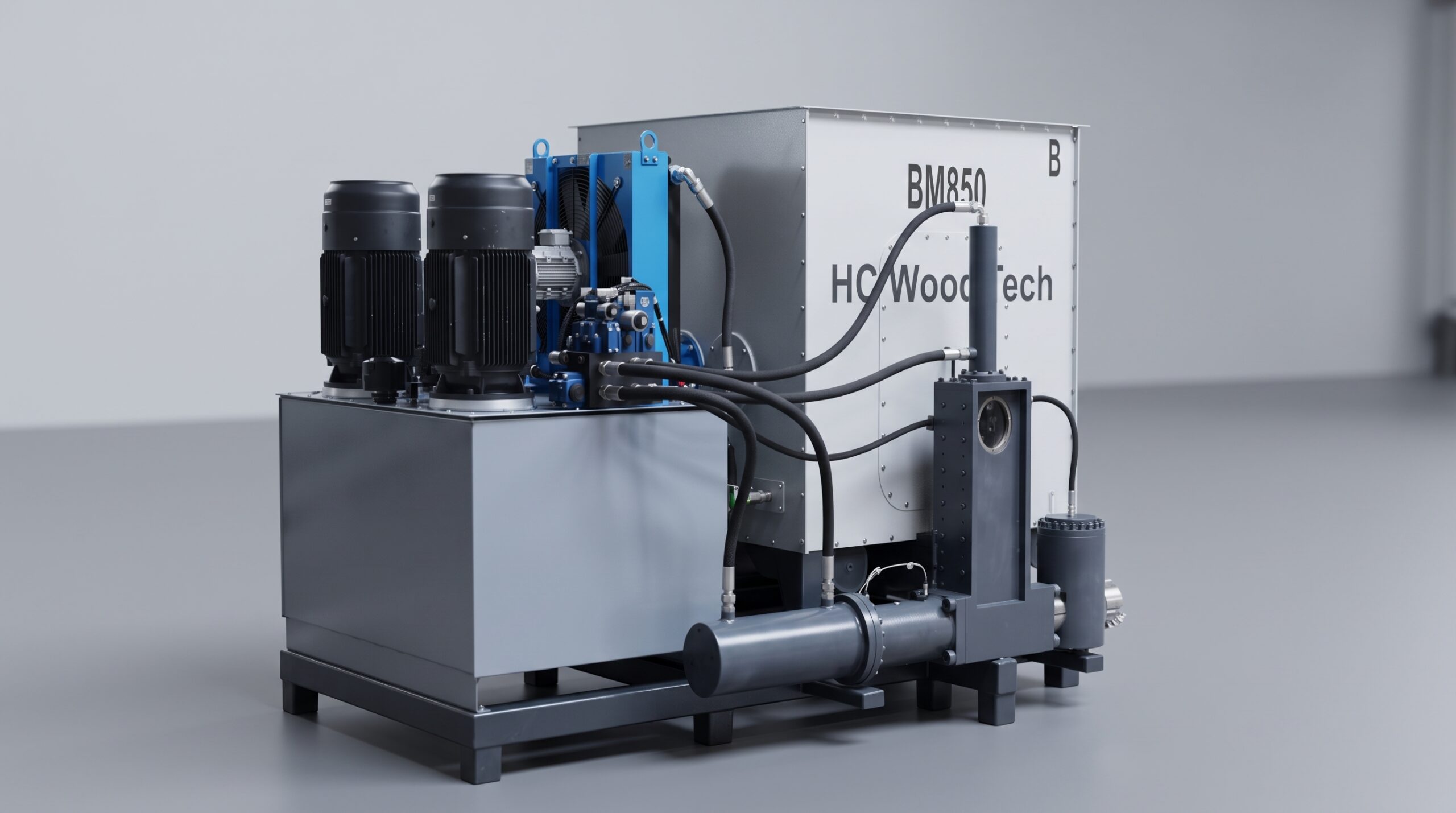

The BM850 Hydraulic Wood Waste Briquetting Machine is designed to compress wood powder and wood particles into dense, cylindrical briquettes for biomass fuel and wood waste recycling. Its hydraulic system applies high pressure to form briquettes, while the powered anti-bridge hopper supports consistent feeding and helps reduce material blockage. The machine accepts wood particles sized 1–8 mm, produces briquettes with a listed diameter of 90 or 100 mm, and allows the briquette length to be adjusted. With a rated capacity of up to 1,000 kg/h and a 44 kW drive, the BM850 is suitable for woodworking and furniture factories handling larger volumes of wood waste. The power supply and electrical components can be customized for project requirements.
- Model: BM850
- Rated capacity: Up to 1,000 kg/h
- Total power: 44 kW
- Input particle size: 1–8 mm
- Briquette diameter: 90 or 100 mm
- Briquette length: Adjustable
- Machine weight: 3,500 kg
Images
Features
- Hydraulic briquetting system applies high pressure to compress wood powder and wood particles into dense cylindrical briquettes.
- Powered anti-bridge hopper supports even material feeding and helps prevent bridging and blockages.
- Adjustable briquette length allows output length to be adapted to handling and downstream requirements.
- Wood waste recycling converts collected wood powder and particles into compact briquettes for easier storage, transport and potential fuel use.
- Customizable power supply supports 380 V, 3-phase, 50 Hz, with a 380 V to 220 V transformer configuration available. Other power requirements can be customized.
- Customizable electrical components can be configured with Schneider Electric, Siemens or ABB components according to project requirements.
Technical data
| Specifications | Unit | BM850 |
|---|---|---|
| Model | — | BM850 |
| Capacity | kg/h | Up to 1,000* |
| Total power | kW | 44 |
| Power supply | — | 380 V, 3-phase, 50 Hz |
| Transformer configuration | — | 380 V to 220 V available |
| Electrical components | — | Schneider Electric, Siemens or ABB; customizable |
| Input particle size | mm | 1–8 |
| Briquette diameter | mm | 90 or 100 |
| Briquette length | — | Adjustable |
| Machine weight | kg | 3,500 |
| Machine size | mm | To be confirmed |
