Highlights

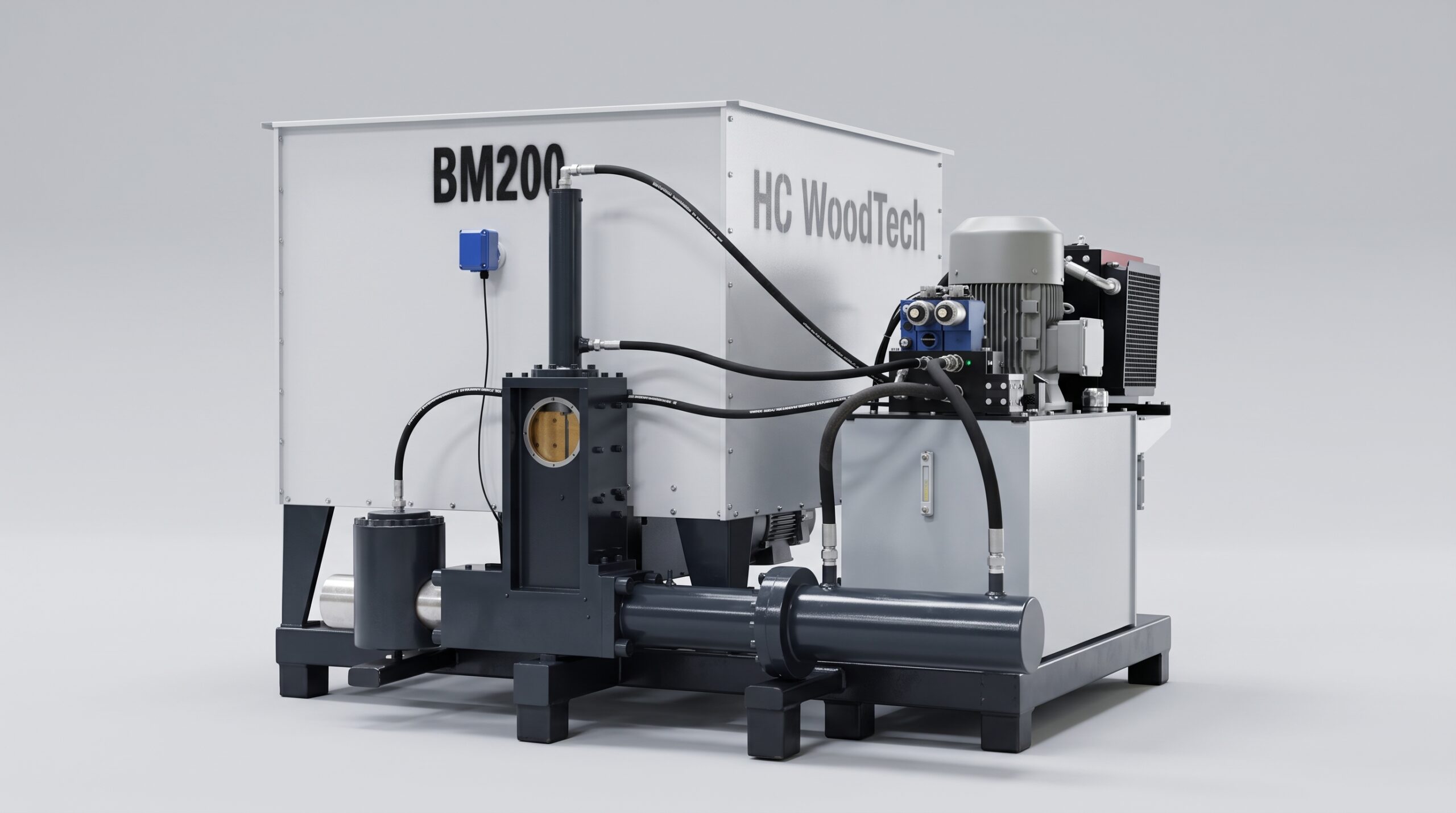

The BM200 Hydraulic Wood Waste Briquetting Machine compresses wood powder and wood particles into cylindrical briquettes for biomass fuel and waste recycling. It processes particles sized 1–8 mm into briquettes with a listed diameter of 80 mm. Its hydraulic system and powered anti-bridge hopper support steady feeding, while briquette length can be adjusted. With suitable molds and hydraulic-system configuration, the BM200 can also be adapted for materials such as paper powder, sawdust and paint dust. Power supply and electrical components can be customized.
- Model: BM200
- Capacity: 150–280 kg/h*
- Total power: 11 kW
- Input particle size: 1–8 mm
- Briquette diameter: 80 mm
- Briquette length: Adjustable
- Power supply: 380 V, 3-phase, 50 Hz; 380 V to 220 V transformer configuration available
Images
Features
- Hydraulic briquetting system compacts wood powder and particles into cylindrical briquettes.
- Powered anti-bridge hopper supports consistent feeding and helps reduce material blockages.
- Adjustable briquette length adapts output to handling and downstream requirements.
- Material-specific configuration can include suitable molds and hydraulic adjustments for selected materials.
- Customizable electrical components are available with Schneider Electric, Siemens or ABB components.
Technical data
| Specifications | Unit | BM200 |
|---|---|---|
| Model | — | BM200 |
| Capacity | kg/h | 150–280* |
| Total power | kW | 11 |
| Power supply | — | 380 V, 3-phase, 50 Hz |
| Transformer option | — | 380 V to 220 V |
| Input particle size | mm | 1–8 |
| Briquette diameter | mm | 80 |
| Briquette length | — | Adjustable |
| Machine weight | kg | 1,400–1,800* |
| Machine size | mm | Confirm final configuration |
