The Belt Turnover Machine is designed for automatic 180° flipping of panels and flat workpieces during continuous conveying. By combining belt transport with a mechanical turnover mechanism, the system allows panels to be reversed for surface inspection, coating, printing, secondary machining or downstream processing without manual lifting. It is suitable for furniture production, panel processing and automated woodworking lines, and can be integrated with upstream and downstream conveyors for continuous material flow.
- Workpiece length: 250–2750 mm
- Workpiece width: 250–1220 mm
- Workpiece thickness: 10–60 mm
- Maximum workpiece weight: 100 kg
- Turnover angle: 180°
- Turnover speed: 3–4 cycles/min
- Working air pressure: 0.4–0.6 MPa

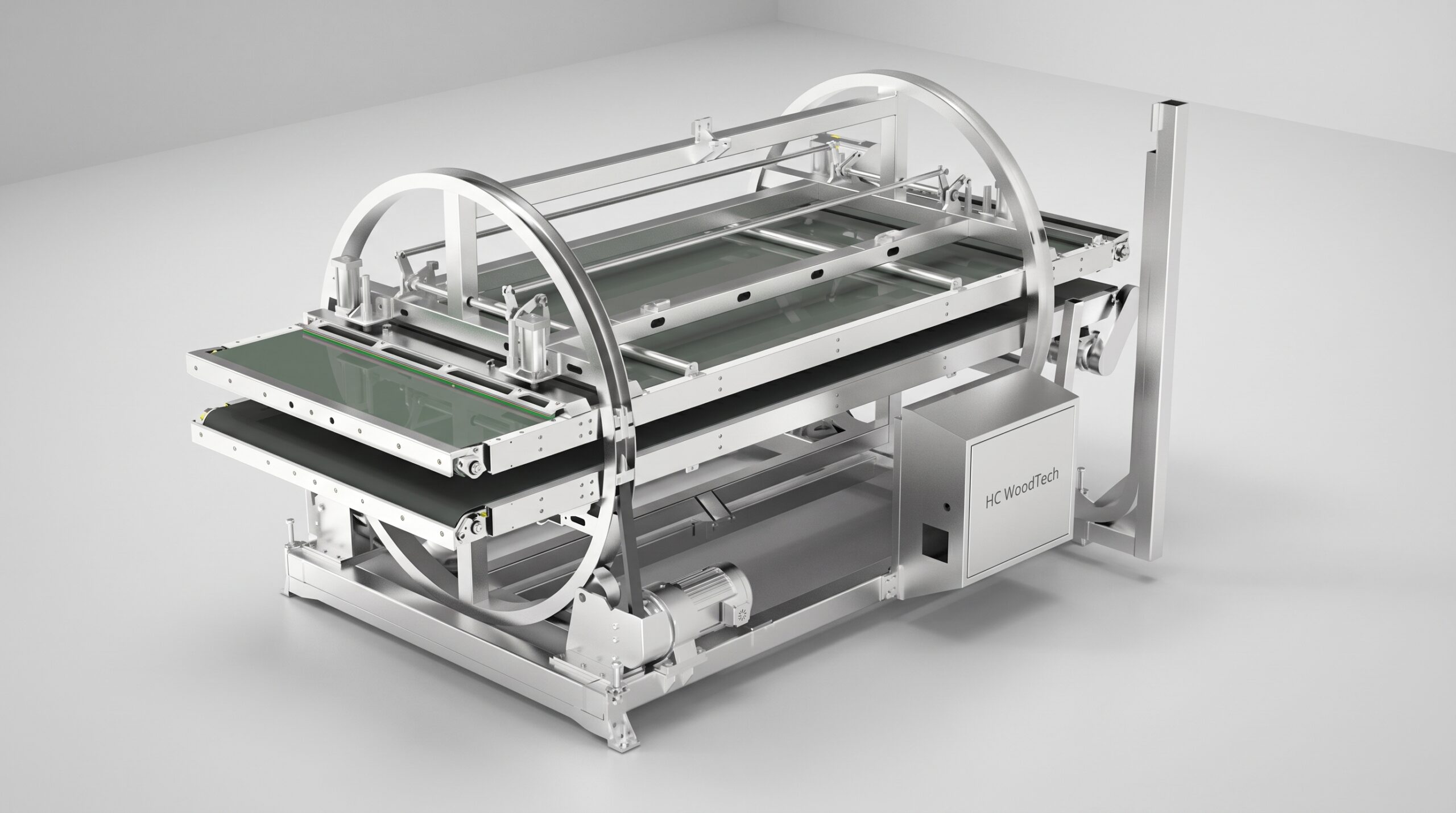

Images
Features
- Automatic 180° panel turnover reduces manual flipping and handling between production processes.
- Belt conveying and mechanical turnover work together to maintain stable material transfer before and after flipping.
- Suitable for panel inspection, coating, printing, machining preparation and other processes requiring reverse-side access.
- Visual control interface supports simplified operation and turnover parameter adjustment.
- Can be integrated with conveyor systems and automated woodworking production lines for continuous material flow.
Technical data
| Specifications | Unit | Standard Configuration |
|---|---|---|
| Machine type | — | Belt Turnover Machine |
| Turnover angle | ° | 180 |
| Workpiece length | mm | 250–2750 |
| Workpiece width | mm | 250–1220 |
| Workpiece thickness | mm | 10–60 |
| Maximum workpiece weight | kg | 100 |
| Turnover speed | cycles/min | 3–4 |
| Working air pressure | MPa | 0.4–0.6 |
| Conveyor type | — | Belt Conveyor |
| Control interface | — | Visual HMI |
| Safety functions | — | Emergency Stop / Overload Protection / Fault Diagnosis |
| Integration | — | Conveyor / Automated Production Line |
