Highlights
The B200 Powered PVC Belt Conveyor is designed for smooth and continuous transfer of panels, boards and other flat workpieces in woodworking and furniture production lines. It can be used as a standalone conveyor or integrated with CNC nesting machines, loading and unloading systems, packing stations and other material-handling equipment. The PVC belt provides stable workpiece movement with low operating noise, while adjustable working height and variable conveying speed allow flexible integration into different production layouts.
- Overall dimensions: 3000 × 1350 mm
- Useful belt width: 1264 mm
- Working height: 850 ± 50 mm
- Maximum load: 50 kg/m²
- Conveyor speed: 15–28 m/min
- Motor power: 0.75 kW
- Belt thickness: 3 mm

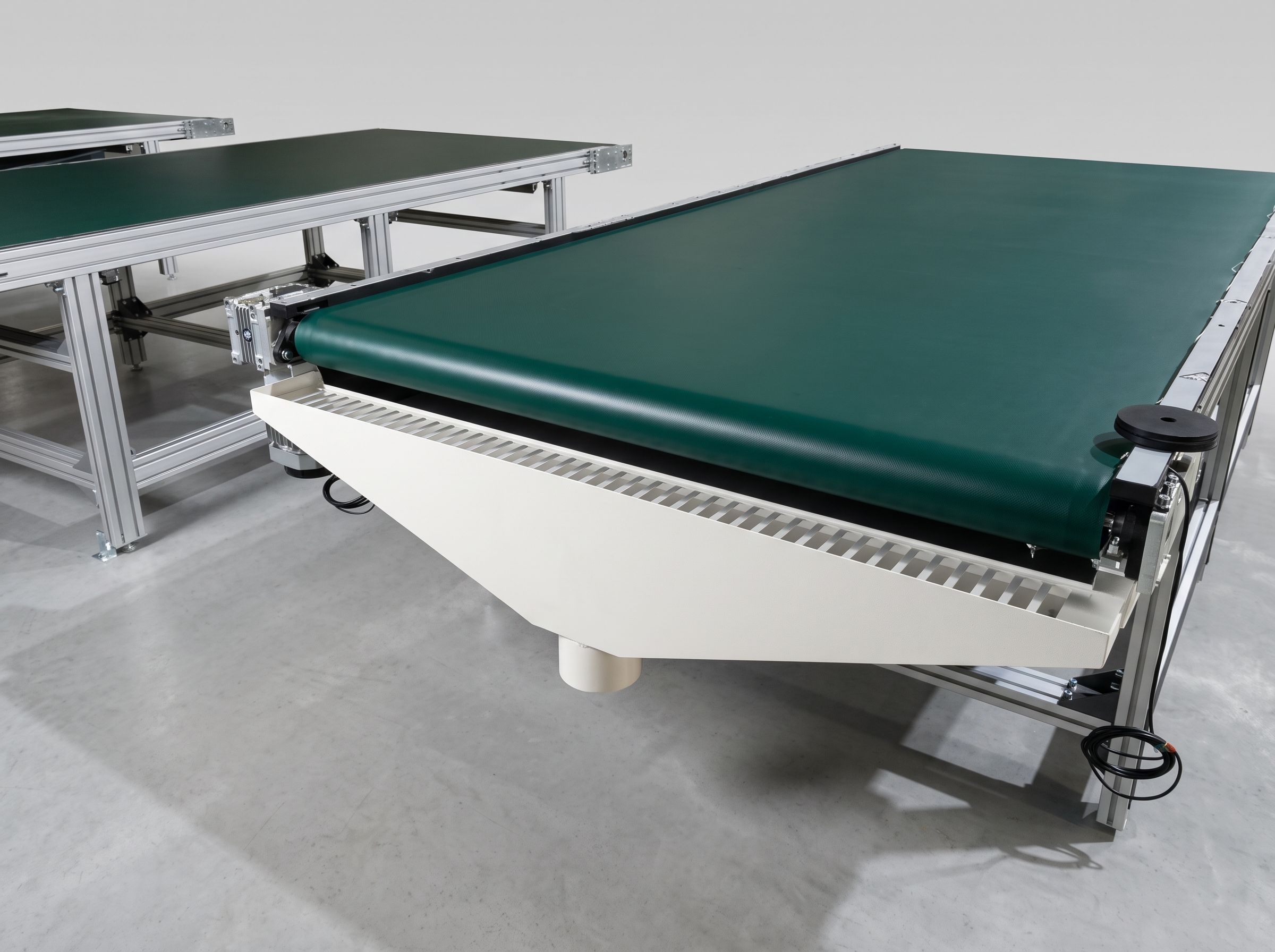

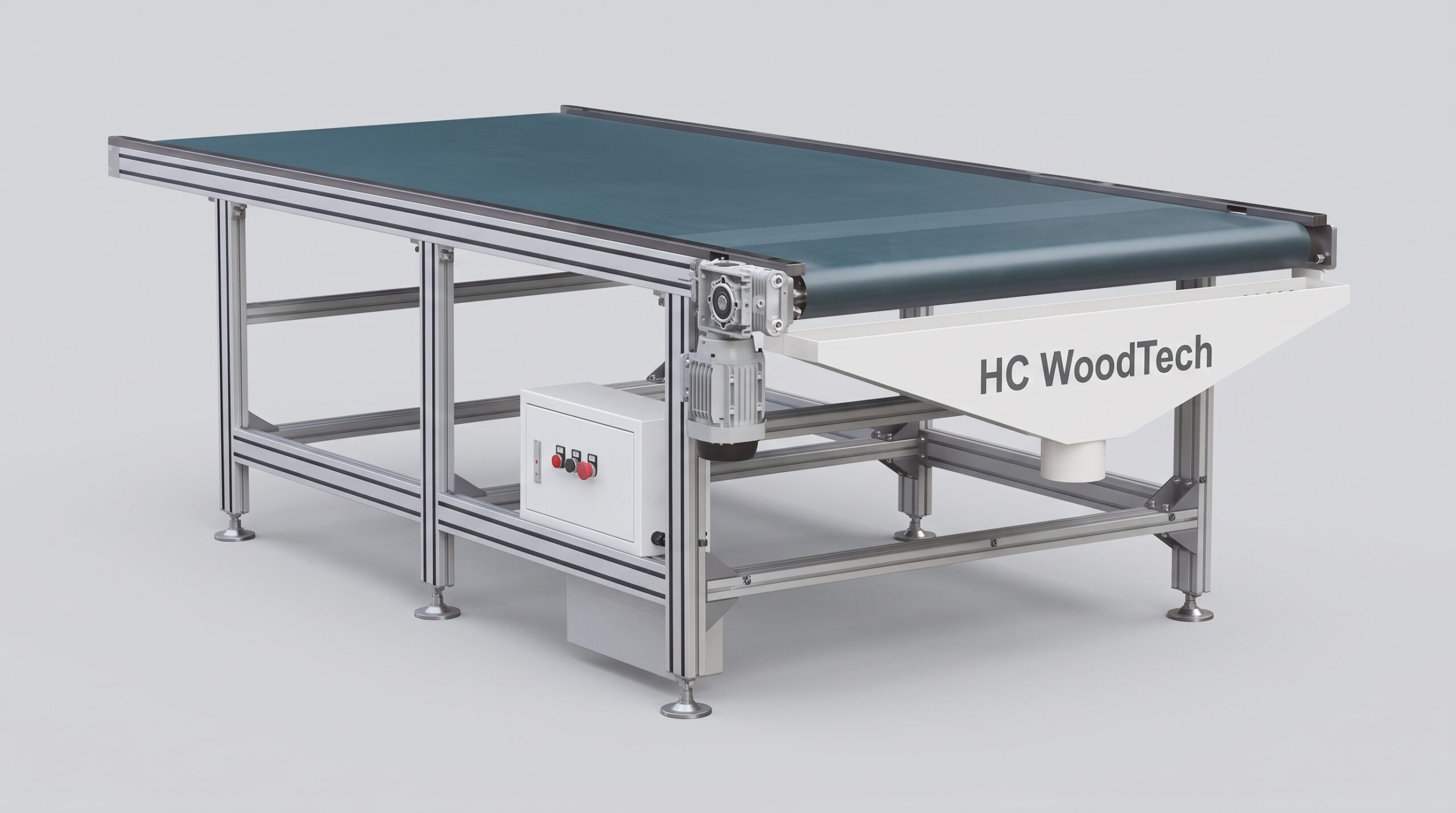

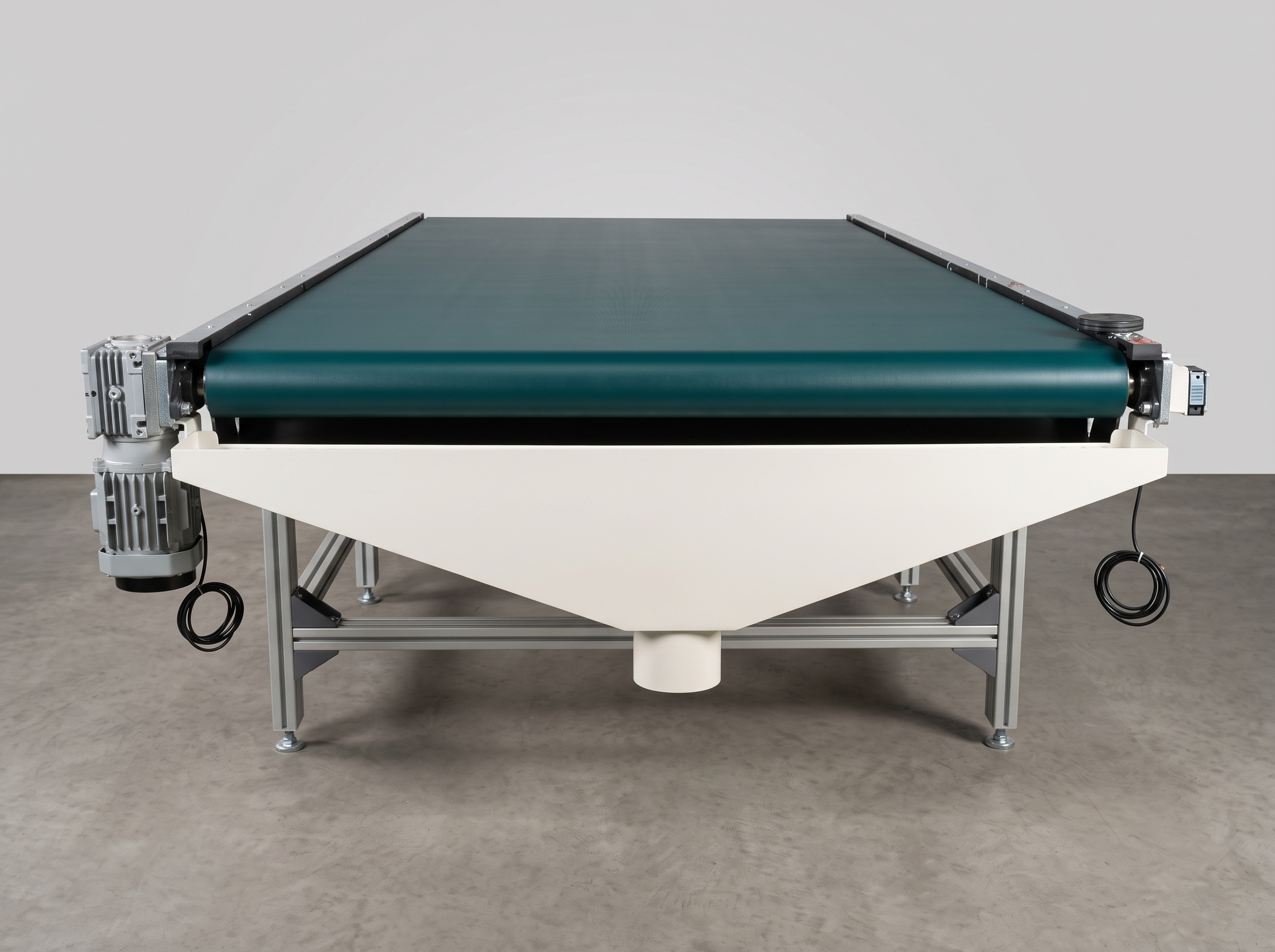

Images
Features
- Suitable for smooth transfer of panels and flat workpieces, including automatic discharge from CNC nesting machines.
- Continuous belt conveying reduces relative movement between the workpiece and conveyor surface, helping minimize surface damage.
- Adjustable conveying speed of 15–28 m/min allows the unit to match upstream and downstream production equipment.
- Adjustable working height supports flexible connection with different machines and factory layouts.
- Conveyor dimensions can be customized according to workpiece size, line layout and production requirements.
Technical data
| Specifications | Unit | B200 |
|---|---|---|
| Machine type | — | Powered PVC Belt Conveyor |
| Overall length | mm | 3000 |
| Overall width | mm | 1350 |
| Useful belt width | mm | 1264 |
| Working height | mm | 850 ± 50 |
| Main beam | — | 80 × 40 Aluminum |
| Metal plate | — | Q235 Steel |
| Belt material | — | PVC |
| Belt thickness | mm | 3 |
| Maximum load | kg/m² | 50 |
| Conveyor speed | m/min | 15–28 |
| Frequency converter | — | Delta |
| Power supply | — | 3 Phase, 380 V, 50 Hz |
| Motor power | kW | 0.75 |
| Dimensions | — | Customizable |
