Highlights

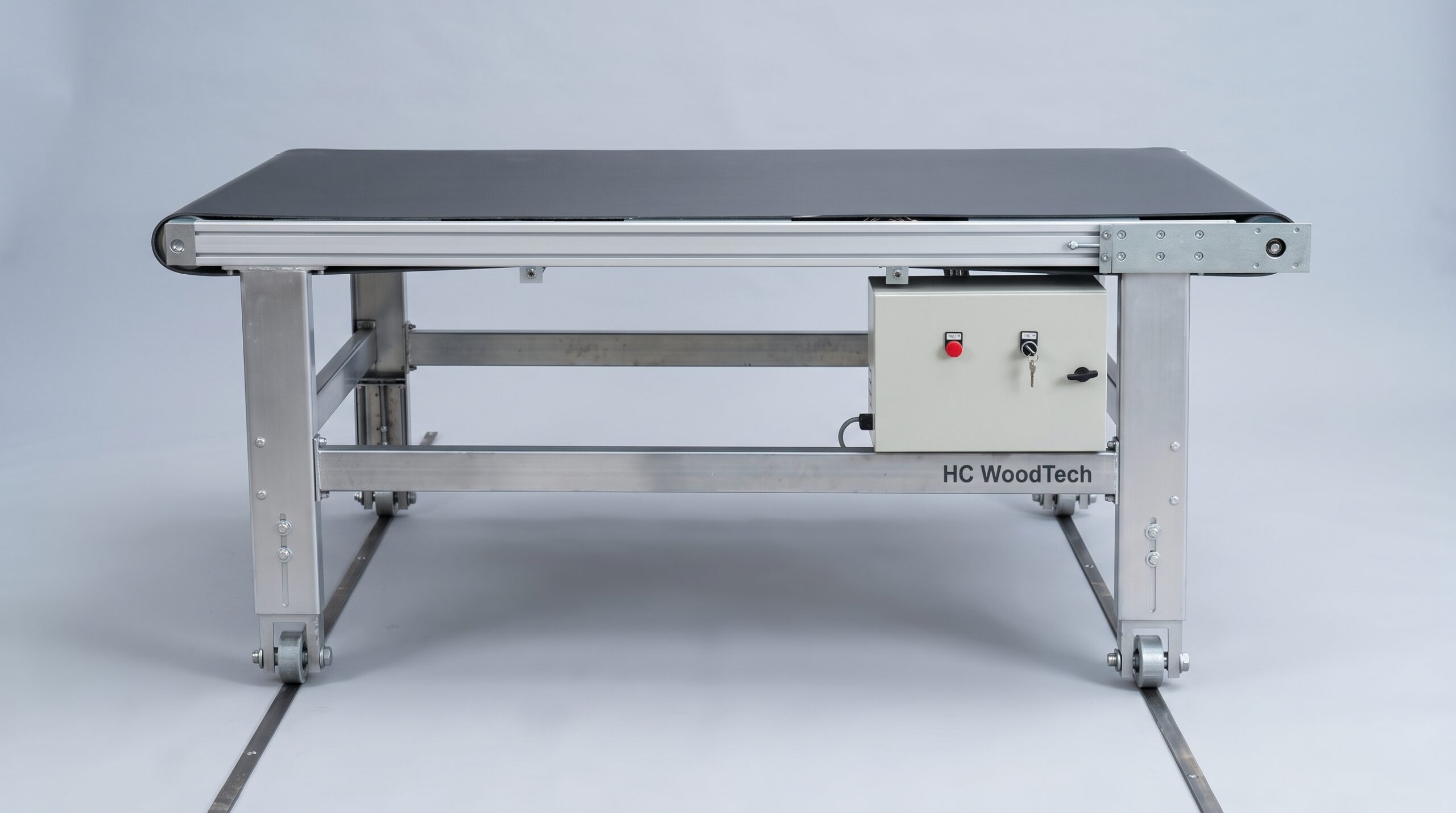

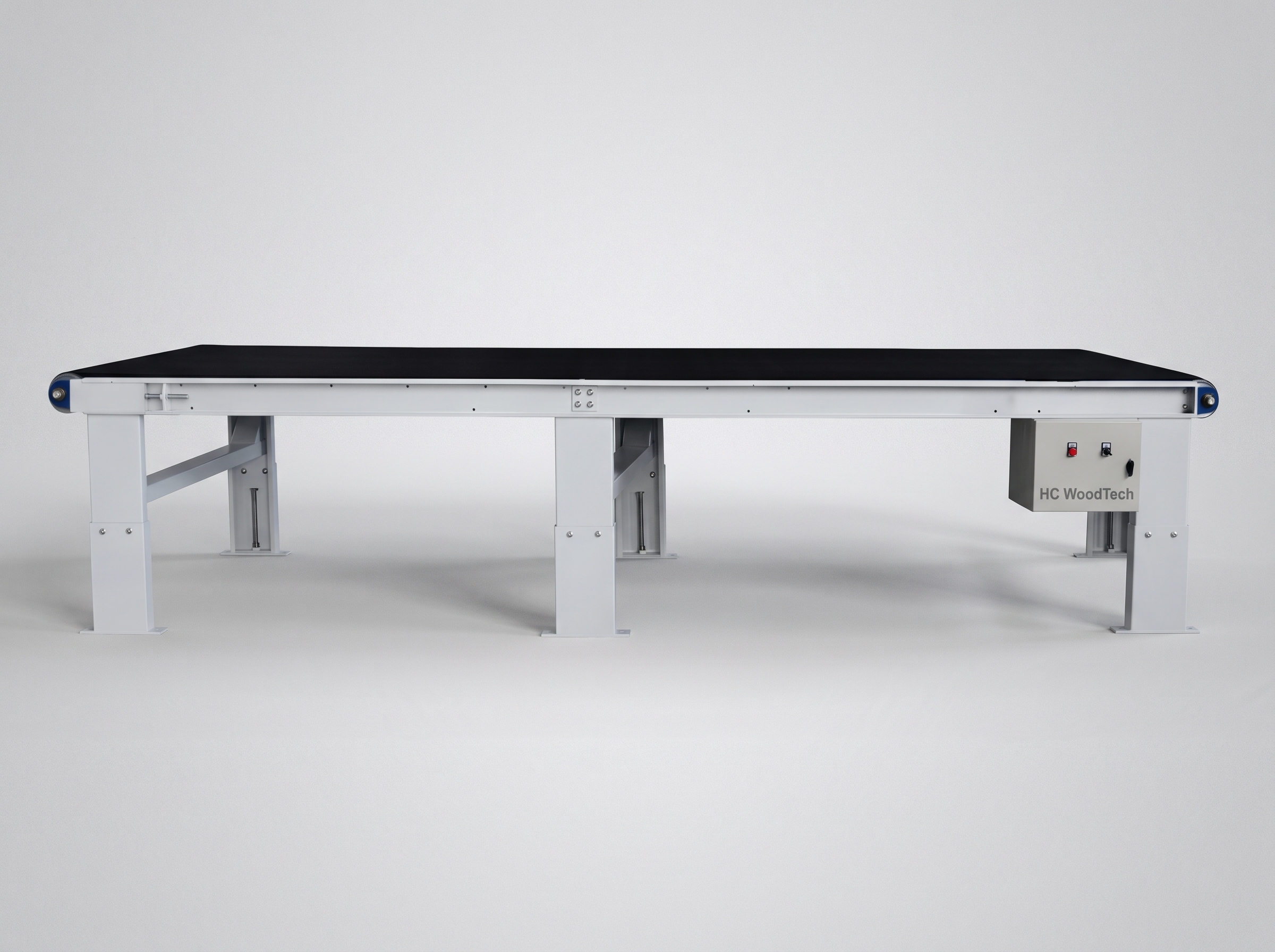

The B100 PVC Belt Conveyor is a light-duty powered conveyor designed for single-piece transport, manual workstations, packing areas and material transfer in woodworking and furniture production lines. Its continuous PVC belt provides smooth and stable movement, while variable-frequency speed control allows the conveyor to match different production requirements. The standard configuration uses a 3000 × 1000 × 800 mm structure with a rated load of 25 kg/m², while conveyor length, width, height, speed and belt type can be customized according to factory layout and workpiece requirements.
- Standard dimensions: 3000 × 1000 × 800 mm
- Load capacity: 25 kg/m²
- Conveyor speed: 0–25 / 0–65 m/min
- Motor power: 0.75 / 1.5 kW
- Belt thickness: 3 mm
- Belt color: Green / Gray
- Configuration: Customizable
Images
Features

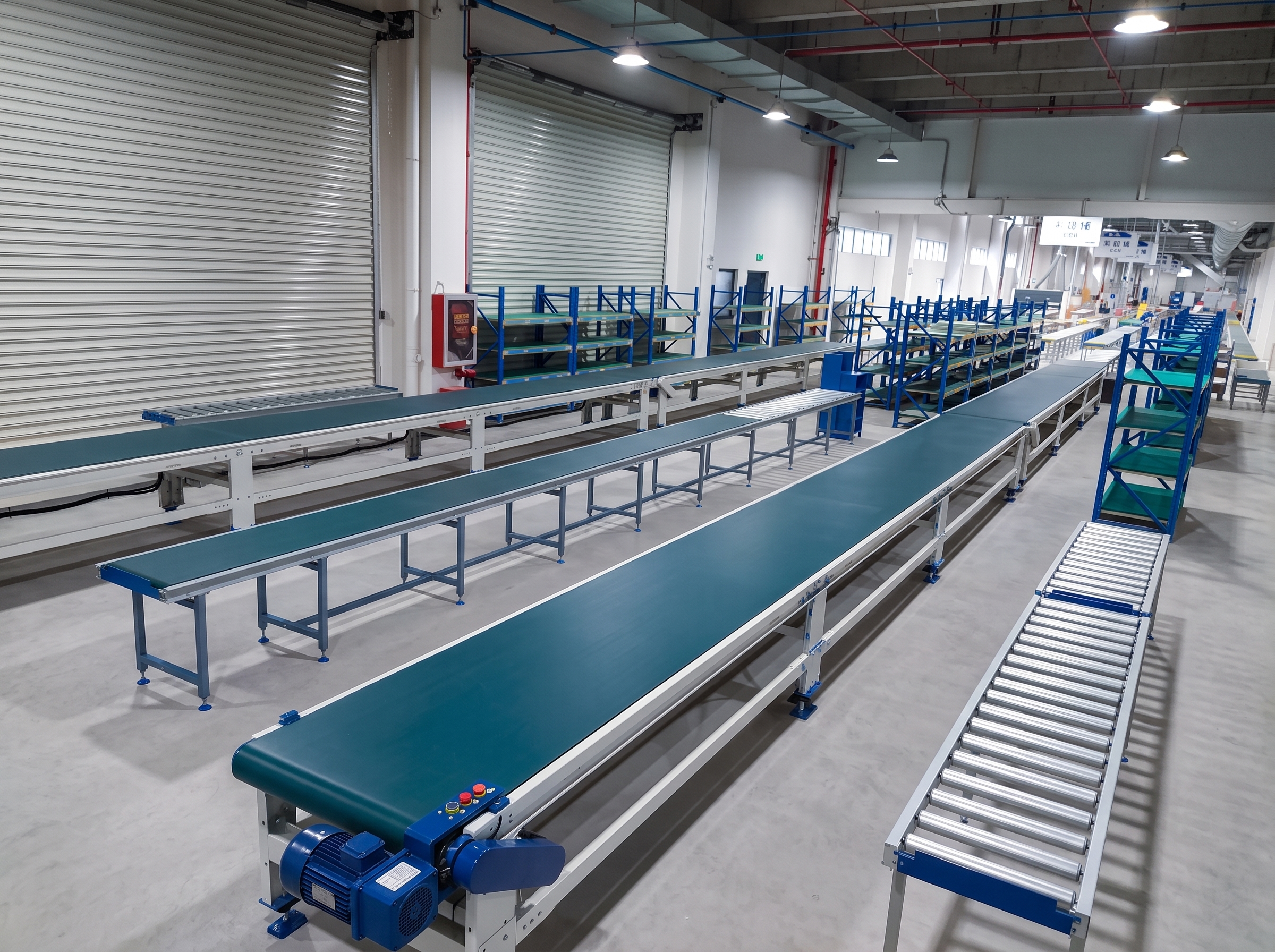

- Suitable for furniture production, manual assembly, packaging, sorting and general material transfer.
- Variable-frequency speed control supports flexible conveying speeds according to upstream and downstream equipment.
- 3 mm PVC belt provides stable, low-maintenance transport for individual panels and workpieces.
- Anti-tracking roller design helps reduce belt deviation during continuous operation.
- Length, width, height, speed and belt configuration can be customized according to production-line requirements.
Technical data
| Specifications | Unit | B100 |
|---|---|---|
| Machine type | — | PVC Belt Conveyor |
| Standard length | mm | 3000 |
| Standard width | mm | 1000 |
| Standard height | mm | 800 |
| Load capacity | kg/m² | 25 |
| Conveyor speed | m/min | 0–25 / 0–65 |
| Motor power | kW | 0.75 / 1.5 |
| Drive roller | mm | Ø132 |
| Upper / lower rollers | mm | Ø50 × 1.5 |
| Belt material | — | PVC |
| Belt thickness | mm | 3 |
| Belt color | — | Green / Gray |
| Speed control | — | VFD Adjustable |
| Dimensions | — | Customizable |
| Belt type | — | Customizable |
