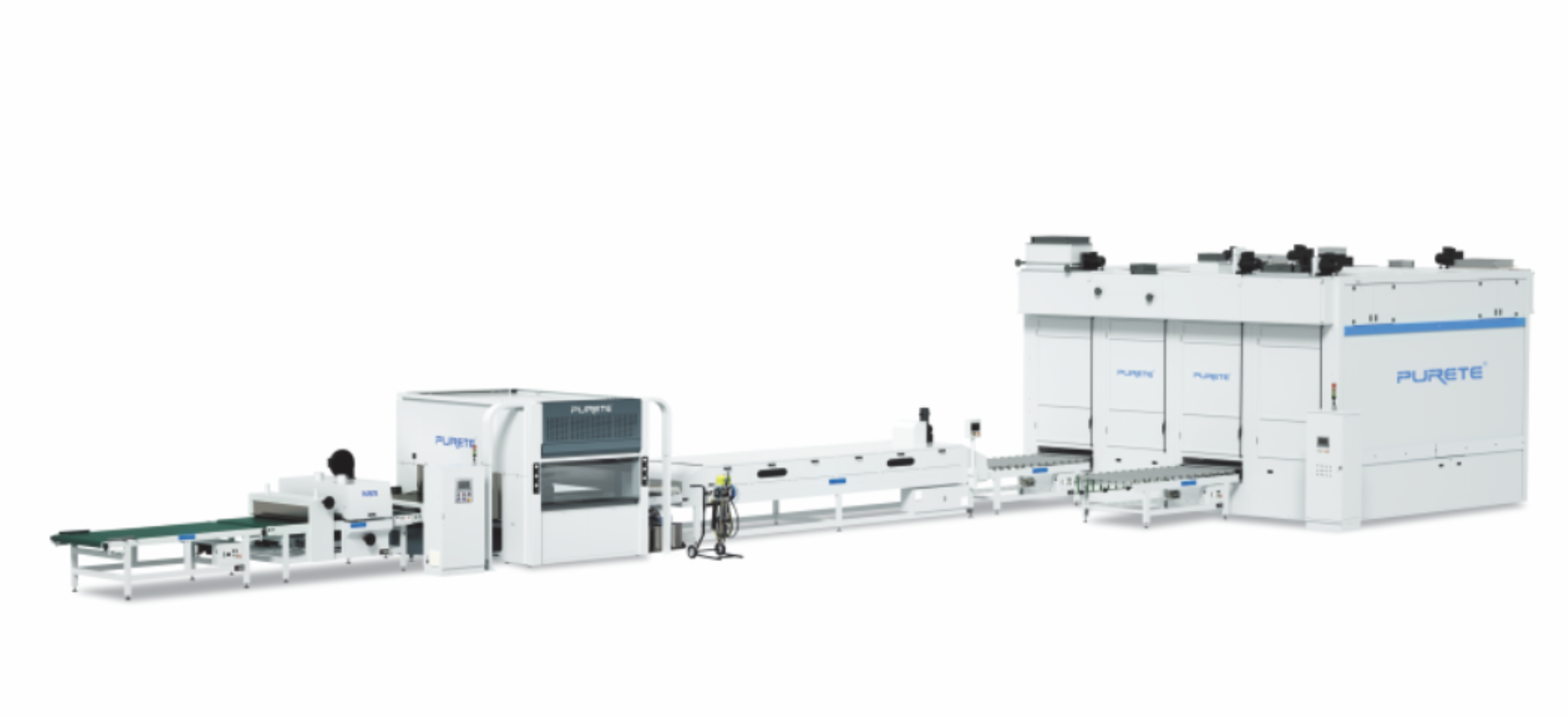

Reciprocating Spraying Production Line-Three-Dimensional Drying Kiln
Overview
The Reciprocating Spray Coating Line with Vertical Drying System is designed for high-quality surface finishing requiring longer drying times after spray coating.
Its vertical drying structure minimizes floor space while ensuring consistent drying and curing results, ideal for furniture, panel, and decorative component finishing.
Process Flow
-
Dust Cleaner – Effectively removes surface dust before coating to ensure excellent adhesion.
-
Reciprocating Spray Machine – Precisely applies paint or lacquer using programmable reciprocating arms.
-
Vertical Drystore System – Compact multi-layer drying chamber for high-efficiency drying and curing with minimal footprint.
| Item | Specification |
|---|---|
| Total Power | 200 kW |
| Production Speed | 3 – 6 m/min |
| Daily Output | 2,000 m²/day |
| Coating Cost | 3 – 8 RMB/m² |
| Gloss Range | 5 – 100 GU |
| Air Consumption | 1,420 NL/min |
| Installation Period | 60 days |
| Line Dimension | 37 × 7.6 × 5 m |
| Operators Required | 3 – 5 people |
