Highlights

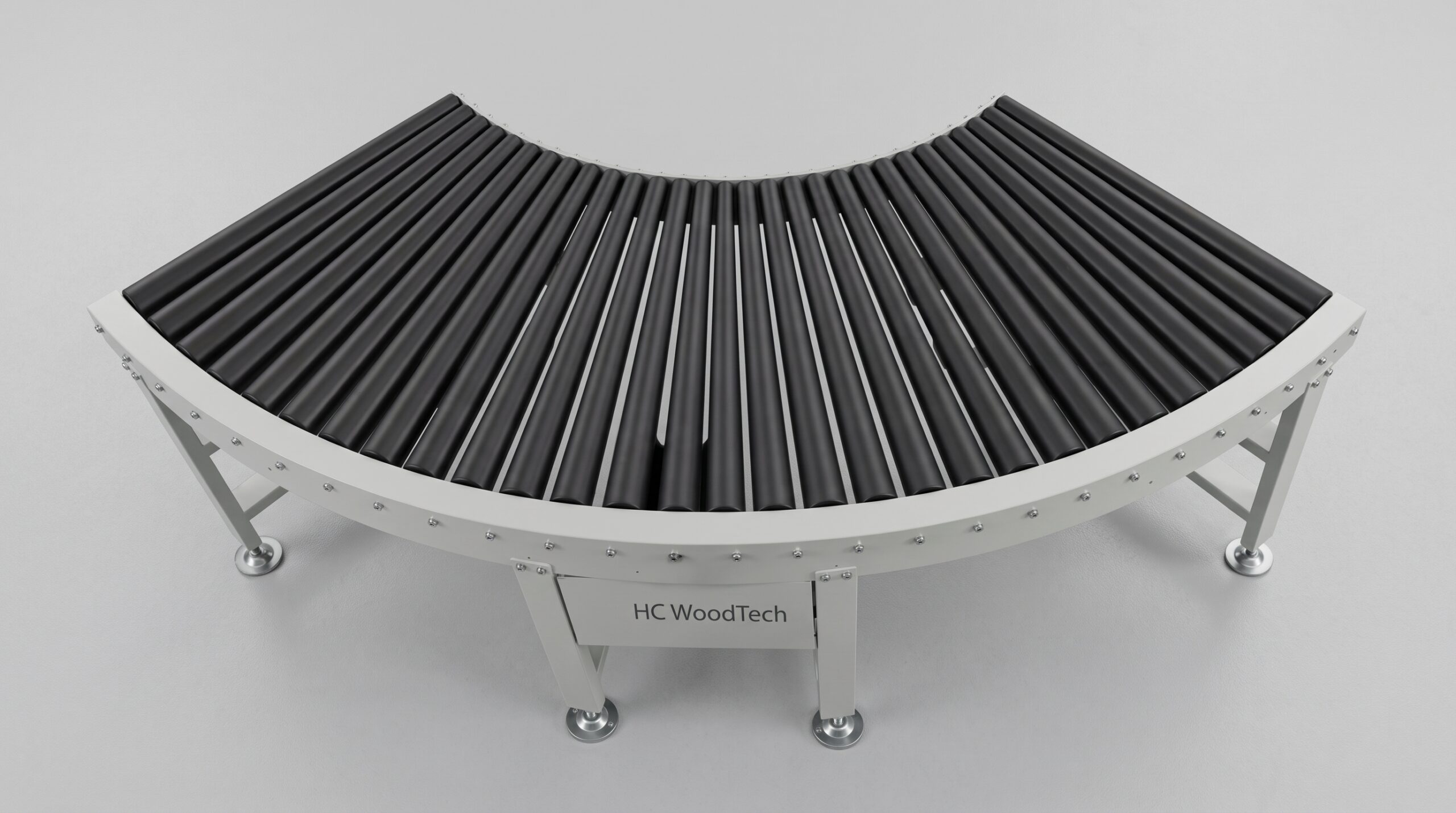

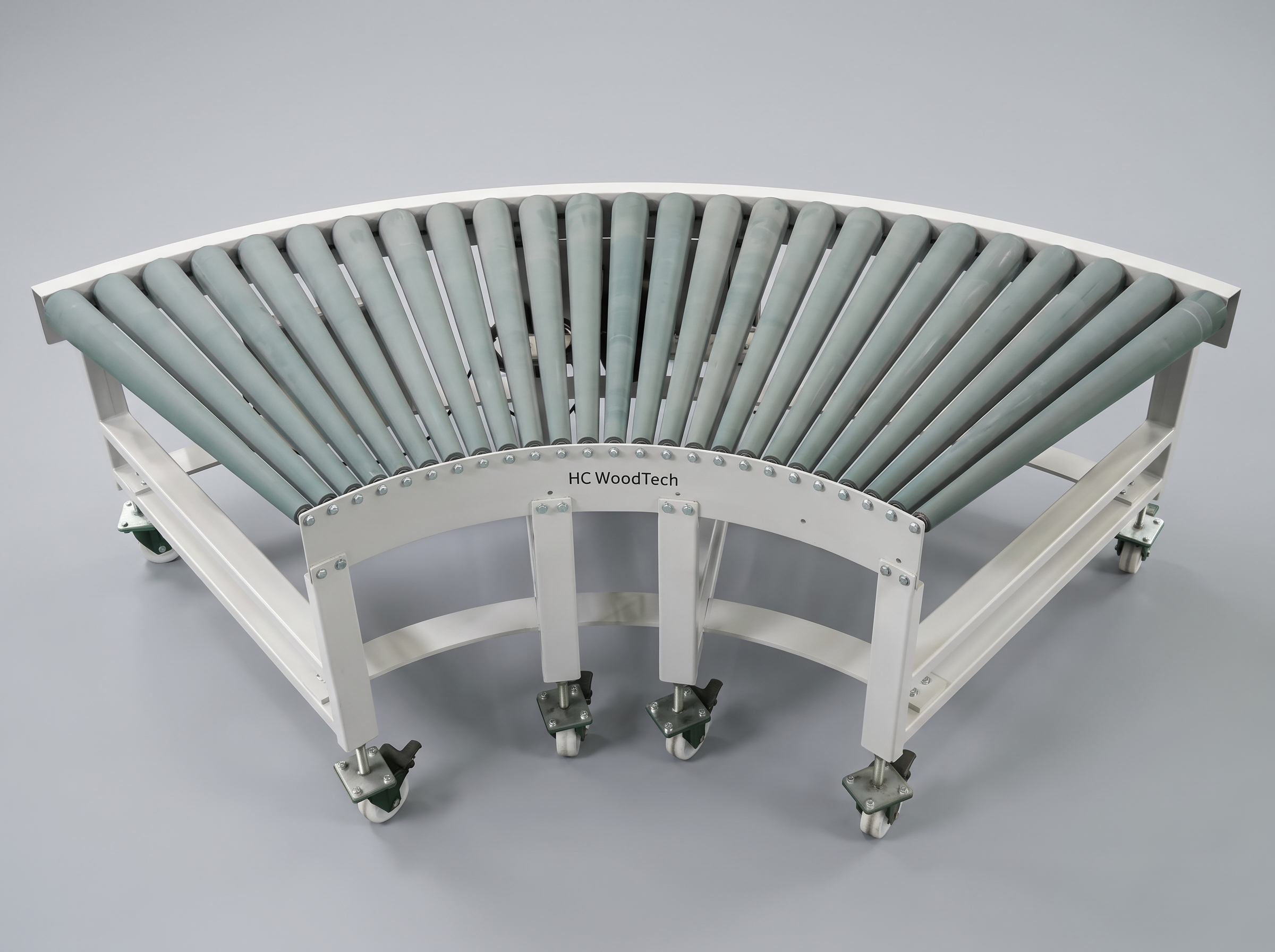

The 90° Powered Roller Curve Conveyor is designed for smooth direction changes in automated woodworking and furniture production lines. Its curved roller layout allows panels and flat workpieces to turn through 90 degrees while maintaining stable movement and alignment. Rubber-coated tapered rollers help protect panel surfaces and reduce deviation during turning, while optional VFD speed control allows the conveyor to match upstream and downstream equipment. The curve radius, width and overall configuration can be customized according to production-line layout requirements.
- Turning angle: 90°
- Standard size: Ø2400 mm
- Load capacity: 50 kg/m²
- Conveyor speed: 0–40 / 0–80 m/min
- Motor power: 0.75 kW
- Roller pitch: 80 / 115 mm
- Roller type: Rubber-Coated Tapered Rollers
Images
Features
- 90° directional transfer connects production lines where material flow needs to change direction.
- Rubber-coated tapered rollers support smooth turning while helping reduce panel deviation and surface damage.
- Conveyor speed can be configured at 0–40 or 0–80 m/min, with optional VFD control.
- Chain-driven transmission provides stable roller movement during continuous production.
- Curve radius, conveyor width and overall dimensions can be customized according to factory layout.
Technical data
| Specifications | Unit | Standard Configuration |
|---|---|---|
| Machine type | — | 90° Powered Roller Curve Conveyor |
| Turning angle | ° | 90 |
| Standard size | mm | Ø2400 |
| Load capacity | kg/m² | 50 |
| Conveyor speed | m/min | 0–40 / 0–80 |
| Motor power | kW | 0.75 |
| Main frame | — | 5 mm Cold-Rolled Pickled Steel |
| Support legs | — | 5 mm Cold-Rolled Pickled Steel |
| Roller type | — | Rubber-Coated Tapered Rollers |
| Roller pitch | mm | 80 / 115 |
| Speed control | — | VFD Optional |
| Radius / Width | — | Customizable |
