Highlights

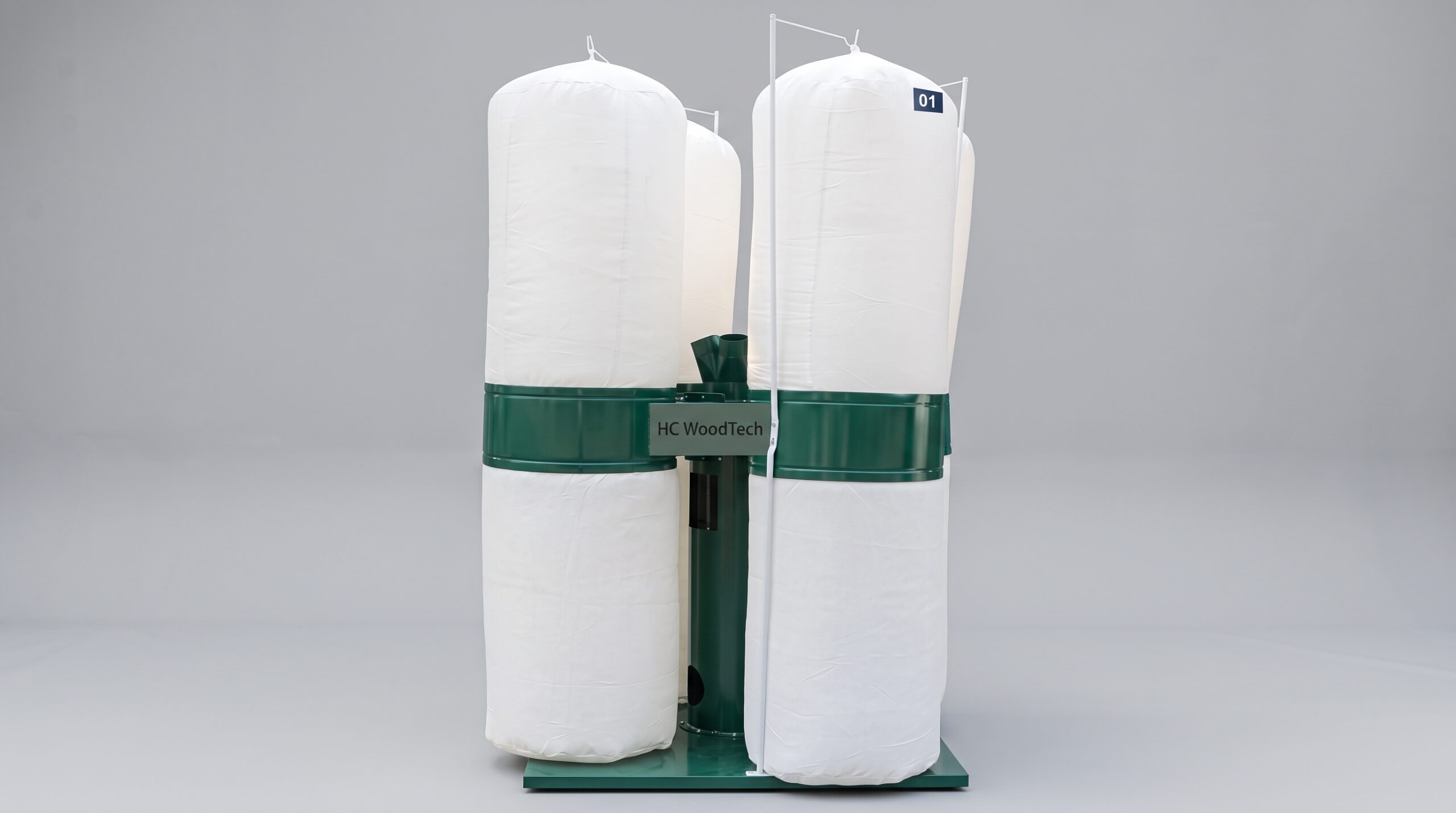

The 7.5 kW Four-Drum Woodworking Dust Collector is designed for higher-volume dust and wood-chip extraction in woodworking workshops. With 8600 m³/h airflow, six Ø100 mm extraction ports and eight Ø630 mm filter bags, it provides increased filtration and collection capacity for larger machines and multi-point extraction systems. The reinforced base and heavy-duty four-drum structure improve stability for continuous operation.
- Motor power: 7.5 kW
- Voltage: 380 V
- Airflow: 8600 m³/h
- Dust inlets: Ø100 mm × 6
- Filter bags: Ø630 mm × 8
- Machine size: 1700 × 1700 × 2450 mm
- Weight: 170 kg
Images
Features
- 8600 m³/h airflow for high-capacity woodworking dust extraction.
- Four-drum design with eight Ø630 mm filter bags increases collection capacity.
- Six Ø100 mm ports support multiple machine connections.
- 2 mm reinforced base plate provides increased structural stability.
- Modular structure allows practical transport and combination packing.
Technical data
| Specifications | Unit | Value |
|---|---|---|
| Motor power | kW | 7.5 |
| Voltage | V | 380 |
| Airflow | m³/h | 8600 |
| Dust inlet | mm | Ø100 × 6 |
| Filter bag size | mm | Ø630 × 8 |
| Overall dimensions | mm | 1700 × 1700 × 2450 |
| Packing method | — | Combination Packing |
| Weight | kg | 170 |
| Flange thickness | mm | 1.2 |
| Drum thickness | mm | 0.6 |
| Base plate thickness | mm | 2.0 |
| Base structure | — | Reinforced Frame |
