Highlights
The 7.5 kW Twin-Drum Woodworking Dust Collector is designed for higher-capacity dust and wood-chip extraction from saws, moulders, sanders and other woodworking machinery. It features six Ø100 mm extraction ports, four Ø630 mm filter bags and a reinforced twin-drum structure for multi-point dust collection and continuous workshop use.

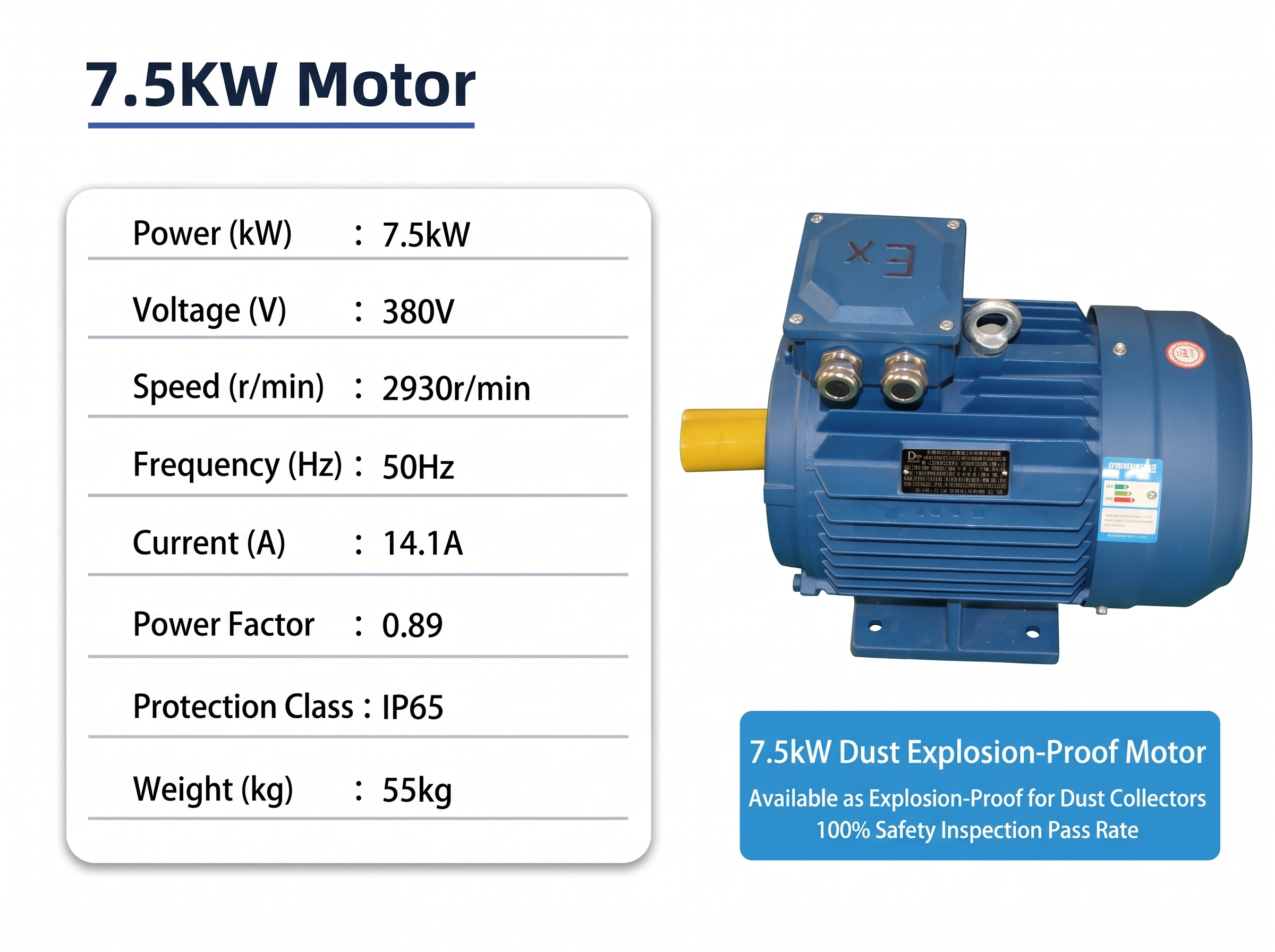

- Motor power: 7.5 kW
- Voltage: 380 V
- Dust inlets: Ø100 mm × 6
- Filter bags: Ø630 mm × 4
- Product air velocity: 30–45 mm/s
- Machine size: 1800 × 760 × 2350 mm
- Packing size: 1460 × 700 × 700 mm
Images
Features
- Six Ø100 mm dust ports support multiple machine connections.
- Four Ø630 mm filter bags provide increased dust collection capacity.
- 7.5 kW motor suits higher-demand woodworking extraction applications.
- Reinforced lower frame improves stability during continuous operation.
- Heavy-duty sheet-metal construction strengthens key airflow and structural sections.
Technical data
| Specifications | Unit | Value |
|---|---|---|
| Motor power | kW | 7.5 |
| Voltage | V | 380 |
| Product air velocity | mm/s | 30–45 |
| Dust inlet | mm | Ø100 × 6 |
| Filter bag size | mm | Ø630 × 4 |
| Overall dimensions | mm | 1800 × 760 × 2350 |
| Packing dimensions | mm | 1460 × 700 × 700 |
| Weight | kg | 100 / 90 |
| Flange thickness | mm | 1.2 |
| Three-way duct thickness | mm | 0.6 |
| Drum thickness | mm | 0.6 |
| Housing thickness | mm | 1.0 |
| Base plate thickness | mm | 1.2 |
| Base structure | — | Reinforced Frame |
