Highlights

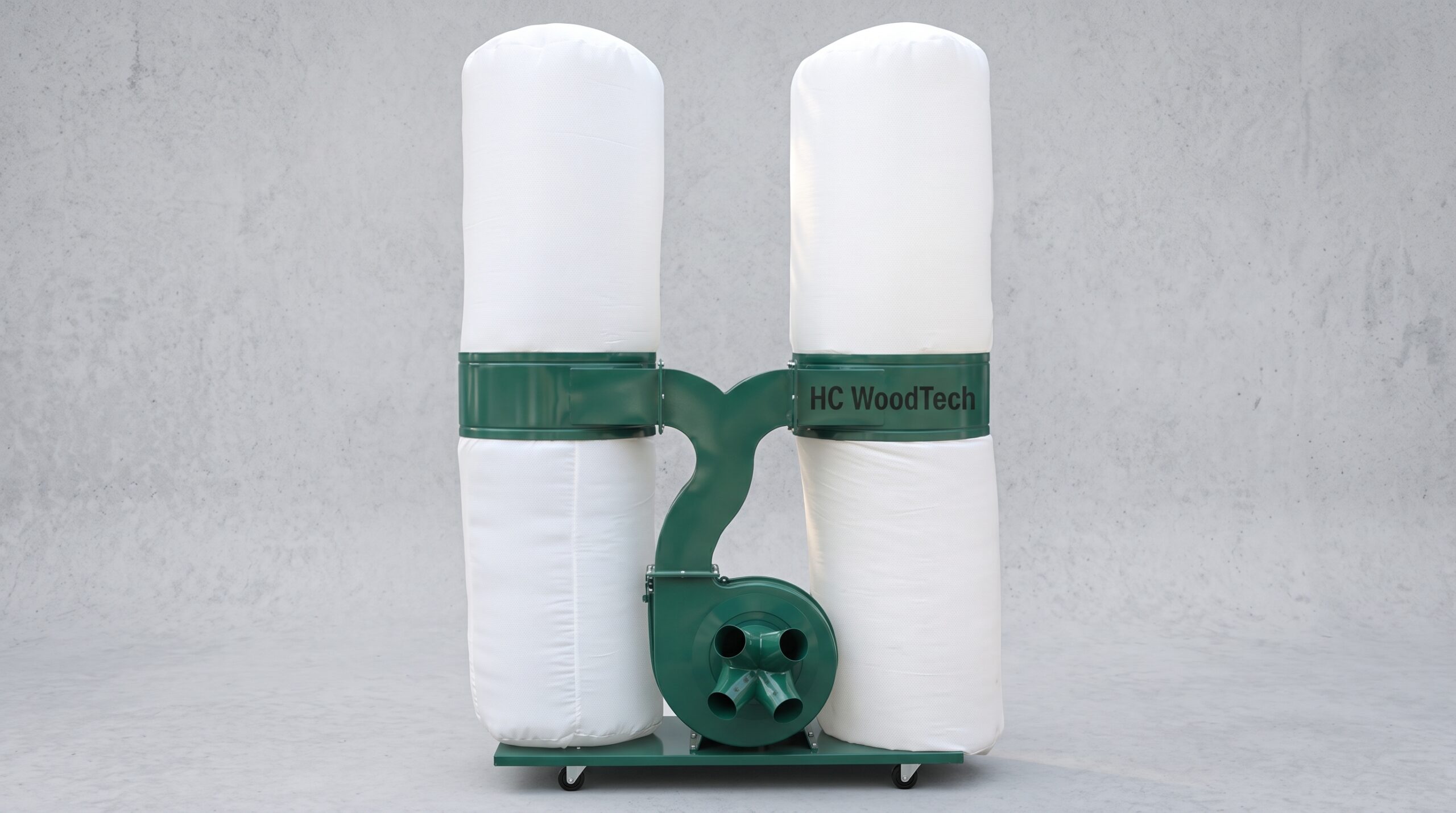

The 4 kW Twin-Drum Woodworking Dust Collector is designed for higher-capacity dust and wood-chip extraction from saws, moulders, sanders and other woodworking machinery. With 4450 m³/h airflow, four Ø100 mm extraction ports and four Ø630 mm filter bags, it is suitable for larger machines and multi-point workshop dust collection. Reinforced steel construction at the base improves stability during continuous operation.
- Motor power: 4 kW
- Voltage: 380 V
- Airflow: 4450 m³/h
- Dust inlets: Ø100 mm × 4
- Filter bags: Ø630 mm × 4
- Machine size: 1800 × 760 × 2350 mm
- Packing size: 1460 × 700 × 700 mm
Images
Features
- 4450 m³/h airflow for higher-volume woodworking dust extraction.
- Four Ø100 mm ports support multiple dust collection connections.
- Four large Ø630 mm filter bags provide increased filtration and collection capacity.
- Twin-drum structure with reinforced lower frame improves stability.
- Reinforced sheet-metal construction at key airflow and structural sections.
Technical data
| Specifications | Unit | Value |
|---|---|---|
| Motor power | kW | 4 |
| Voltage | V | 380 |
| Airflow | m³/h | 4450 |
| Dust inlet | mm | Ø100 × 4 |
| Filter bag size | mm | Ø630 × 4 |
| Overall dimensions | mm | 1800 × 760 × 2350 |
| Packing dimensions | mm | 1460 × 700 × 700 |
| Weight | kg | 90 / 85 |
| Flange thickness | mm | 1.2 |
| Three-way duct thickness | mm | 0.6 |
| Drum thickness | mm | 0.6 |
| Housing thickness | mm | 0.8 |
| Base plate thickness | mm | 1.2 |
| Base structure | — | Reinforced Frame |
