Highlights
The NB8CS2IIPTN Double Sided Edge Banding Machine with V-Belt is designed for simultaneous edge processing on both sides of furniture panels. A fiber-reinforced V-belt pressing system keeps panels stable during conveying while helping prevent surface marks, and servo-driven width adjustment with dual ball screws provides accurate positioning for different panel sizes. The machine also integrates hogging, fine trimming, scraping and four-motor corner trimming for continuous double-sided edge finishing.
- Maximum panel size: 1220 × 2440 mm
- Minimum panel size: 285 × 285 mm
- Panel thickness: 9–60 mm
- Edge tape thickness: 0.4–3 mm
- Feeding speed: 16–20 m/min
- Total power: 105 kW
- Net weight: 13,800 kg
Images
Features

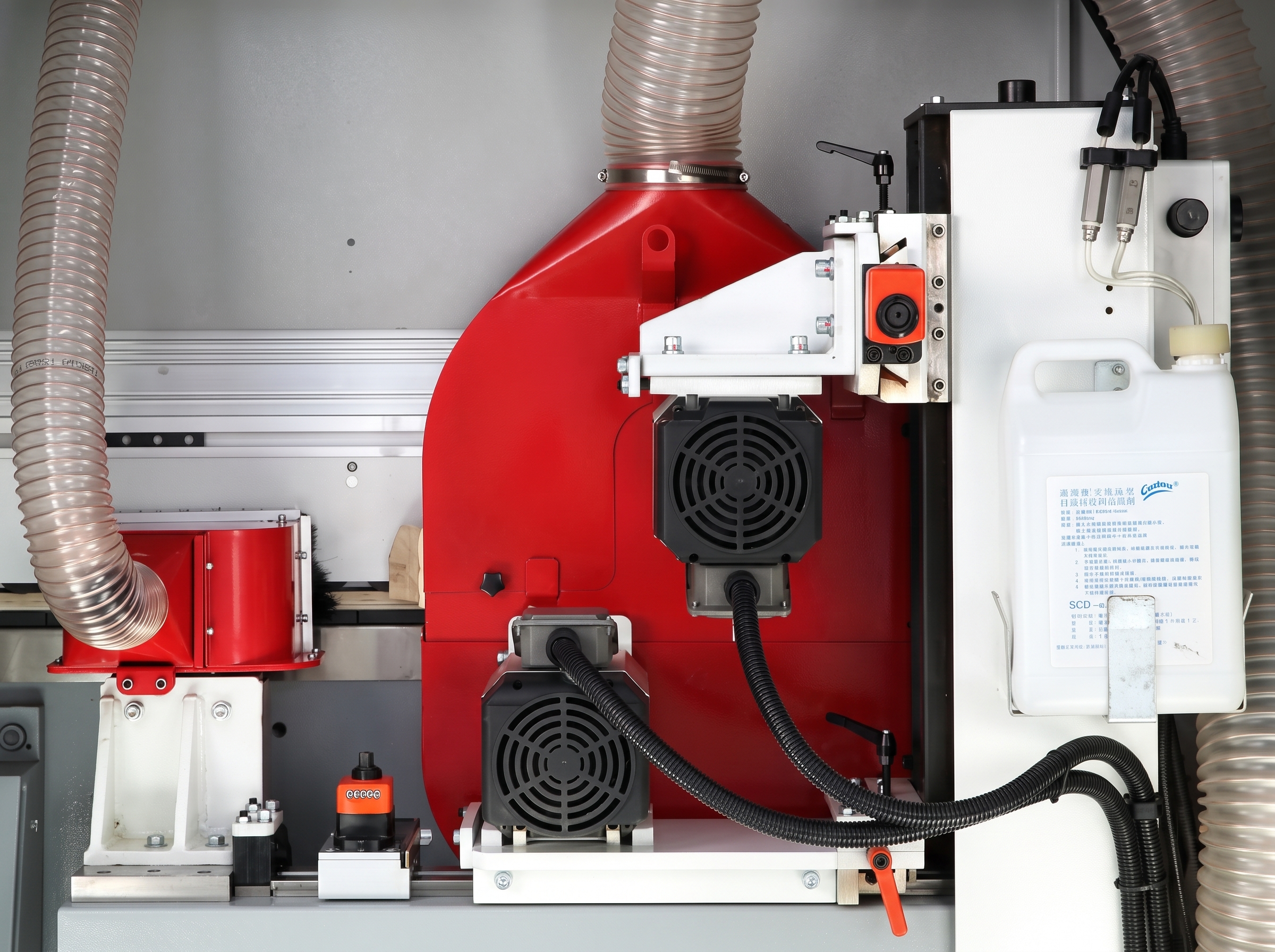

- Complete double-sided edge banding process integrates hogging, pre-milling, pre-heating, pre-melt gluing, servo feeding and pressing.

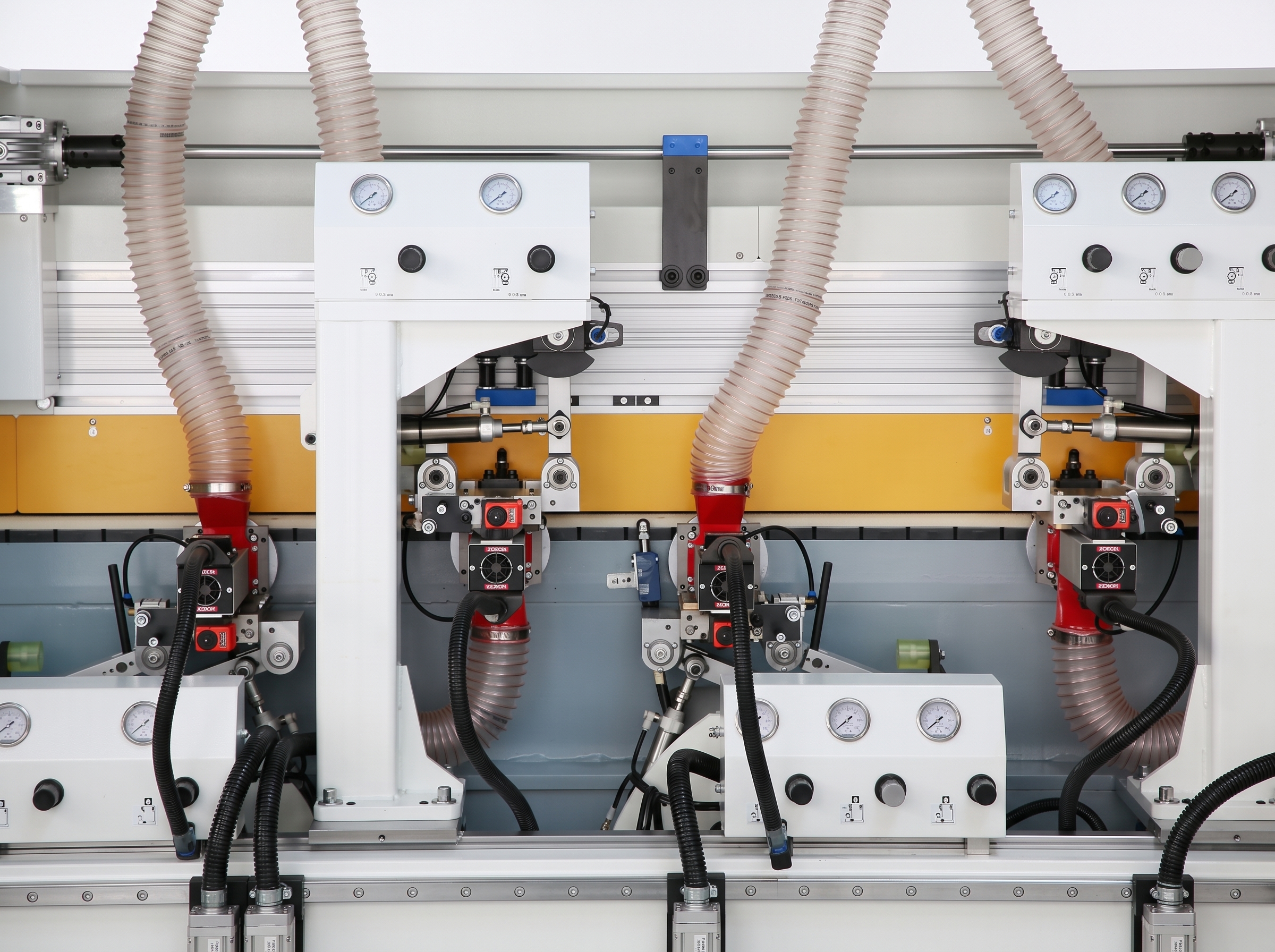

- End cutting, rough trimming and pneumatic fine trimming provide accurate edge finishing after band application.
- High-speed corner rounding processes panel corners automatically for a smooth finished profile.
- Pneumatic scraping removes excess edge material and glue residue for improved surface quality.
- Oscillating buffing units complete the finishing process and improve the final appearance of the panel edges.
Technical data
| Specifications | Unit | NB8CS2IIPT |
|---|---|---|
| Maximum panel size | mm | 1220 × 2440 |
| Minimum panel size | mm | 285 × 285 |
| Panel thickness | mm | 9–60 |
| Edge tape thickness | mm | 0.4–3 |
| Feeding speed | m/min | 16–20 |
| Dust extraction | mm | Ø125 × 20 |
| Total power | kW | 105 |
| Overall dimensions | mm | 12000 × 4400 × 1950 |
| Net weight | kg | 13,800 |
