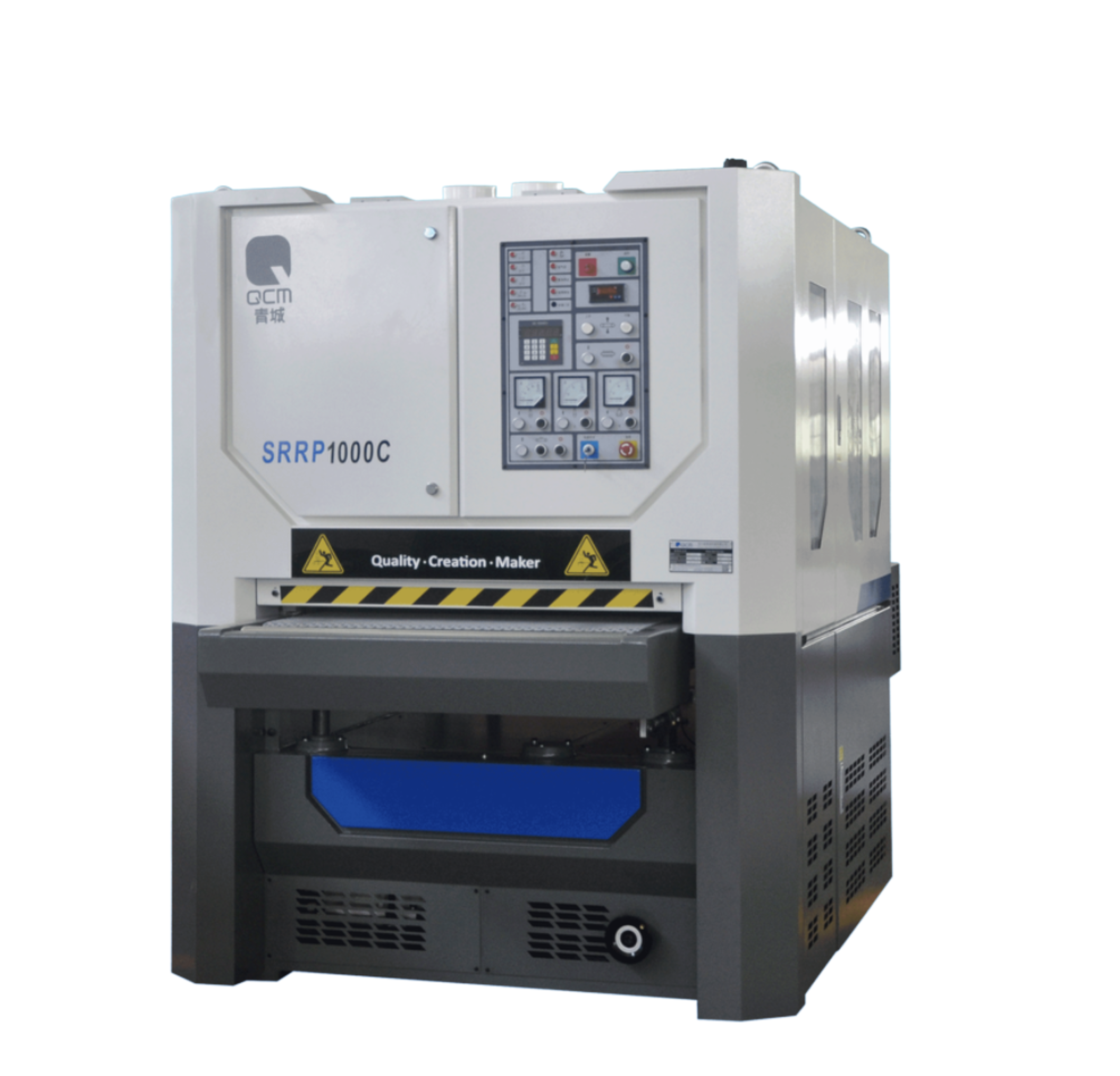

SRRP1000C Wide Belt Sanding Machine
Overview
The SRRP1000C is a high-efficiency wide belt sanding machine designed for precise surface calibration and fine finishing of solid wood, MDF, plywood, and veneer panels.
Equipped with three sanding units and an intelligent control system, this model offers outstanding stability, strong material removal, and smooth surface quality.
It is ideal for furniture, flooring, and panel processing industries seeking high productivity and consistent results.
Key Features
-
Triple Sanding Belt Configuration
Combines coarse, medium, and fine sanding units to achieve both material calibration and surface finishing in a single pass. -
High Power Output
Total motor capacity of 60.6 kW ensures efficient and continuous operation. -
Precision Control System
Simple and reliable digital interface for easy adjustment of belt speed and feed rate. -
Heavy-Duty Construction
Ensures long-term stability and vibration-free operation, even under continuous industrial load. -
Automatic Lifting Table
Provides accurate thickness setting and smooth feeding performance. -
High Dust Extraction Efficiency
Equipped with 7 dust ports (φ150 mm) and 9000 m³/h suction capacity for clean and safe operation.
| Parameter | SRRP1000C |
|---|---|
| Working width | 40–1000 mm |
| Working thickness | 3–160 mm |
| Min. working length | ≥480 mm |
| First belt speed | 20 m/s |
| Second belt speed | 18 m/s |
| Third belt speed | 16 m/s |
| Feed speed | 6–30 m/min |
| Sanding belt size | 1030 × 2200 mm |
| Total power | 60.6 kW |
| Dust port diameter | φ150 × 7 |
| Air pressure | 0.6 MPa |
| Air consumption | 0.1 m³/min |
| Required suction volume | 9000 m³/h |
| Machine dimensions | 274 × 177 × 217 cm |
| Net weight | 4200 kg |
Applications
-
Suitable for solid wood panels, MDF, particle boards, and veneer
-
Ideal for thickness calibration, surface preparation, and fine sanding
-
Widely used in furniture, flooring, cabinetry, and woodworking production lines
