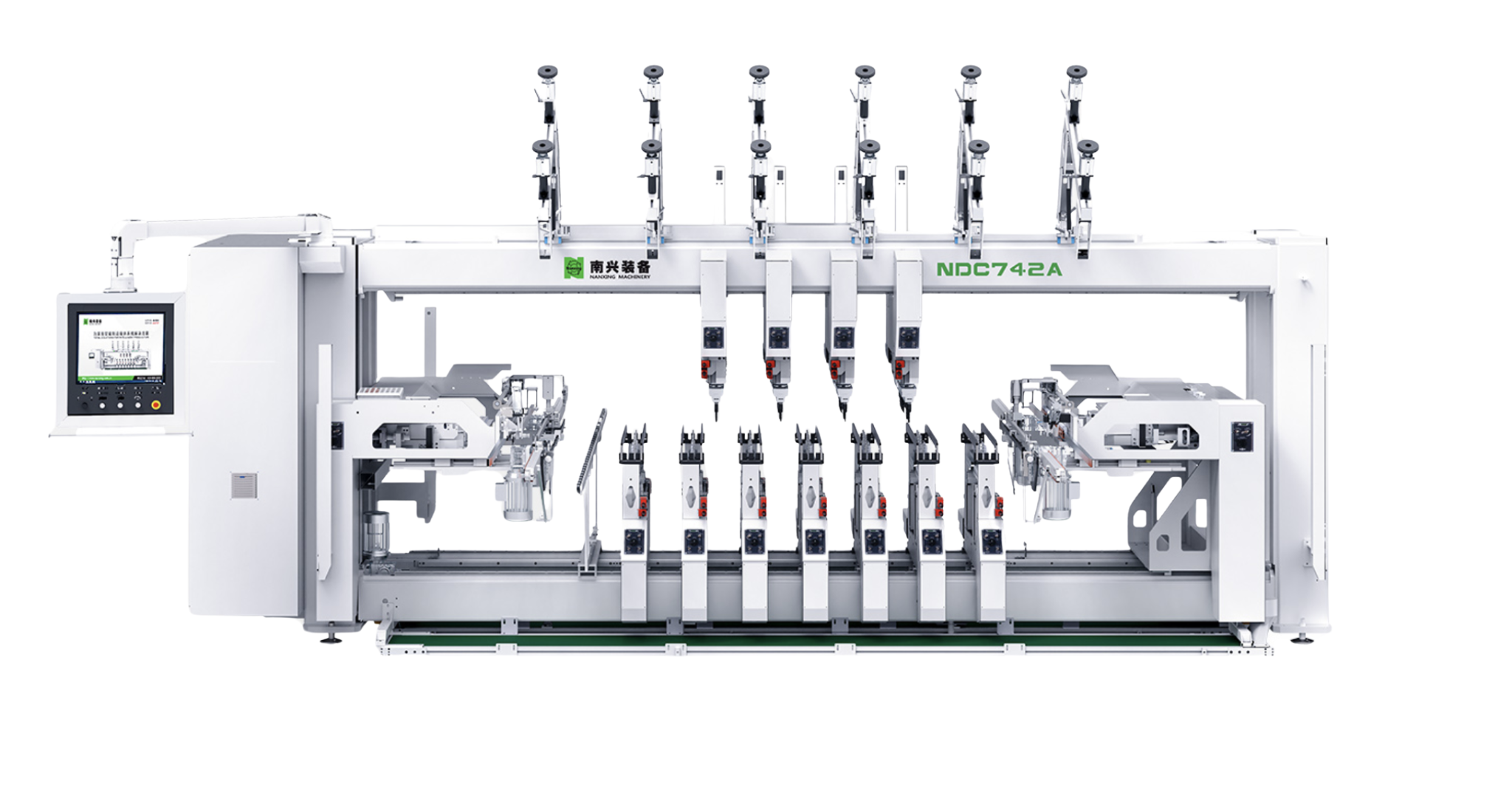

NDC742A Throughfeed Drilling Machine with Servo Drive

Product Overview

The NDC742A is an advanced throughfeed servo-driven drilling machine designed for mass production of panel furniture components.
Featuring 12 automatic drilling rows driven by high-precision servo motors, this model enables fast, flexible, and precise boring operations with minimal setup time.
Its servo-controlled system automatically adjusts the position of vertical drilling rows according to the hole pattern, making it ideal for factories that require frequent changes in drilling configurations.
The NDC742A supports 4-sided drilling in a single pass, delivering excellent efficiency, reliability, and adaptability for modern furniture manufacturing lines.

Highlights

• Automatic 12-row configuration designed for high-volume production and rapid adjustment of drilling patterns through servo-driven positioning.

• IPC control system automatically moves vertical drilling rows based on the hole position from design drawings, allowing seamless integration with production software.

• Servo-controlled infeed and outfeed system with 3 independent sections, ensuring high-speed panel transfer and precise positioning.

• 13 servo motors in total for complete automation and precision.

• Pneumatic locking device for quick and accurate adjustment or replacement of drilling blocks, enabling flexible hole pattern setup.

• Four-sided processing capability — includes 6 bottom rows, 4 top rows, and 2 side rows, capable of handling up to 22 workpieces per minute.

• Optional model NDC532 available with a 5-row bottom, 3 top, and 2 side configuration for smaller-scale production needs.
