Throughfeed Drilling Machine Series — NDC402 / NDB402
Product Overview
The NDC402 and NDB402 are high-efficiency throughfeed multi-row drilling machines designed for panel furniture production.
Both models feature a 6-row configuration (4 bottom drilling rows and 2 side drilling rows), capable of performing 4-sided boring in one continuous process, ensuring high precision and productivity in large-scale manufacturing environments.
The NDC402 (PC Control) version is equipped with an intelligent servo control system for automatic positioning, allowing the machine to quickly adjust drilling patterns based on digital hole maps — ideal for automated production lines with frequent design updates.
The NDB402 (Standard Version) maintains the same strong structure and processing capacity but operates through manual mechanical adjustment, making it a cost-effective and durable choice for factories focusing on stable, high-speed output.
Key Features

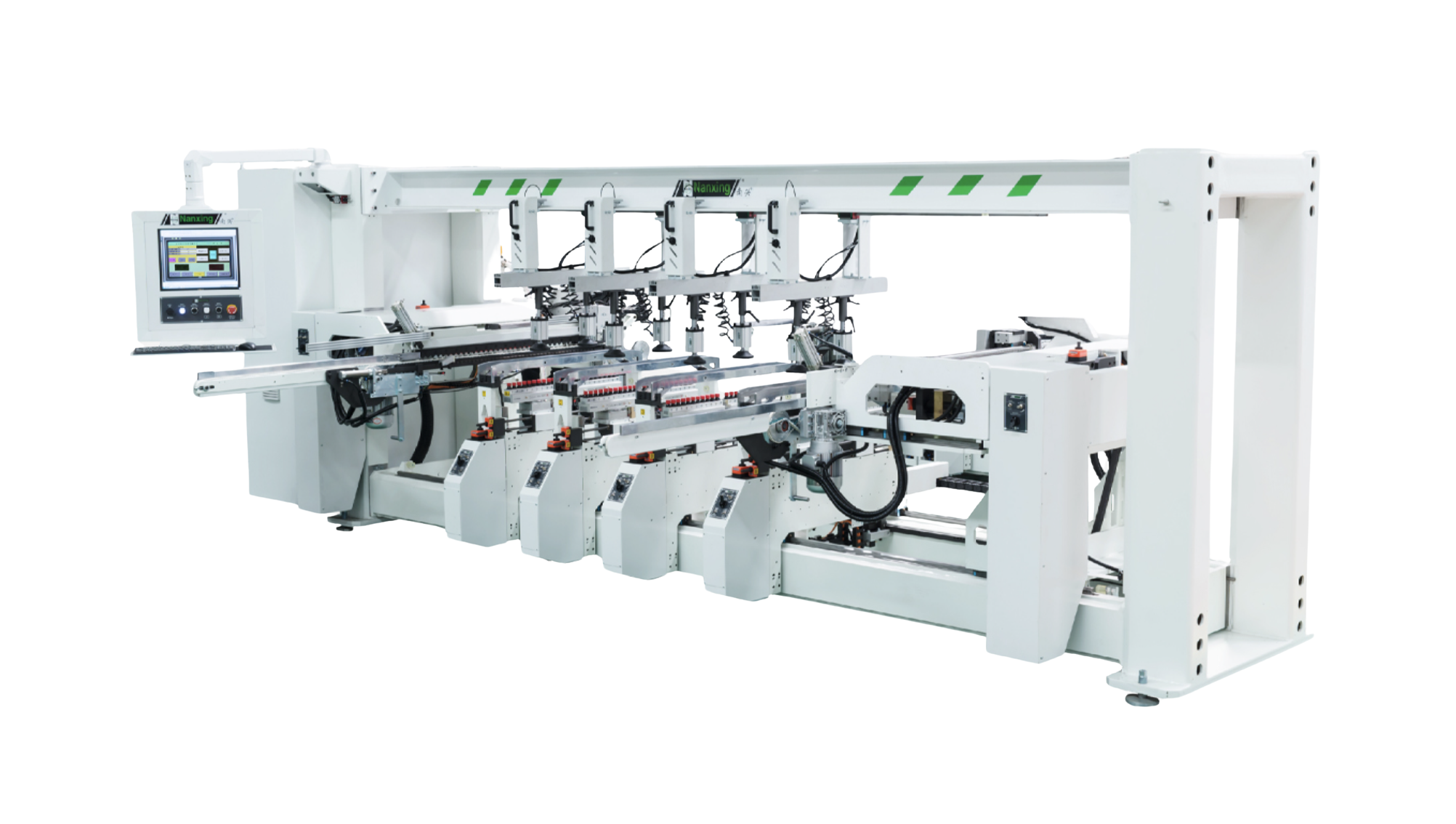

NDC402 – PC Control Version
-
PC-controlled and servo-driven system automatically adjusts drilling row positions based on CAD hole data.
-
Automatic feeding and discharge with 3-section servo conveyors ensures smooth material flow.
-
Quick-release pneumatic locking system allows rapid drill block changes and flexible drilling pattern setup.
-
6-row configuration: 4 bottom rows + 2 side rows; supports up to 22 workpieces per minute.
-
Designed for large-scale, flexible, and digital production lines.

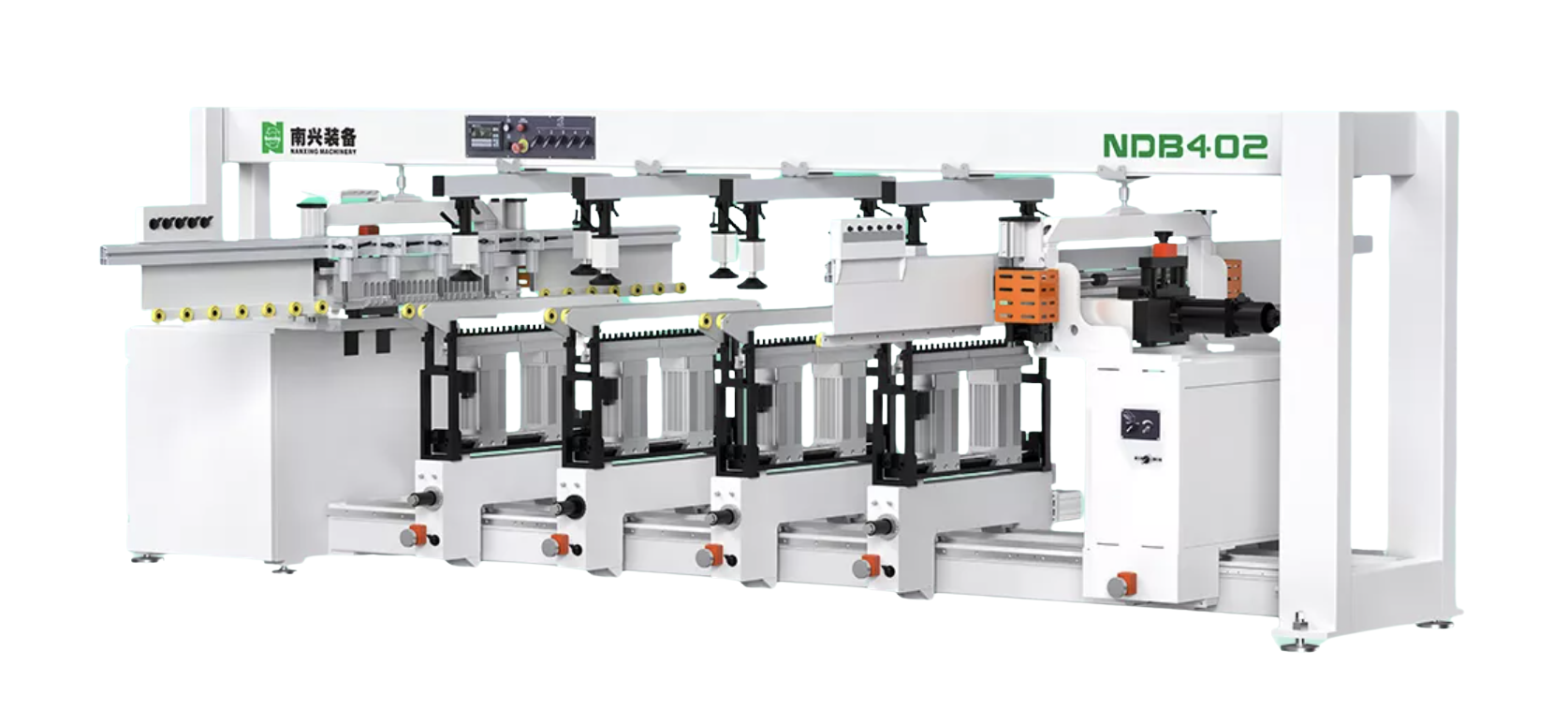

NDB402 – Standard Version (Non-PC)
-
Mechanical adjustment system with reliable positioning for consistent drilling accuracy.
-
Vertical drilling unit rotatable from 0°–90°, allowing flexible drilling angles.
-
Supports vertical and horizontal drilling at high speed for diverse panel applications.
-
Compact structure with stable performance, suitable for medium and large furniture factories.
-
Simple operation and maintenance with cost-effective investment.
| Model | NDC402 | NDB402 |
|---|---|---|
| Max. Panel Width | 2550 mm | 2850 mm |
| Min. Panel Width | 250 mm | 220 mm |
| Max. Panel Thickness | 50 mm | 70 mm |
| Max. Feeding Speed | 78 m/min | — |
| Vertical Drills Qty. | 4 rows × 11 × 2 = 88 | — |
| Horizontal Drills Qty. | 2 rows × 21 = 42 | — |
| Drill Spacing | 32 mm | 32 mm |
| Servo Motor Qty. | 7 | — |
| Max. Vertical Boring Depth | 50 mm | 70 mm |
| Max. Horizontal Boring Depth | 40 mm | 40 mm |
| Total Power | 28 kW | 13.4 kW |
| Overall Dimensions | 5540 × 3660 × 1950 mm | 4800 × 2835 × 1670 mm |
| Net Weight | 5200 kg | 2200 kg |
Applications
Both NDC402 and NDB402 are widely used in panel furniture production, including cabinets, wardrobes, shelves, and modular furniture.
-
The NDC402 is ideal for automated production lines demanding flexible hole patterns, integration with design software, and precise servo positioning.
-
The NDB402 is perfect for high-speed continuous operations requiring consistent quality, reliability, and simpler manual operation.
Together, they provide a comprehensive solution for different production needs — from intelligent automation to cost-efficient manual operation — while maintaining Nanxing’s standards of precision, durability, and performance.
