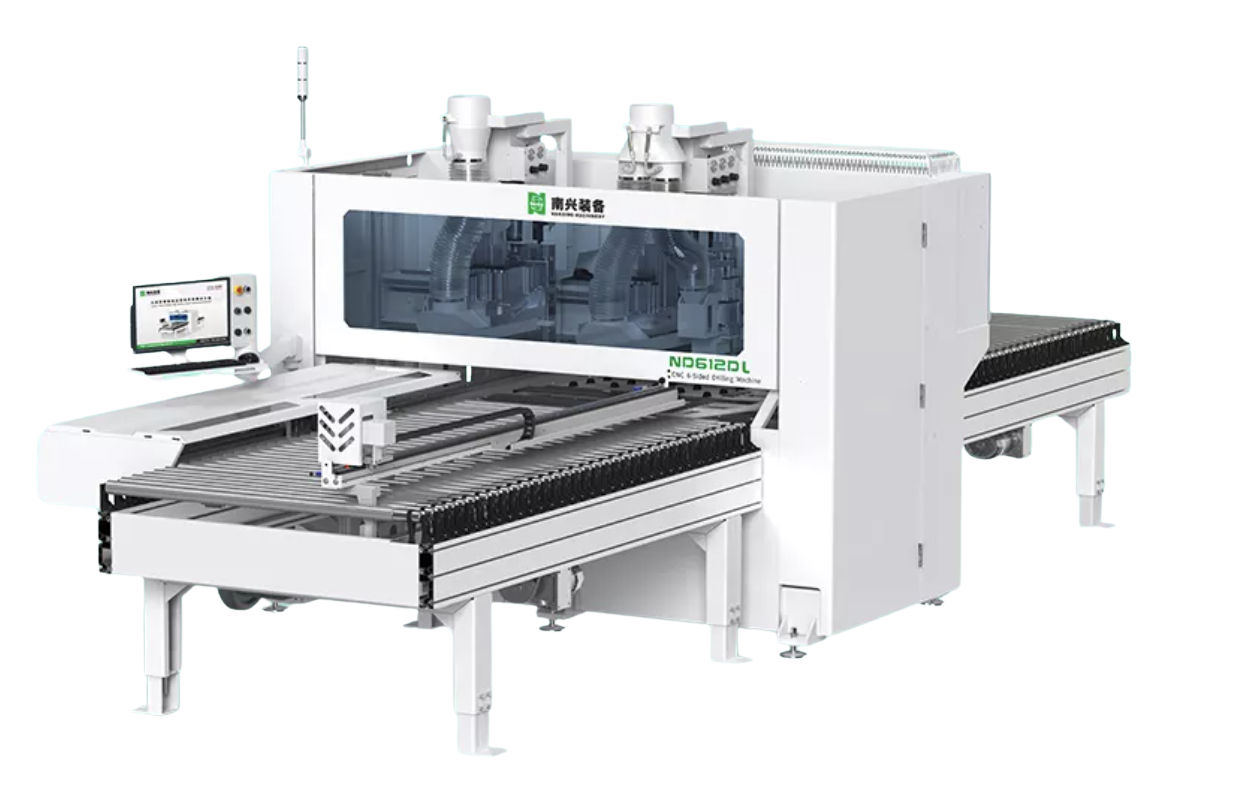

ND612D / ND612DT / ND612DL CNC 6-Sided Drilling Centers
Product Overview
The ND612D Series is a new-generation CNC 6-sided drilling center developed for efficient, high-precision panel furniture production.
It integrates top and bottom drilling, side drilling, milling, and slotting in a single process — minimizing manual handling and maximizing productivity.
Depending on configuration, the series supports automatic tool change, synchronous double-drill processing, and automatic feeding systems, meeting the needs of different production scales and automation levels.
All models support intelligent control and software compatibility with XML, MPR, and BPP file formats, ensuring smooth connection to mainstream design and manufacturing systems.
| Model | ND612D | ND612DT | ND612DL |
|---|---|---|---|
| Panel Length | 200–3000 mm | 200–3000 mm | 250–2800 mm |
| Panel Width | 30–1200 mm | 30–1200 mm | 50–1200 mm |
| Panel Thickness | 10–60 mm | 10–60 mm | 10–60 mm |
| Vertical Drilling Units (Upper) | 18 × 2 | 18 × 2 | 18 × 2 |
| Horizontal Drilling Units | X: 6×2; Y: 2×2 | X: 6×2; Y: 2×2 | X: 6×2; Y: 2×2 |
| Vertical Drilling Units (Lower) | 9 | 9 | 9 |
| Main Spindle Power | Upper: 3.5 kW; Lower: 3.5 kW | Upper: 5.5 kW; Lower: 3.5 kW | Upper: 3.5 kW; Lower: 3.5 kW |
| Max. Speed | 135 / 135 / 75 / 30 m/min | 135 / 135 / 75 / 30 m/min | 135 / 135 / 75 / 30 m/min |
| Total Power | 21.93 kW | 23.93 kW | 24.18 kW |
| Net Weight | 3750 kg | 3850 kg | 4710 kg |
| Overall Dimension (mm) | 6150 × 2806 × 2325 | 6150 × 2806 × 2325 | 7390 × 2806 × 2325 |
Highlights
-
Six-sided simultaneous machining for one-pass completion of top, bottom, and side operations.
-
Dual-spindle design ensures smooth and precise cutting performance with minimal vibration.
-
Synchronous double-drill processing significantly improves drilling speed and consistency.
-
Automatic tool change (ND612DT) with 8-slot tool magazine, enabling fast switching between milling and drilling tools.
-
Automatic feeding and outfeeding system (ND612DL) for fully automated production lines.
-
Advanced CNC control system compatible with multiple file formats (XML, MPR, BPP).
-
Strong, rigid frame ensures accuracy and durability in high-load operations.
