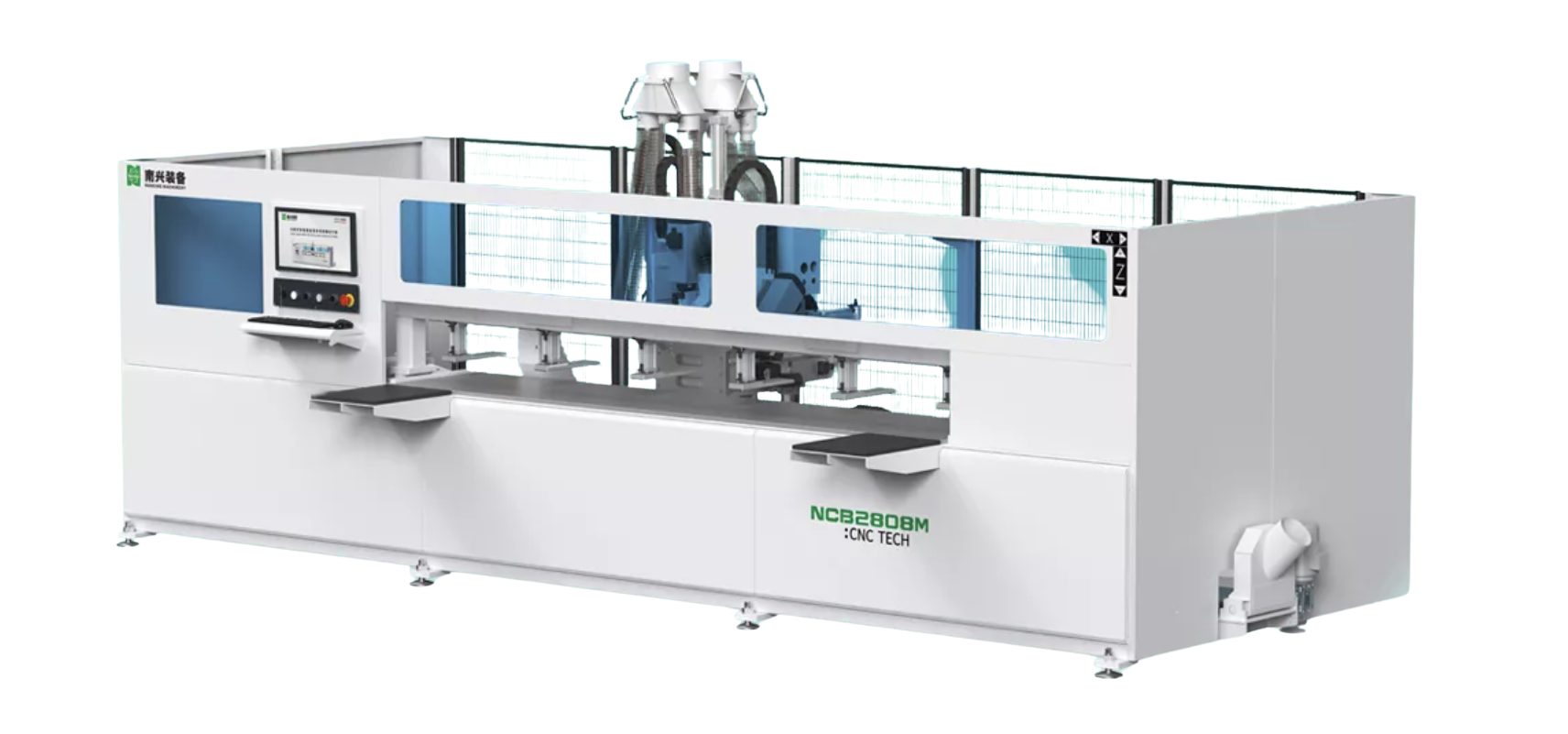

NCB2808M CNC Machining Center for Cabinet Door
Product Overview
The NCB2808M is a high-precision CNC machining center specially designed for cabinet door drilling, milling, and grooving operations.
This model integrates multi-axis machining, automatic tool change, and synchronous dual-side processing, making it ideal for high-efficiency, large-scale production of cabinet doors and wooden panels.
Equipped with 7 independent spindles and an 8-position disc-following tool magazine, the NCB2808M allows continuous machining without manual intervention. It also features automatic panel thickness measurement and double-direction drill block synchronization, ensuring outstanding accuracy and consistency.
Highlights
-
Dual-direction synchronous processing for simultaneous operation on both sides of the panel.
-
7 spindles and 8-position automatic tool changer for multi-function machining and improved flexibility.
-
Automatic panel thickness detection enables precise depth control for milling and drilling.
-
Independent spindles allow multiple machining tasks — drilling, slotting, milling, and cutting — in one setup.
-
High-speed and stable performance with advanced CNC control and servo drive systems.
-
Ideal for cabinet doors, wardrobe panels, and other wooden components requiring complex hole and slot processing.
| Model | NCB2808M |
|---|---|
| Max. Machining Size | 2900 × 600 mm |
| Max. Feed Speed (X/Y/Z) | 90 / 20 / 20 m/min |
| Spindle Power | 7.5 kW (auto tool change vertical spindle) + 7.5 kW (vertical spindle) + 6 kW + 3.5 kW (horizontal spindles) + 2.2 kW × 2 (45° inclined spindles) |
| Tool Capacity | 8 positions |
| Total Power | 33.67 kW |
| Net Weight | 2300 kg |
| Overall Dimension | 5820 × 2520 × 2130 mm |
