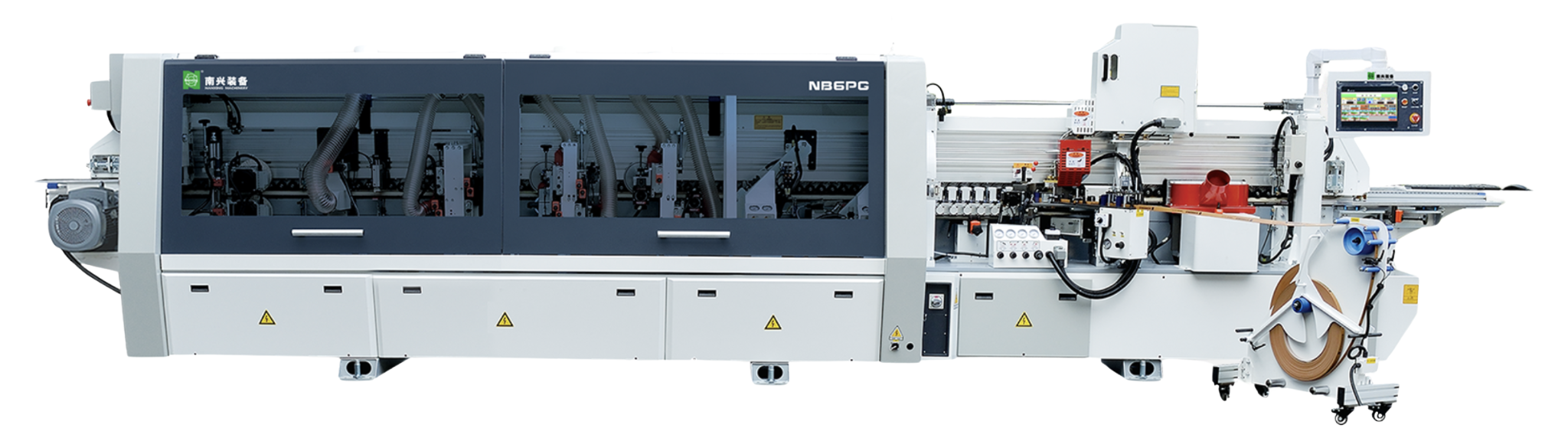

NB6PG Smart Edge Banding Machine with V-belt
Product Overview
The NB6PG Smart is a high-efficiency edge banding machine equipped with a fiber-reinforced V-belt pressing system and double melt glue units.
It combines precision, stability, and flexibility for both thin and thick edge banding operations.
With servo-controlled trimming, scraping, and multi-tape changing system, this model delivers superior banding quality and cost efficiency for modern panel furniture production lines.
The NB6PG Smart supports two edge banding directions — standard and smart — to meet diverse processing requirements.
Highlights
-
Panels are evenly pressed by a fiber-reinforced V-belt, ensuring smooth conveying and clean surfaces with no marks, resulting in excellent edge banding quality.
-
Pre-melt gluing unit shortens heating-up time, prevents carbonization or glue degradation, and improves bonding strength between tape and panel.
-
Four-tape changing system with servo edge tape feeder offers higher trimming precision and reduces waste at both ends of the tape, saving up to RMB 20,000–50,000 per machine annually.
-
Adjustable dual sets of fine trimming and scraping units enable fast switching between thin and thick tapes, minimizing setup time while ensuring stable performance and higher productivity.
Option
Standard model equipped with a two-tape changing system, one set each for rough trimming, fine trimming, and scraping.
| Model | NB6PG (Standard) | NB6PG Smart |
|---|---|---|
| Panel Length | ≥120 mm | ≥120 mm |
| Panel Width | ≥80 mm | ≥80 mm |
| Minimum Panel Size | 120 × 80 mm | 120 × 80 mm |
| Panel Thickness | 9 – 60 mm | 9 – 60 mm |
| Edge Tape Thickness | 0.4 – 3 mm | 0.4 – 3 mm |
| Feeding Speed | 18 / 22 / 26 m/min | 18 / 22 / 26 m/min |
| Dust Extraction | φ125 mm × 5 | φ125 mm × 6 |
| Total Power | 28 kW | 28 kW |
| Overall Dimension | 8600 × 1050 × 1850 mm | 8600 × 1050 × 1850 mm |
| Net Weight | 4340 kg | 4340 kg |
Applications
The NB6PG Smart is ideal for panel furniture, cabinet manufacturing, and customized woodwork that demand precision edge finishing, rapid production, and reduced glue waste.
Its servo control and V-belt technology make it an optimal choice for manufacturers seeking stable, high-speed, and cost-effective production solutions.
