Highlights

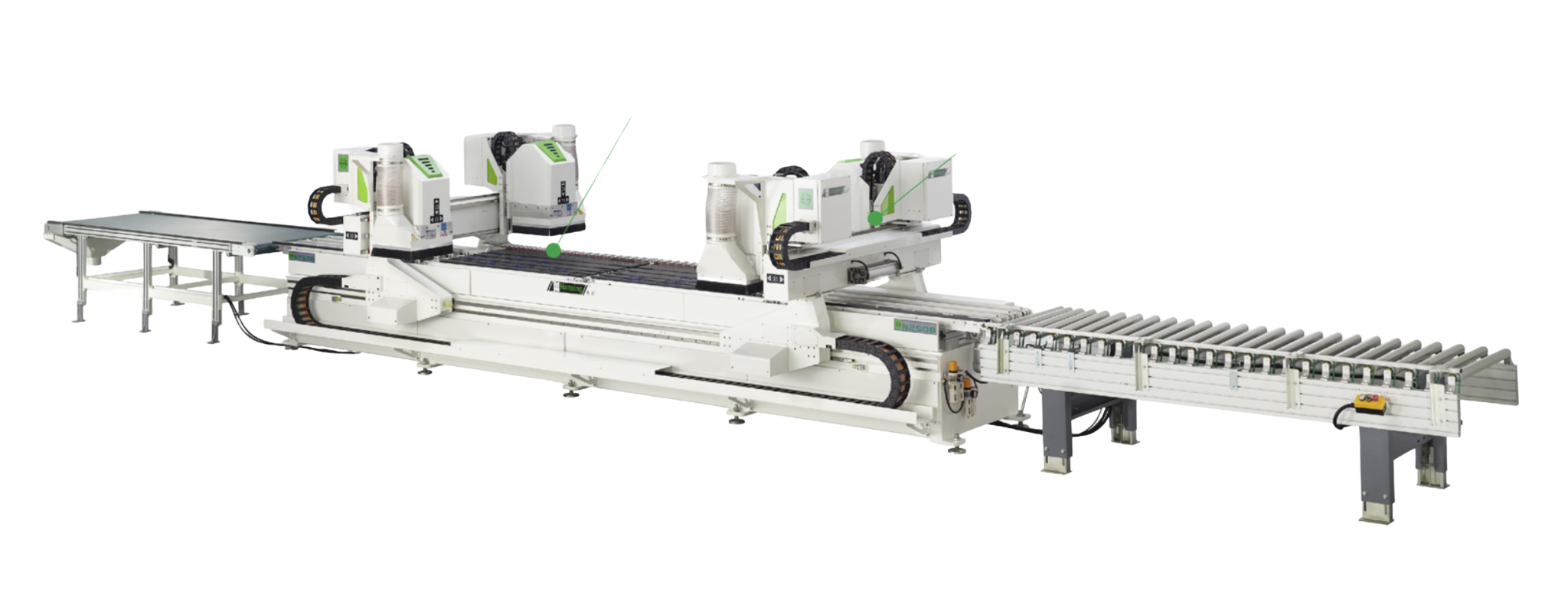

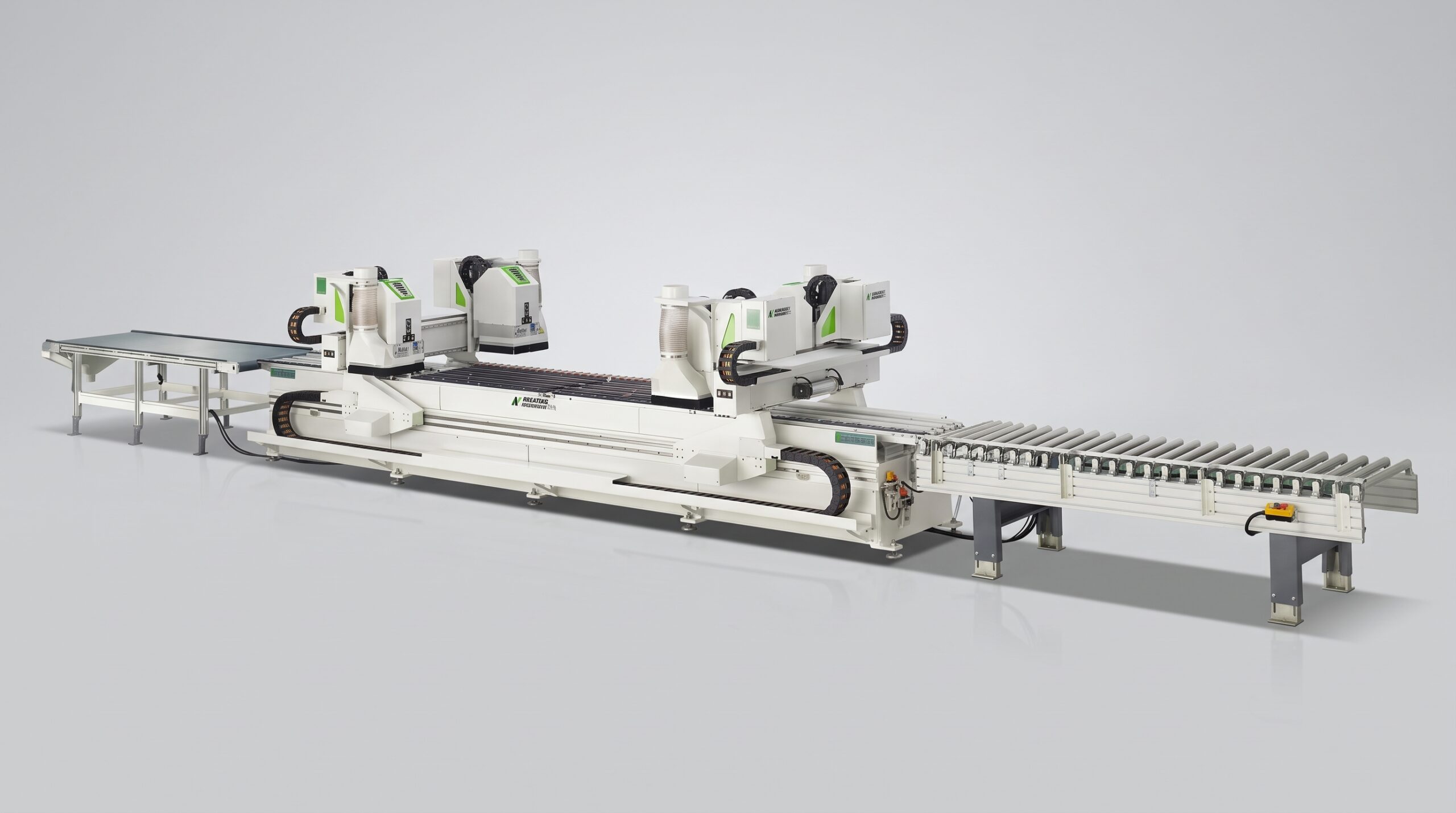

The N2508 Throughfeed Drilling Center is a continuous CNC boring line designed for flexible batch production and customized panel furniture manufacturing. It uses two gantries and four independently controlled drilling blocks, providing a total of 84 vertical drills and 16 horizontal drills. The machine can process four sides of a panel in one pass and supports multiple machining modes for either one large panel or two smaller panels simultaneously. Four independently controlled PU belt conveyor sections create a continuous material flow through waiting, machining and unloading stations, reducing idle time between workpieces.
- Panel length: 250–2500 mm
- Panel width: 120–800 mm
- Maximum X / Y / Z speed: 100 / 100 / 20 m/min
- Vertical drills: 21 × 4 = 84
- Horizontal drills: 16 total
- Drilling speed: 4000 rpm
- Total power: 43 kW
Video
Features
- Dual-gantry, four-drilling-block configuration provides 84 vertical and 16 horizontal drilling tools for flexible machining combinations.
- Four drilling blocks can operate independently according to panel dimensions and required drilling patterns.
- Three machining modes support simultaneous processing of one large panel or two smaller panels, including panels below 1300 mm where applicable.
- Four-section servo-controlled PU belt conveyor system supports continuous feeding, machining and unloading with reduced waiting time.
- Can be connected with compatible furniture production software for automated CNC drilling of customized panel orders.
Technical data
| Specifications | Unit | N2508 |
|---|---|---|
| Panel length | mm | 250–2500 |
| Panel width | mm | 120–800 |
| Maximum speed X / Y / Z | m/min | 100 / 100 / 20 |
| Vertical drills | pcs | 21 × 4 |
| Horizontal drills – X direction | pcs | 3 × 4 |
| Horizontal drills – Y direction | pcs | 2 × 2 |
| Total horizontal drills | pcs | 16 |
| Drilling speed | rpm | 4000 |
| Vacuum pump | kW | 5.5 |
| Suction flow rate | m³/h | 160 |
| Dust extraction | mm | Ø200 × 4 + Ø125 × 2 |
| Total power | kW | 43 |
| Overall dimensions | mm | 13000 × 2100 × 2300 |
| Net weight | kg | 5500 |
