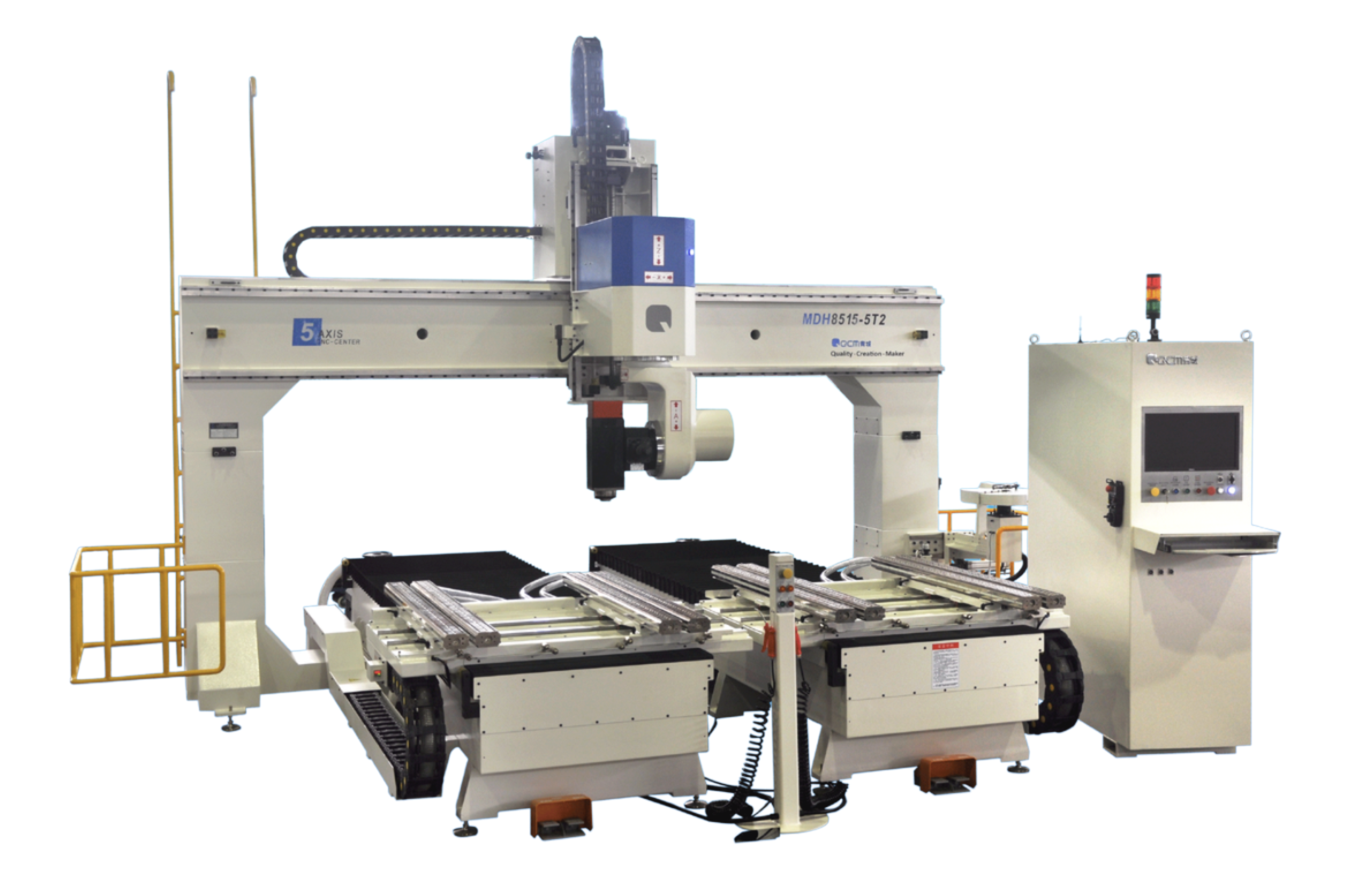

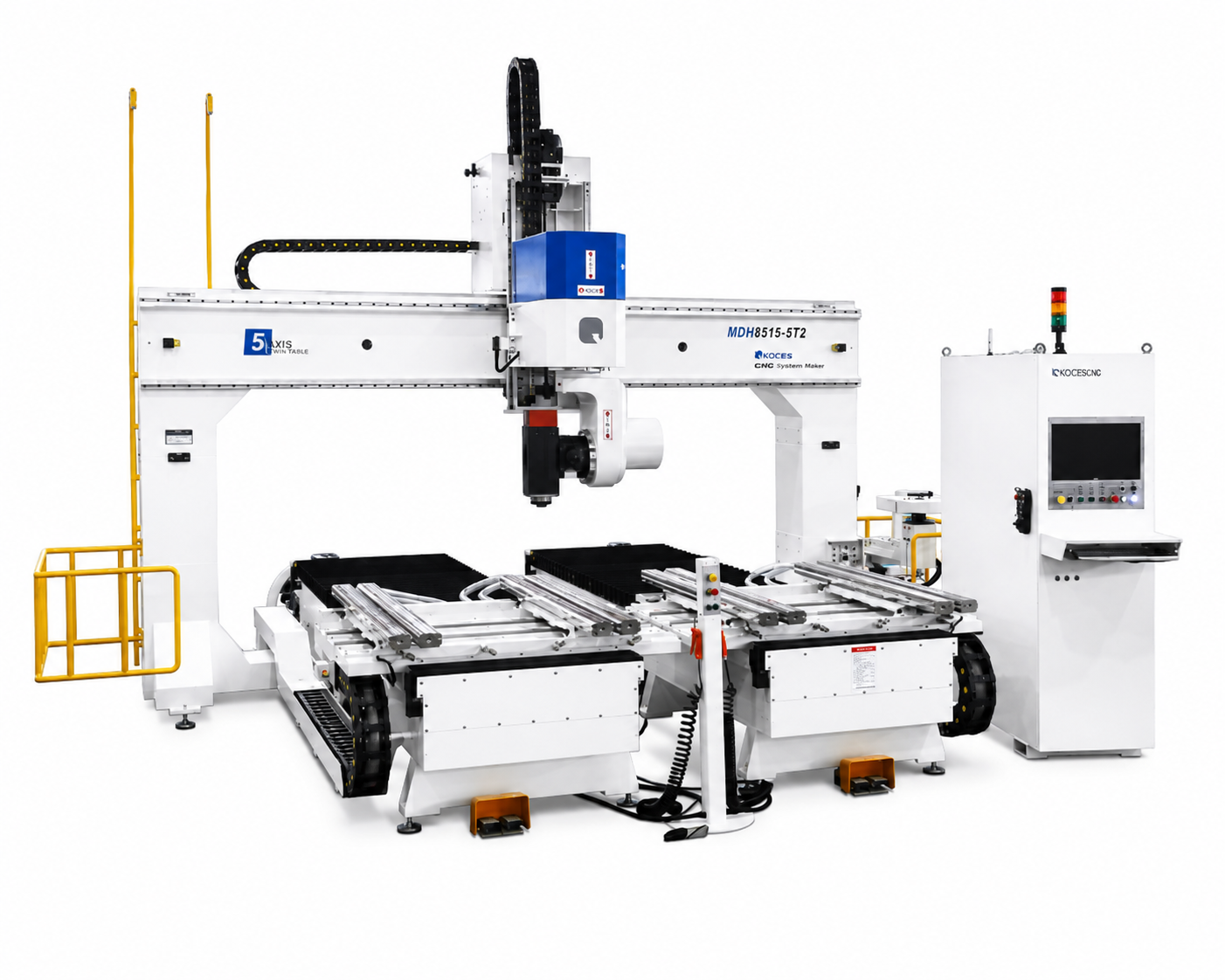

MDH8515-5T2 Five-Axis CNC Machining Center
Product Overview
The MDH8515-5T2 Five-Axis CNC Machining Center is a high-performance woodworking and multi-material processing machine designed for complex 3D contouring and precision component machining.
Equipped with dual automatic spindles and RTCP (Rotating Tool Center Point) technology, it allows continuous multi-axis interpolation, ensuring exceptional accuracy for curved, angular, or sculpted surfaces.
This machine features independent dual working tables, automatic tool change, and servo-driven axes, delivering superior productivity and stability for large-scale, high-precision manufacturing.
Key Features
-
Five-Axis Simultaneous Machining with RTCP function for precise multi-surface contouring.
-
Dual Spindle Design — automatic tool change with double servo-driven spindles.
-
Independent Dual Worktables — allows tool change or loading/unloading during machining.
-
High-Speed Motion with linear guideways and stable gantry construction.
-
Optimized Dust Extraction & Chip Removal System for clean operation.
-
Finite Element Analysis (FEA) verified structural design for enhanced rigidity and durability.
| Parameter | Specification |
|---|---|
| Travel Range | |
| X-Axis | 3940 mm |
| Y-Axis | 2400 mm |
| Z-Axis | 900 mm |
| A-Axis | ±360° (continuous) |
| C-Axis | ±240° |
| Rapid Feed Speed | |
| X-Axis | 80 m/min |
| Y-Axis | 48 m/min |
| Z-Axis | 38 m/min |
| A-Axis | 38 r/min |
| C-Axis | 38 r/min |
| Worktable Size | 1530 mm × 1530 mm × 2 |
| Main Spindle Power | 12 kW (HSK F63, 18000 rpm) |
| Secondary Spindle Power | 7 kW (ER32, 18000 rpm) |
| Dust Extraction | φ160 mm × 5 ports, 5 kW × 2 |
| Vacuum System | Dry Type, 160 m³/h |
| Machine Weight | ≈ 6000 kg |
| Machine Dimensions (L × W × H) | 5540 × 5570 × 3300 mm |
