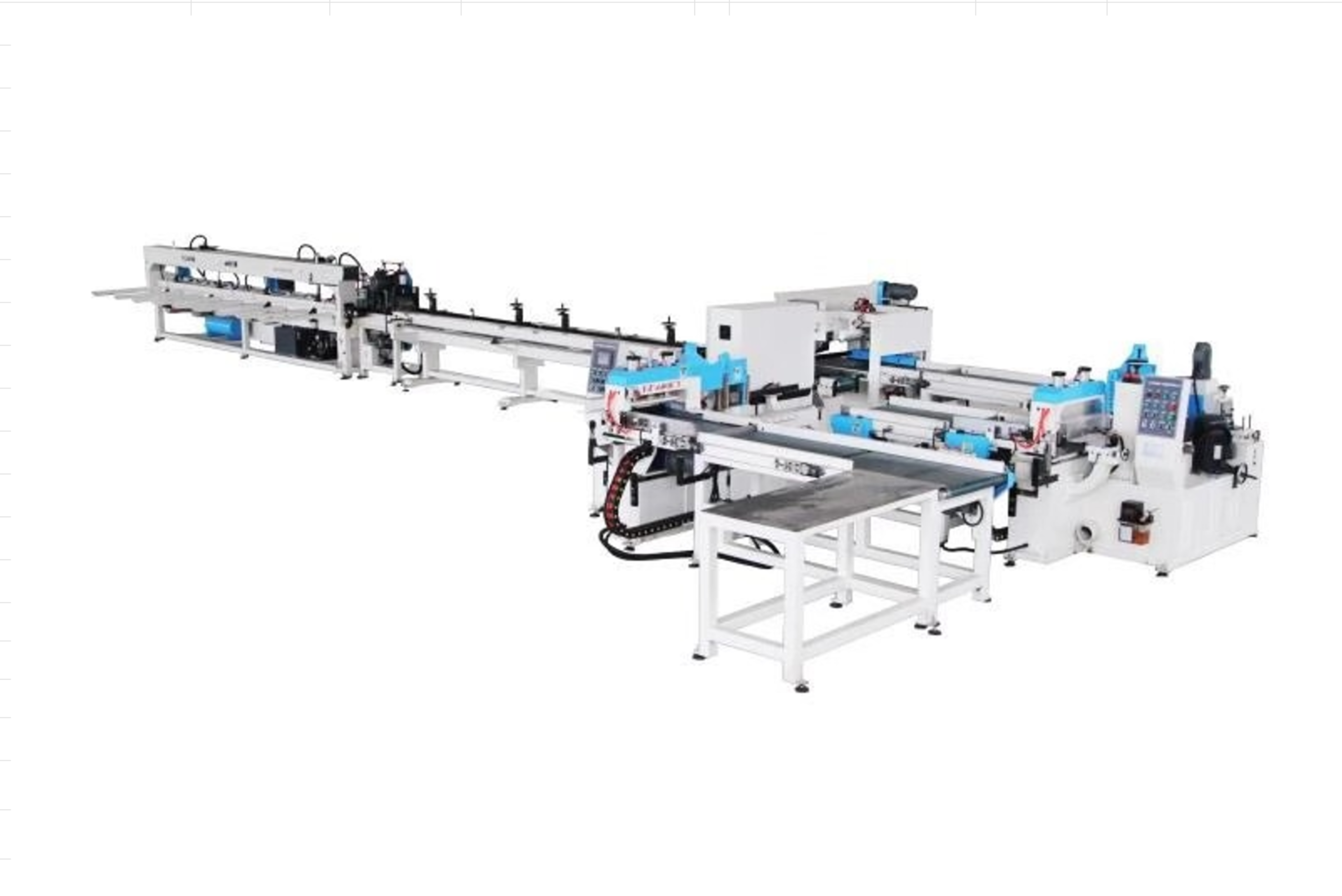

Automatic Servo Finger Jointing Production Line (with Belt Conveyor)
1. Overview
The Automatic Servo Finger Jointing Production Line integrates cutting, feeding, finger shaping, gluing, and pressing operations.
Equipped with PLC and HMI touchscreen control, the system ensures high precision, stable operation, and fully automated continuous production.
This production line is widely used for solid wood panel jointing, furniture component assembly, and wooden door core processing.
Main Configuration
-
H-600S3 & H-600S4 Servo Finger Jointing Machines (top and bottom spindle, automatic feeding and cutting)
-
H-6215CSP Hydraulic Press Assembler (with glue spreading and hydraulic pressing)
-
Automatic Chain Conveyors and Belt Feeders
-
Stainless Steel Material Tables & Flipping Tables
Key Features
-
Fully servo-controlled for stable and precise operation
-
Touchscreen interface with real-time fault display
-
Automatic feeding, cutting, gluing, and pressing in one continuous line
-
Suitable for solid wood finger joint boards, door cores, and furniture components
-
High efficiency with continuous belt transmission and dual feeding chains
| Section | Model / Item | Specification / Technical Data |
|---|---|---|
| A. Loading Table | Stainless Steel Loading Table | Table size: 700 × 1400 mm |
| B. Feeding Table | Feeding Table | Table size: 610 × 1000 mmMotor power: 1 HP × 2 |
| C. Automatic Servo Finger Jointing Machine | H-600S3 | Working width: 610 mm Working length: 150–850 mm Working thickness: 18–120 mm Cut-off saw speed: 2900 rpm Cutterhead speed: 2840 rpm Finger shaper spindle speed: 6750 rpm Servo drive power: 2.3 kW Finger shaper motor: 15 HP Cut-off saw motor: 7.5 HP Cutterhead motor: 2 HP Feeding motor: ½ HP Wood chip outlet: Ø100 mm × 4 Dust outlet: Ø125 mm × 2 |
| D. Automatic Servo Finger Jointing Machine | H-600S4 (with glue spreader) | Working width: 610 mm Working length: 150–850 mm Working thickness: 18–120 mm Cut-off saw speed: 2900 rpm Cutterhead speed: 2840 rpm Finger shaper spindle speed: 6750 rpm Servo drive power: 2.3 kW Finger shaper motor: 15 HP Cut-off saw motor: 7.5 HP Cutterhead motor: 2 HP × 2 Feeding motor: ½ HP Wood chip outlet: Ø100 mm × 4 Dust outlet: Ø125 mm × 2 |
| E. Conveyor Table | — | Table size: 900 × 1600 mmMotor power: 1 HP |
| F. Flipping Table | — | Motor power: ½ HPLifting motor: 1 HP |
| G. Belt Conveyor | — | Conveyor length: 2000 mmMotor power: 3 HP |
| H. Automatic Dual-Chain Outfeed Conveyor | — | Table size: 600 × 6000 mmDriving motor: 1 HP × 2Chain specification: 08B-2 |
| I. Leveling Platform (Double Conveyor) | — | Reducer motor: 2 HP × 2Gear ratio: 1:10 (with trolley)Table size: 450 × 1000 mm |
| J. Fully Automatic Hydraulic Press Machine | H-6215CSP | Working length: 6200 mm Working width: 22–150 mm Working thickness: 18–75 mm Feeding speed: 8–80 m/minCutter speed: 2840 rpm Max pressing force: 6 tonsMax hydraulic pressure: 110 kg/cm² Cutter motor: 5 HP Pump motor: 5 HP Conveyor motor: ½ HP |
Control System
-
PLC control and HMI interface
-
Automatic fault detection and display
-
Dual-stage servo synchronization
